Comet – CF-530C – 1.3-90MHz-125-470MHz Duplexer, Com Lead
$88.99
Sold out
Sold out
Save this product for later
Customer reviews
Reviews only from verified customers
No reviews yet. You can buy this product and be the first to leave a review.

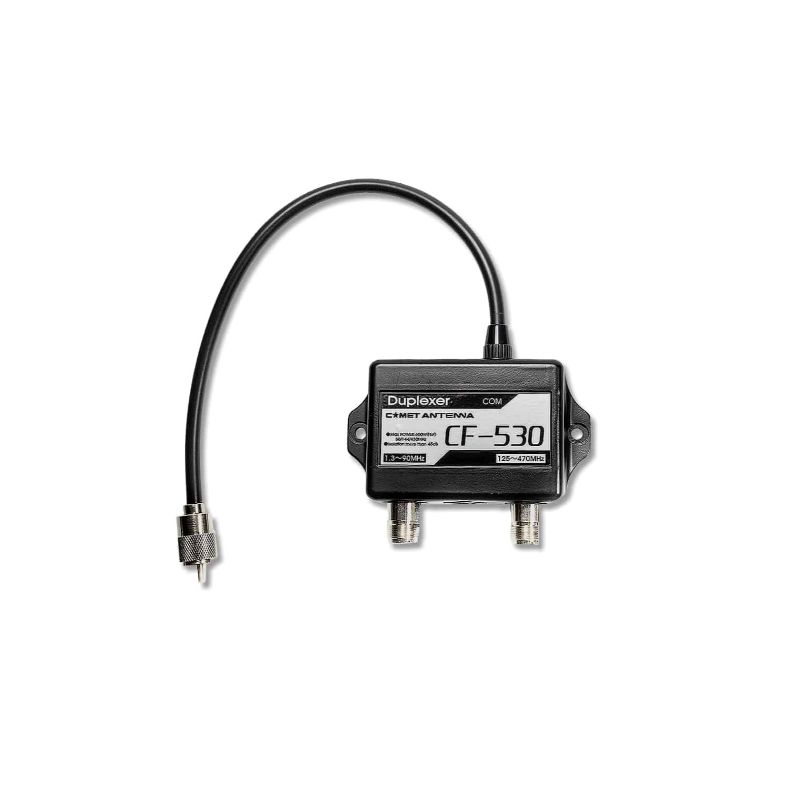

Comet – CF-530C – 1.3-90MHz-125-470MHz Duplexer, Com Lead
Product Details
Brand: COMET
HF-6M/2M-440MHz Duplexer for using separate antennas with the FT-8900 and similar radios
This version has a coax lead and PL-259 connector on the COMMON port.
This allows you to split the common connector on the FT-8900 back into two separate connectors:
This allows you to split the common connector on the FT-8900 back into two separate connectors:
One connector for an HF-6M antenna, the other connector for a 2M-440MHz antenna.
If desired, the 2M-440MHz connector on the CF-530C can then be split again if you want to use separate 2M and 440MHz antennas.
Band Pass Ins Loss Max Power
Low Pass: 1.3-90MHz .2dB 600W PEP
High Pass: 125-470MHz .2dB 600W PEP
Isolation: 45dB minimum
CONNECTORS:
Common: PL-259
Low Pass: SO-239
High Pass: SO-239
