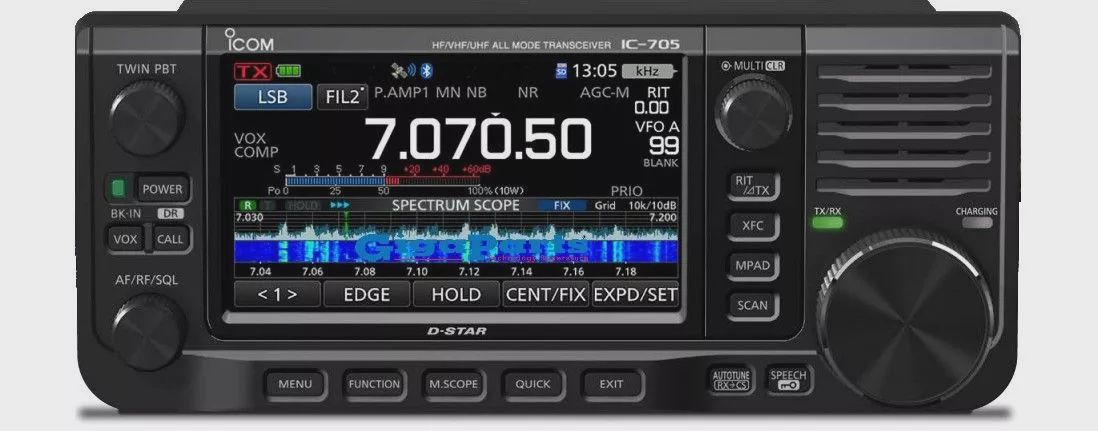

RKB-705 Repack Icom IC-705 All Mode QRP All Mode HF VHF UHF

Repack B “RKB”
 Radio Condition: Slightly “used” appearance; may have small
scratches, but nothing major
 Box Condition: May or may not have a box
 Accessories: All included
 Manual: Not included
 Warranty: 1 year from “end-user” proof of purchase

Features:

• HF/50/144/430 MHz All Mode, with D-Star DV
• RF direct sampling system
• Real-time spectrum scope and waterfall display
• Large touch screen color display
• Compact and lightweight design
• BP-272 battery pack or 13.8 V DC external power supply
• Maximum output power 10W (13.8 V DC), 5W (BP-272)
• Bluetooth® and wireless LAN capabilities
• Full equipped D-STAR functions
• Optional backpack, LC-192, ideal for field operations

HF/50/144/430 MHz ALL MODE

• From HF to 50/144/430 MHz, you can enjoy a variety of bands in D-STAR DV,
  SSB, CW, AM and FM modes. The IC-705 receives continuously from the
  medium wave broadcast band to 144 MHz band. You can also enjoy FM
  broadcast and air band reception

RF Direct Sampling System

• The IC-705 uses the RF direct sampling method* matured in the IC-7300,
  IC-7610, and IC-9700. This method greatly reduces distortion. The high speed
  /high resolution real-time spectrum scope and waterfall display are incorporated
  in a compact design for the first time in this class.

  * Down-conversion IF sampling method for 25 MHz and above

Real-Time Spectrum Scope and Waterfall Display

• The IC-705 inherits the performance and functions of the highly-acclaimed IC-7300
  and IC-9700 scopes. You can visually figure out the band condition and check clear
  frequencies. It takes you to the next level beyond traditional field operation.

Large Touch Screen Color Display

• The large 4.3 inch touch screen color display is the same size as the one used in
  the IC-7300 and IC-9700. It dramatically improves visibility and operability in the
  field.

Compact and Lightweight Design

• “Base station radio” performance and functions are packaged in a compact size of
  approximately 20 cm, 7.9 in (W) × 8 cm, 3.1in (H) × 8.5 cm, 3.3 in (D). The weight is
  approximately 1 kg (excluding battery pack and antenna). Its compact and lightweight
  design enables you to hold it with one hand.

BP-272 Battery Pack or 13.8 V DC External Power Supply

• The BP-272 Li-ion battery pack comes with the IC-705. This is the same battery pack
  used in the ID-51 and ID-31 handheld transceivers. Of course, a 13.8 V DC external
  power supply can be used, too.

Max. Output Power 10 W (13.8 V DC), 5 W (BP-272) Supports QRP/QRPp Operations

• Despite being a portable radio, it achieves the maximum output power of 10 W with a 13.8 V DC external power supply. When the standard BP-272 Li-ion battery pack is used, operation at the maximum output power of 5 W is possible.
• True 5 watt QRP as well as 0.5 watt QRPp are supported.

Bluetooth® and Wireless LAN

• Bluetooth® and wireless LAN are built-in. They can be used for
  smartphone linking and remote control, and also for Bluetooth®
  headsets.

GPS Antenna and GPS Logger

• A high-performance GPS antenna is incorporated. In the D-STAR DV mode, you
  can send and receive location information while communicating. This high-performance GPS enables various functions such as GPS log function and repeater
  search function.

microSD Card Slot

• The IC-705 is equipped with a microSD card* slot that can be used for rmware
  upgrades, programming and so on, as well as voice recordings and saving GPS
  log data.

  * microSD card is not supplied.

Full Equipped D-STAR Functions

• The IC-705 is fully equipped with functions to enjoy D-STAR comfortably, such as
  the DR function and Terminal Mode/Access Point Mode. In addition, you can
  send/receive and view saved photos using only the IC-705 without any
  application software.

Optional Backpack, LC-192, Ideal for Field Operations

• The IC-705 fits perfectly in the optional dedicated LC-192 multi-function backpack. It has various functions, such as holes for the antenna and holes for passing through coaxial cable and microphone cable. You can easily operate the IC-705 with it in the backpack.
