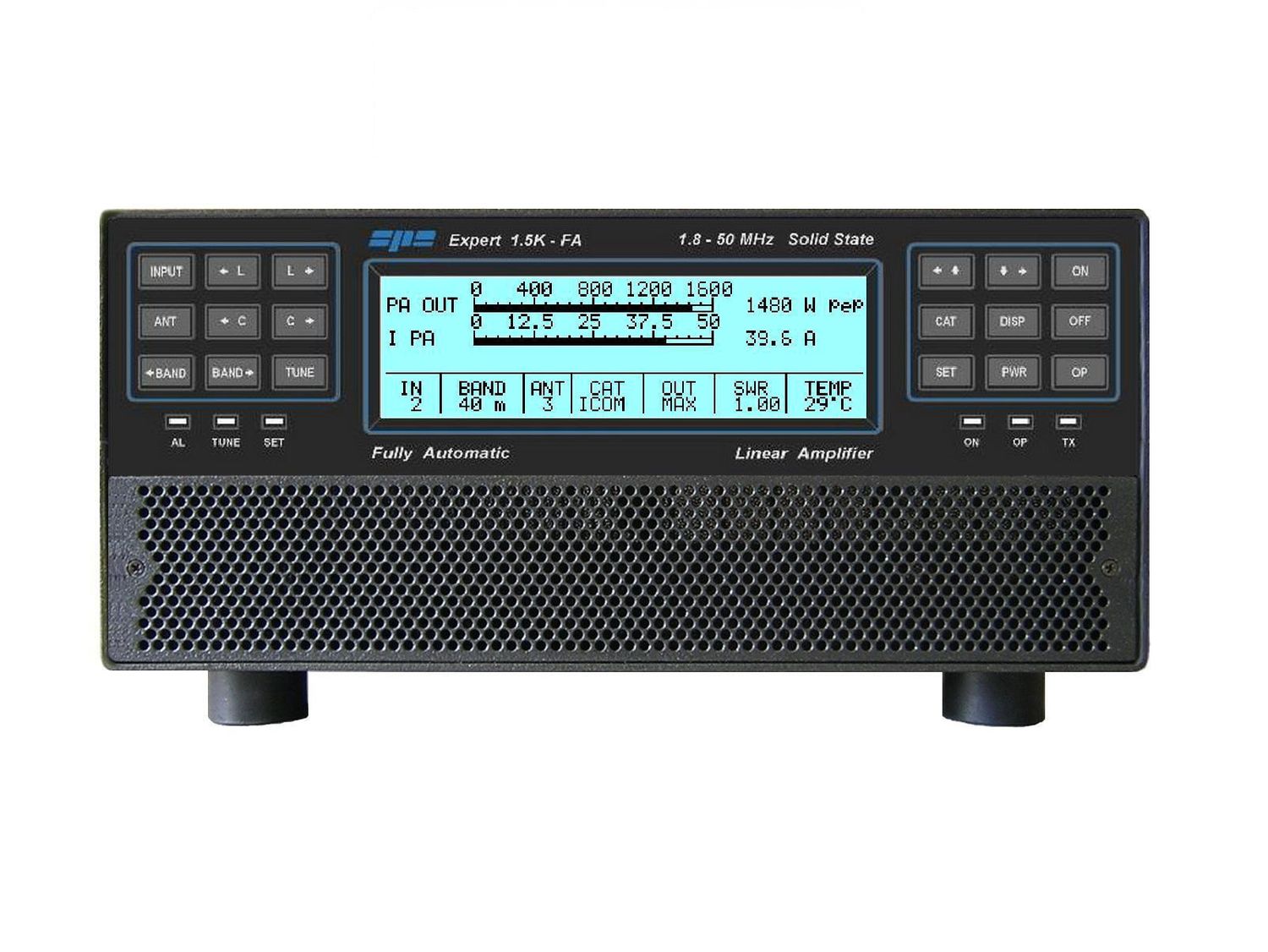

SPE Expert 1.5K-FA Linear Amplifier 1.5 KW Solid State Fully Automatic Linear Amplifier HF and 6M

Zero Stock, Next shipment comes in March 2026, Call to get on the lsit. No Deposit

Discounts available:

Pick up in store (Paris Texas) by appointment $75 discount. (Texas Tax Charged on Local Pickup 8.25 percent)

2.5 Percent ($164.88) Discount if paying by cash, bank wire, certified check

We Take Trade ins

For more information please see www.expertamps.com

1.5 KW Solid State Fully Automatic Linear Amplifier Third Series

• The smallest in its class:
  Built-in Power supply and Automatic Antenna Tuner.
  Dimension: L 28, H 14, P 38 cm ( 11.02” W, 5.51” H, 14.96” D ) connectors and rubber feet included.
  Approx. weight about 9,5 Kg (20.9 lbs).
• The most technologically advanced in the world:
  Two powerful CPUs are used.
  Software updated to be always compatible with the new rigs.
• Fully automatic:
  Easy connection with all models "ICOM, YAESU, KENWOOD, TEN-TEC, FLEX-
  RADIO, ELECRAFT" for immediate management of the bands, tuner and
  antennas.
  Same performance with all makes and some homemade rigs.
  The operator only has to move the “Frequency Tuning Knob” of the transceiver.
• Wide frequency coverage:
  1.8 MHz to 50 MHz including WARCs.
  60 m band, where permitted.
• Fully solid state:
  Solid 1.5 KW out, HF (+/- 0.5 dB), 50 MHz (+/- 0.8 dB).
  Switchable in MAX (full power), MID (1KW) or LOW (500 W), power selected
  according to the operator’s requirement or automatic for amplifier protection.
  No warmup time, immediately ready!
  Virtually limitless life of the amplification device.
  Only one LD / MOSFET used rated of 1.8 KW out.
• Automatic antenna tuner built-in:
  Capable of matching up to 5:1 SWR on HF, and 2.5:1 SWR on 6 meters.
  Capable of program controlling 4 aerials (SO239 connectors).
  Program up to 2 aerials for each band.
  Management of SteppIR / Ultrabeam aerials (tunable).
  Also measures the SWR of the antenna and cable system.
  Bands, aerials, tuning conditions are changed in 10 msec.
  Bands, aerials and tuning conditions are managed so that in “STBY“, only the
  exciter is passed through to the output.
  Max. attenuation 0.8 dB.
  ATU bypass capable.
• SO2R.
• Two inputs available:
  SO239 connectors.
• High power gain (up to 15 dB):
  In “OPERATE“ the required drive power is automatically set with the ALC
  connection.
  In “STANDBY“ the exciter is automatically reset to full power.
• Very clean and low distortion output:
  Spurious emissions FCC, CE, RCM (C-Tick) compliant.
  3rd order distortion (two tone test) from -30 dB to -35 dB ( typ. ).
• Input 50 ohm always perfectly matched:
  The same protection is realized in two different ways:
  Via hardware circuits (HW) to assure great speed.
  Via software (SW), to assure great accuracy.
  Due to the sophisticated software, the transmit relay changeover is carried out with
  zero current on the contacts.
• Full break-in operation (QSK).
• Quiet operation:
  Linear management of the speed of the cooling fans of the heatsink.
  The amplifier develops a significant amount of heat that must be removed.
  Therefore, every precaution is taken to keep the fan noise at the lowest possible
  level. Fan noise is significantly lower than with tube type amplifiers.
• Use:
  Full I.C.A.S. in all modes (room temperature 20 ° C / 68 ° F).
  In FM and for all digital modes currently in use the amplifier automatically
  switches to "MID" if for three seconds a continuous signal is emitted in "MAX".
• Switching power supply:
  Continuously operable at inputs between 100 – 255 VAC, 47-63 Hz.
  (100-120 VAC may cause slightly reduced output power).
  PFC (Power Factor Correction).
• The linear can be switched ON / OFF by switching the exciter ON / OFF.
• Can be operated fully remotable.
• With a large LCD display, it is possible to have a great deal of information:
  Watts pep out, Vpa, Ipa, Watts, Temperatures, SWR (after and before the ATU),
  Input setting, CAT setting, Band and other indications including the alarms log.
• Easy to operate:
  Powerful and sophisticated software gives you a user-friendly unit.
• USB / RS232 ports:
  For remote control.
  For new software releases download.
• Easy transportation:
  A sturdy carry-bag is supplied for QSY, FIELD DAY, DXpeditions etc.
• Certifications:
  CE, FCC. RCM (C-Tick)

N.B. These specifications are subject to change without notice.
