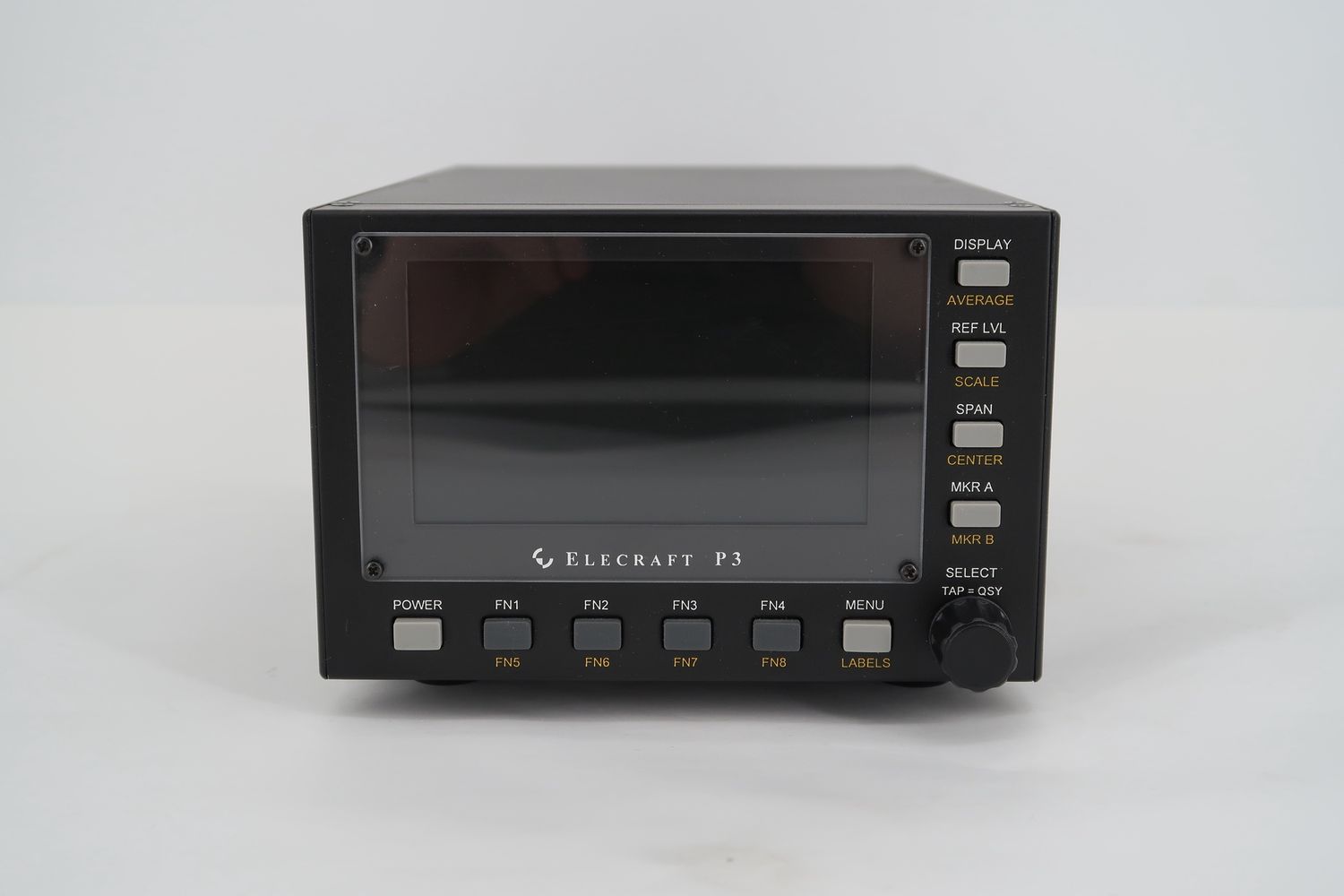

U18356 Used Elecraft P3 High-Performance Panadapter

U18356 Used Elecraft P3 High-Performance Panadapter

This panadapter is in excellent shape. The exterior has no major issues and looks very nice all throughout. This unit is very clean and works well too! The screen is great, the controls work very well, the text is nice, and the connections are sturdy. This unit comes with two manuals and makes for a great buy!

Comes with our 90-Day Warranty!

S/N: 2466

Item Info:

Our P3 Panadapter display adds a visual dimension to signal hunting with fast real time spectrum and waterfall displays of band activity. The P3 offers superior sensitivity and Direct Sampling DSP processing, giving you the ability to see signals down to the noise floor of the K3S (and K3).

• Simple 5 minute plug-in integration with the K3S and K3 - No PC required for normal operation
• The P3 looks and feels like it is part of the K3S and K3 transceivers
• Screen may be split to display both spectrum and waterfall displays at the same time
• 200 kHz maximum span; 2 kHz minimum span
• Point and click by pressing the "select" knob to move the K3S VFO to desired signals (Sets VFO A or VFO B)
• "Undo" feature to return to the previous frequency (before QSY)
• On-screen cursors show where the K3S's VFO A and VFO B are set, and their RX bandwidth
• Multi-pass signal averaging mode shows even weaker signals while averaging out the noise
• Peak detection mode to show total activity on the band
• Adjustable reference level and amplitude range scaling
• Both fixed frequency range and tracking display modes.
• User calibration of the display to show absolute signal level in dBm
• Buffered IF output to drive other equipment (CW Skimmer etc.)
• Transparent operation to external logging and control programs
• Programmable function keys for both P3 and K3 commands
• Programmable IF input (455 kHz to 21.7 MHz) for use with many other transceivers (IF output required)
• Firmware updates with new features downloadable from your PC/Mac.
• P3 Utility can upload the current P3 sweep screen to a .bmp graphics file on your PC.
• Available factory- assembled or as a modular "no-solder" kit
