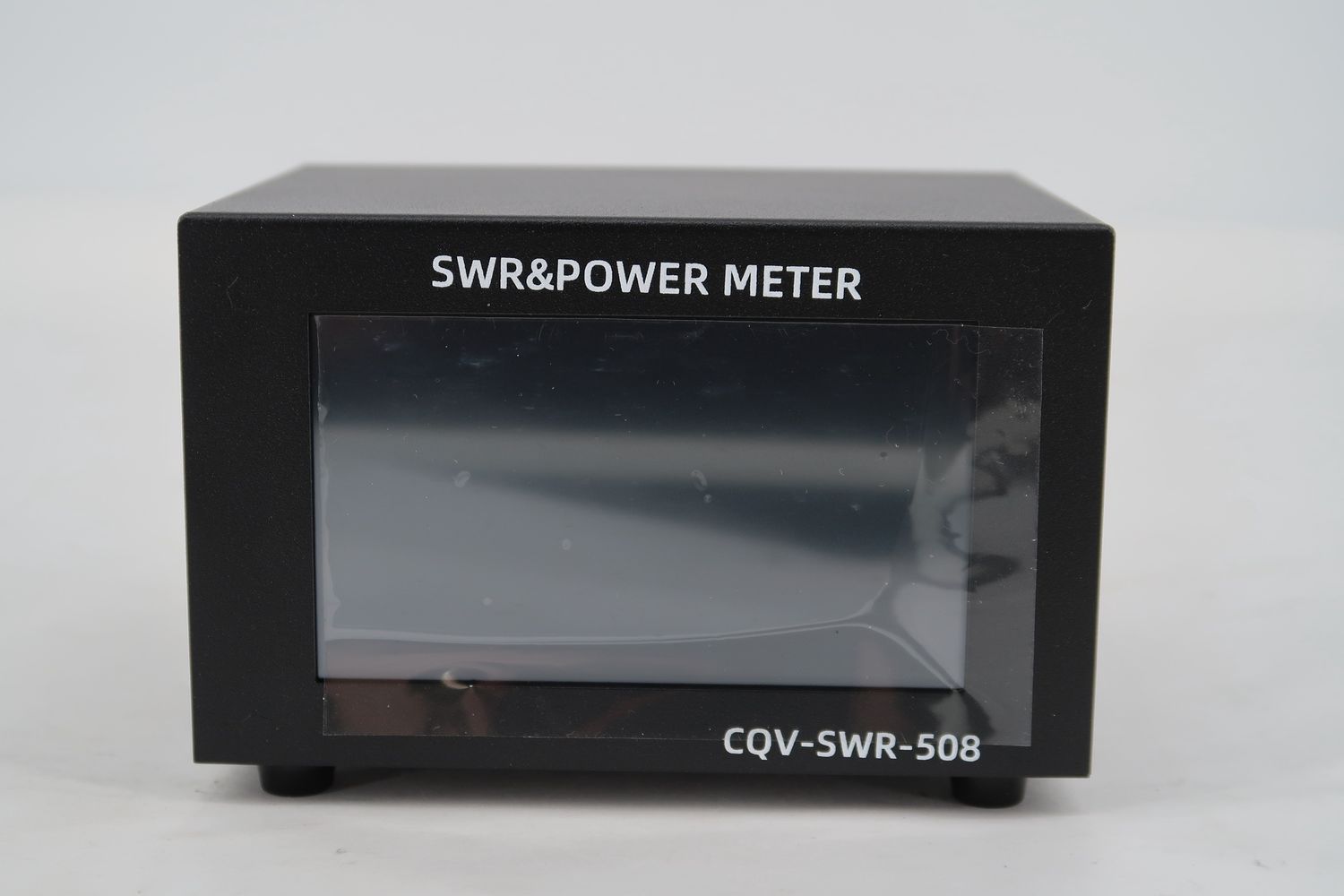

U18835 Used CQV-SWR-508 Digital Touchscreen SWR/Watt Meter

U18835 Used CQV-SWR-508 Digital Touchscreen SWR/Watt Meter

This meter is in excellent shape. The exterior is very nice with no notable cosmetic issues and hardly any dust. This unit also works great and is good overall. The screen is super nice and has the plastic cover on it still, the controls are nice, the text is good, and the connectors are sturdy. This unit comes within the original box with the guide and makes for a great buy!

Features:
- 200W digital power standing wave meter
- Support direct reading of forward/reverse, power/standing wave parameters
- 4.3-inch IPS color LCD display (resolution 480x272)
- High standing wave alarm function (standing wave alarm point can be set)
- Delay shutdown function (shutdown time can be set)
- Launch automatic boot function
- Battery under-voltage protection function
- Simulate the progress bar function
- Power fine-tuning function (±20%)
- Standing Wave fine-tuning function (±20%)

Specifications:
- Working frequency: 1.8-54Mhz
- Measuring range: 0.5-200W (in FM, CW, AM, FT8 mode, long-term use is recommended not to exceed 120W)
- Standing wave range: 1-99.9 (The default standing wave greater than 2.0 will alarm, you can set the alarm point through the menu)
- Charging interface: Type-C DC5V/1A (charging voltage max 5.5V)
- Battery model: 3.7V/4000mAh (battery voltage below 3.4v will flashing alarm, below 3.35V will automatic shutdown)
- Interface type: UHF (SL16)
- Shell size: 132mm x 100mm x 82mm (excluding the connector length)
- Net weight: about 800g

Comes with our 90-Day Warranty!

S/N: N/A
