12 Volt Power 30A Switching Power Supply

The PS-30 is a newly designed efficient, compact, and lightweight switching power supply that is designed to run almost any 12V device with clean and reliable power. Power your DC devices using either the front mounted dual Powerpoles or rear mounted 1/4″ binding Posts. DC output voltage of 13.8V rated for 25A continuous and 30A surge .

Dual DC Power Outputs

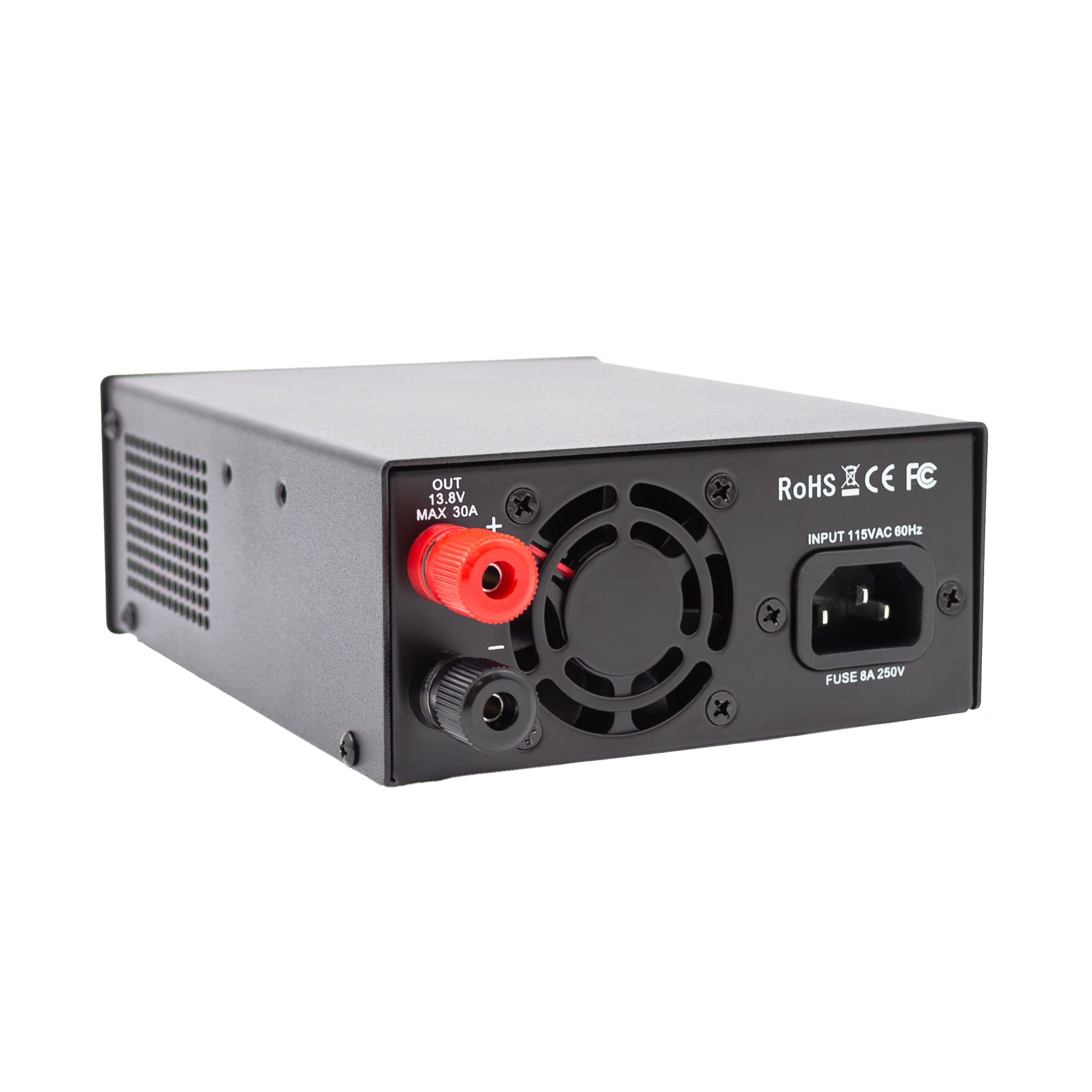

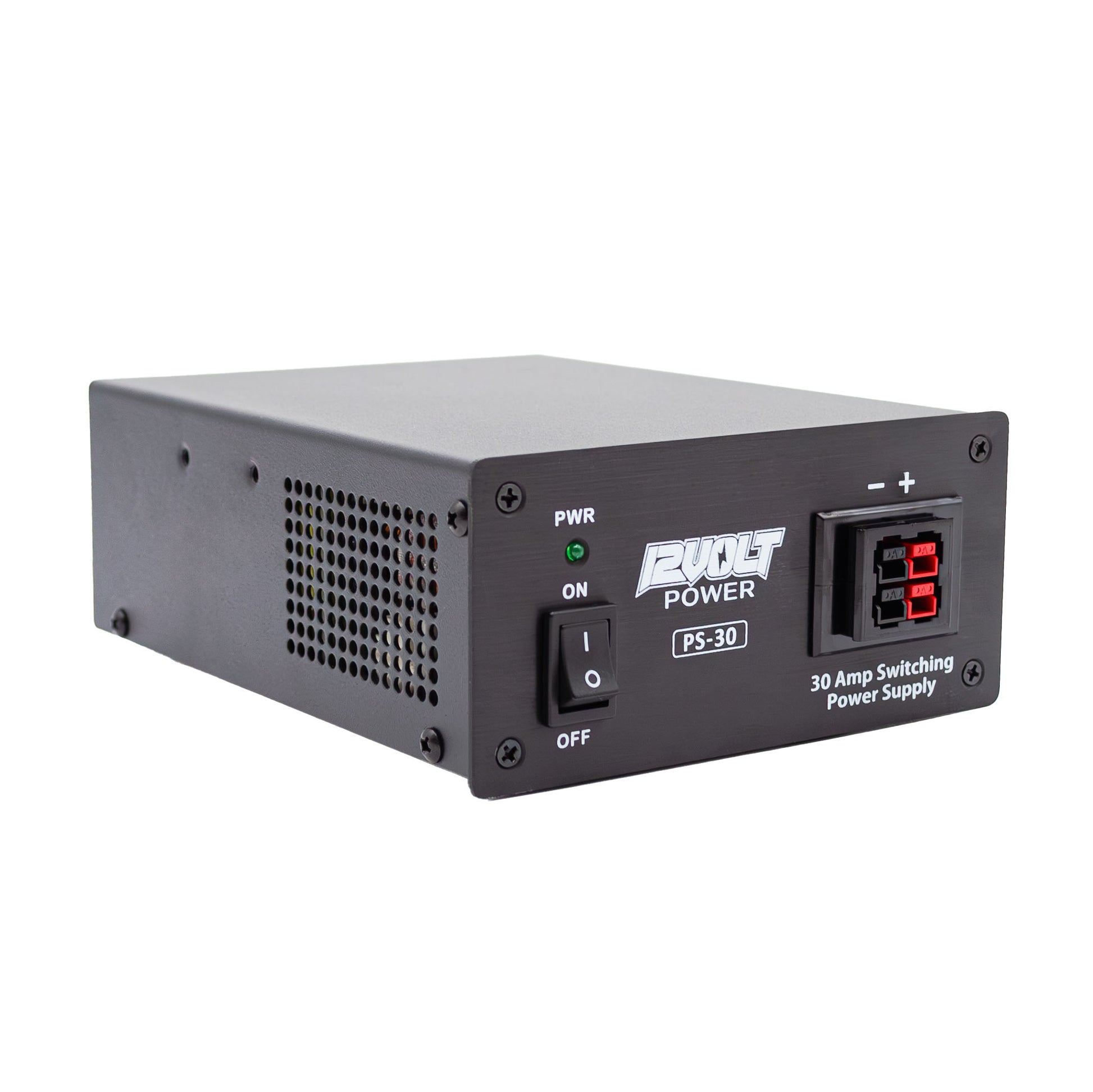

Power your radio and equipment with either the front mounted dual Powerpoles or rear mounted 1/4″ binding posts. Binding posts can also accept banana plugs.

Genuine Anderson Power Components

The PS-30 is made with the following genuine Anderson Power components:

• 1327-BK (Red Housing)
• 1327G6-BK (Black Housing)
• 1331-BK (30A Contacts)
• 1470G1-BK (Chassis Mount)
• 110G9-BK  (Retaining Pin)

Cooling

The PS-30 power supply is cooled by convection and forced air cooling. That is normal airflow around the power supply in combination with a temperature controlled fan to improve cooling at higher levels of use. The fan is always activated and the speed is controlled by a sensor. When the temperature rises, the fan speed increases.

Applications

• HF/VHF/UHF
• Land Mobile Radio Base Stations
• Communications Systems
• Security Systems
• Test Equipment
• Plotters
• GPS Receivers
• Automotive and Marine Displays
• DC Computers
• 12 Volt Lighting Systems
• OEM Applications

3-Year Limited Warranty

12 Volt Power offers this product to be free from defects in material and workmanship for a 3-year period from date of purchase.
