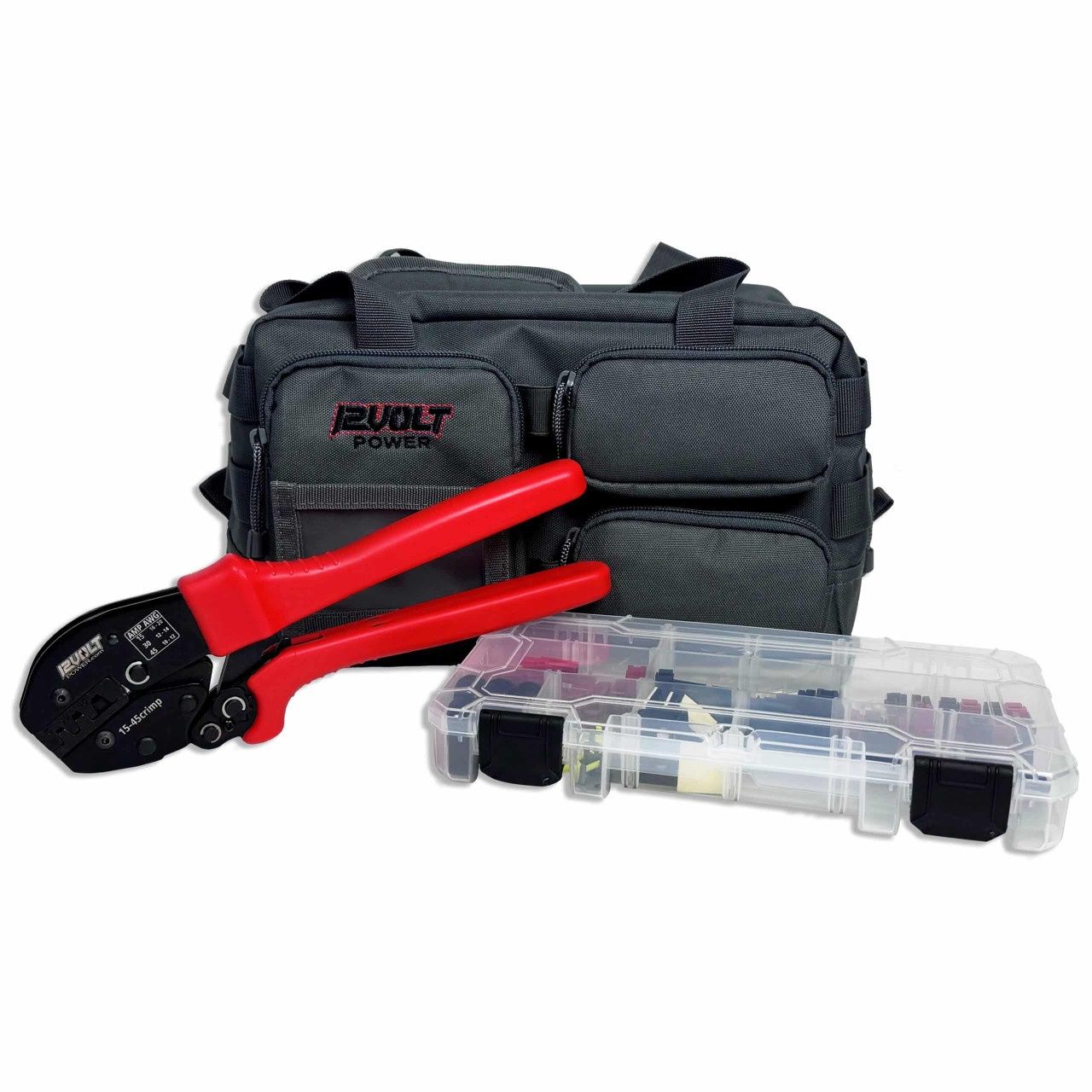

15-45GOBAG, The Ultimate All-In-One Assorted Powerpole and Crimp Tool

The 15-45GOBAG has everything you need to start crimping Powerpoles today! Includes our 15-45CRIMP Powerpole Crimping Tool, 15-45CASE 155-piece assorted Powerpole connector kit,  and durable tactical bag designed to organize and protect your Powerpole gear

15-45GOBAG – The Ultimate All-In-One assorted Powerpole and Crimp Tool kit. Heavy duty tactical nylon gear bag can easily store tools, Powerpole connectors, cables, radios, and more.  Heavy duty bag comes standard with molle loops, multiple zippered pockets, and ID pocket providing multiple storage options.

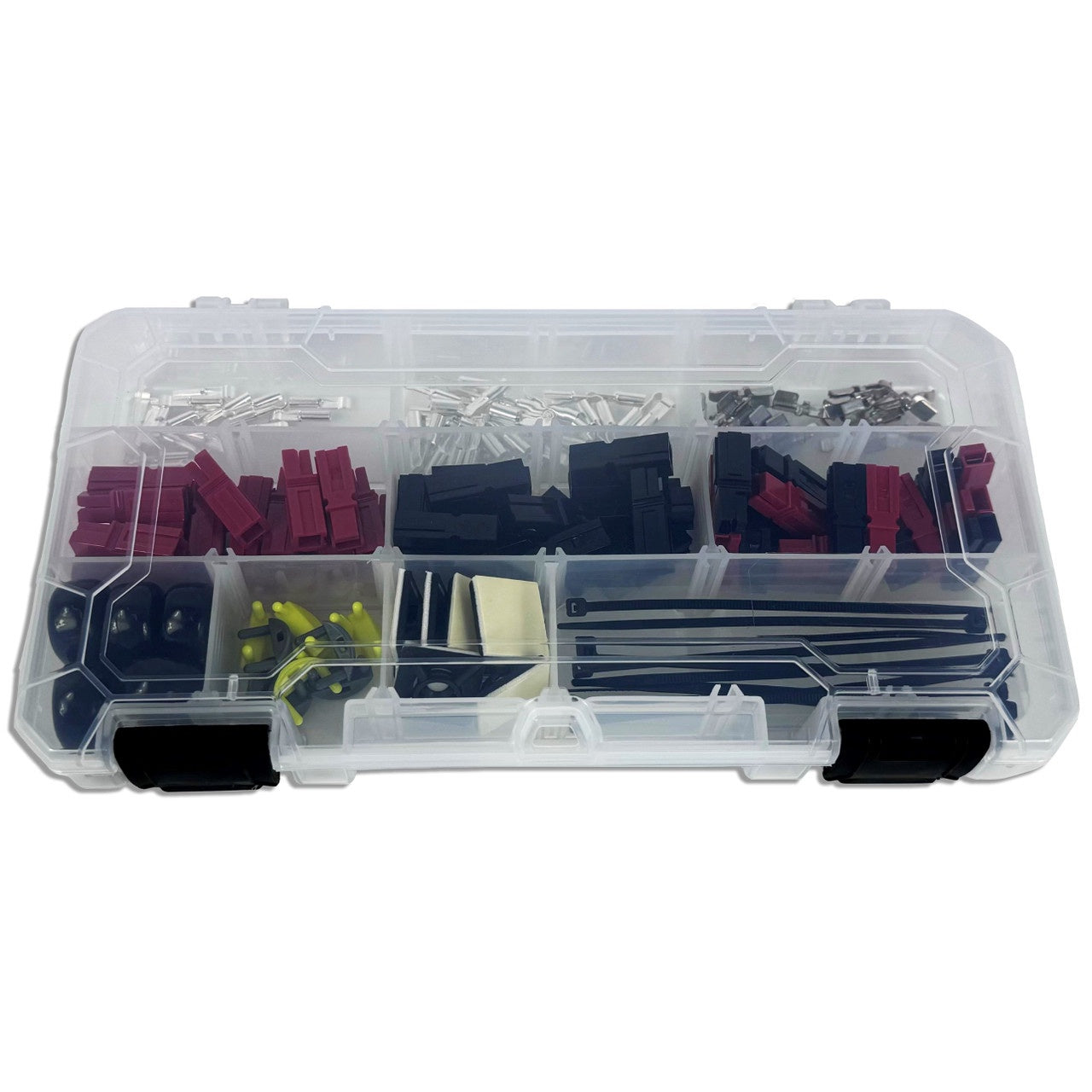

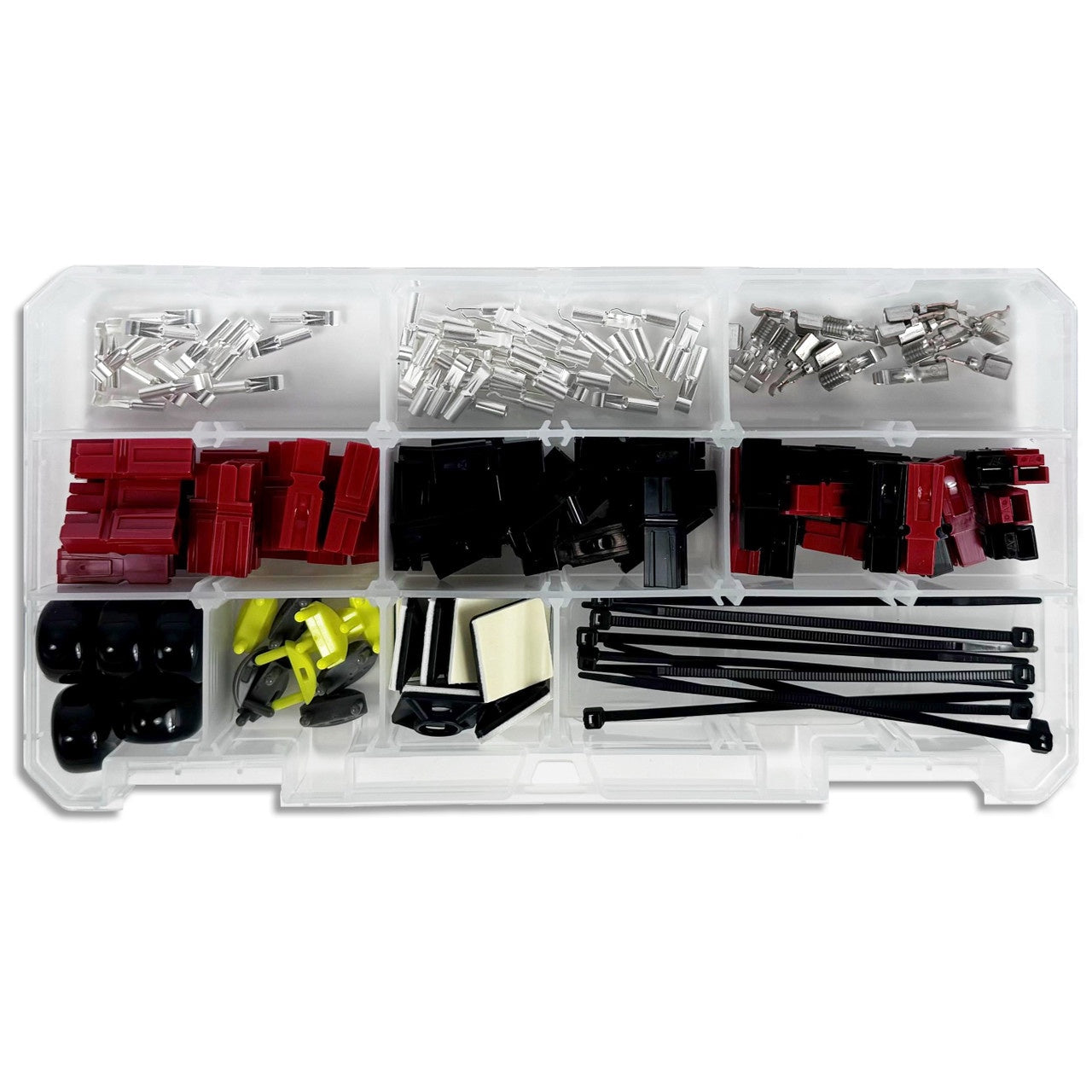

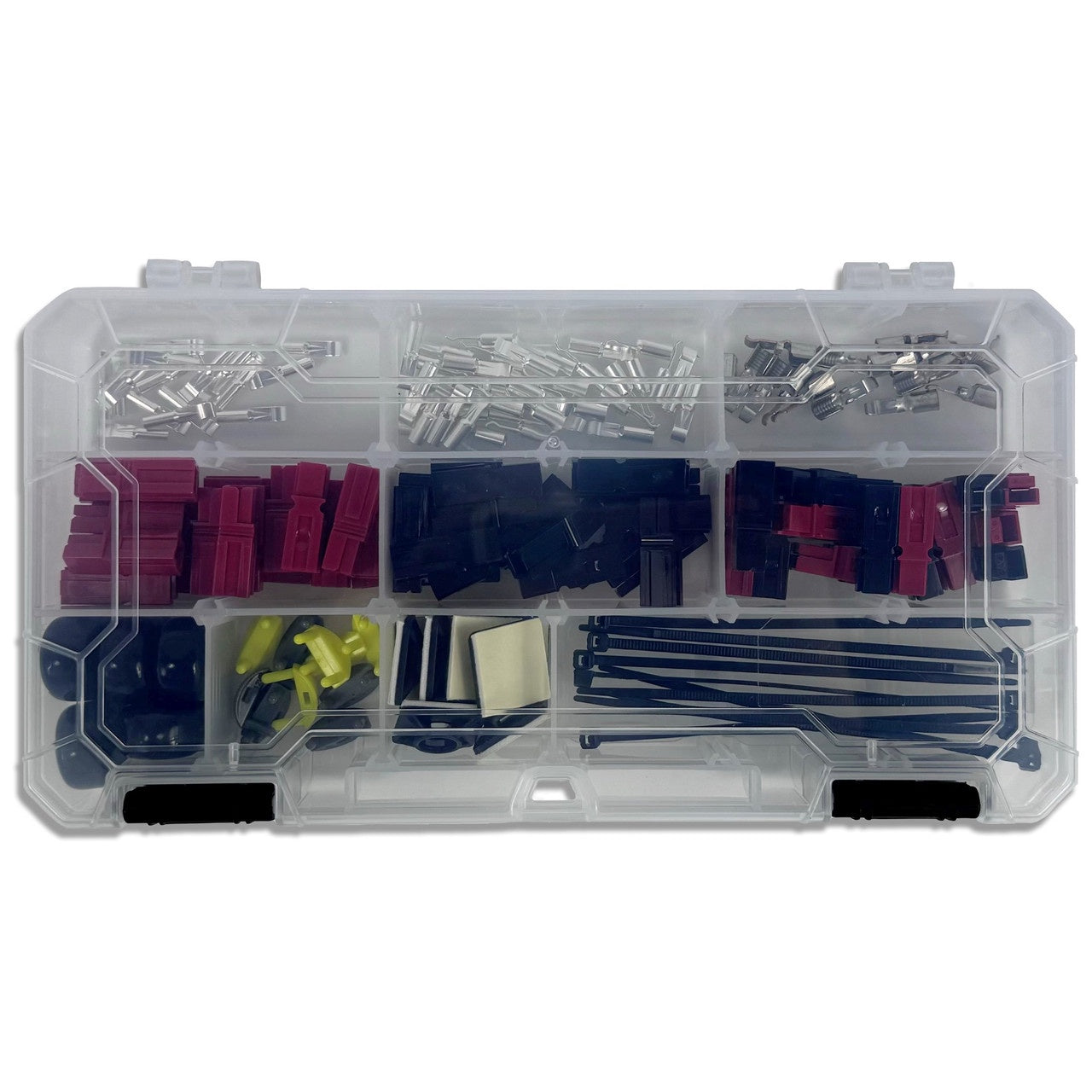

15-45case Contents:

Powerpole Housings

• Qty 20 Red Housings (1327)
• Qty 20 Black Housings (1327G6)
• Qty 10 Permanently Bonded Red/Black Housings (ASMPP30-1X2-RK)

• Contacts

  • Qty 16 15A Contacts (1332-BK)
  • Qty 38 30A Contacts (1331-BK)
  • Qty 16 45A Contacts (261G2-LPBK)

  Accessories

  • Qty 5 Gray Retention Clips (RC-G)
  • Qty 5 Safety Yellow Retention Clips (RC-Y)
  • Qty 5 Dust Covers (PP-CVR)
  • Qty 10 Adhesive Cable Tie Bases
  • Qty 10 18lb Rated 4′ Cable Ties

  15-45crimp:

  • Designed to crimp Powerpole 15, 30, and 45 amp series contacts
  • Built-in contact locator for optimal crimp position
  • Ratcheting style crimp tool for ease of use
  • Number marked cavity locations for correct contact size
  • Backed by a 1-year warranty against defects

  Contact Sizes

  15 Amp – 1332 Contact

  • Designed for 16, 18, and 20AWG

  30 Amp – 1331 Contact

  • Designed for 14 and 12AWG

  45 Amp – 261G2 Contact

  • Designed for 12 and 10AWG

  Crimping Instructions

  15 and 30 Amp Contacts:

  1. Insert wire into contact barrel
  2. Proceed to insert contact into correct cavity with flat side of contact on bottom
  3. Squeeze handles and fully cycle the ratchet until the handles release

  45 Amp Contacts:

  1. Insert contact into correct cavity with flat side of contact facing down and open end of contact facing up
  2. insert wire into the open end of the contact barrel
  3. Squeeze handles and fully cycle ratchet until the handles release

  The 15-45crimp crimping tool is not endorsed by Anderson Power Products®. Only official tooling solutions recommended by APP may be acceptable for safety agency approvals such as UL, CSA and TUV.

  Official tooling solutions such as the 1309 series are available for purchase at a higher price.
