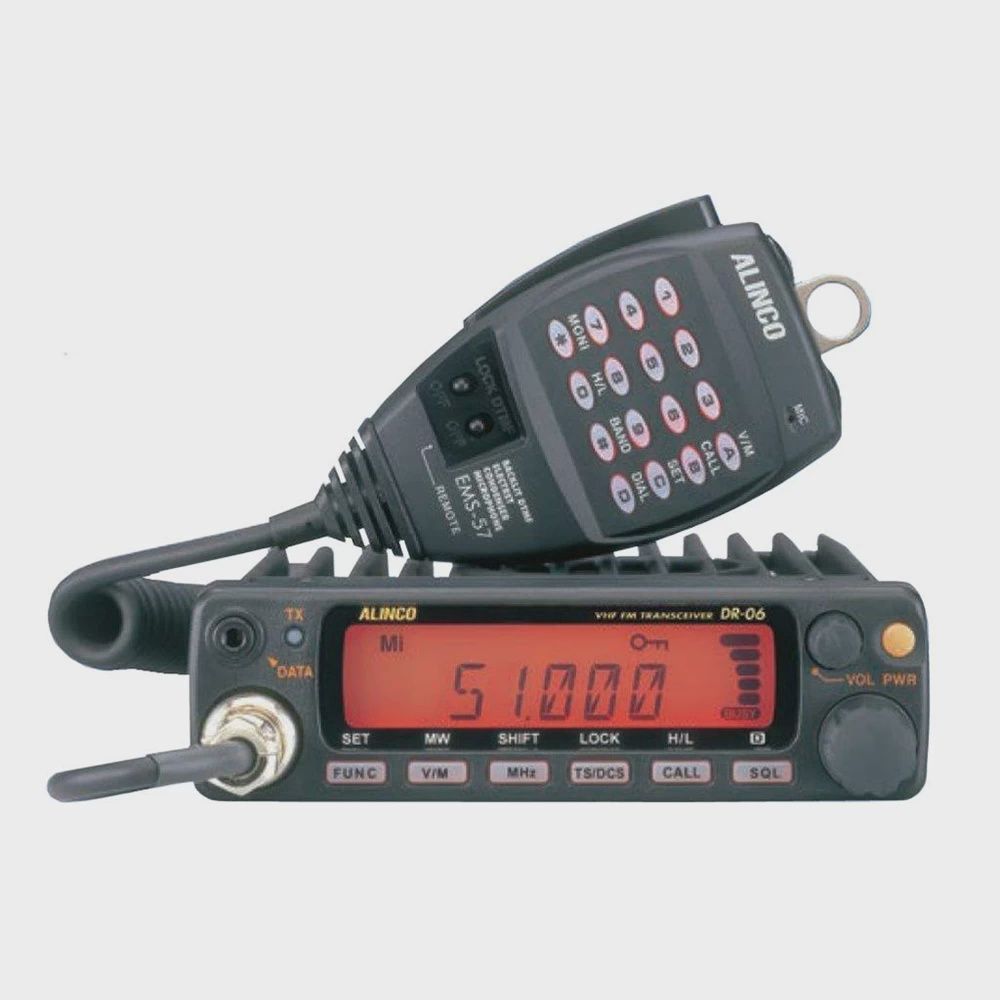

ALINCO DR-06TA 6 Meter FM Mobile Transceiver

Alinco DR-06TA 6-Meter FM Mobile Transceivers are capable, compact 6-Meter, 50 watt FM rigs. With the DR-06TA you will discover excitement working worldwide "Magic Band" communications!

Working DX is possible over thousands of miles when taking advantage of unique propagation such as Sporadic-E, F2 reflection and meteor scatter, just to name a few. Of course even without favorable propagation conditions, 6 meter repeaters will keep you communicating with friends as well./p>

When the Magic Band opens, the world is within your reach with just a few watts. Be part of the fun! These compact, affordable, easy-to-use mono-band rigs will make your QSOs more enjoyable at home or on the road, so take a closer look at 6m FM and Alinco!

• Wide and narrow FM modes
• Super-wide 7 character alphanumeric display
• 100 memory channels
• CTCSS, DCS encode and decode, DTMF encode and Tone-burst are all standard
• Ten autodial memories
• Clean, clear, quality audio
• Theft alarm feature
• Includes a large, palm-fitting commercial-grade backlit microphone with a metal connector (not a modular plug) as well as direct frequency input and direct multi-function access such as monitor, call channel, power setting, memory/VFO, plus more
• Stays in mode you select (voice/packet) even through power/off cycles
• Frequency range: TX: 50 to 53.995 MHz RX: 40 to 69.995 MHz
• Channel steps 5, 8.33, 10, 12.5, 15, 20, 25, 30, 50 kHz
• Memory: 100 channels plus 1 quick recall (CALL)
• CTCSS tone encoder/decoder 39 tones
• Digital coded squelch encoder/decoder 104 codes
• Antenna impedance: 50 ohms (SO-239)
• Frequency stability: Plus/minus 7 ppm
• Power requirement: 13.8 V nominal, 11.7 to 15.8 V
• Usable temperature range: 14 to 140 degrees F
• Dimensions (w/o projections) 5.59 in. (W) x 1.57 in. (H) x 6.85 in. (D)
• Power Settings: 50W (HI) 20W (MID) Approx. 5W (LOW)
• Modulation system: Variable-reactance frequency modulation
• Spurious emission: Less than -40 dB
• Maximum frequency deviation: Plus/minus 5 kHz (FM), Plus/minus 2.5 kHz (Narrow FM)

Radio Includes:

• EMS-57 DTMF microphone
• Mounting Bracket w/Screws
• DC Power Cable
• Microphone holder
• Instruction Manual
