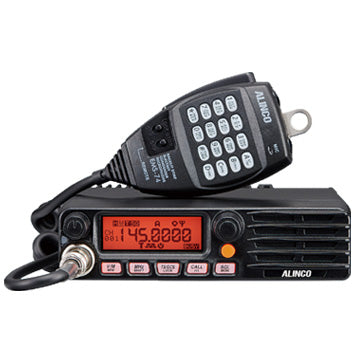

Alinco DR-B185MK2 90W 2M FM Mobile With APRS And GPS Receiver

Alinco’s DR-B185TMKII is a new robust 2M mobile radio Transceiver offering 90W output power for long-range communications. It features advance noise cancellation for enhanced audio clarity, ensuring clear transmission even in noisy environments. Additionally,  it comes equipped with built-in GPS for APRS communications along with featured AM Airband and FM broadcast receiver. Equipped with an integrated cooling fan providing reliable performance during extended use and preventing overheating. This model is ideal for users requiring  high power and durability in demanding situations without compromising higher price.

Features:

• Selectable output power: 90W / 30W / 10W / 5W
• PC-programmable, 200 channels
• Alphanumeric name tags
• New noise reduction function reduces surrounding noise during transmissions
• Built-in GPS and APRS keep you connected and let you share location and track others in real time (TMk2 Amateur Models Only)
• Voice Compander enhances receiver audio clarity
• Wide variety of built-in selective calling: 2-Tone, 5-Tone, 50 CTCSS, 114 DCS, 4 Tone-burst, and DTMF/ANI decode
• Radio stun/kill/revive functions protect communication security
• Large, bright LCD with easy-to-operate backlit keys
• Multi-function backlit microphone enables direct frequency entry and more from the keypad
• Airband and FM broadcast receiver with 20 memory channels (Airband on TMkII Amateur Models Only)
• Various scan modes, key lock, and Wide/Narrow operation at no extra cost
• Integrated cooling fan promotes stable operation during prolonged use

Specifications

• Frequency Range: Mk2 RX 136-174MHz / TX 144-148MHz AM / 76-108MHz WFM
• Number of Channels: 200
• Channel Spacing: 25KHz (Wide) / 20KHz (Middle) / 12.5KHz (Narrow)
• Channel Step: 2.5, 5, 6.25, 8.33, 10, 12.5, 15, 20, 25, 30, 50KHz
• Operating Voltage: 13.8V DC ±15%
• Squelch: Carrier/CTCSS/DCS/5Tone/2Tone/DTMF
• Frequency Stability: ±1.5ppm
• Operating Temperature: -20°C to +60°C (-4°F to +140°F)
• Dimensions: 160(W) x 43(H) x 185(L)mm (6.3 x 1.7 x 7.3 in) approx.
• Weight: 1.29kg (45.5oz) approx.
• Power Output: 90W / 30W / 10W / 5W (Wide or Narrow mode)
• Audio Power Output: greater than 2W @ 10%
• Rated Shock/Vibration: MIL-STD-810G, Method 514.6/IV (Shock), Method 516.6/I (Vibration)

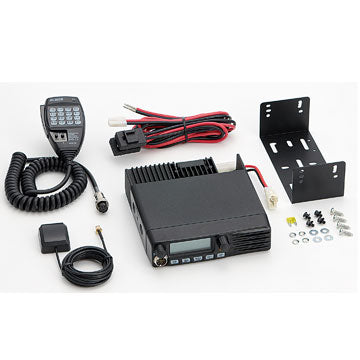

Standard Accessories:

• ADB185M2 - Mobile Bracket
• ADUA107 - DC Power Cable (15A Fuse)
• EMS-74 - Backlit Keypad Microphone
• EA-0289 - GPS Antenna
