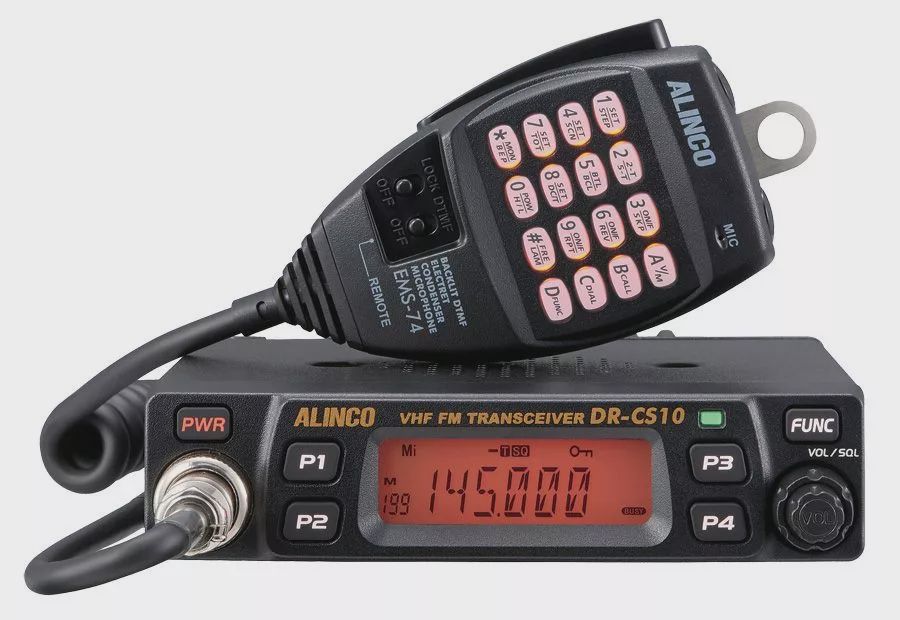

ALINCO DR-CS10HT Alinco Ultra Compact 2 Meter Radio

The Alinco's latest 2M DR-CS10 in its ultra compact package is loaded with high technology features.The easy and smooth operation of DR-CS10 is inherited from popular Alinco radio equipment series such as a large back-lit display & microphone, excellent transmit/receive audio, 200ch memories, various scanning and more and more at No extra costs! Affordable, easy-to-use DR-CS10 will offer everything you may expect from a 2M mobile transceiver.

DR-CS10 Features:

• Output power selectable 60W
• PC-programmable 200 channel
• Alphanumeric name tags
• Wide variety of selective calling features
  - Built-In, 2-Tone/5-Tone, 51 CTCSS, 1024 DCS, 4 Tone-burst tones and DTMF / ANI decode
• Large, bright LCD and easy-to-operate backlit microphone keys
• Multi-function microphone enables direct frequency entry & remote control
• Various scan modes, Key lock, Wide / Narrow operations and more!
• Clean, clear Alinco audio

SPECIFICATIONS:

Frequency Range:

• TX: 144 - 147.9975 MHz
• RX: 136 - 173.9975MHz

Memory Channels: 200 channels

Channel Spacing: 25KHz (Wide mode) / 20KHz (Middle mode) / 12.5KHz (Narrow mode)

Channel Steps: 2.5KHz, 5KHz, 6.25KHz, 8.33KHz, 10KHz, 12.5KHz, 15KHz, 20KHz, 25KHz, 30KHz, 50KHz

Operating Voltage: 13.8V DC ±15%

Squelch: Carrier / CTCSS / DCS / 5Tone / 2Tone / DTMF

Frequency Stability: +/- 2.5ppm TCXO

Operating Temperature:-20°C~ +60°C

Usable Temperature Range: 14°F ~ 140°F (-10°C ~ +60°C)

Dimensions (w/o projection):

• 5.709(W) x1.378(H)x 7.087(D) in approx.
• 145 (W) x 35 (H) x 180 (D) mm approx.

WeightWeight Approx: 0.910 kg / 32.1 ounce

TRANSMITTER:

• Output power: Approx. 60W
• Modulation: Wide Mode: 16KΦF3E / Narrow Mode: 1KΦF3E
• Adjacent Channel Power: Wide Mode: ≥68dB / Narrow Mode: ≥60dB
• Hum & Noise: Wide Mode: ≥40dB / Narrow Mode: ≥36dB
• Spurious Emission: Wide Mode: ≥60dB / Narrow Mode: ≥60dB
• Audio Response: Wide Mode: +1~-3dB (0.3~3KHz) / Narrow Mode: +1~-3dB (0.3~2.55KHz
• Audio Distortion: ≤5%
• Current drain (max): 10A (TX) / 0.6A (RX)

RECEIVER:

• Receive System: Double-conversion superheterodyne
• Sensitivity (12dB Sinad): Wide mode: ≤0.3μV / Narrow mode: ≤0.35μV
• Adjacent Channel Selectivity: Wide mode: ≥70dB / Narrow mode: ≥60dB
• Intermodulation: Wide mode: ≥65dB / Narrow mode: ≥60dB
• Spurious Rejection: Wide mode: ≥70dB / Narrow mode: ≥70dB
• Audio Response: Wide mode: +1~-3dB(0.3~3KHz) / Narrow mode: +1~-3dB(0.3~2.55KHz)
• Hum & Noise: Wide mode: ≥45dB / Narrow mode: ≥40dB
• Audio Distortion: ≤5%
• Audio Power Putput: >2W@10%

STANDARD ACCESSORIES:

• Instruction manual

• EMS-74 DTMF Microphone

• Mounting Bracket w/screw kit

• ADUA38 DC Power Cable
