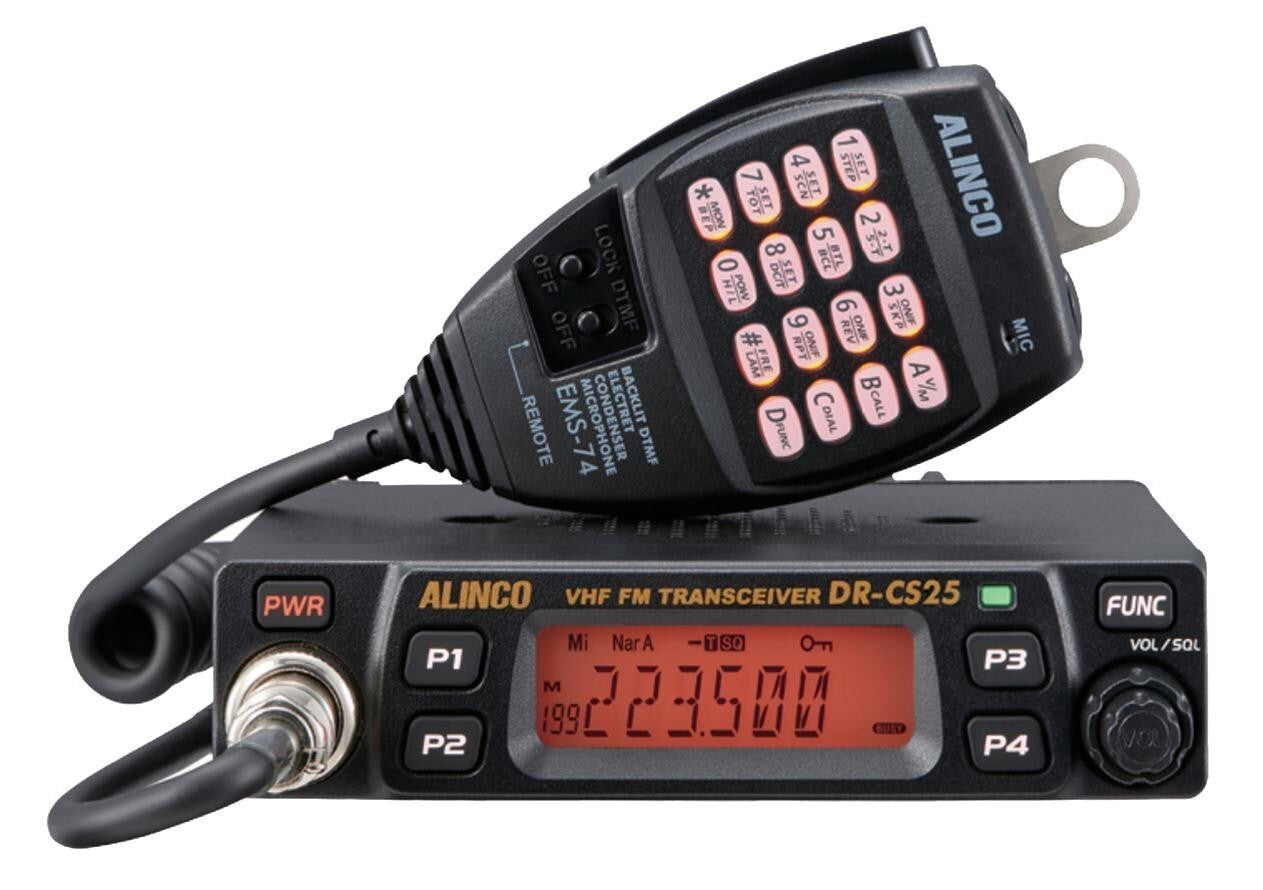

Alinco's latest 220MHz DR-CS25 is now sporting an all new ultra compact package and loaded with all new features.
The ease of use and operation of DR-CS25 is inherited to Alinco Radio Equipment. This new 220 MHz radio features a large back-lit display & microphone. If you can appeciate excellent Transmit & Receive Audio, this radio has you covered. 200ch memories, various scanning modes and more packed into this package at no additional cost!
The all new DR-CS25 will offer everything you may expect from a High End 220 MHz Mobile FM Transceiver.
DR-CS25 Features:
- Selectable Output Power: 50W / 25W / 10W
- PC-Programmable: 200 Memory Channels
- Alphanumeric Name Tags
- Wide Variety of Selective Calling Features
- Built-In, 2-Tone/5-Tone, 51 CTCSS, 1024 DCS, 4 Tone-burst tones and DTMF / ANI decode
- Large, bright LCD and easy-to-operate backlit microphone keys
- Multi-function microphone enables direct frequency entry & remote control
- Various scan modes, Key lock, Wide / Narrow operations and more!
- Clean, Clear Alinco Audio
SPECIFICATIONS:
Frequency Range:
- TX: 222.000 - 224.9975 MHz
- RX: 220.000 - 259.9975MHz
Memory Channel: 200 Channels
Channel Spacing: 25KHz (Wide mode); 20KHz (Middle mode); 12.5KHz (Narrow mode)
Channel Steps: 2.5KHz, 5KHz, 6.25KHz, 8.33KHz, 10KHz, 12.5KHz, 15KHz, 20KHz, 25KHz, 30KHz, 50KHz
Operating Voltage: 13.8V DC ±15%
Squelch: Carrier / CTCSS / DCS / 5Tone / 2Tone / DTMF
Frequency Stability: +/- 2.5ppm TCXO
Operating Temperature:-20°C~ +60°C
Usable Temperature Range: 14°F ~ 140°F (-10°C ~ +60°C)
Dimensions (w/o projection):
- 5.709(W) x1.378(H)x 7.087(D) in approx.
- 145 (W) x 35 (H) x 180 (D) mm approx.
Weight Approx: 0.910 kg / 32.1 ounce
Supplied Accessories:
- Instruction Manual
- EMS-74 DTMF Microphone
- Mounting Bracket w/screw kit
- ADUA38 DC Power Cable
