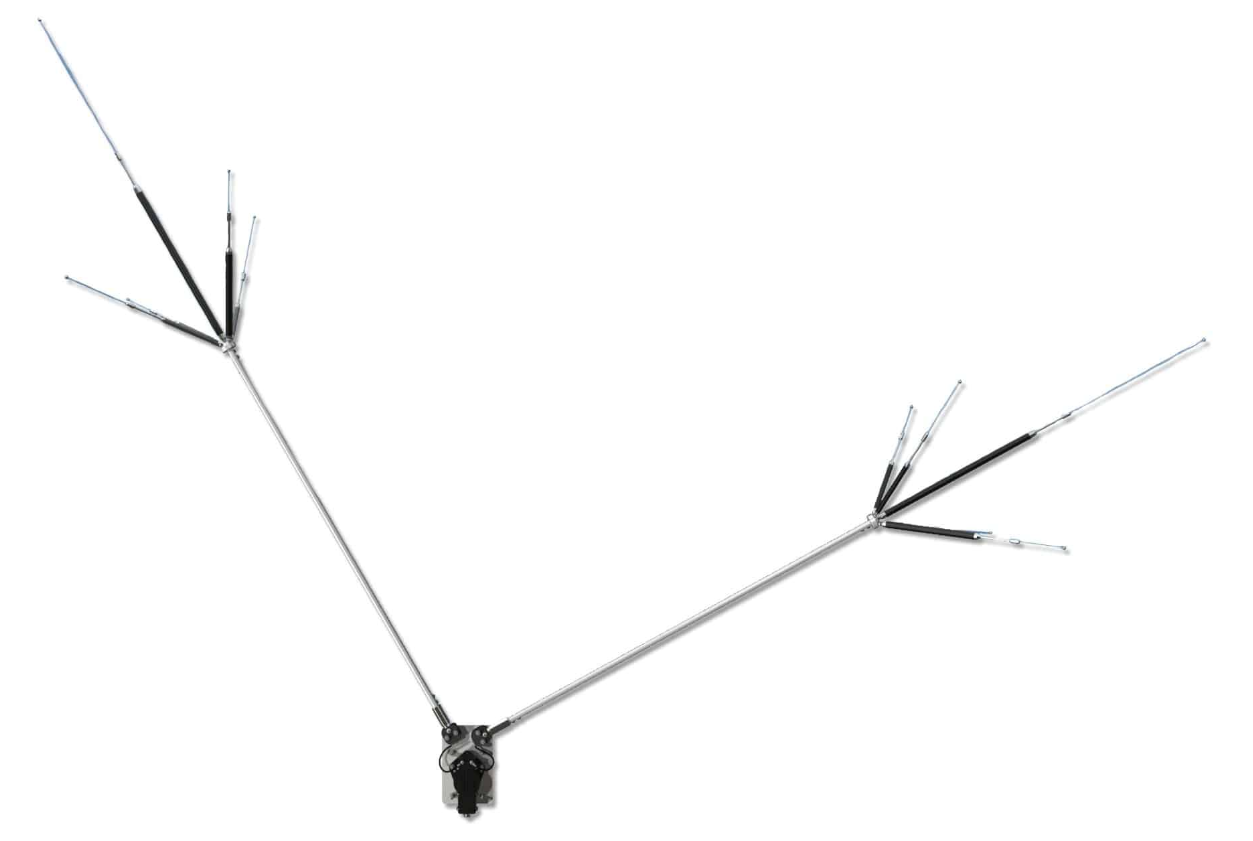

Comet – CHV-5X – 40-20-15-10-6M Compact Rotatable Dipole Plus Freight

5-Band, 1/2 wave rotatable dipole for 40/20/15/10/6 meters

This is the compact dipole used for HF communications on the set of the ABC Television show “Last Man Standing” with Tim Allen. The crowded space above the set required a compact multi-band dipole, and the CHV-5X was selected to solve the problem the minimal space presented.
Compact, lightweight, and easily assembled in either a horizontal, “V” shape or ground-plane configuration. Each band tunes independently of the others.
Comet engineers have specifically designed this antenna for those that desire a milti-band dipole that can be rotated if needed, but do not have a lot of room to install it.
If you have antenna restrictions, neighbors that tend to complain about antennas, simply want to operate without drawing attention…or you want a lightweight multi-band antenna to use in portable or emergency situations, the CHV-5X is a great choice.
Max power:
40/20M 150W SSB
15/10/6M 220W SSB
Horizontal length: 13 ft approx
Weight: 5 lbs 14 oz approx
Impedance: 50 Ohm
Connector: SO-239
Mounting mast req’d: 1″-2.5″
Typical 1.5:1 or less SWR bandwidth:
40M: 22kHz
20M: 36kHz
15M: 54kHz
10M: 140kHz
6M: 1.8MHz

$19.95 Oversize Shipping
