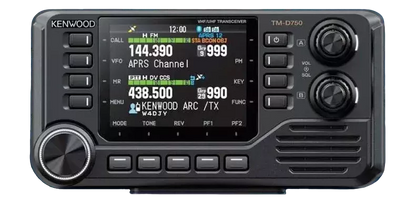

Kenwood TM-D750A 144/220/430MHz Digital Triband Mobile Transceiver D-STAR/APRS

Coming Soon. Ships from MTC 9-3-2026

Kenwood's TM-D750A (TM-D750AK) mobile transceiver, with advanced D-STAR and APRS capabilities, takes your operating experience to the next level.

The transceiver utilizes the built-in wireless LAN for direct connection to the D-STAR network without the need for external devices, and the high-performance built-in GPS module/antenna to receive signals from satellite constellations.

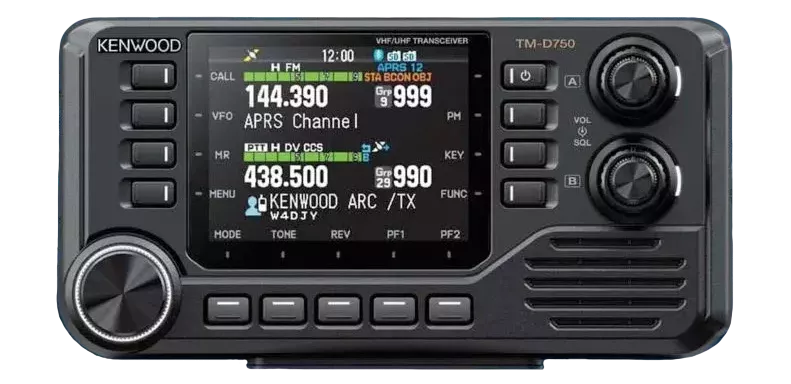

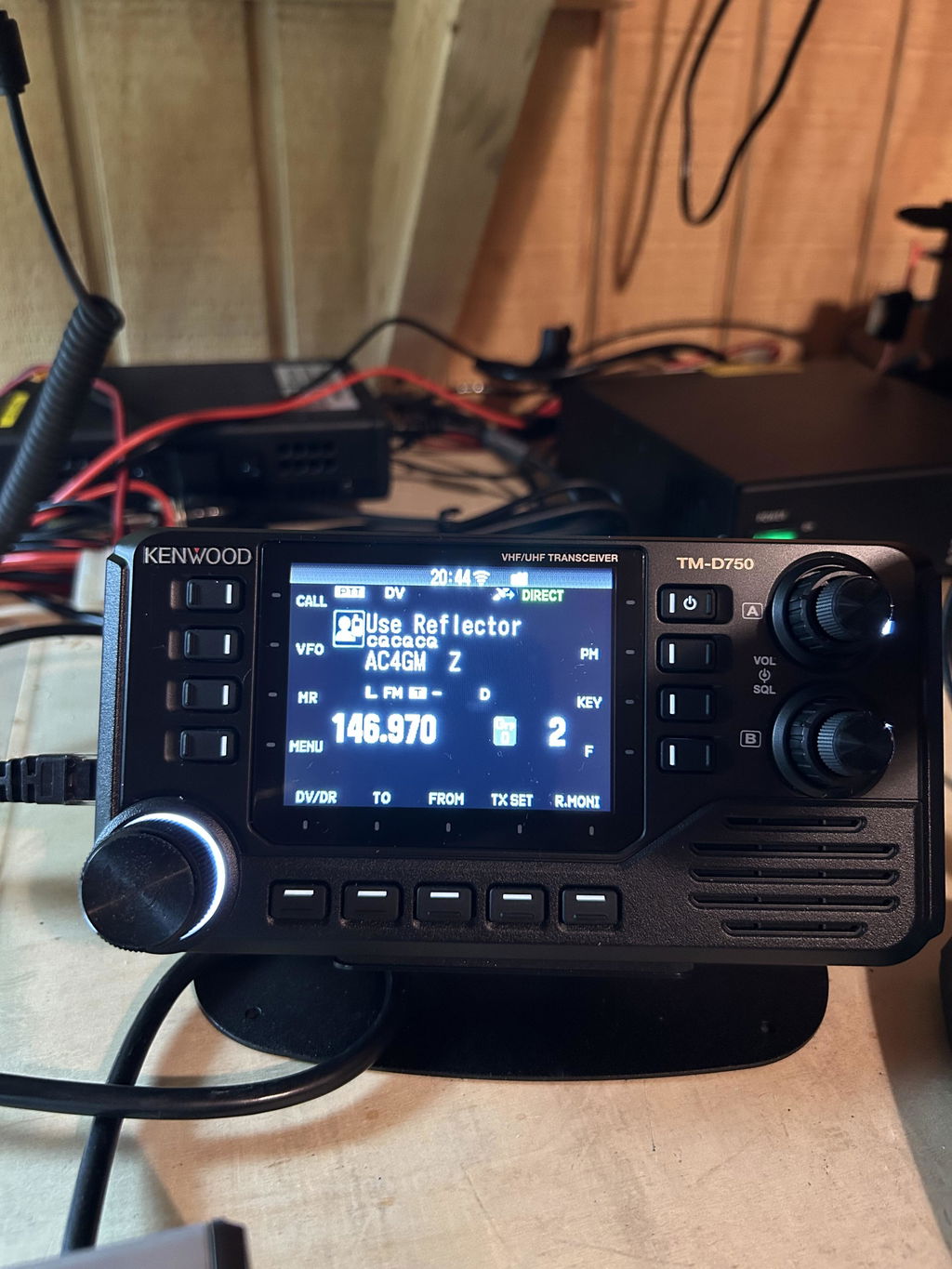

The operation panel with 3.45-inch TFT Color LCD is separate from the main unit and features a USB-C connector, a microSD card slot, and a built-in speaker to deliver superb audio quality.

Main Features:

• 2.4/5 GHz Wireless LAN (WLAN).
• Direct Mode allows easy and direct access to D-STAR repeaters and reflectors over the Internet using the built-in WLAN without requiring nearby repeaters or external devices.
• D-STAR Repeater Monitor allows audibly checking ongoing communications on remote D-STAR repeaters over the Internet using the built-in WLAN.
• Reflector Terminal Mode/Standard Terminal Mode allows the transceiver to connect to D-STAR reflectors or repeaters via a Bluetooth® or USB connection to a third-party gateway app.
• Simultaneous AM air band reception on A & B bands.
• Simultaneous recording of received audio on A & B bands.
• Brightness-adjustable, wide viewing-angle 3.45-inch TFT Color LCD (320 x 240 pixels, RGB) on the operation panel remains easy to see even in sunlight when mounted in a vehicle.
• Visual Scan with Waterfall: Display of visual scan history in a vividly colorful waterfall format.
• microSD/SDHC Card Slot: Used for storing and retrieving programming data, recording received audio, updating firmware, updating repeater list etc.
• Built-in Bluetooth, Bulit-in GPS module/antenna to access GPS, Galileo, and QZSS satellites.
• Bulit-in speaker with 3W AF output on the operation panel.
• Turning on the APRS function automatically switches to the preset APRS frequency.

Additional Key Features:

APRS Protocol Compliant:
Real-time two-way data communicationsfor full scale operations, featuring a wealth of displays and functions.

Built-In Wireless Lan:
D-STAR network can be accessed directly and easily using the Direct Modewithout the need for external devices.

Reflector Terminal Mode:
The built-in MMDVM command enables easy access to D-STAR reflectors via a Windows PC or Android device using a USB connection or Bluetooth.

Simultaneous Reception:
Dual Signal reception for digital voice and data expands your communications capabilities.

Built-In KISS TNC
Supports APRS operations with a standalone digipeater function. PC connection enable 1200-9600 bps packet communication and IGate operation.

D-STAR Digital Protocol compatible
Flexible D-Star network access including Bluetooth, USB and Wireless LAN.

Flexibility
Remote Operation Panel with built-in speaker.

Convenience
Built in GPS with patch antenna.

Display
3.45 inch TFT Color LCD with high drightness and wide viewing angles.

Connectivity

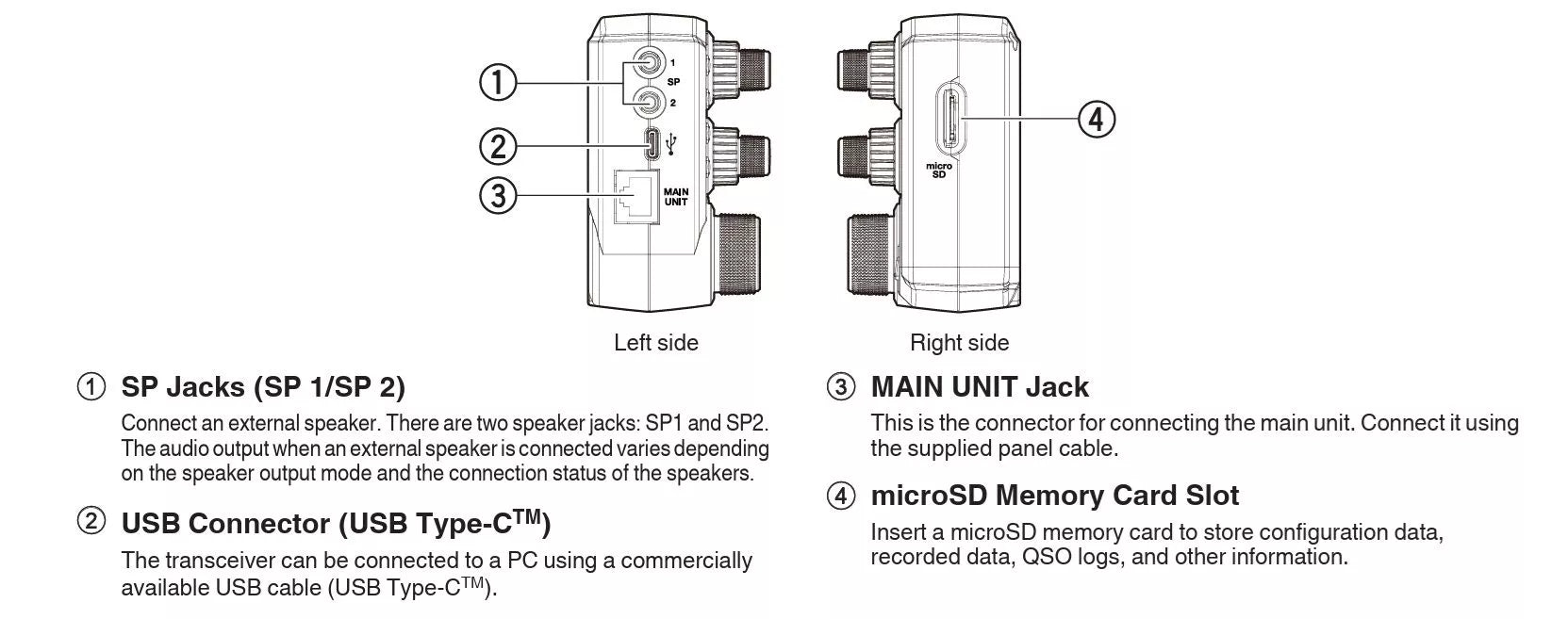

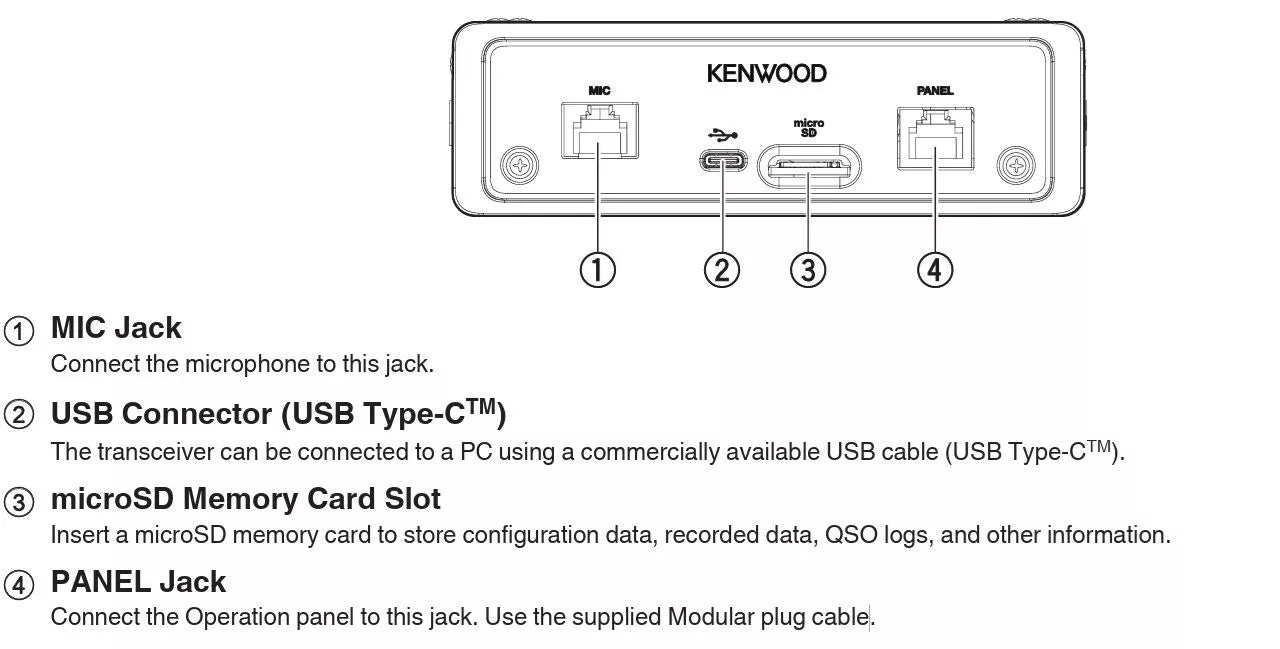

USB-C port and MicroSD card slot are on both the remote head and RF deck respectively.

Voice Guidance
Powerful voice guidance features include 4-step variable speed and ove 900 phrases.

Audio Quality
The built in speaker delivers renowned Kenwood sound quality.

Size: 7.22 inches x 3.66 inches

Supplied Accessories:
-16-key Microphone
-DC Power Cable
-Panel Cable
-Line Filter
-Panel Holder
-Panel Bracket
-Base Stand
-Mounting Bracket
-Screw Set
-Spare Fuse
-Startup Guide
-Warranty Card
