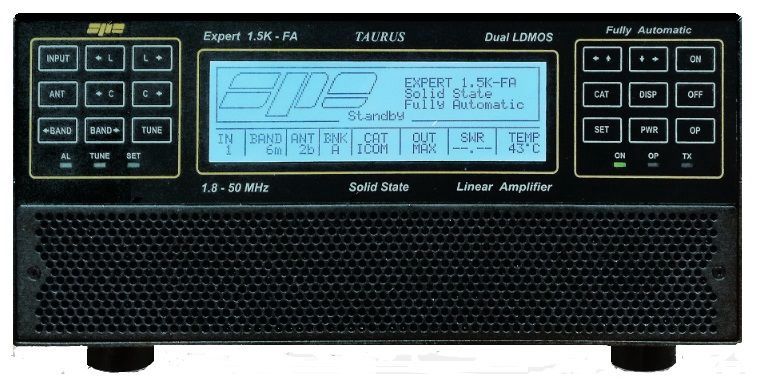

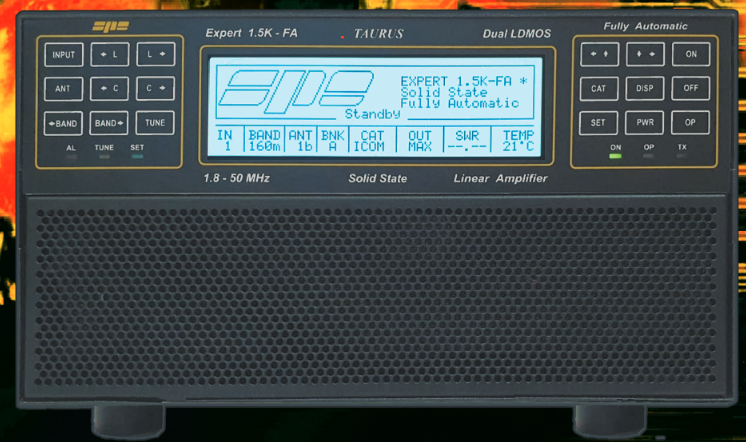

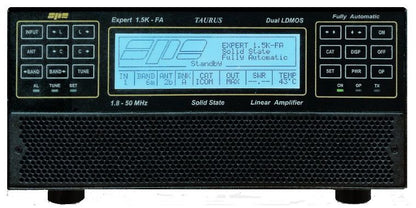

SPE Expert 1.5K-FA Taurus 1.5 KW Solid State Fully Automatic Linear Amplifier HF Plus 6M FT8

Currently Out of Stock, Call to get on the list. No Deposit required. We will let you know when they are about to land

Discounts available:

Pick up in store (Paris Texas) by appointment $75 discount. (Texas Tax Charged on Local Pickup 8.25 percent)

2.5 Percent ($174.98) Discount if paying by cash, bank wire, certified check

We Take Trade ins

More Rugged, More Powerful, More Reliable, More Efficiency

High Linearity-Remotable

Protection against first Spike

5:1 ATU Built In

Power Supply from 110-255VAC Built in

Perfect for the shack and DXpeditions

All operating parameters (frequency, antenna, tuner, etc) are controlled from your transceiver.

• Two LDMOS (1.8 KW dissipation each) for the highest linearity and efficiency.
• Powerful: solid 1.5 KW on all bands and all modes.
• ATU Built-In: bypassable per antenna and band. Matching up-to 5:1.
• More rugged, more powerful, more reliable, more linear than the 1.5 K-FA thanks to the dual LDMOS
• Very Light: 9.8 kg (21.5 lbs).
• Very Small: h12, w 28, d 36 cm (4.72”x11.02”x14.17”) connectors included.
• Wide Frequency Coverage: 1.8 MHz to 54 MHz, including WARCs.
• Where permitted: 60 m. full power.
• Internal Switching Power Supply with PFC (100-255 VAC).

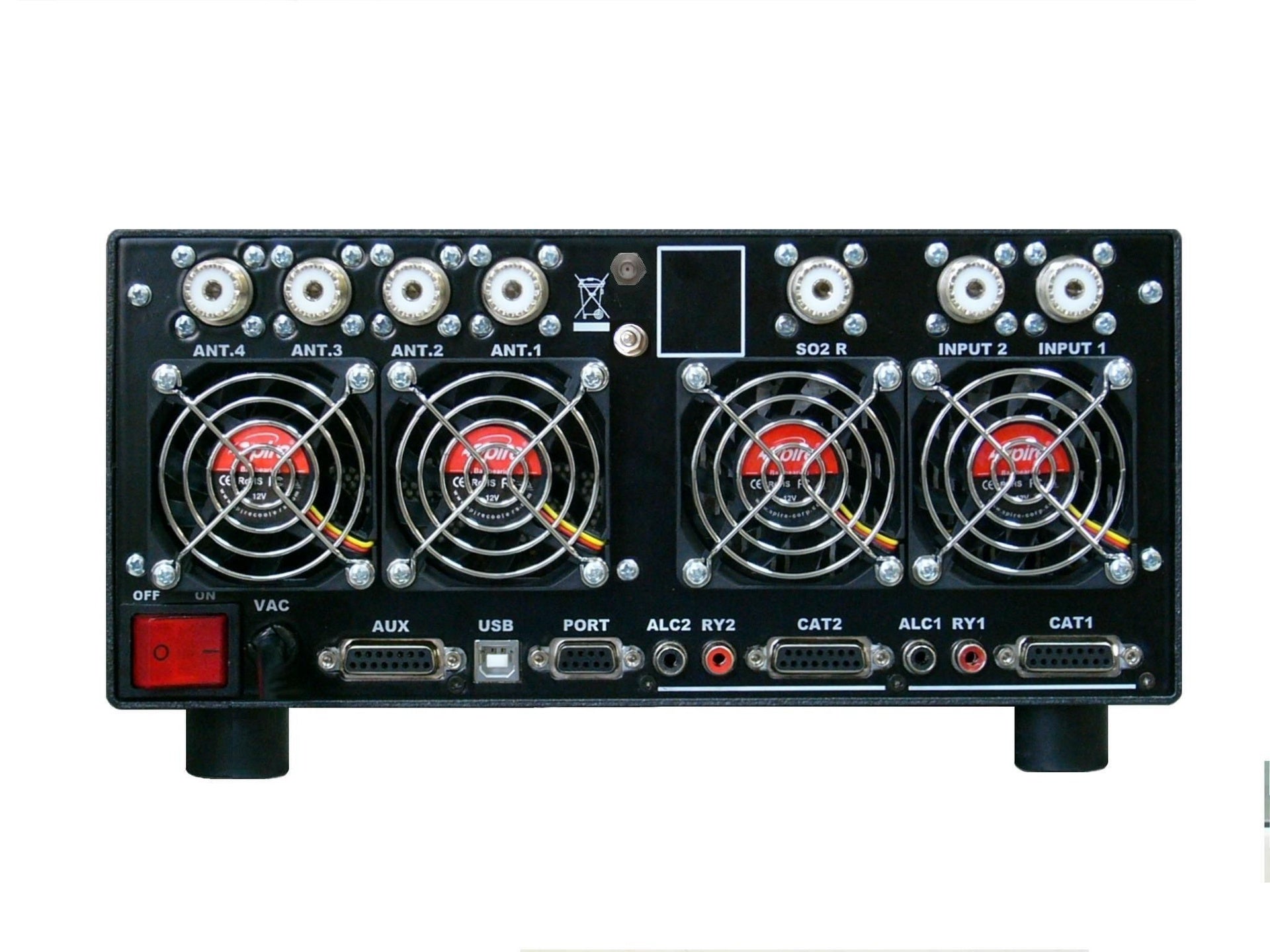

• Manages 4 antennas automatically.
• Automatically switches between 2 transceivers.
• SO2R operation.
• Predistortion Output - 60 dB
• Manages SPE AM-01 Remote Antenna Matrix.
• Can manage an external set of Band Pass Filters.
• Up to 2 antennas can be selected for every band.
• Additional receiving antenna can be selected.
• Drives directly up to 4 dynamic antennas (SteppIR, Ultrabeam) for an easiest layout.
• No relay contacts are switched when current is flowing due to special software.
• QSK.
• Fully remotable.
• Remote control and all software upgrades fully available on SPE website.
• USB and RS 232 ports.
• 3 Selectable Power Output: MAX, MID (1000 W), LOW (500 W).
• Very clean and low distortion signal.
• Both inputs always perfectly matched.
• Quiet Operation: fans linearly controlled by power supply and power amplifier temperatures.
• Fully protected included the first spike of the transceiver.
• Over 32000 lines of software for performance that cannot be found together in any other amplifier.
• Two very fast CPUs.
• CAT and band data compatible with all rigs on the market allowing automatic control of antennas,
bands, ATU matchings.
• Complete with heavy duty carrying bag allowing carry-on to airplanes.
• Certifications: CE, FCC, RCM (C-Tick).
