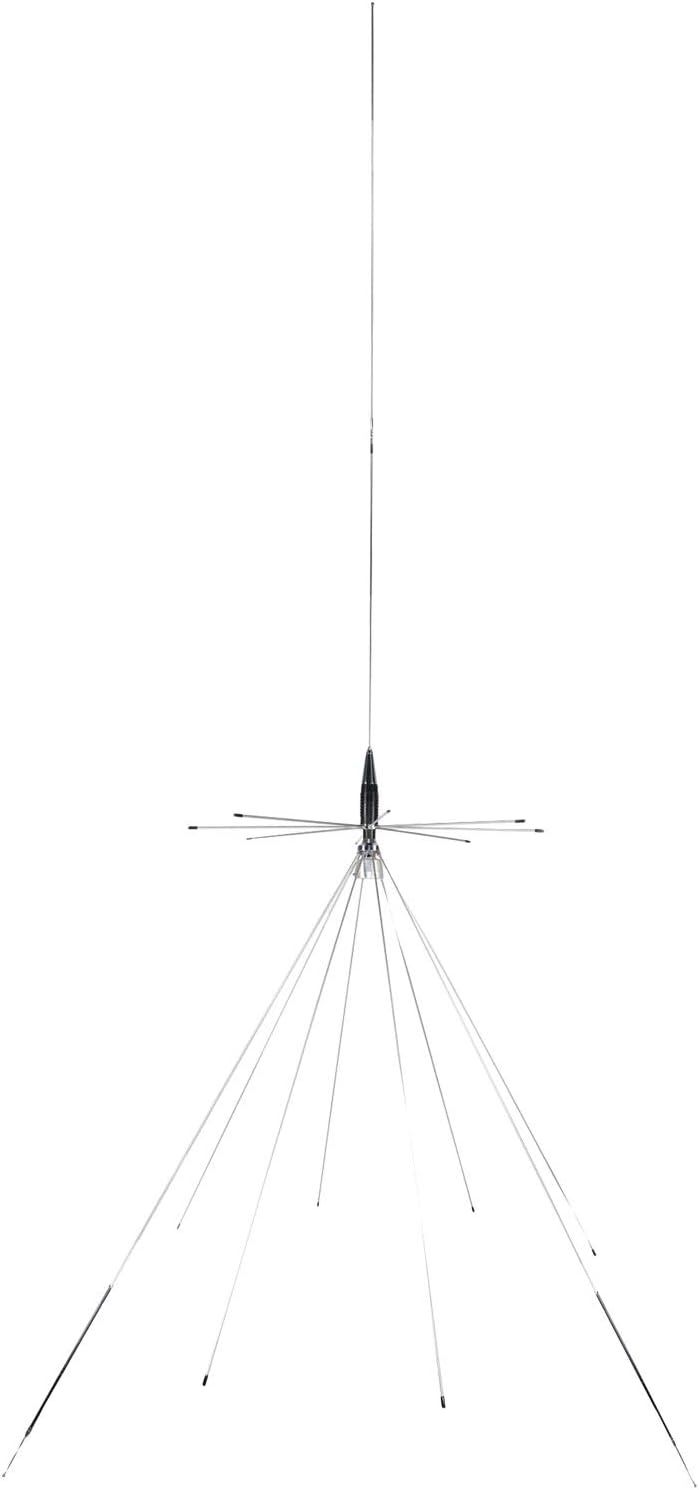

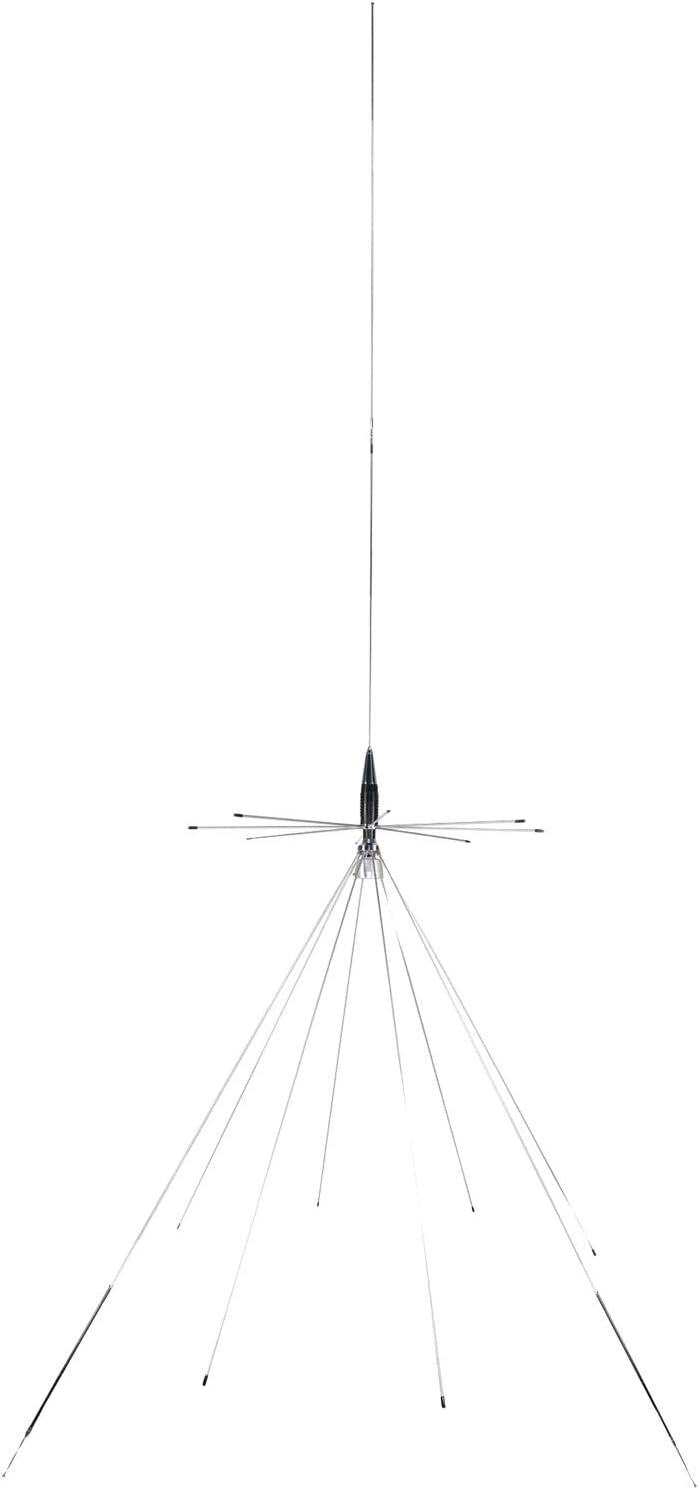

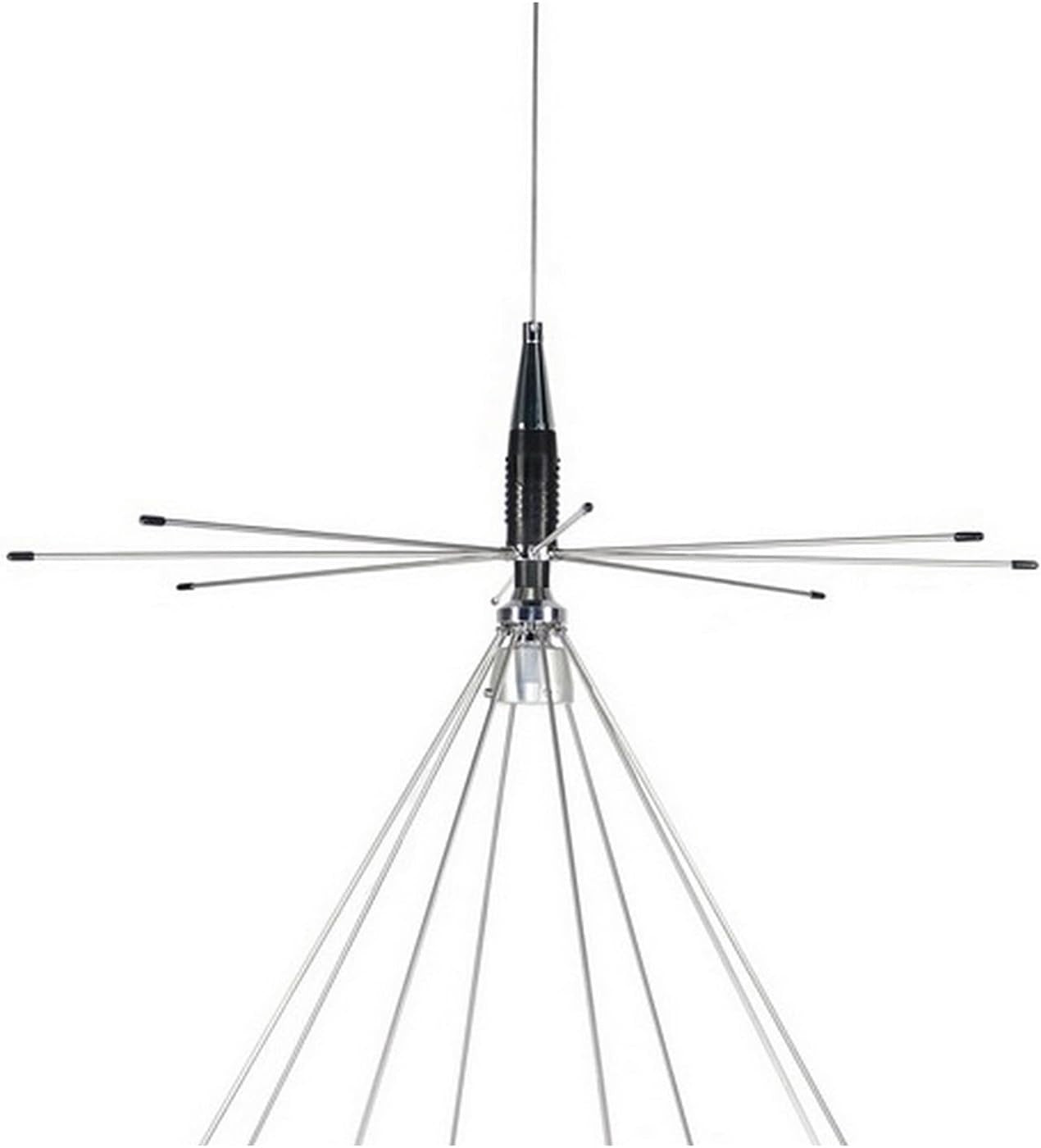

Tram 1411 Broad-Band Scanner 25 MHz to 1,300 MHz Super Discone Stainless Steel Base Antenna Plus CB Transmit Bands

The Tram Discone 1411 is designed specifically for amateurs and CB users who require complete band coverage (25-1300 MHz) Plus the CB transmit bands. The reduced dimensions allow the antenna can be easily installed in any condition. Discone 1411 provides continuous reception up to 1300 MHz and allows transmission on all amateur and CB radio bands from 25 MHz.

• HIGH POWER HANDLING: Supports up to 300 watts max power, with a specific limit of 200 watts for CB use, ensuring reliable performance for various applications.
• WIDEBAND RECEPTION: Offers extensive coverage from 25 MHz to 1,300 MHz, making it suitable for a wide range of frequencies and communication needs.
• MULTI-BAND TRANSMIT CAPABILITY: Transmit bands include 26 MHz, 27 MHz, 46 MHz, 49 MHz, 72 MHz, 144 MHz, 220 MHz, 440 MHz, 900 MHz, and 1,290 MHz, providing versatile communication options.

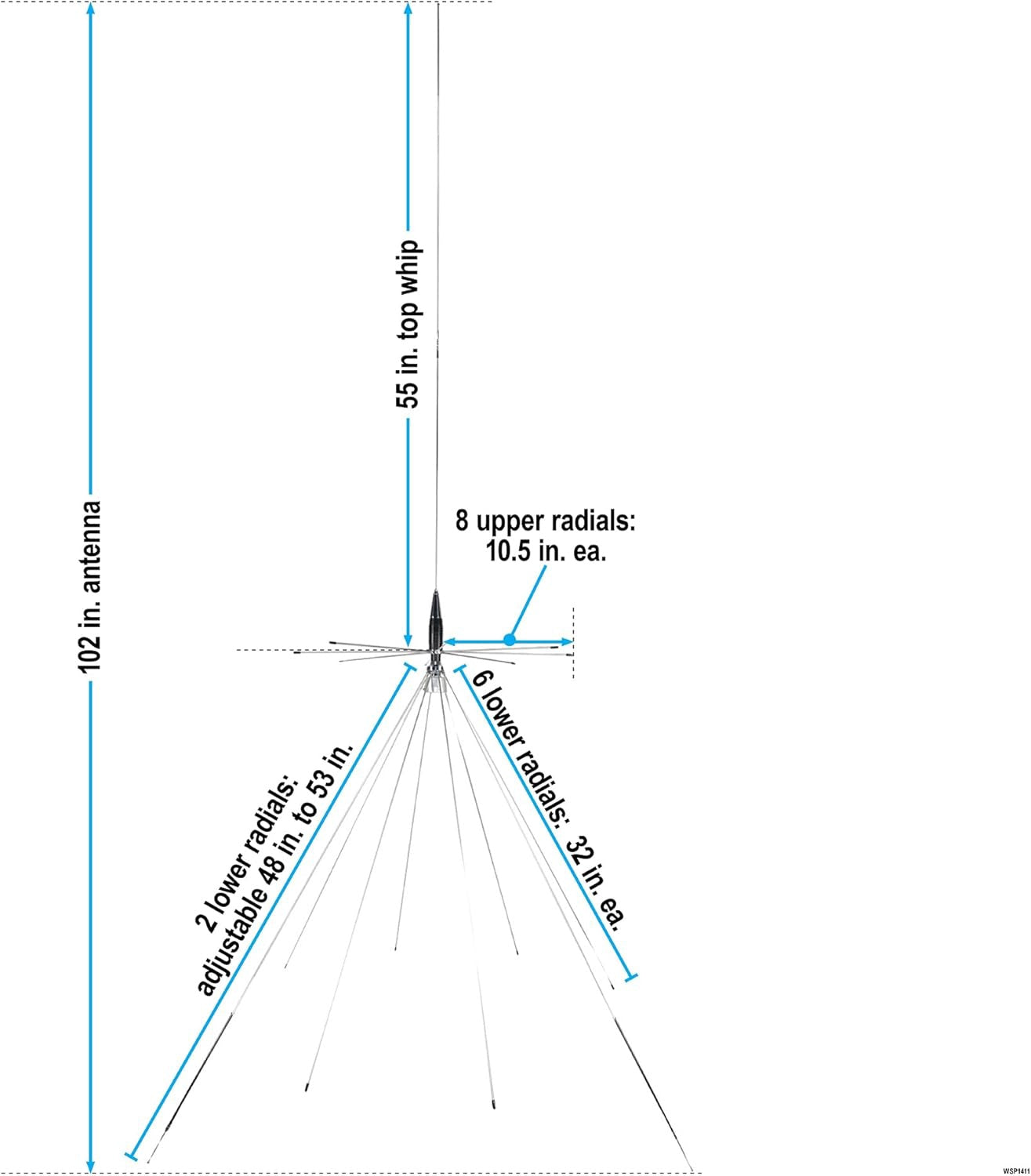

• ROBUST RADIAL DESIGN: Features 6 lower radials measuring 32 inches each, and 2 adjustable lower radials ranging from 48 to 53 inches, along with 8 upper radials at 10-1/2 inches, ensuring optimal performance.

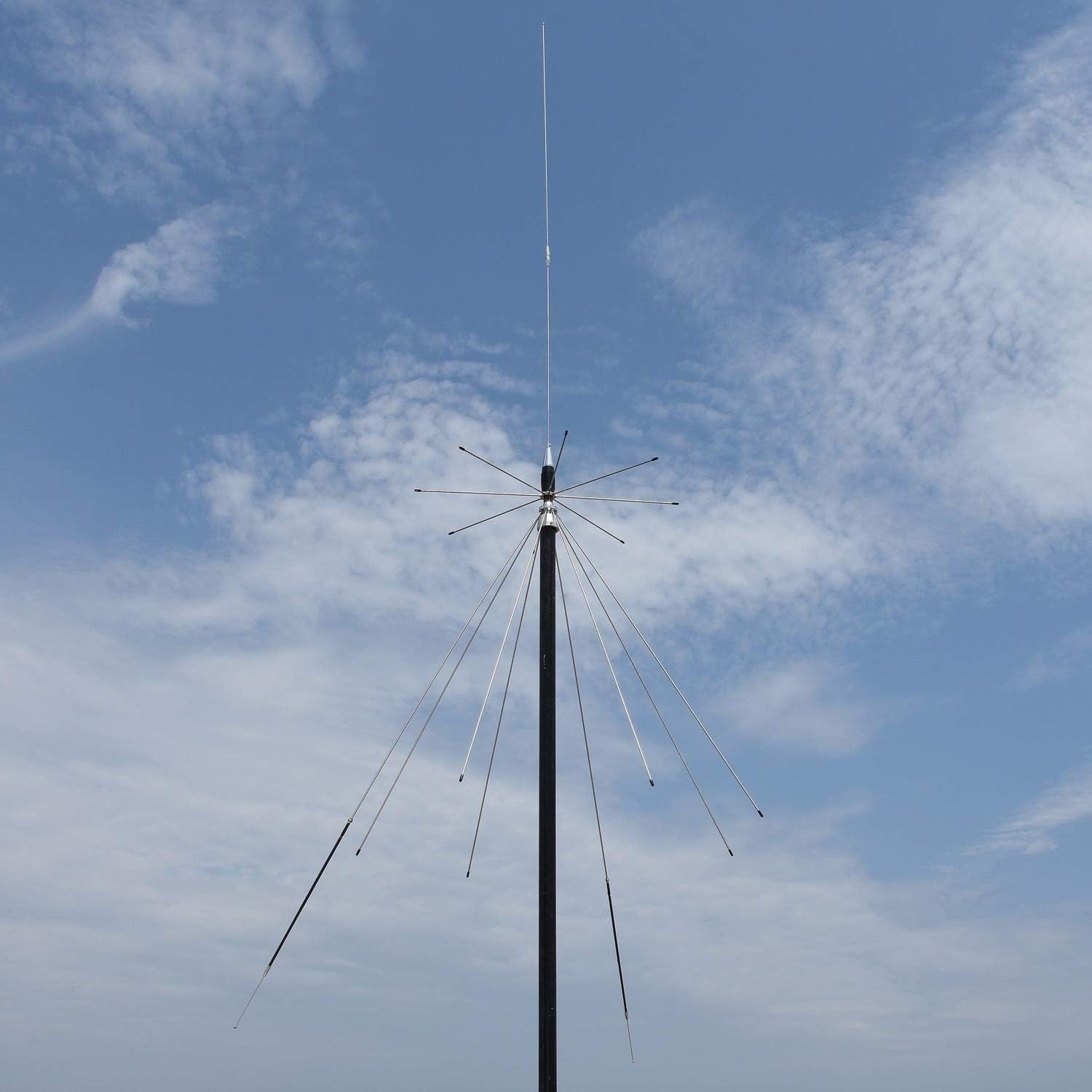

• The 1411 is a line of sight antenna. It only transmits and receives in the line of sight and has to be mounted on a pole above any and all obstructions. It will not transmit or receive through a home, building, tree, hill, etc. This antenna should be paired with a high quality, well constructed coax cable with properly installed quality connectors. The 1411 antenna must be manually adjusted to cover the bands required by the end user. The installer must have knowledge of the required bands and the tuning process.
