U19959 Used Comet CFX-324 Triplexer
*Price May Include Instant Coupons & Promotions. We Take Trades
Regular price
$85.00
Sale price
$85.00
Regular price
$0.00
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
We Ship Fast!
Low stock! Only 1 left

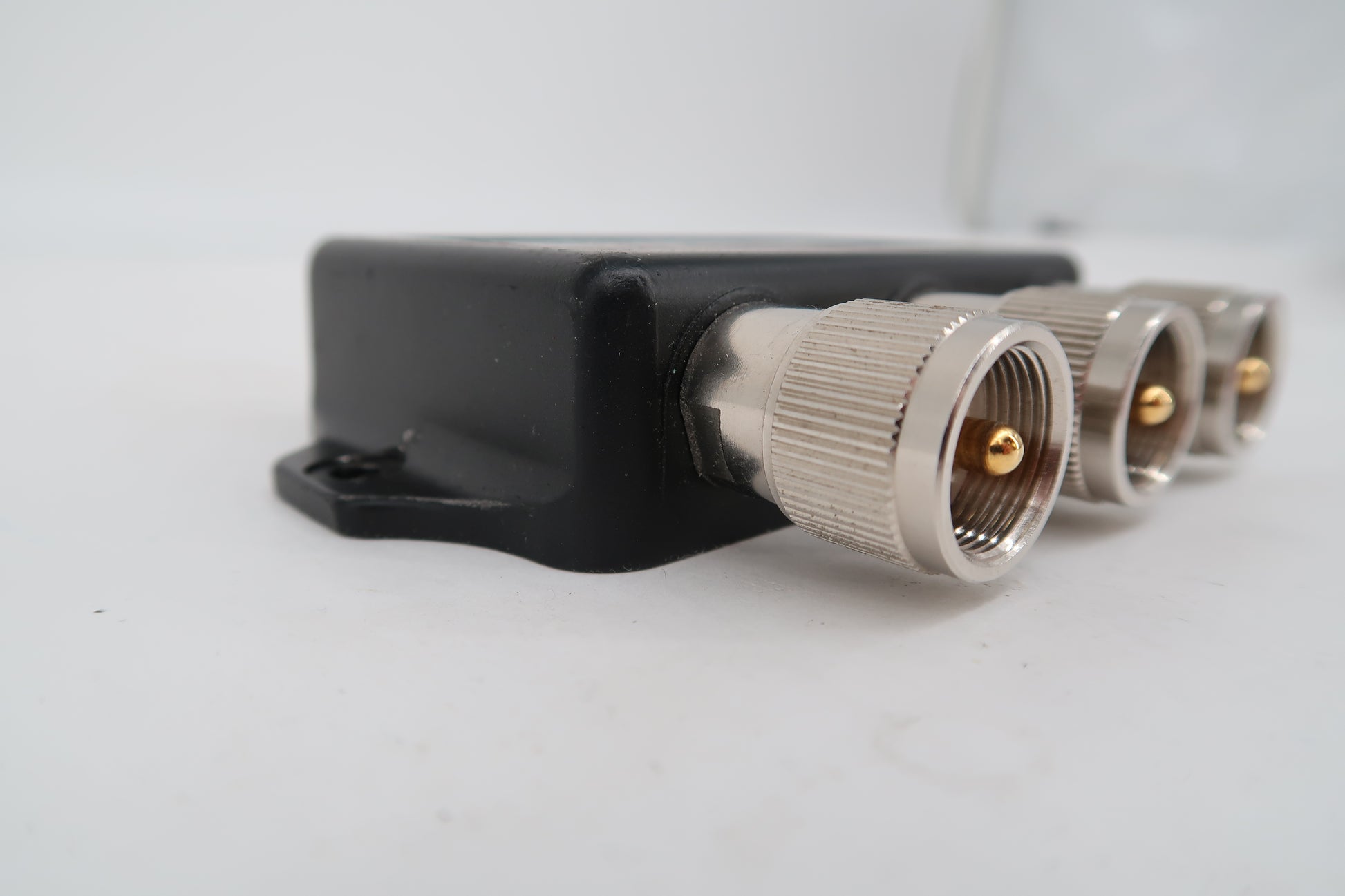

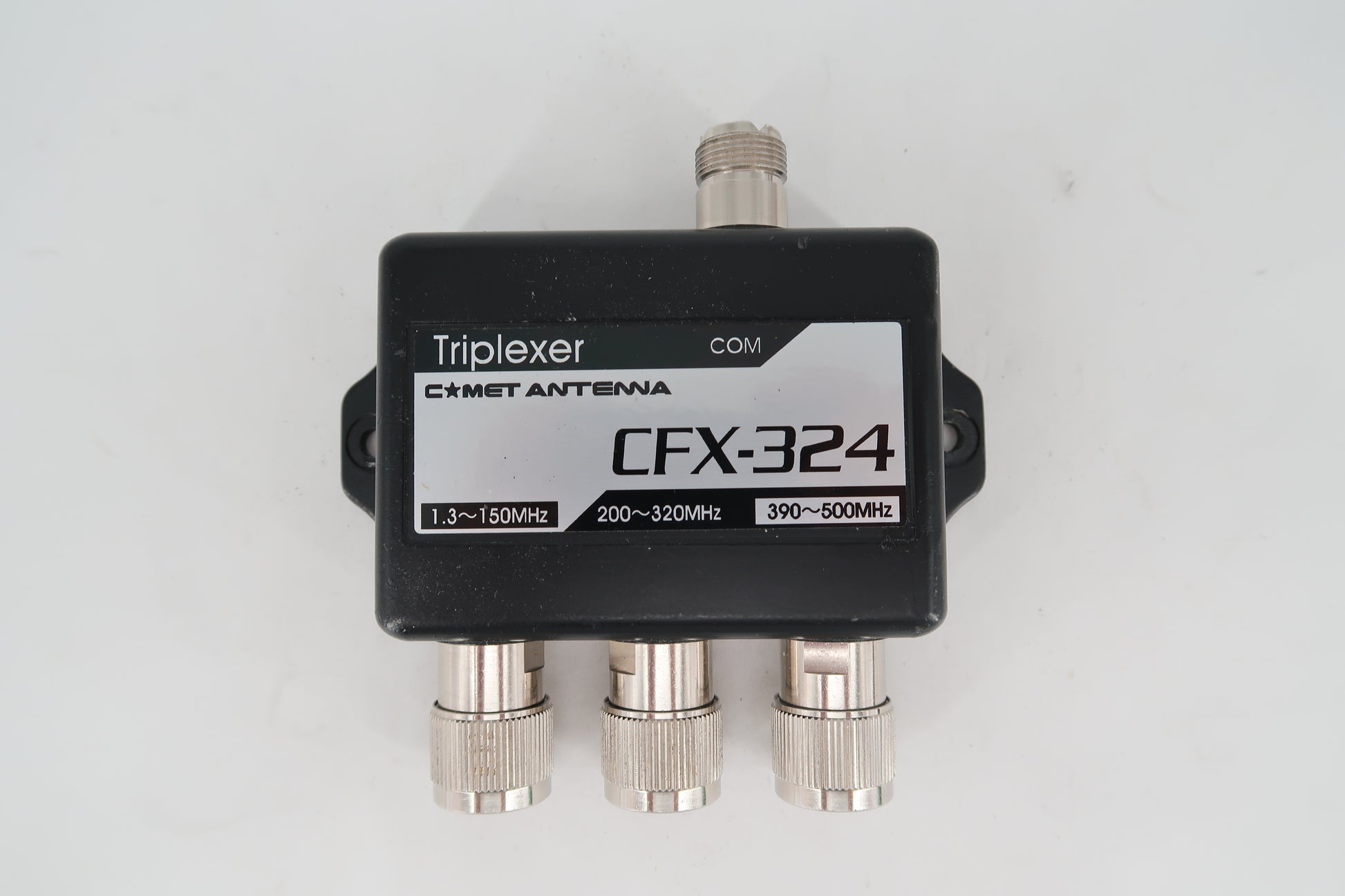

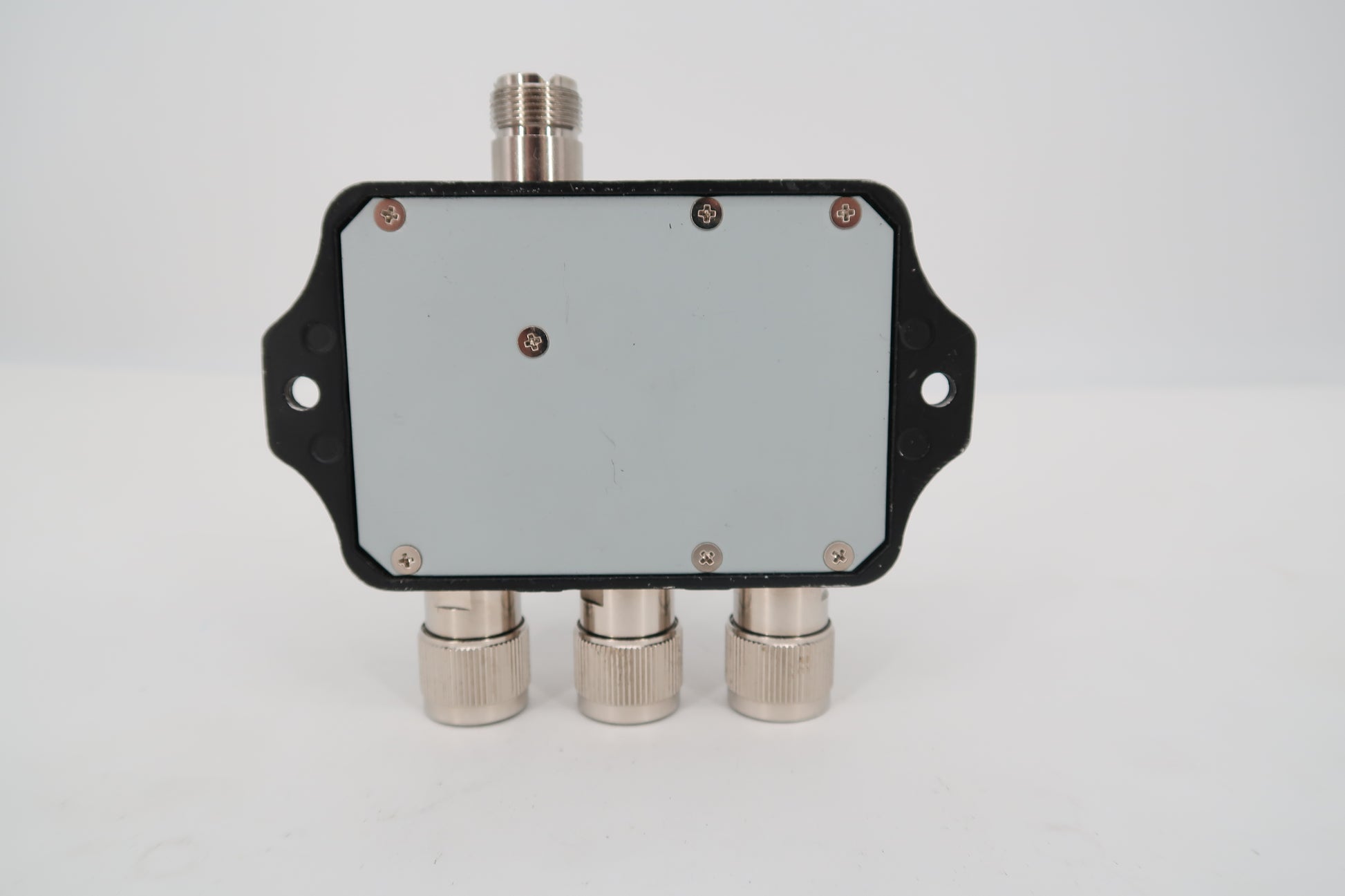

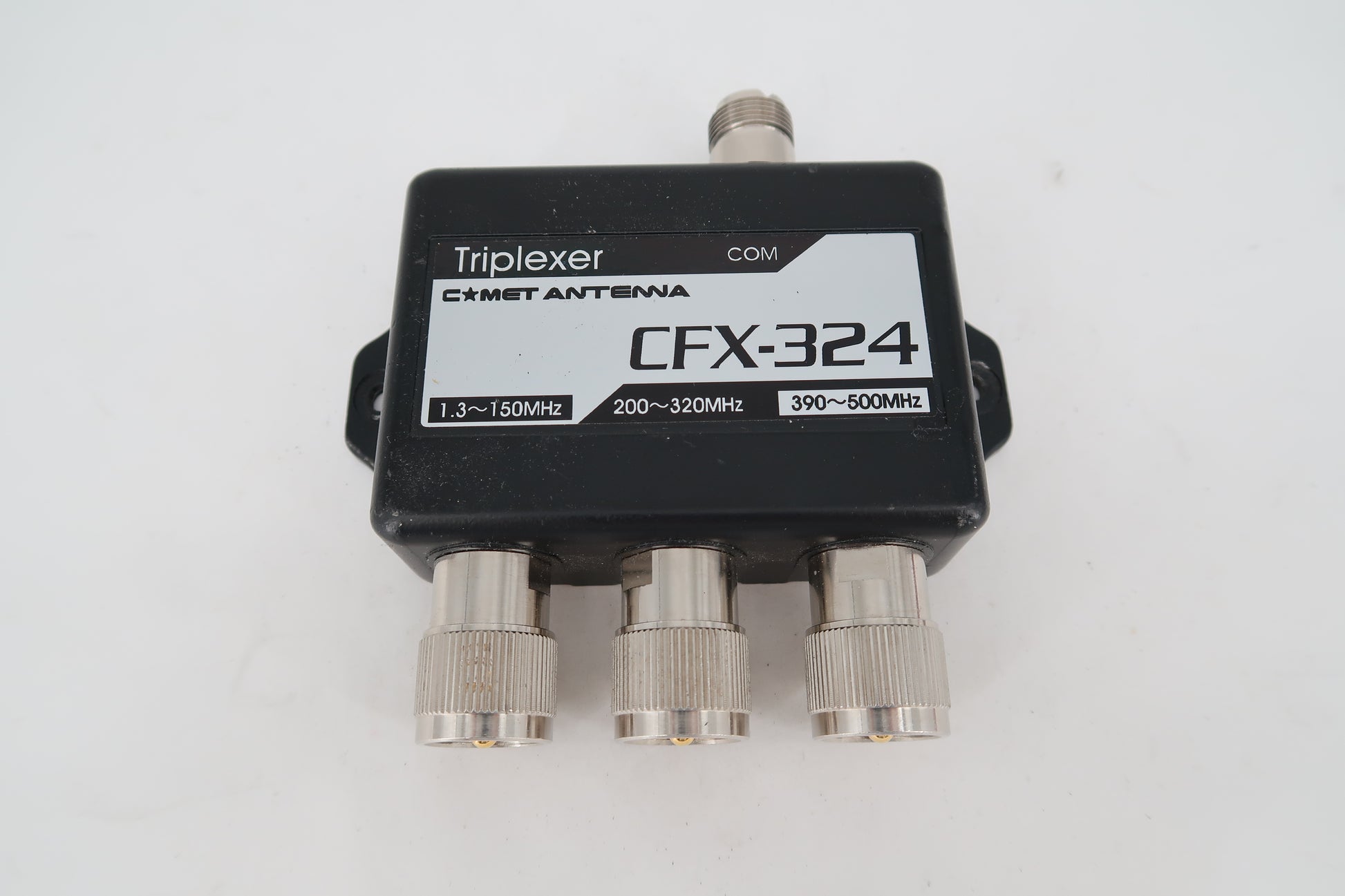

U19959 Used Comet CFX-324 Triplexer
This unit is in good shape. It's only the triplexer without leads. It contains some slight scratches exterior, but still looks pretty nice. The text on the front is easy to read. It works as it should.
Comes with our 90-Day Warranty!
S/N: N/A
Item Info:
The Comet CFX-324B is a high power RF triplexer that allows you to combine or split three different radio frequency bands using a single common feed line.
Technical Specifications
Low-Pass Band (1.3–150 MHz): 0.20 dB insertion loss, up to 600 W PEP (Peak Envelope Power)
Mid-Pass Band (200–320 MHz): 0.25 dB insertion loss, up to 600 W PEP
High-Pass Band (390–500 MHz): 0.30 dB insertion loss, up to 600 W PEP
Isolation: Minimum of 40 dB between ports to reduce interference [1]
Connectors and Physical Design

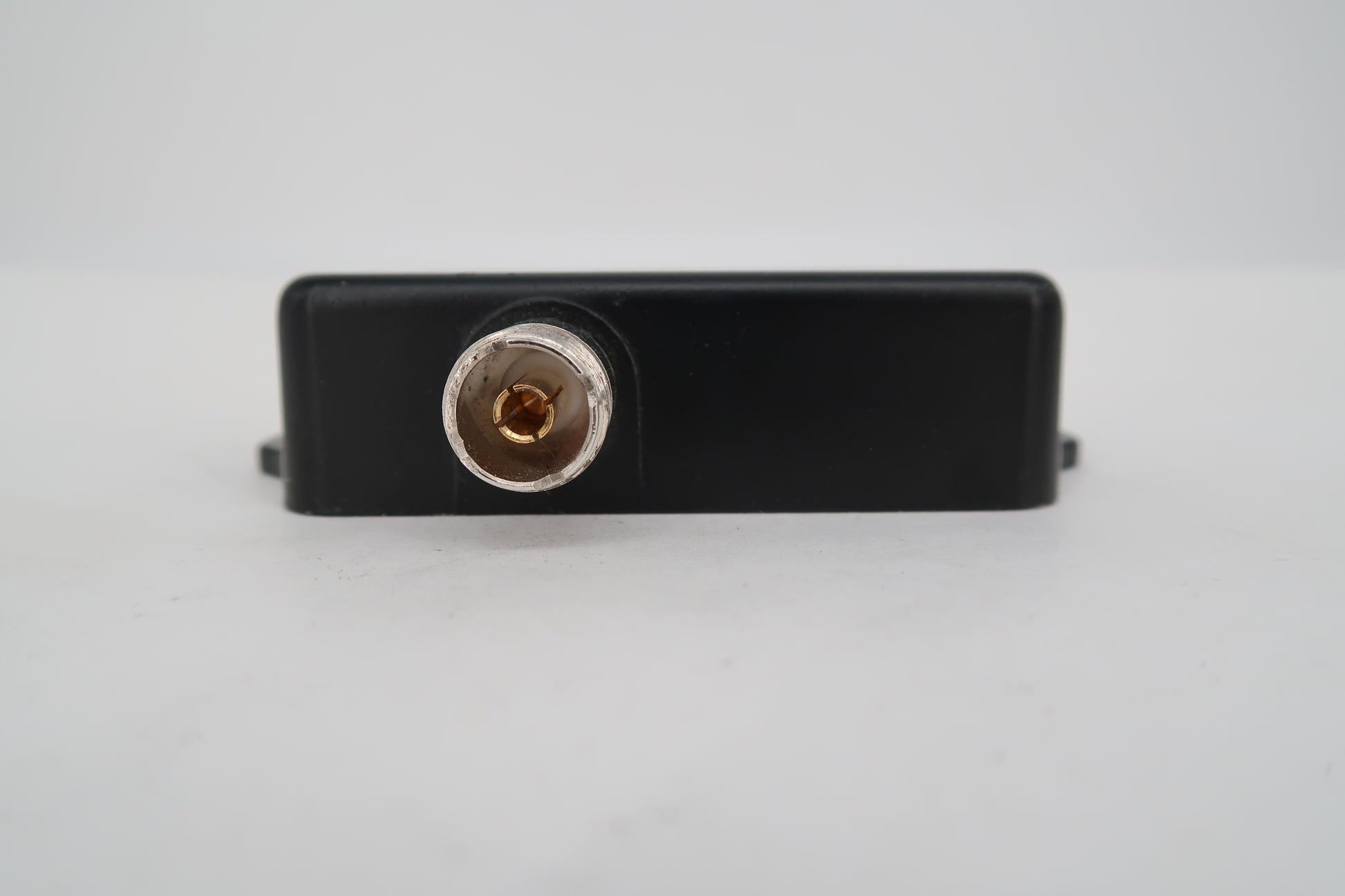

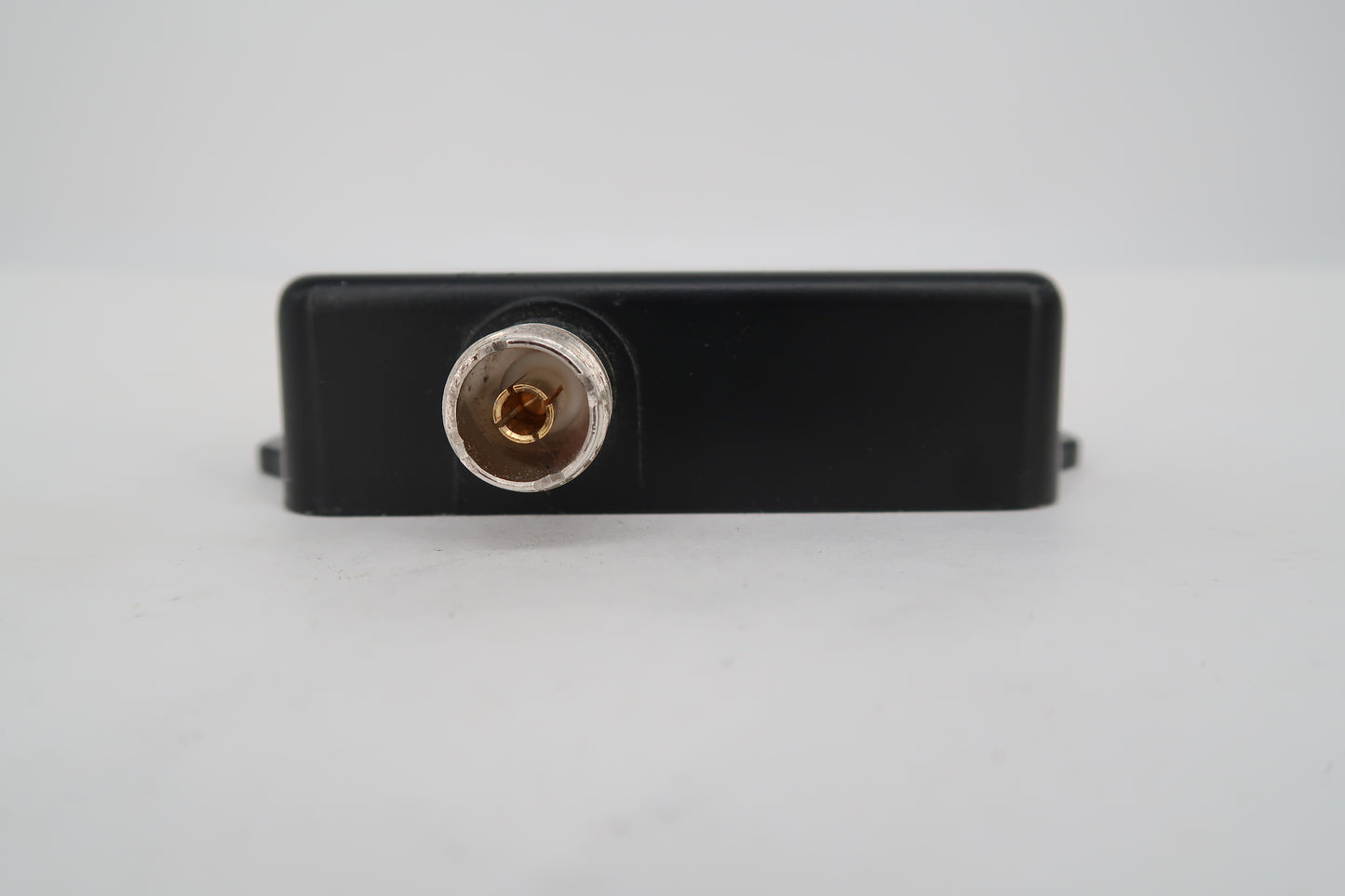

Common Port: SO-239 female connector

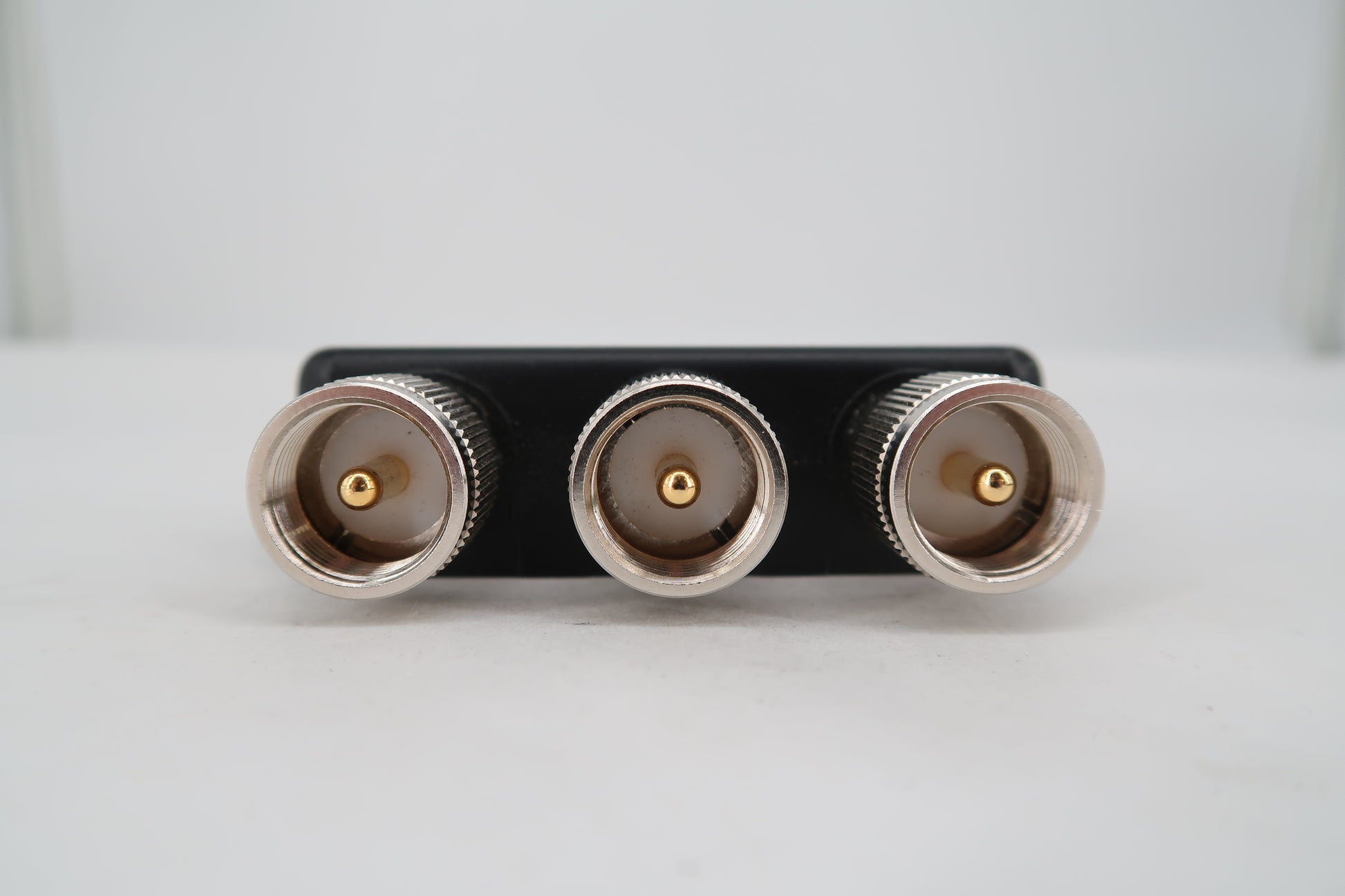

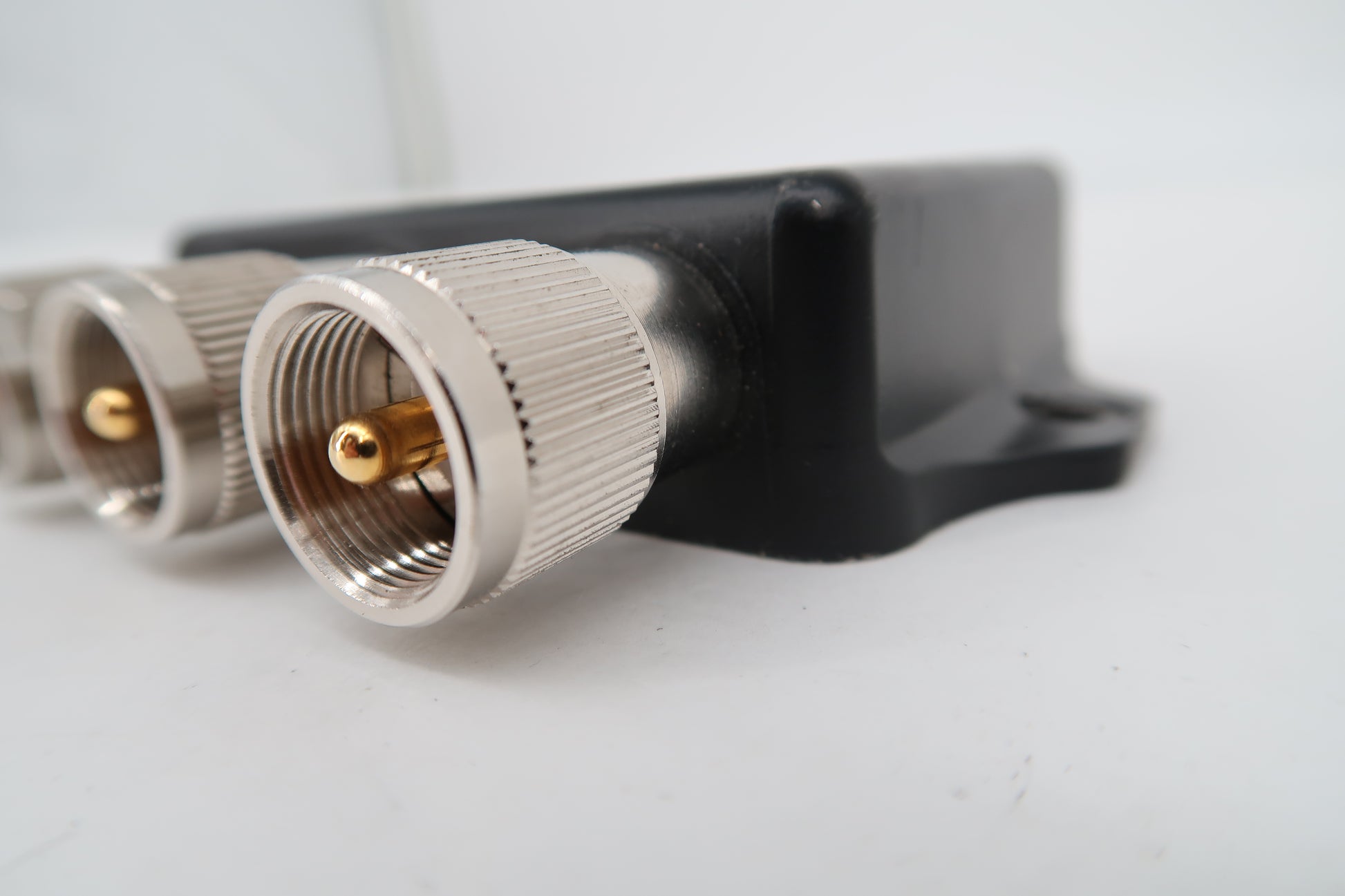

Band Ports: PL-259 male coaxial leads for the low, mid, and high bands
