U19986 Used Xiegu XPA125B HF+6M Linear Amplifier

U19986 Used Xiegu XPA125B HF+6M Linear Amplifier

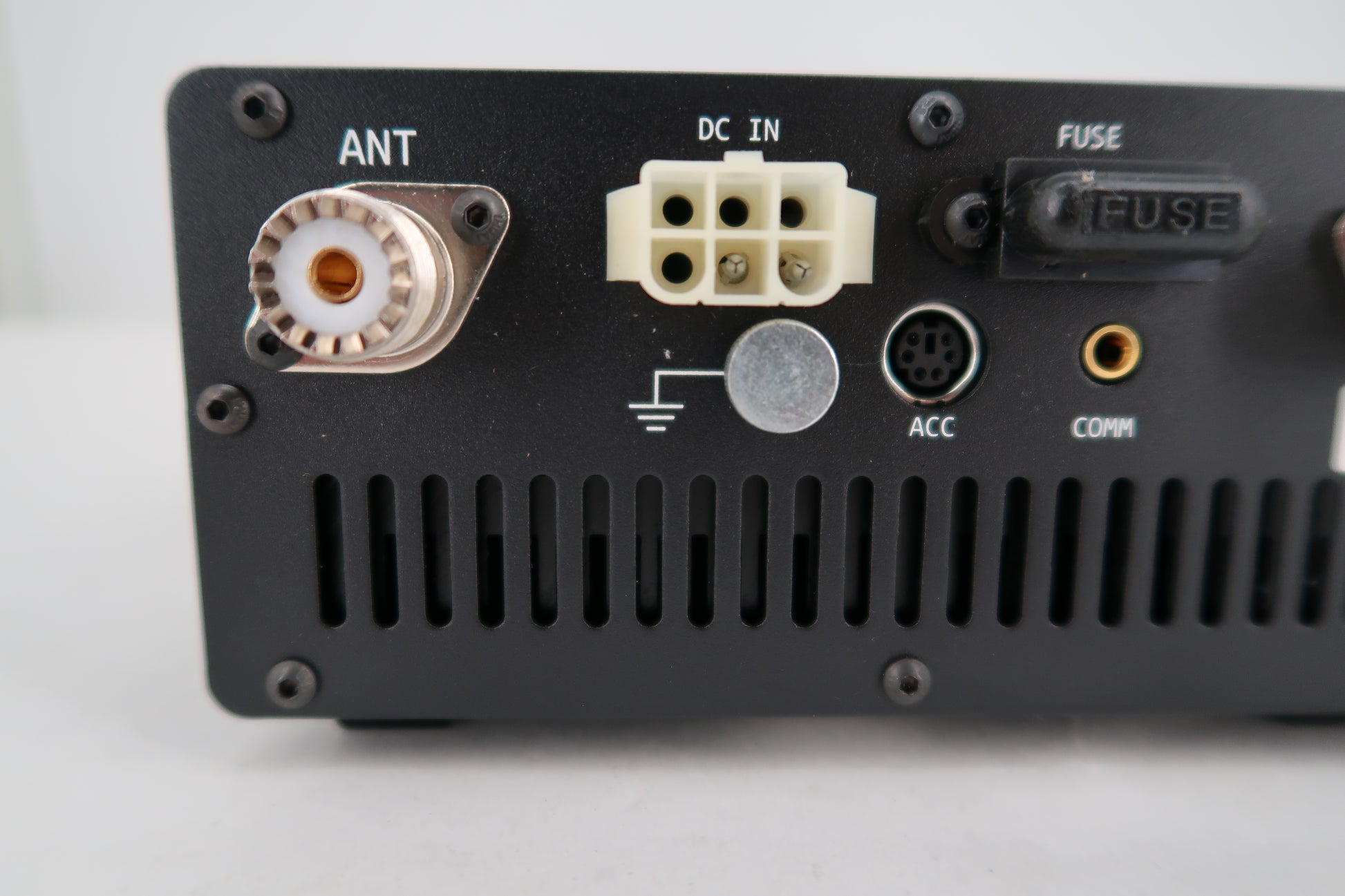

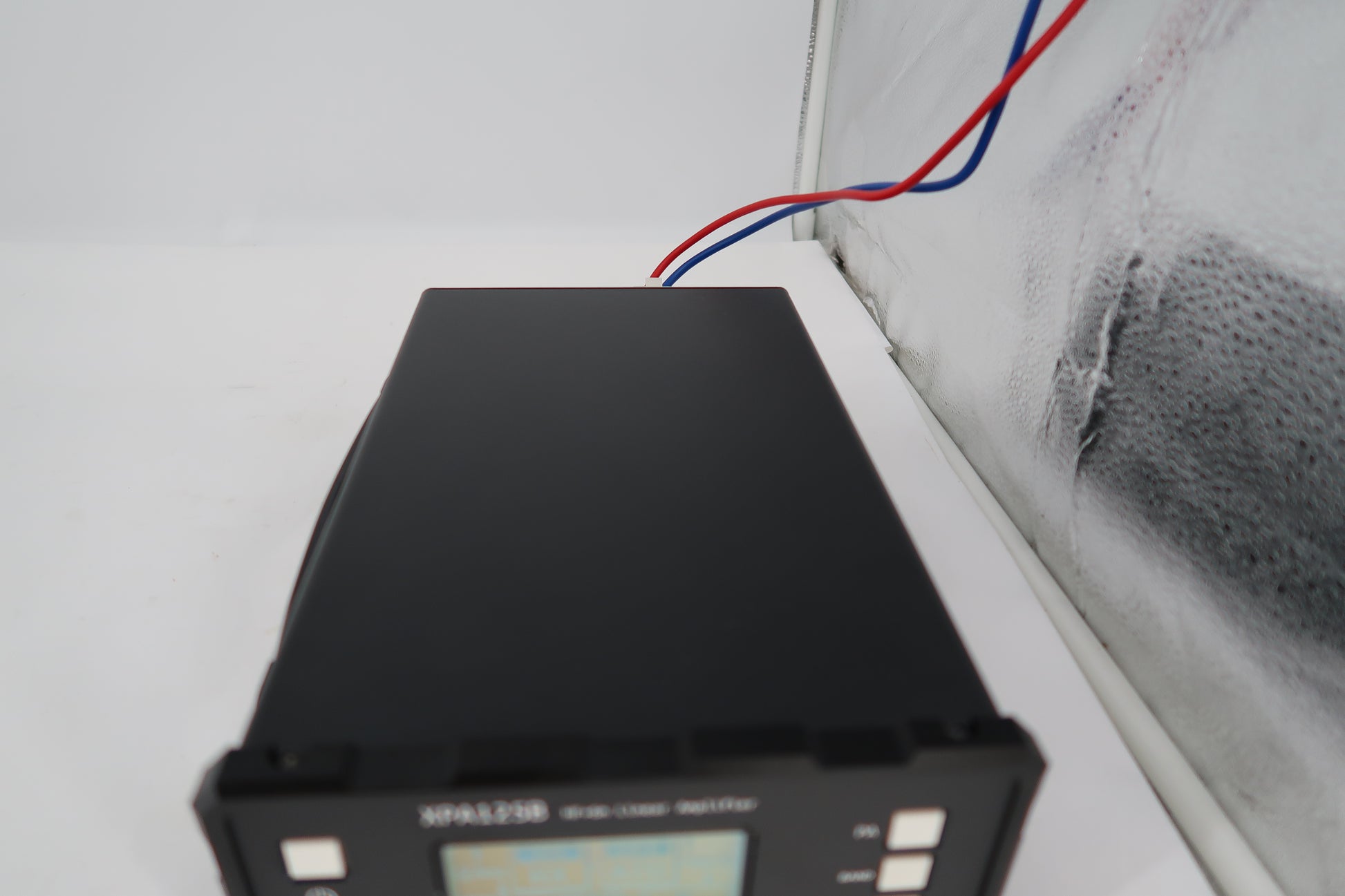

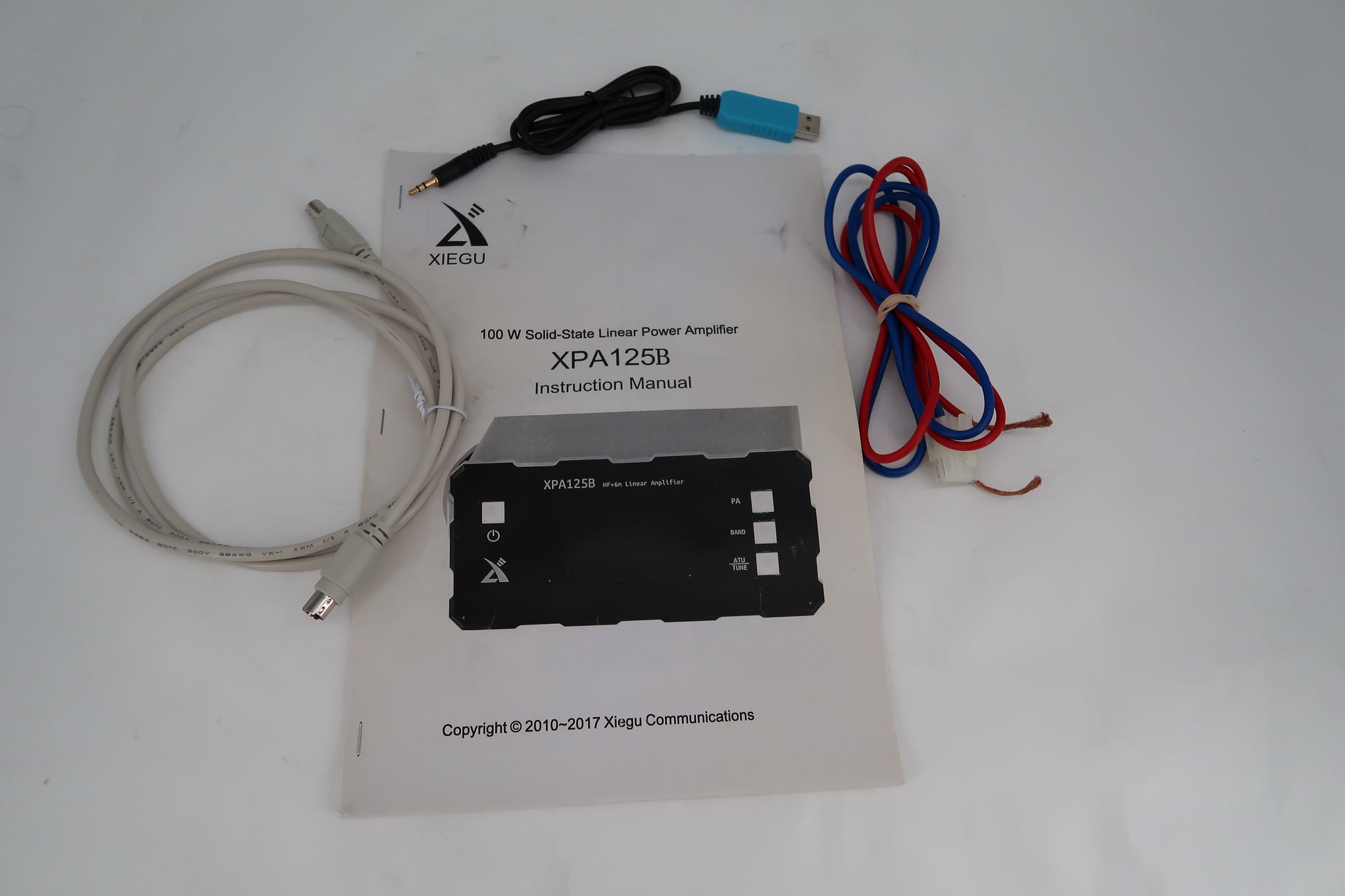

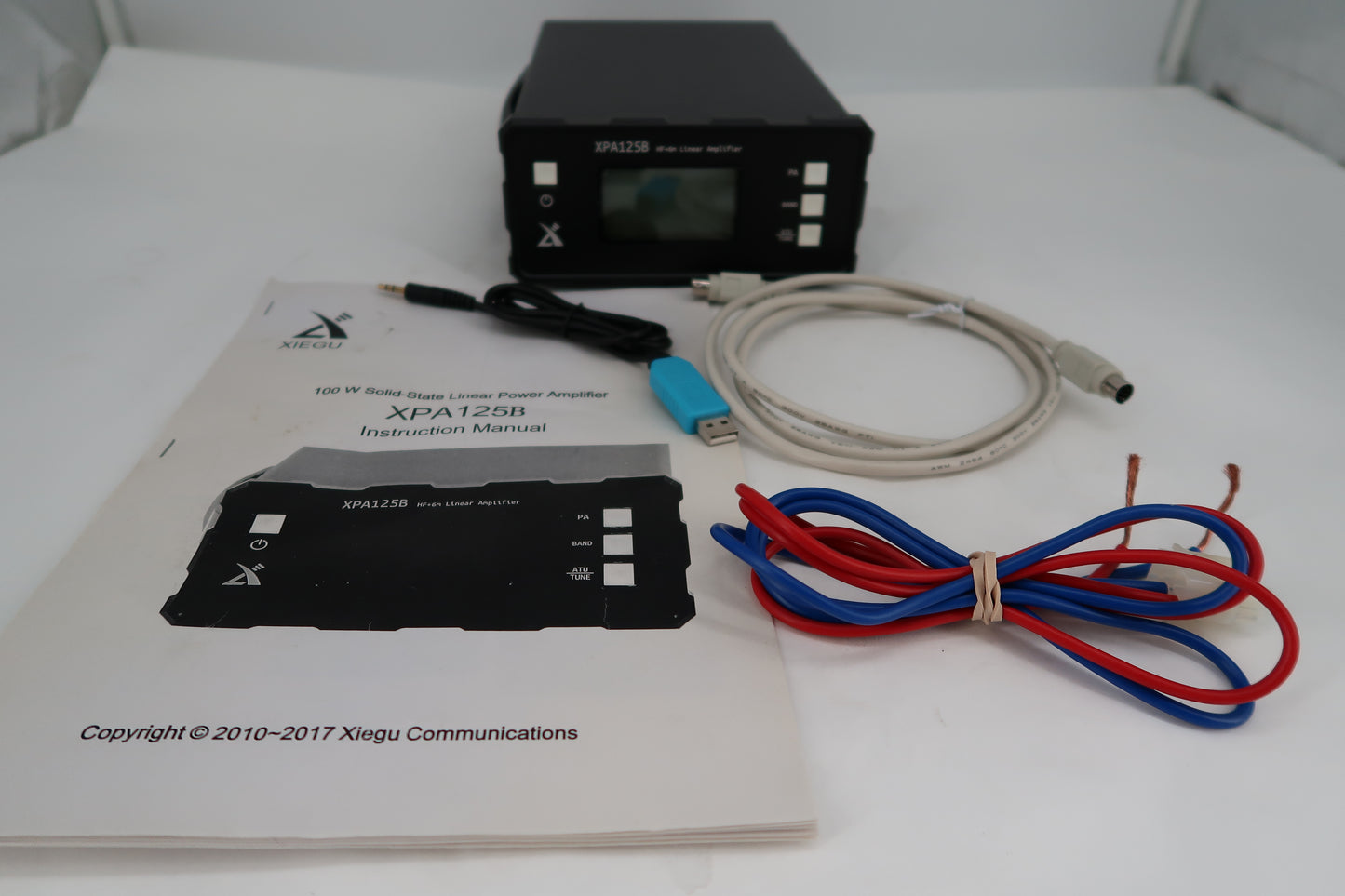

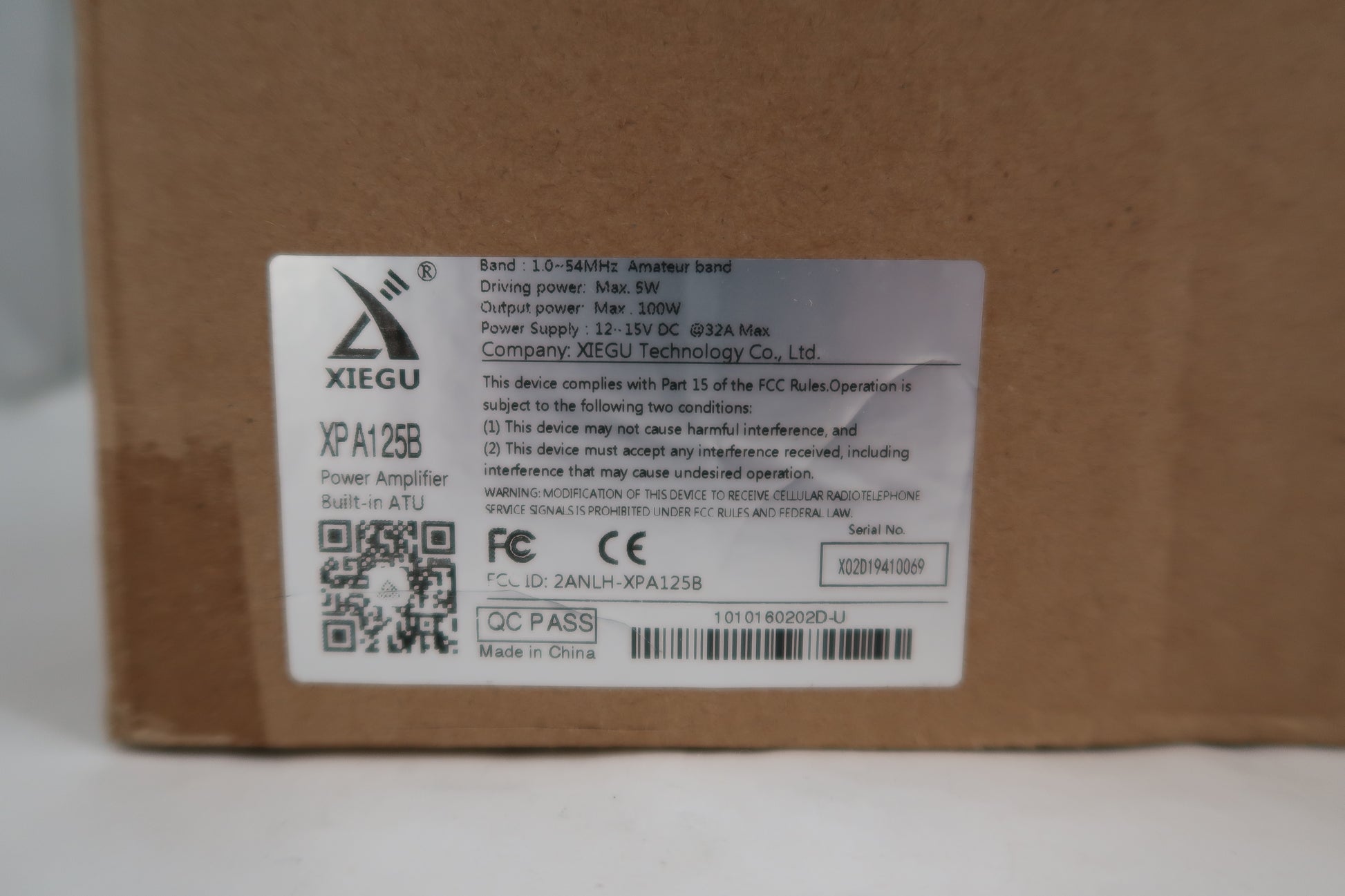

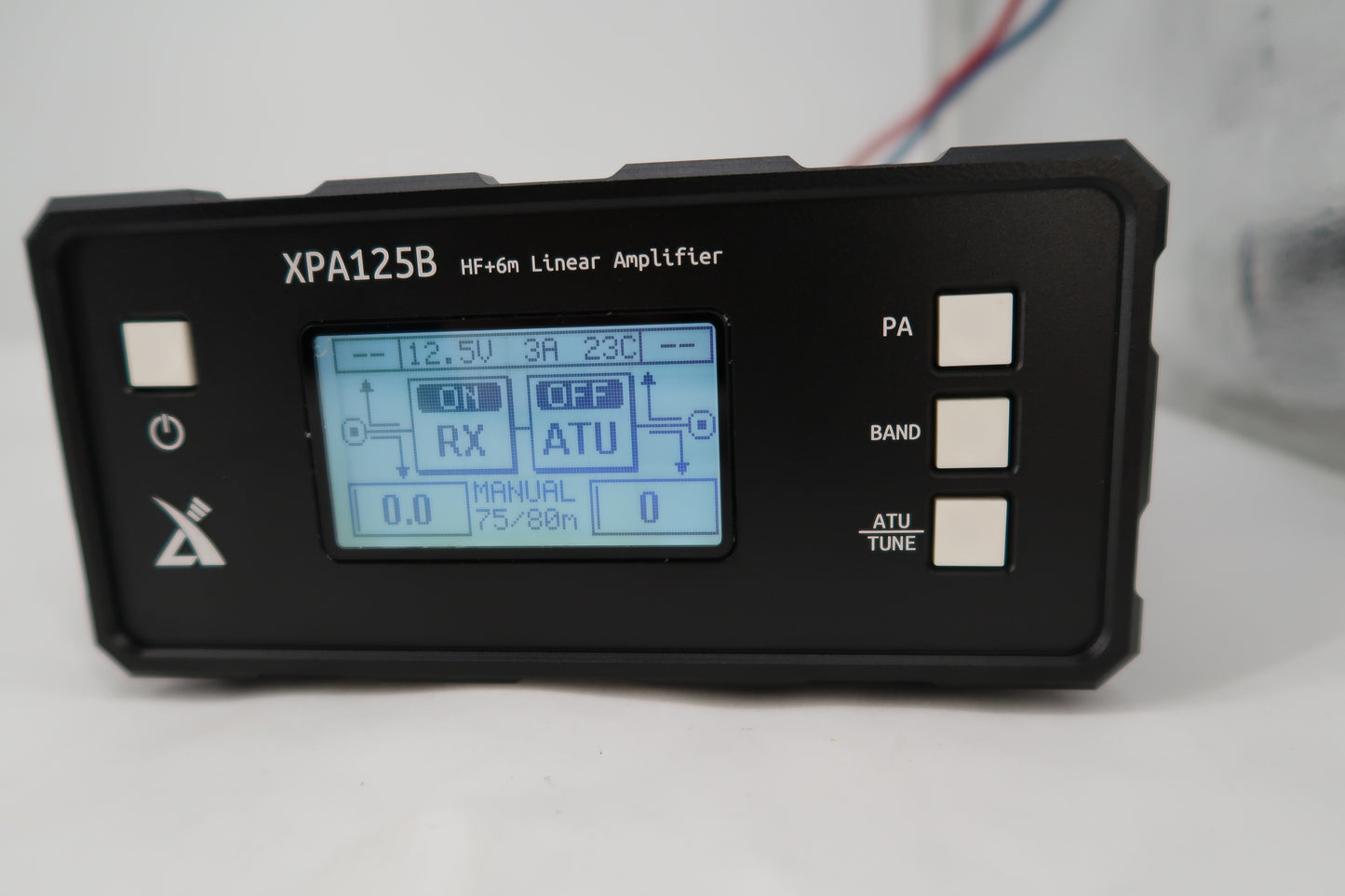

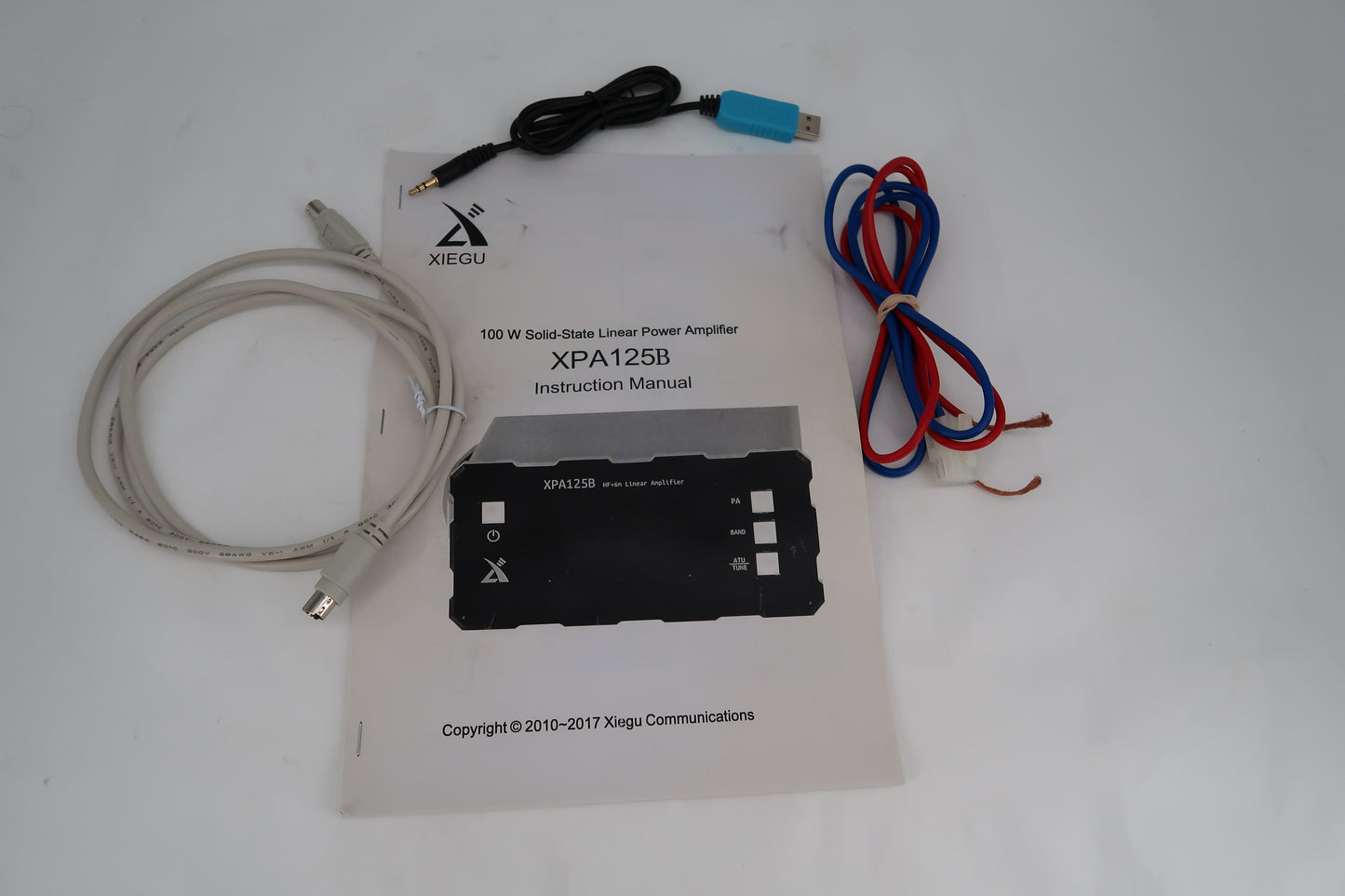

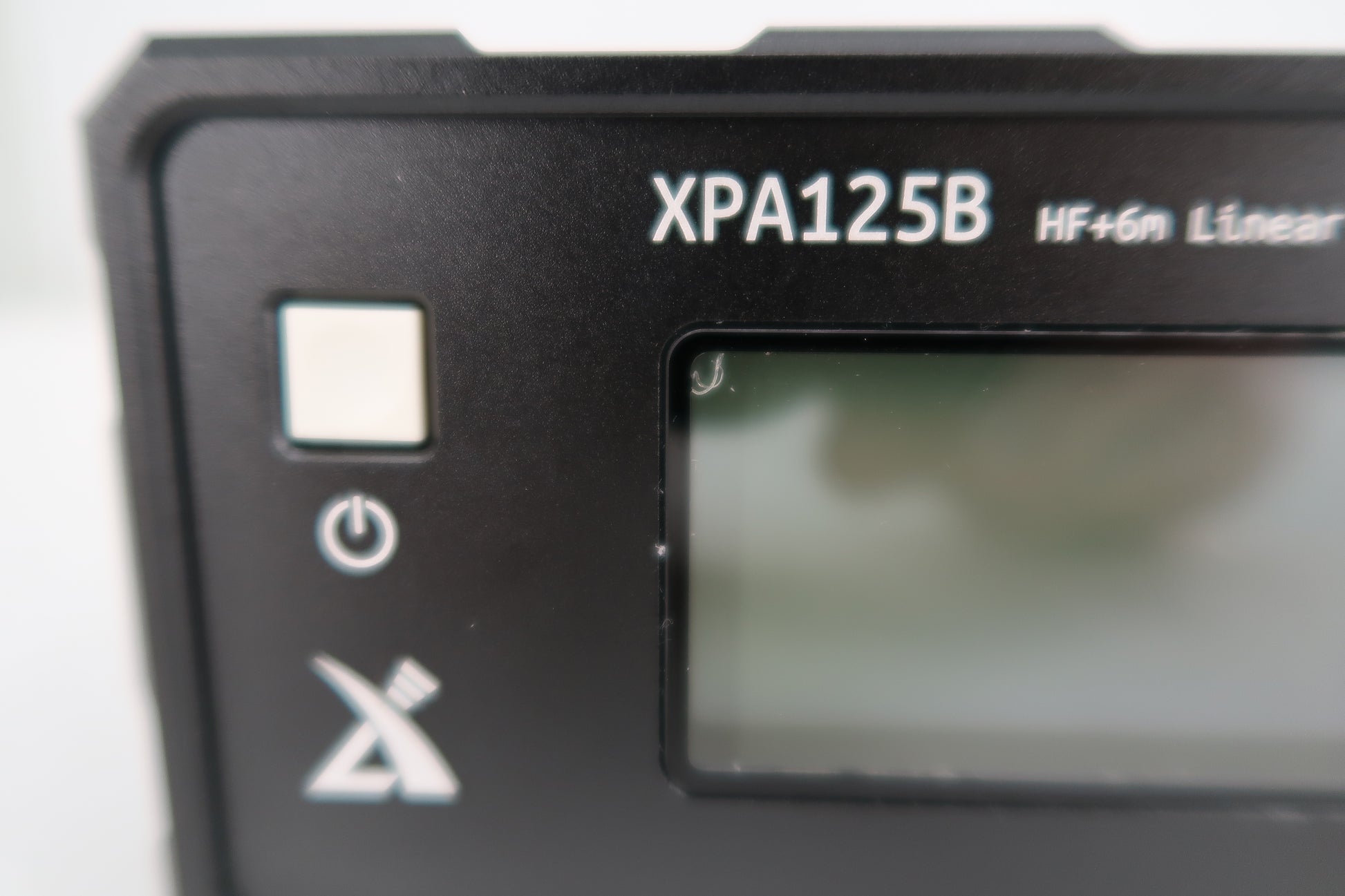

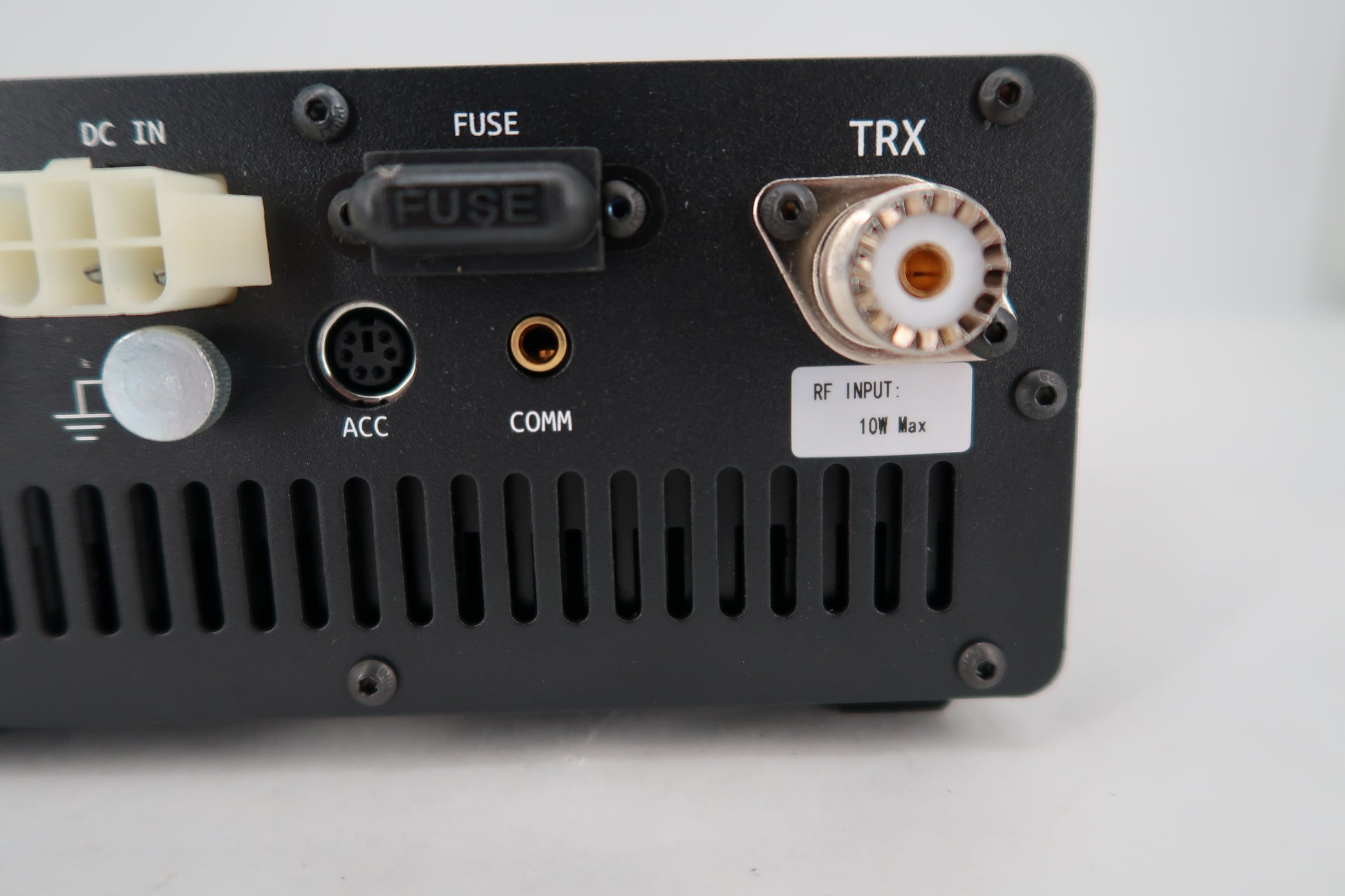

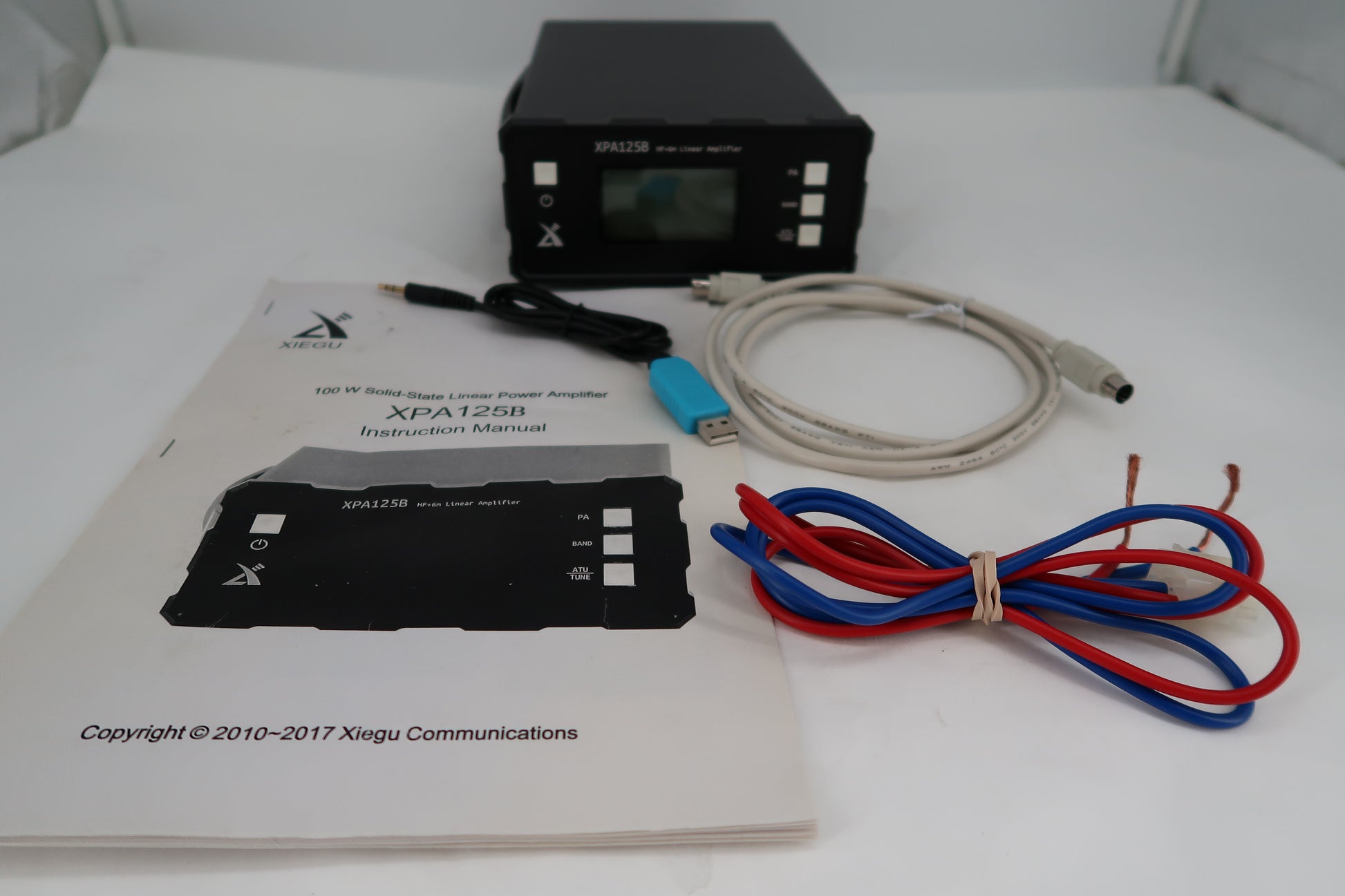

This Xiegu XPA125B is in excellent condition and has been well cared for. The unit is clean throughout, with just one small blemish in the top left corner of the screen — a minor cosmetic mark that does not affect readability or brightness. The display remains bright and fully legible. Every button and connection is in excellent working order, so you can plug in and get on the air with confidence. This unit comes with the manual, power cable, usb cable for pc connection, and original box (box has a tear on one flap).

Whether you're running a QRP rig and need that extra punch to make contacts, the XPA125B delivers reliable power right when you need it. This is a fantastic opportunity to add a solid, proven amplifier to your shack at a great value.

Xiegu XPA125B Specifications

• Frequency range: 0,5-54 MHz
• Maximum output power: 1,8-30 MHz >100W / 50MHz >80W
• Maximum ambient operation temp: 55C
• Gain: 13 dB (+/-2dB)
• Spurious suppression: >50 dB
• Supply Voltage: 12-15 Volt DC
• Transmit current draw: @ max output 30A
• Receive current draw: @ max 700 mA
• ATU Frequency range: 1,8-30 MHz & 50-54 MHz
• ATU Tuning range: 14-500 Ohm
• Dimensions: 260 x 160 x 70 mm (Excluding knobs, feets, handle etc)
• Weight: 2,66 kg (Shipping weight 4 kg)

The automatic Antenna Tuner Unit and power amplifier unit of Xiegu XPA125B can be used independently of each other as either an automatic antenna tuner or a separate power amplifier. The tuner handle 14-500 ohm loads in the HF bands 1,8-30 MHz and 6 meter band 50-54 MHz.

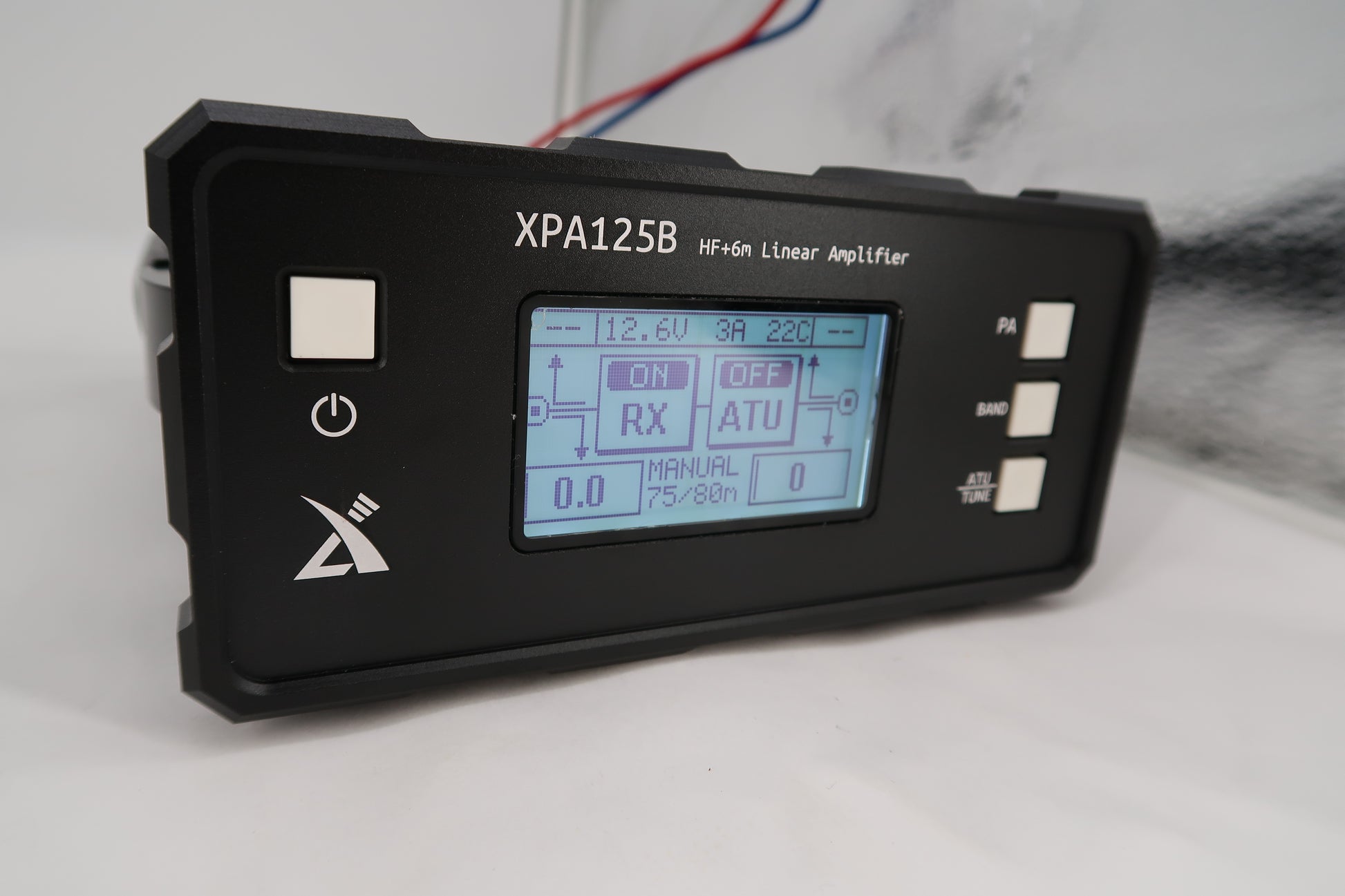

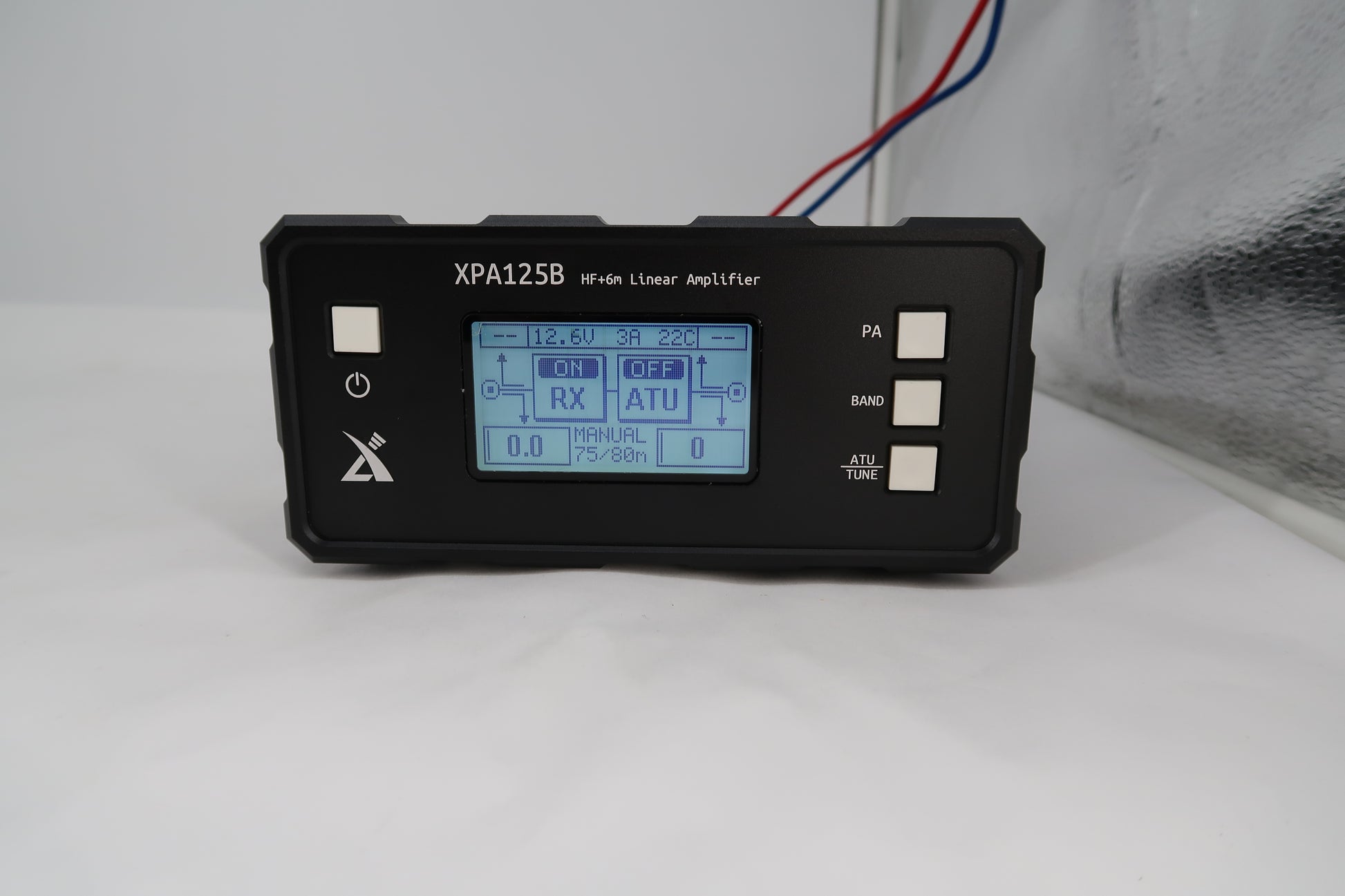

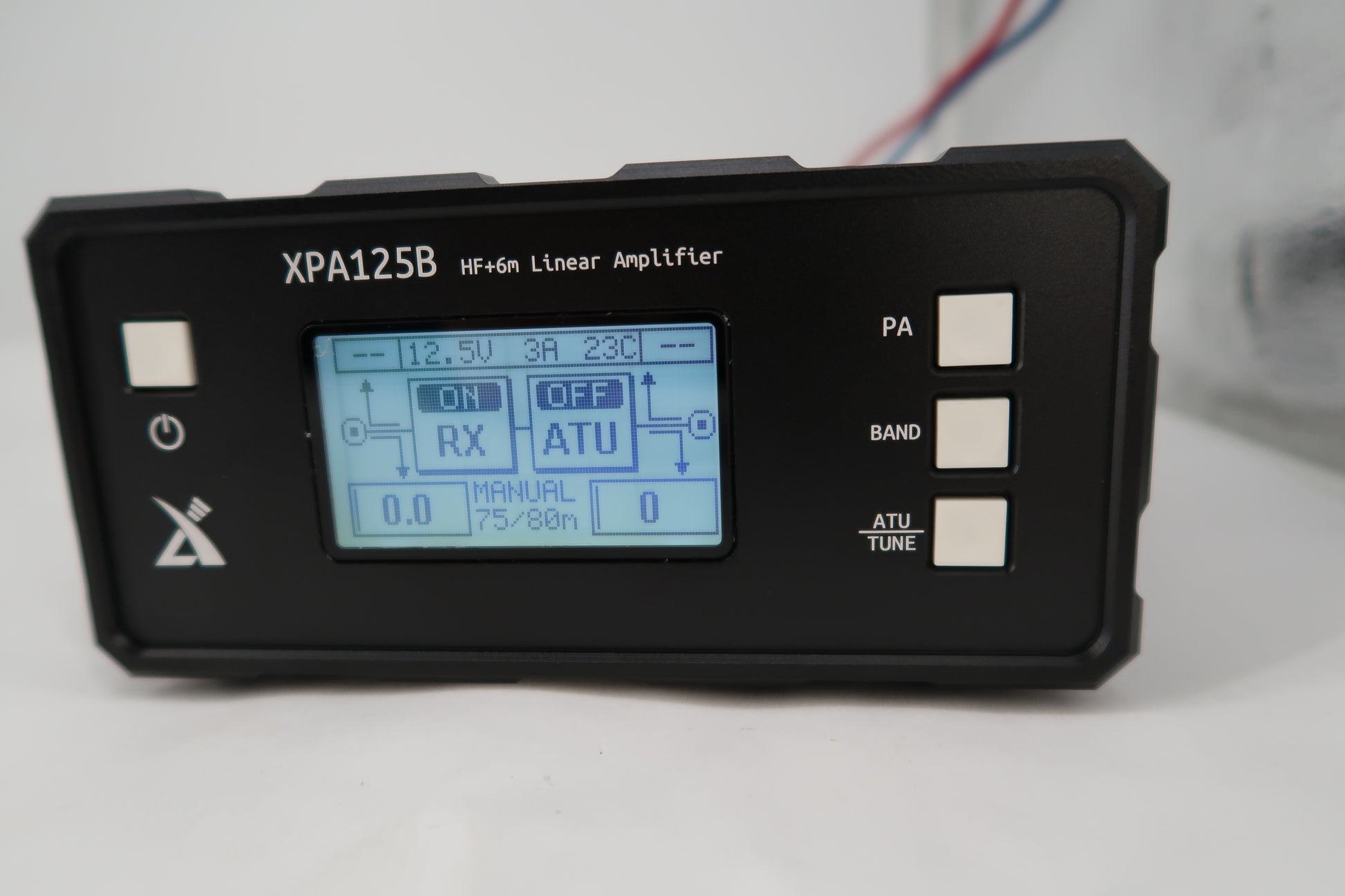

The large back lit LCD display shows input and output power, SWR, Voltage, Current, Temperature, amplifier status and warning messages making operation of this modern amplifier simple and user friendly.

Comes with our 90-Day Warranty!

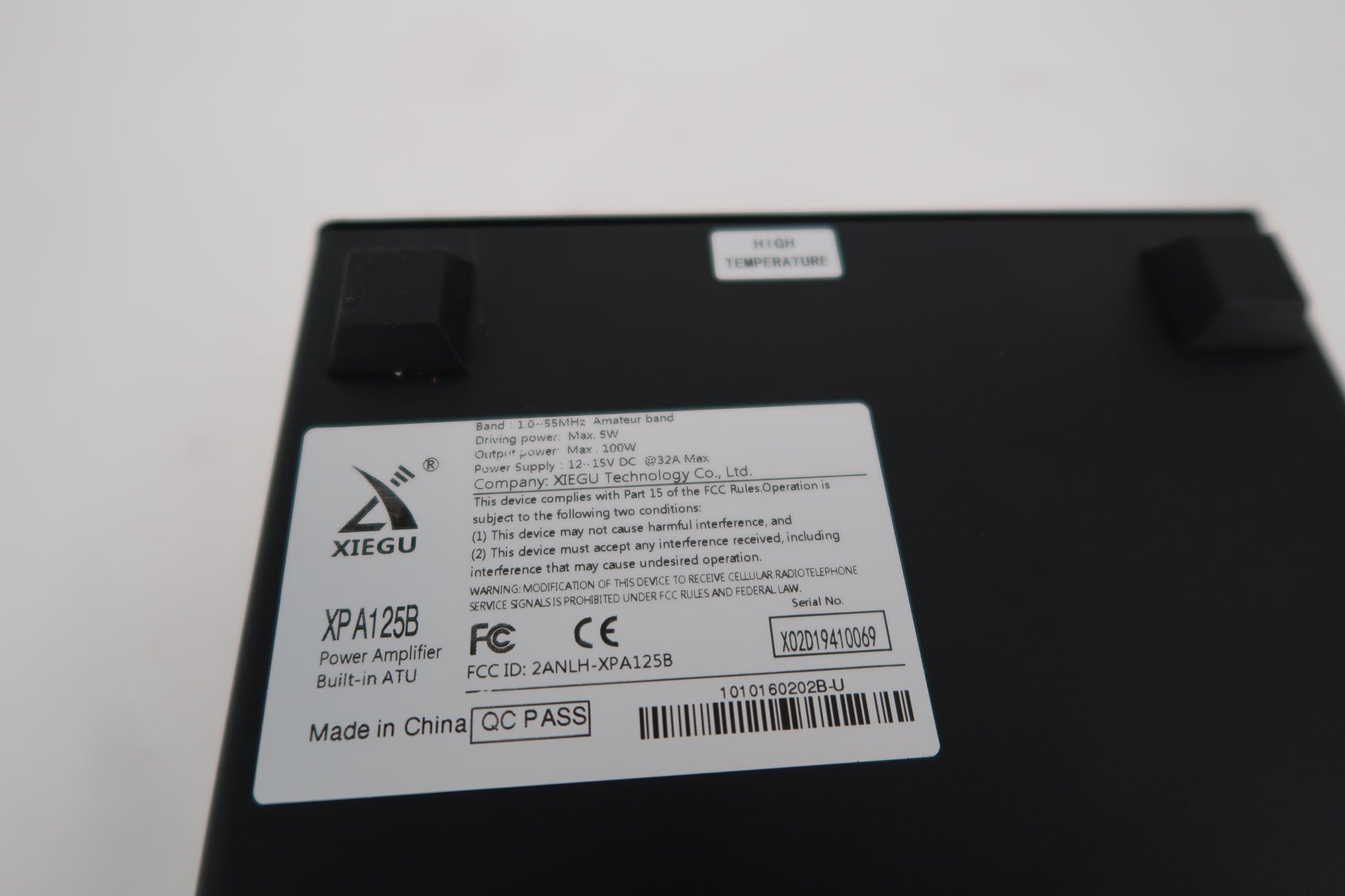

S/N: X02D19410069
