U19994 Used ACOM 1010 HF Linear Amplifier

U19994 Used ACOM 1010 HF Linear Amplifier

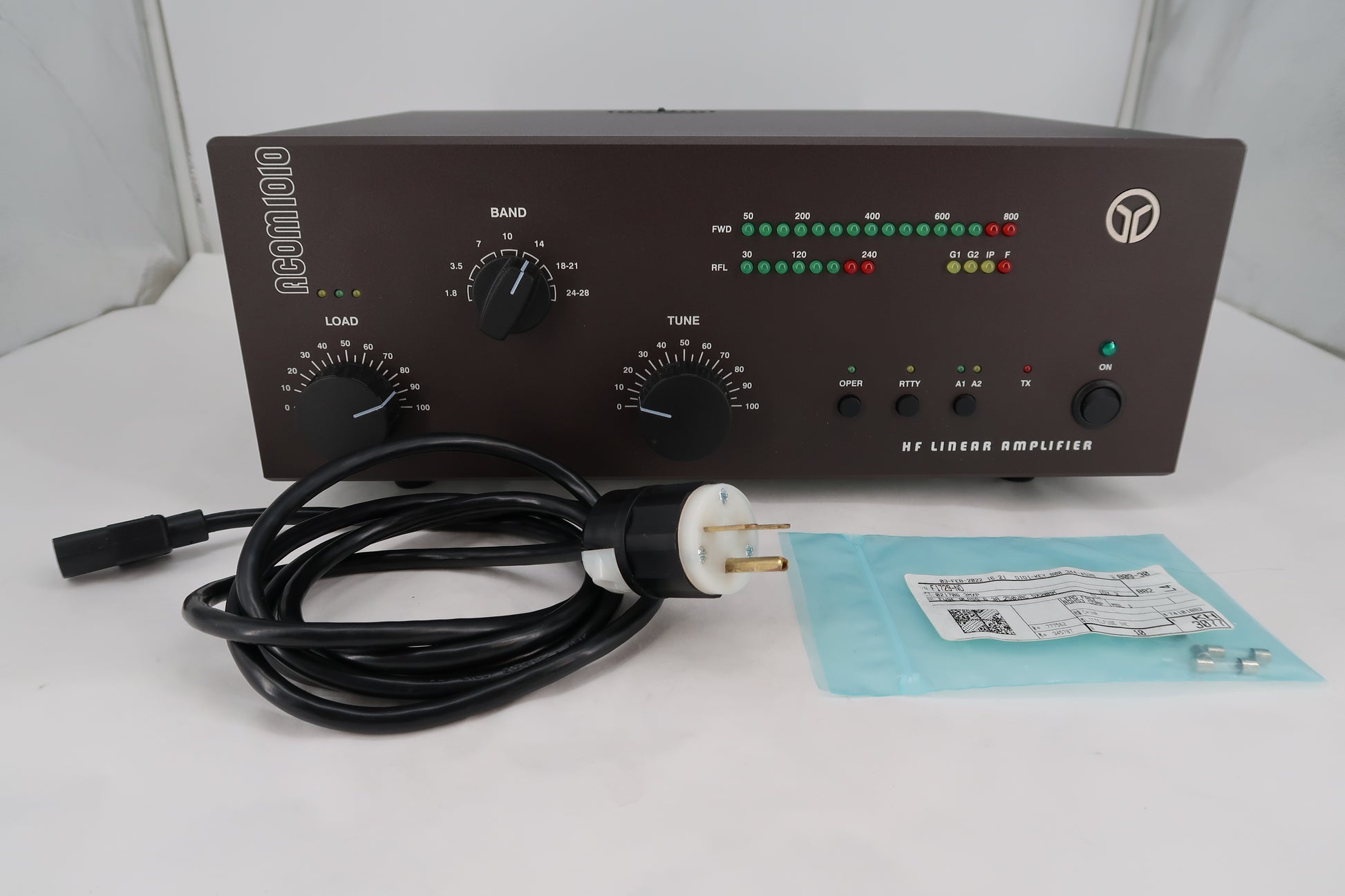

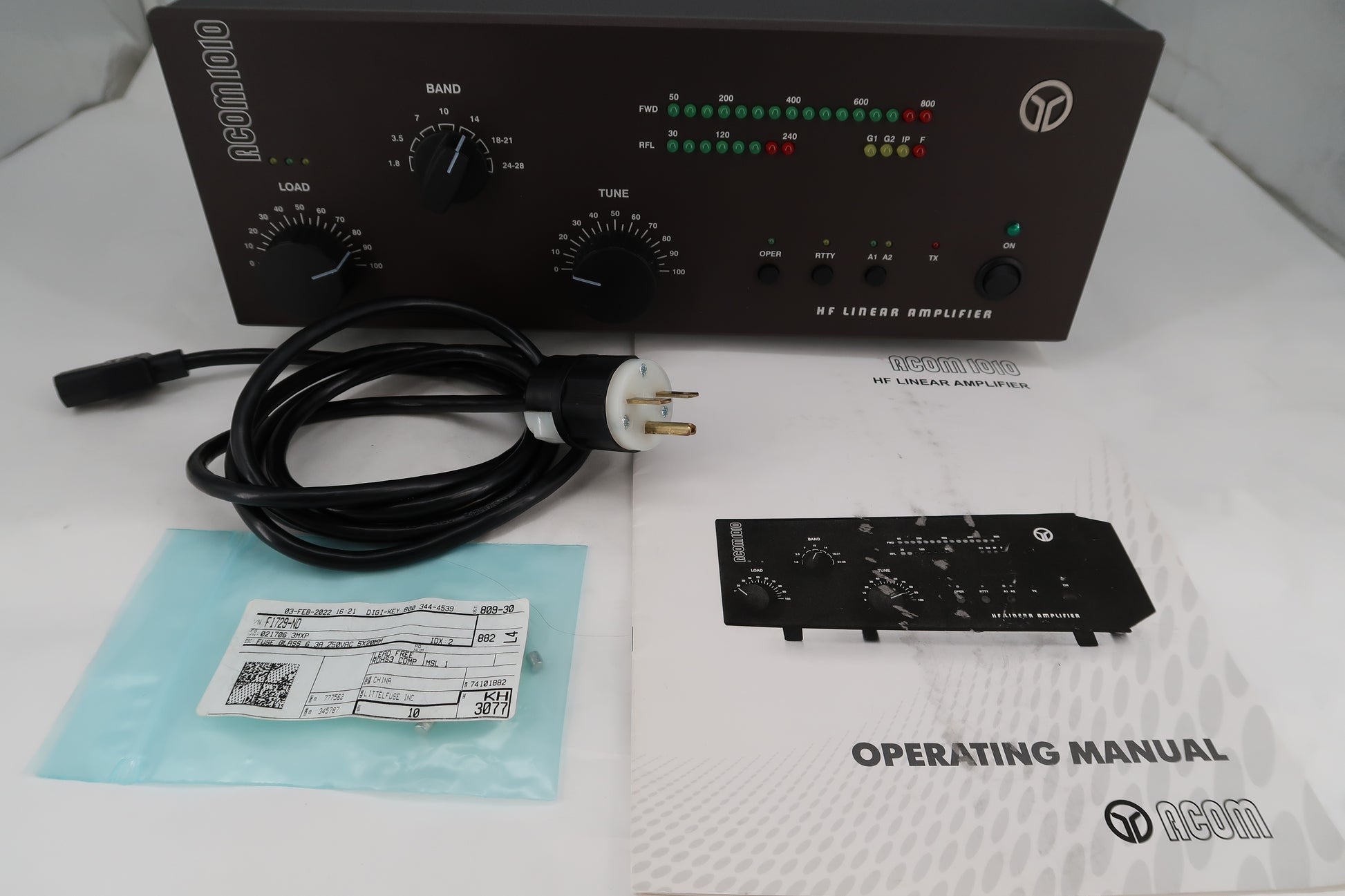

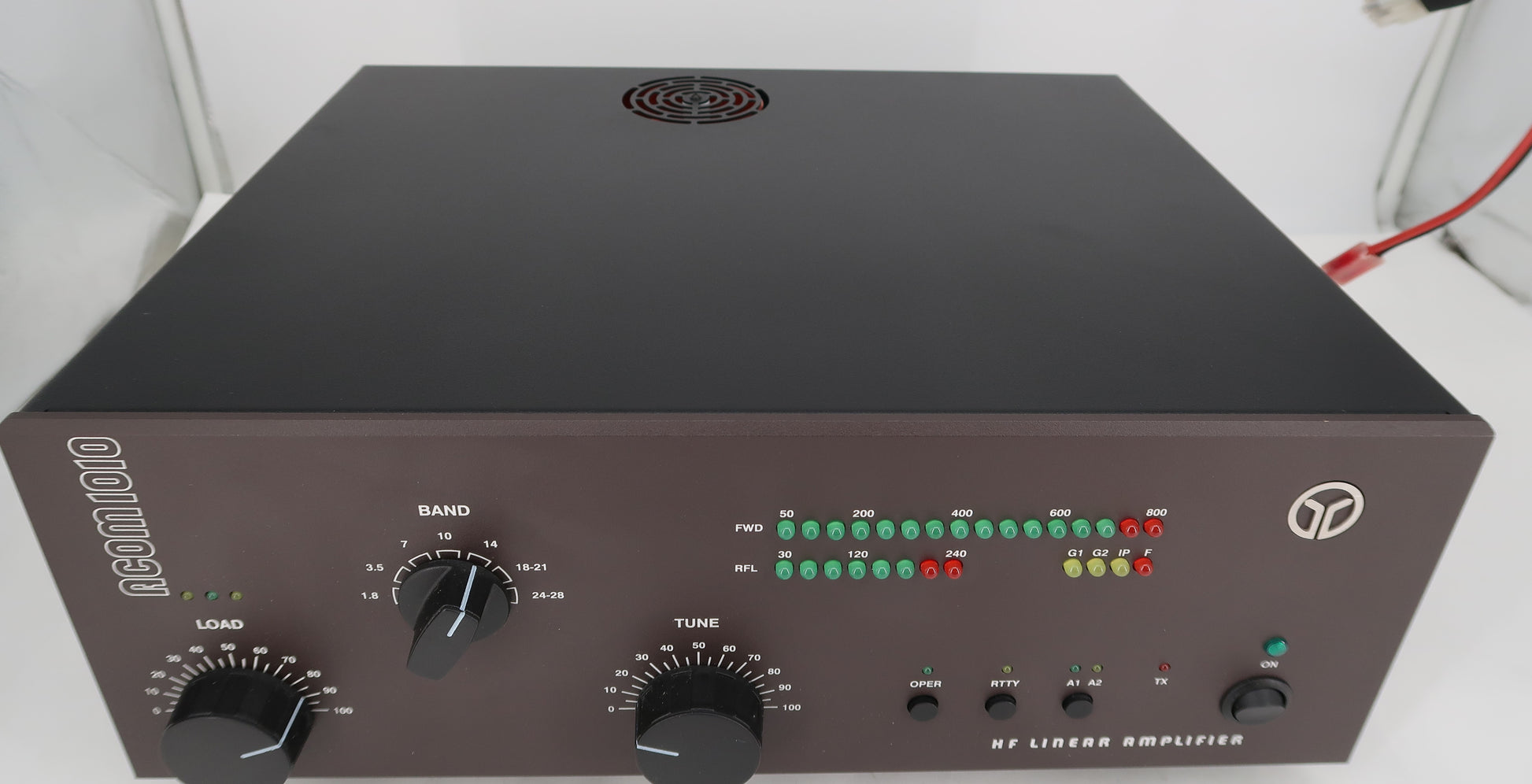

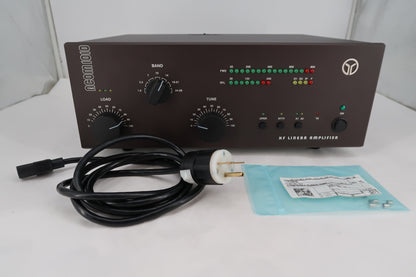

This ACOM 1010 HF Linear Amplifier has been well maintained and is in great condition. The unit is free from defects, and all knobs, buttons, and text are in like-new condition and comes in the factory box. Line voltage selection is configured at 240V and ready for use.

Radio Features:

Usage
The ACOM 1010 is a self-contained linear amplifier that covers all amateur bands, from 1.8 through 29.7 MHz. It provides over 700 W PEP of output power (or 500 W in continuous-duty operation) with less than 60 W of drive.

Easy to operate
The plate-load True Resistance Indicator (TRI) is an ACOM innovation that provides quick and precise tuning, typically in less than 10 seconds. The AUTO-OPERATE function will return the amplifier to the OPERATE mode automatically after each protection trip, saving time and avoiding manual switching.

Antenna tuner as an option
The amplifier does not need an external antenna tuner as long as the antenna' SWR is 3:1 or lower.

User-friendly and durable
This amplifier is both user-friendly and self-monitoring. It is designed to safely withstand up to 240 W of reflected power, up to 100 milliseconds of drive spikes (RF "tails" after a PTT or KEY release), and even operator tuning errors. It is also capable of operating at more than half its designed output power at only 75% of nominal line (mains) voltage. Because it can tolerate deep voltage drops (down to zero for 10 milliseconds) and 15% line voltage spikes, it is particularly suited for use in portable environments, such as field days and DXpeditions.

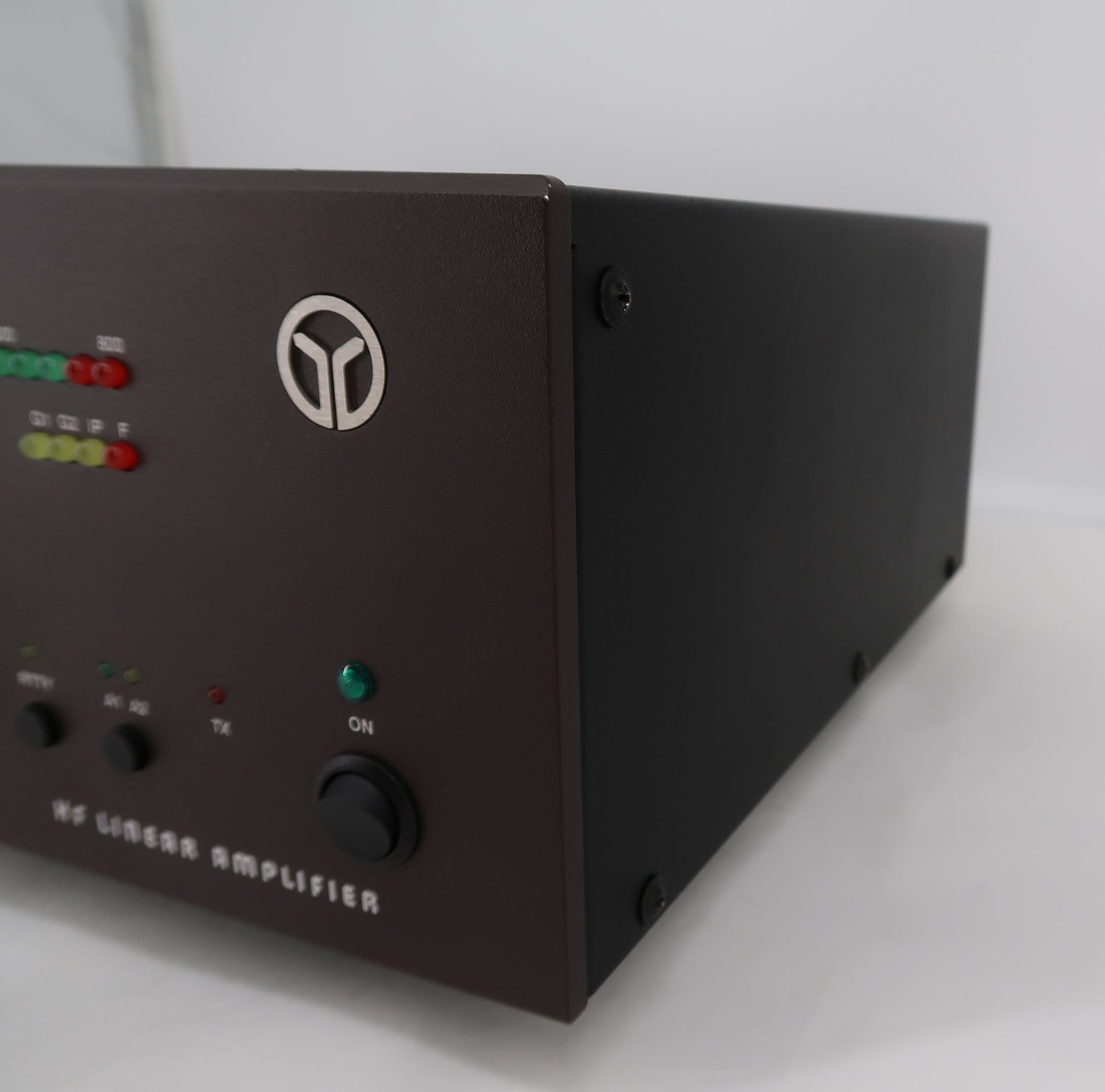

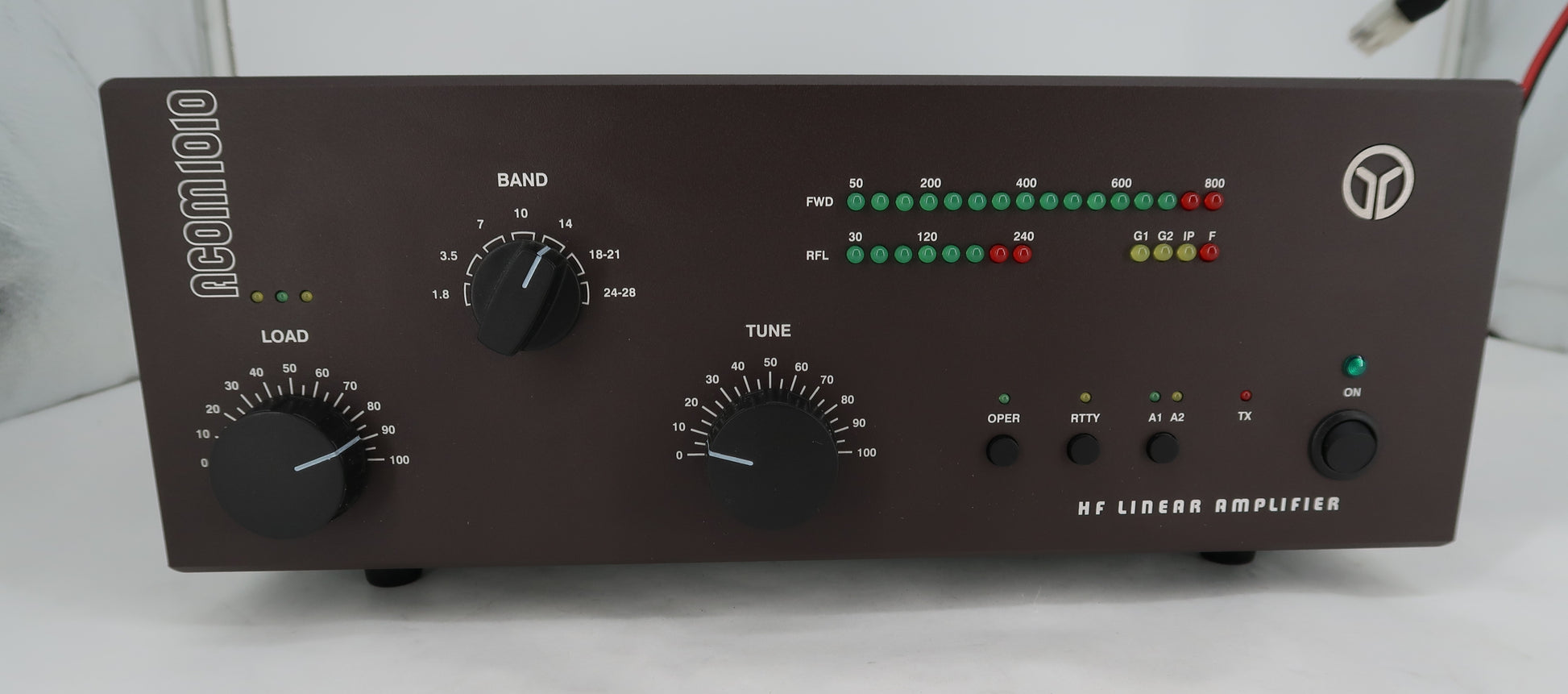

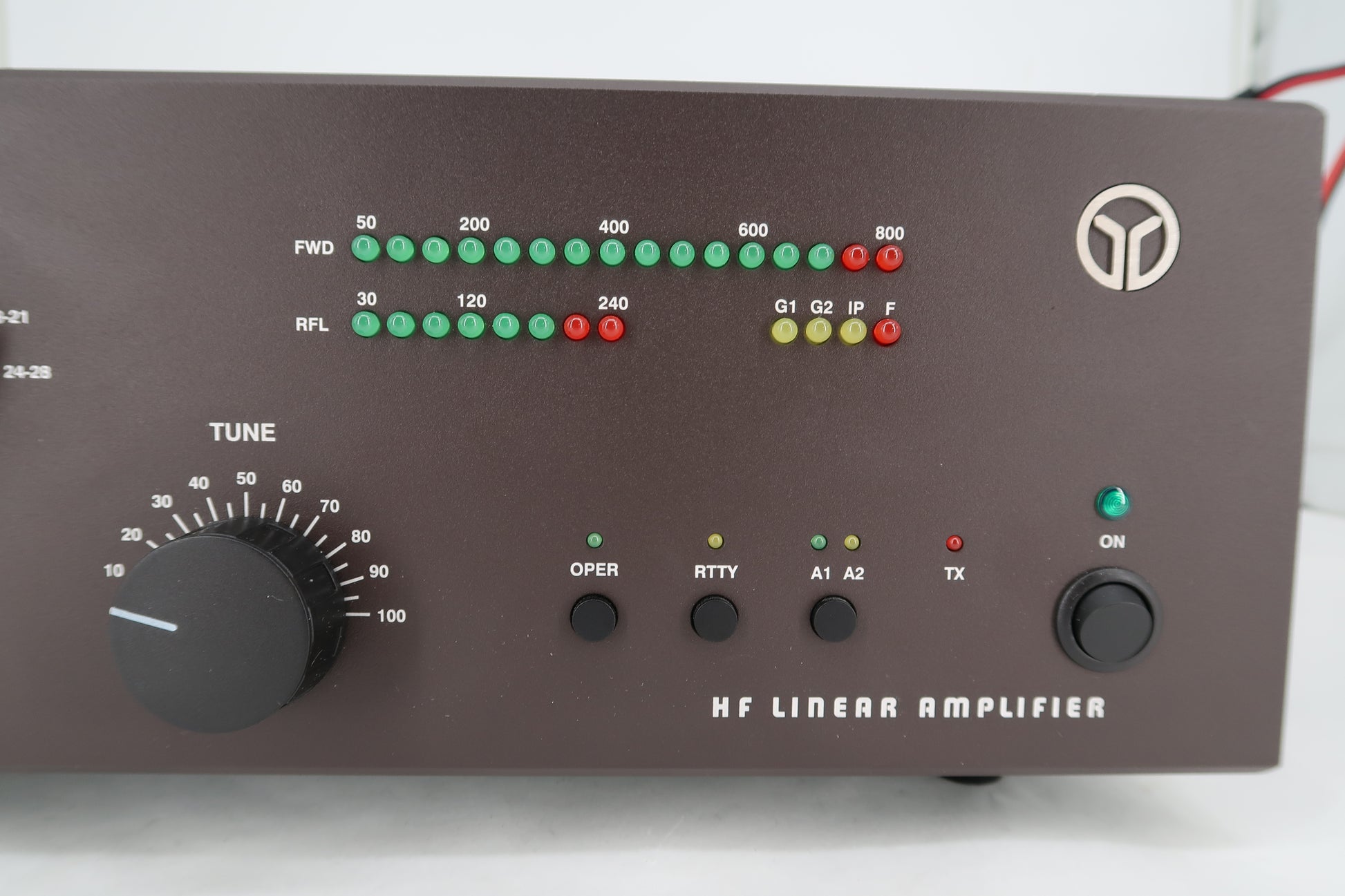

LED bar-graph display
The upper LED bar-graph always reads peak forward power (except for the service functions) while the lower LED bar-graph is for the reflected power. LED warning indicators are provided for abnormal conditions of grid 1, grid 2, and plate parameters.

Antenna selection

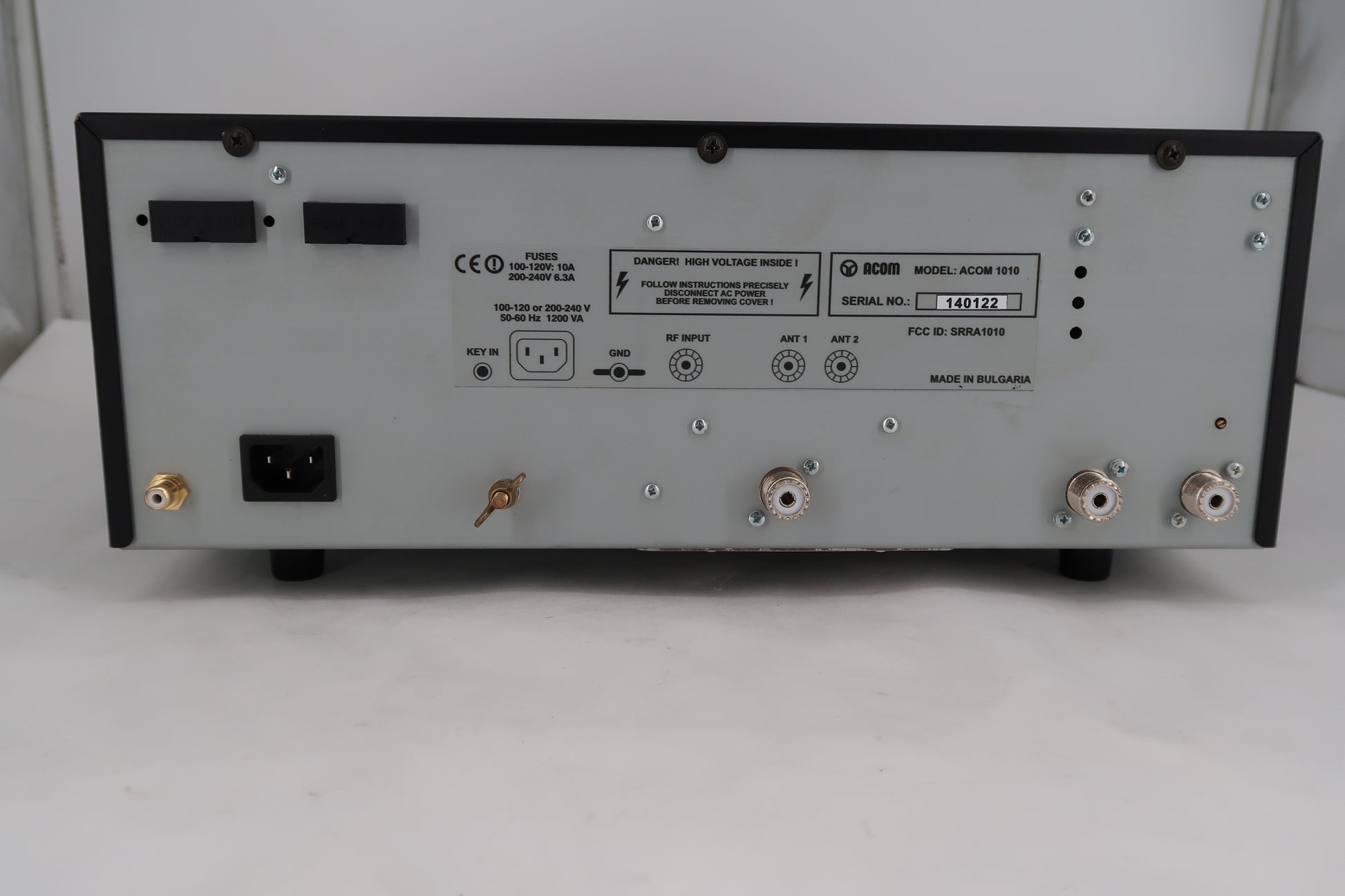

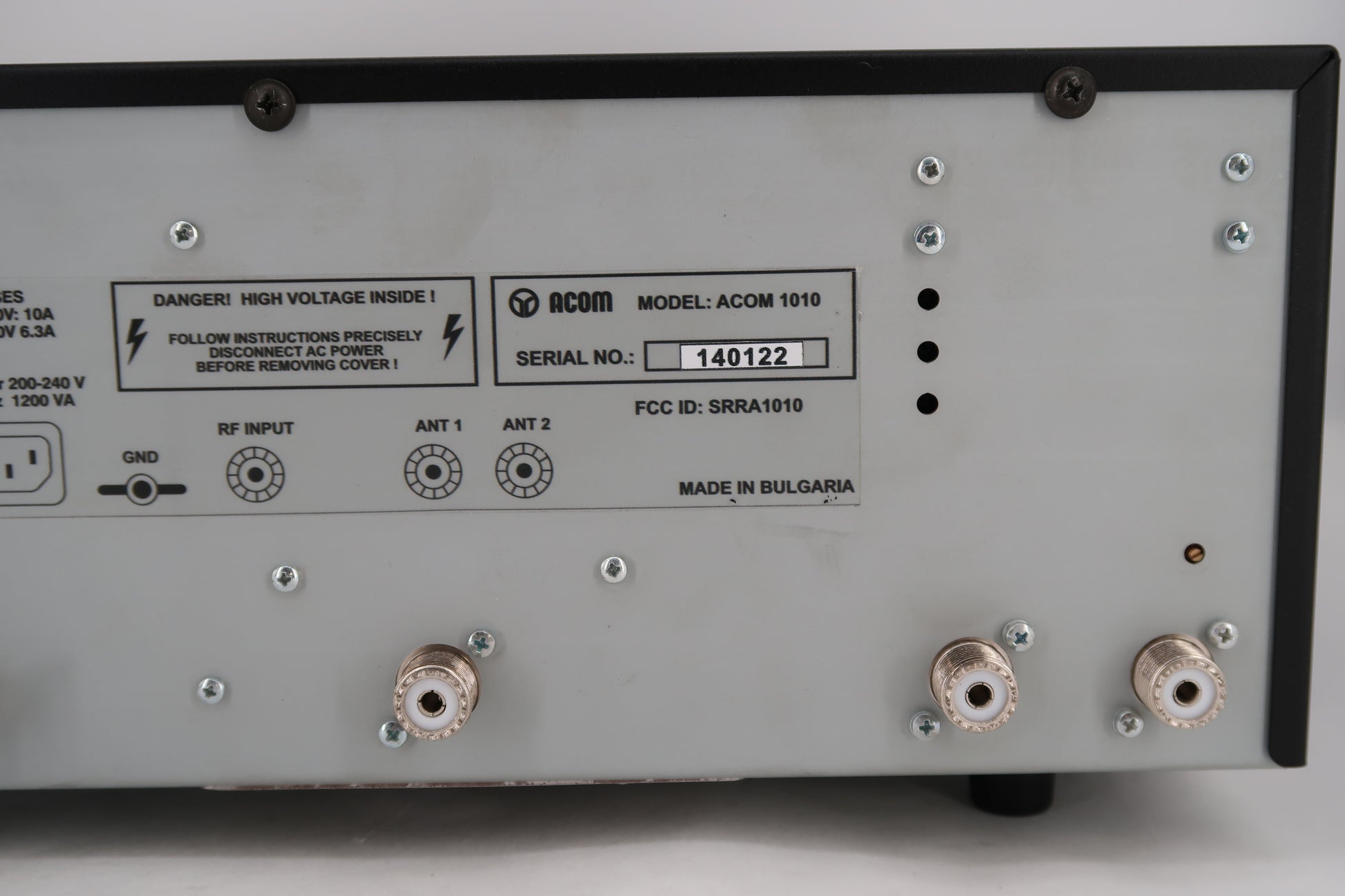

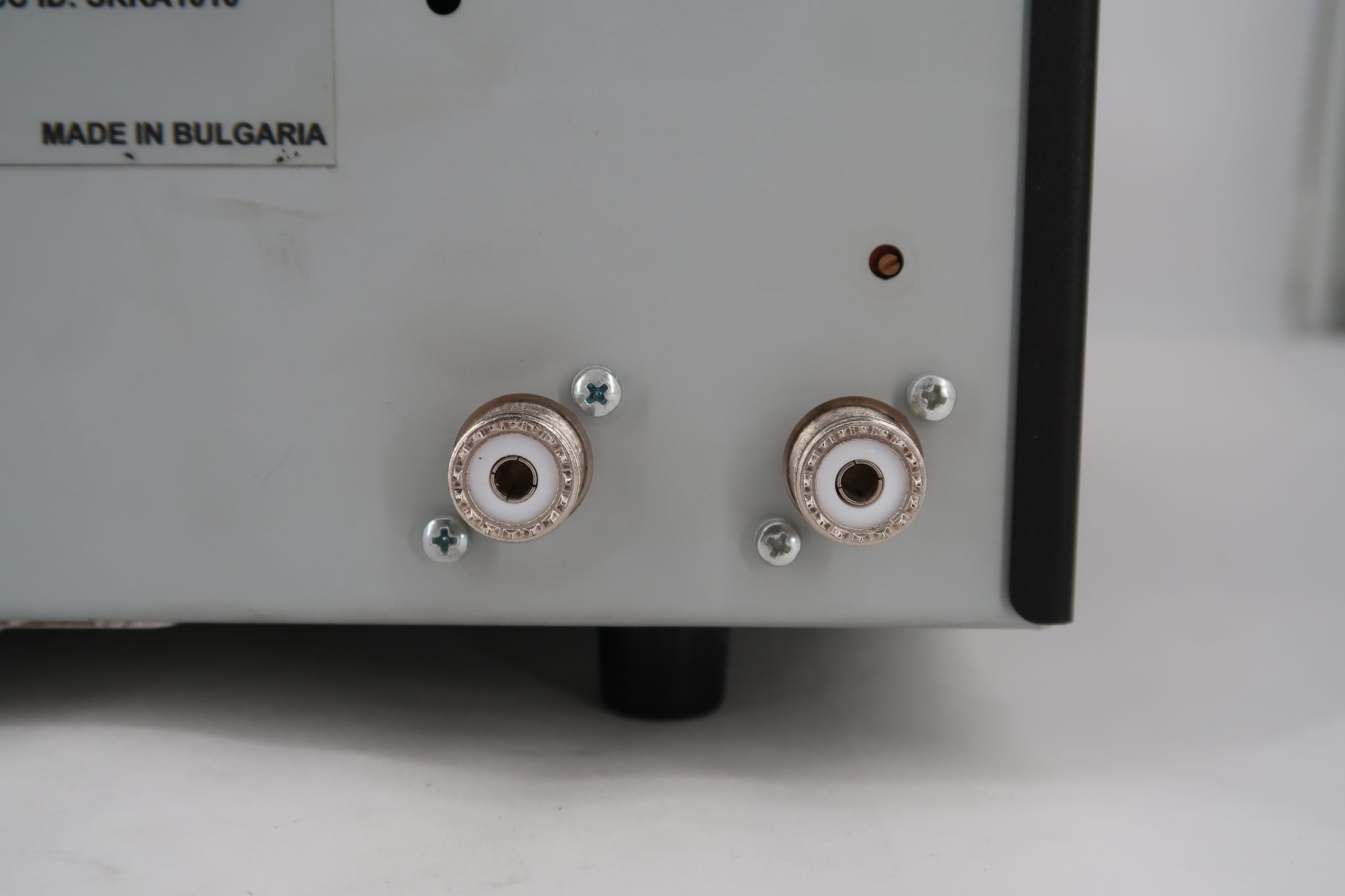

Two antenna outputs are selectable on the front panel of the amplifier.

Efficient tuning
Antenna matching can be achieved in less than 10 seconds and at a quarter of nominal output power, which produces lower risk of interference to other stations and greater safety to the amplifier components.

Transceiver-independent
The amplifier operates without special signaling from the transceiver. It needs only "ground on TX" and 60 W RF drive power to operate at full output power.

Broadband input matching
Broadband input matching circuitry offers excellent loading characteristics for the driving transceiver, from 1.8 MHz to 30 MHz.

Permanent monitoring and protection of the plate and grids currents
The Bias Optimizer minimizes heat dissipated by the tube, assuring tube longevity.

High voltage protection

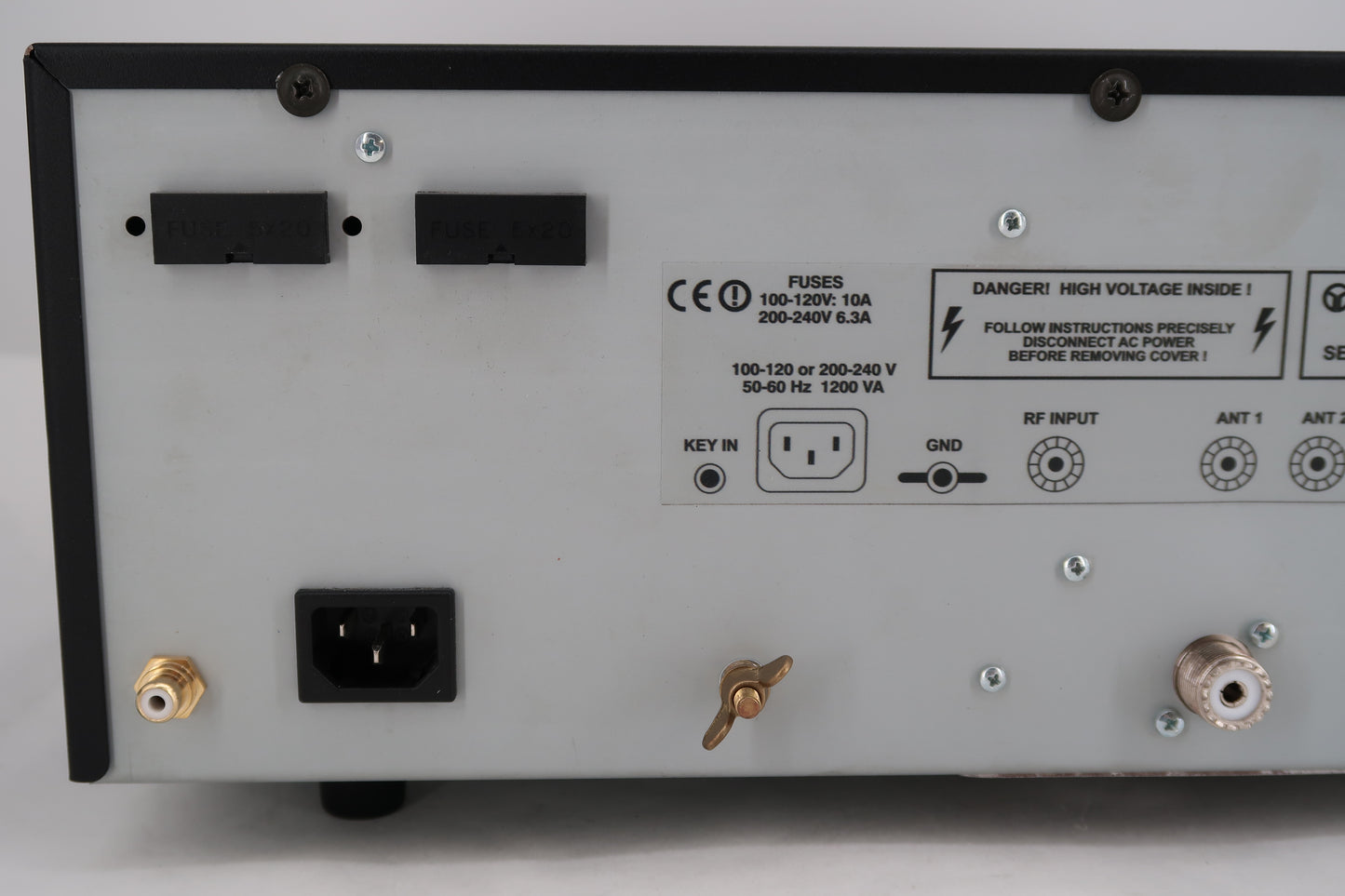

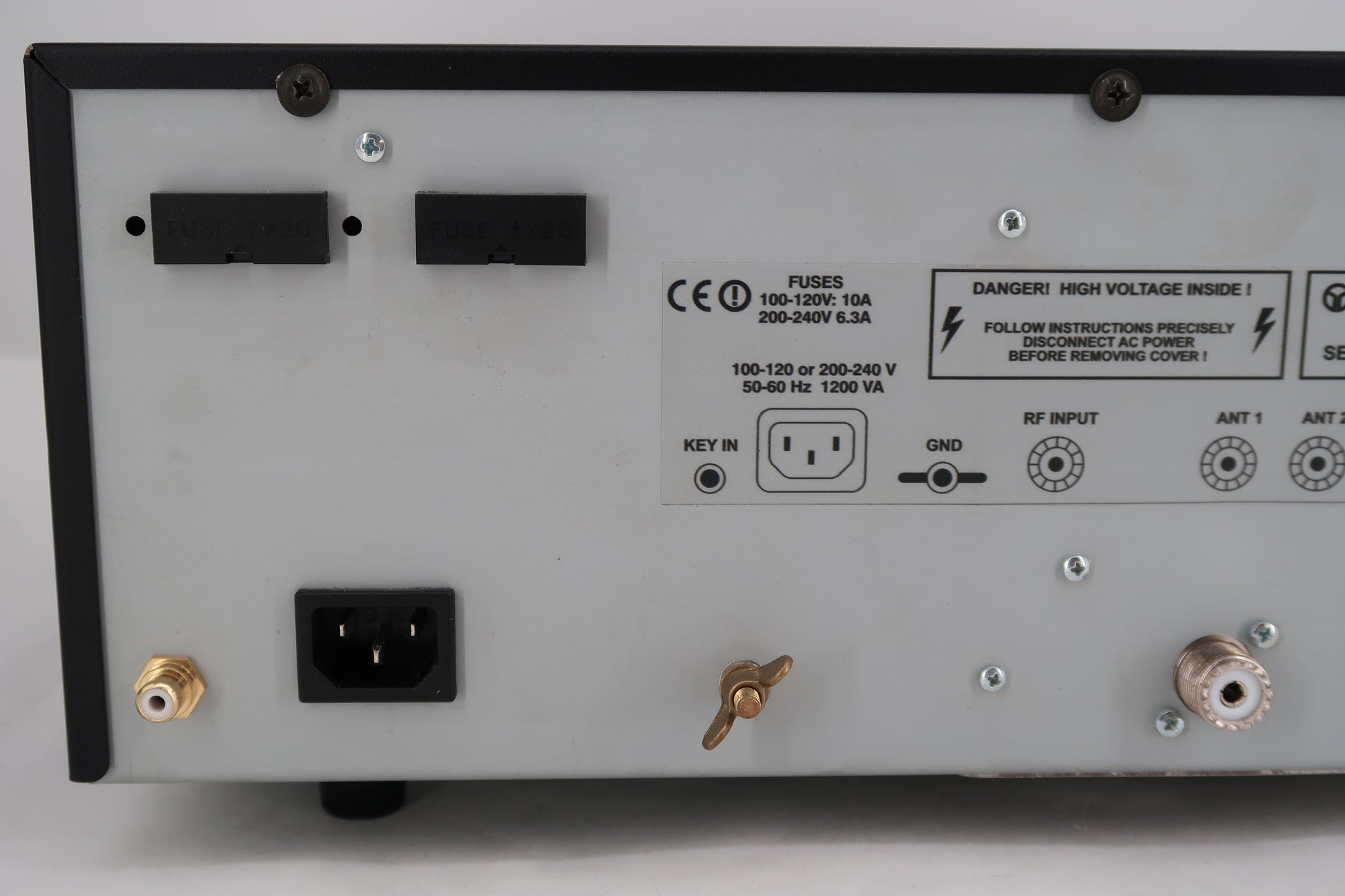

Design of the high-voltage power supply eliminates the danger of turn-on transients affecting sensitive devices connected to the same line (mains) circuit. Moreover, the amplifier can be configured for 8 different nominal line voltages: 100, 110, 120, 200, 210, 220, 230, or 240 VAC, 50 or 60 Hz.

Comes with our 90-Day Warranty!

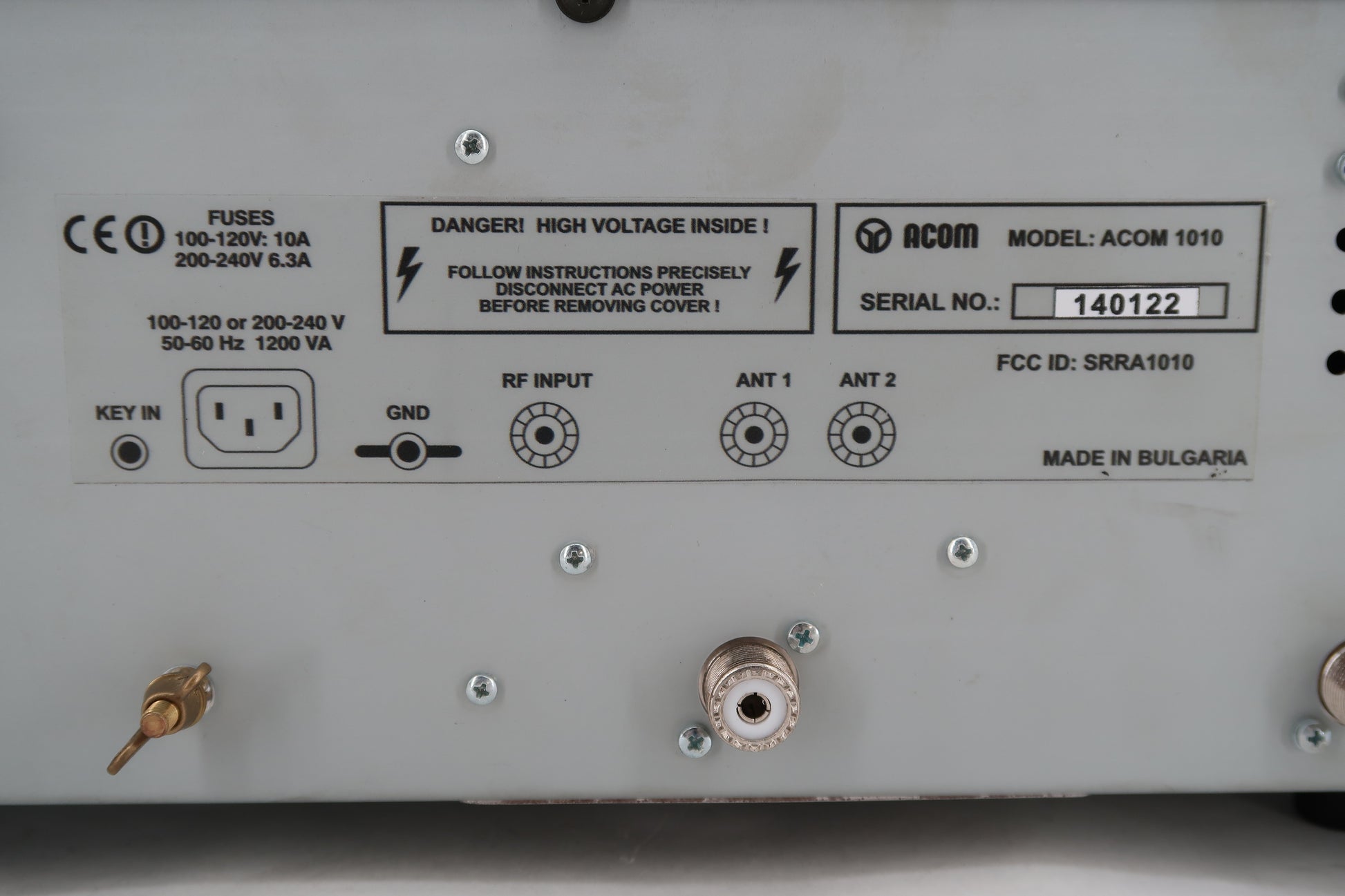

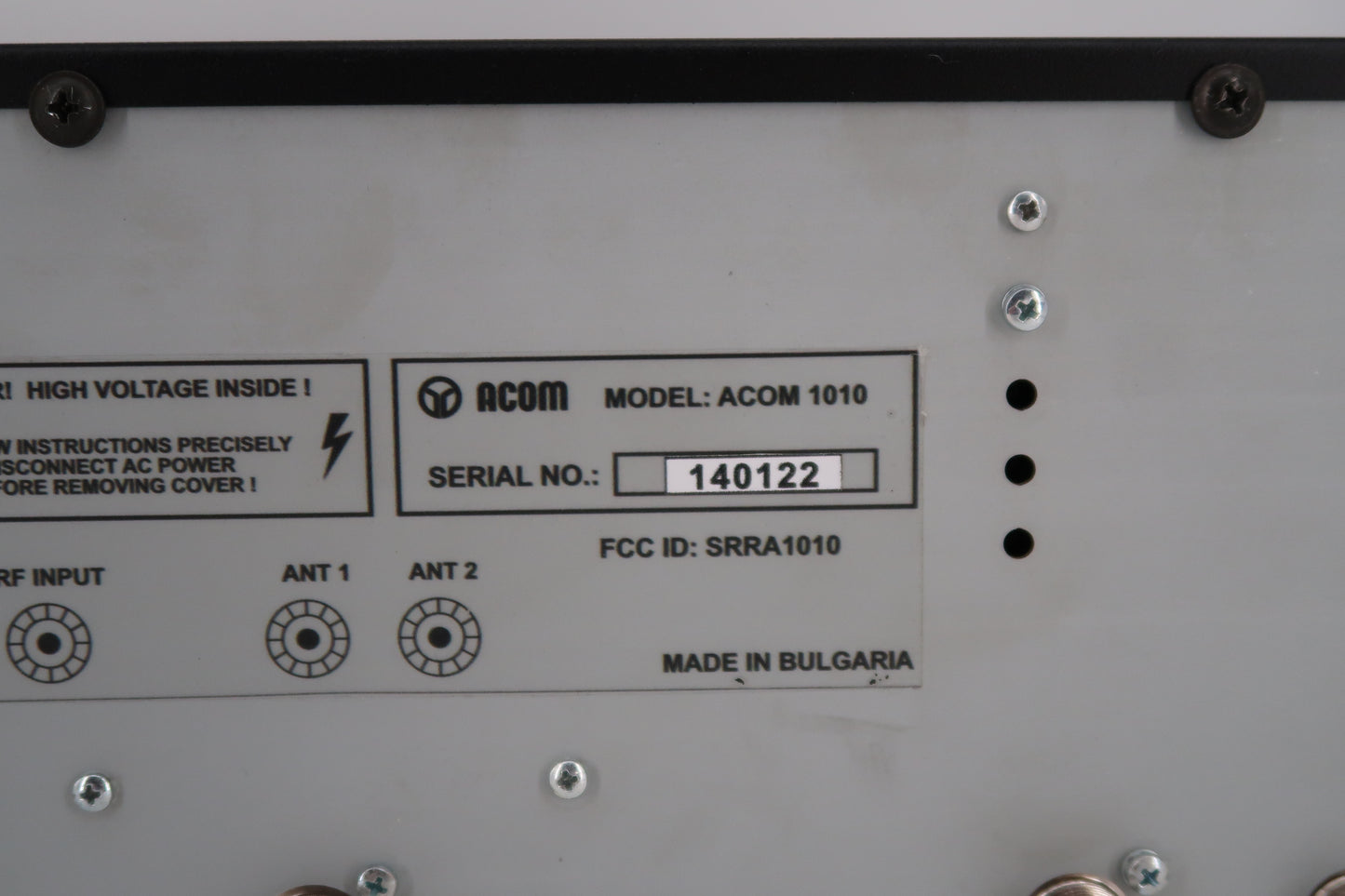

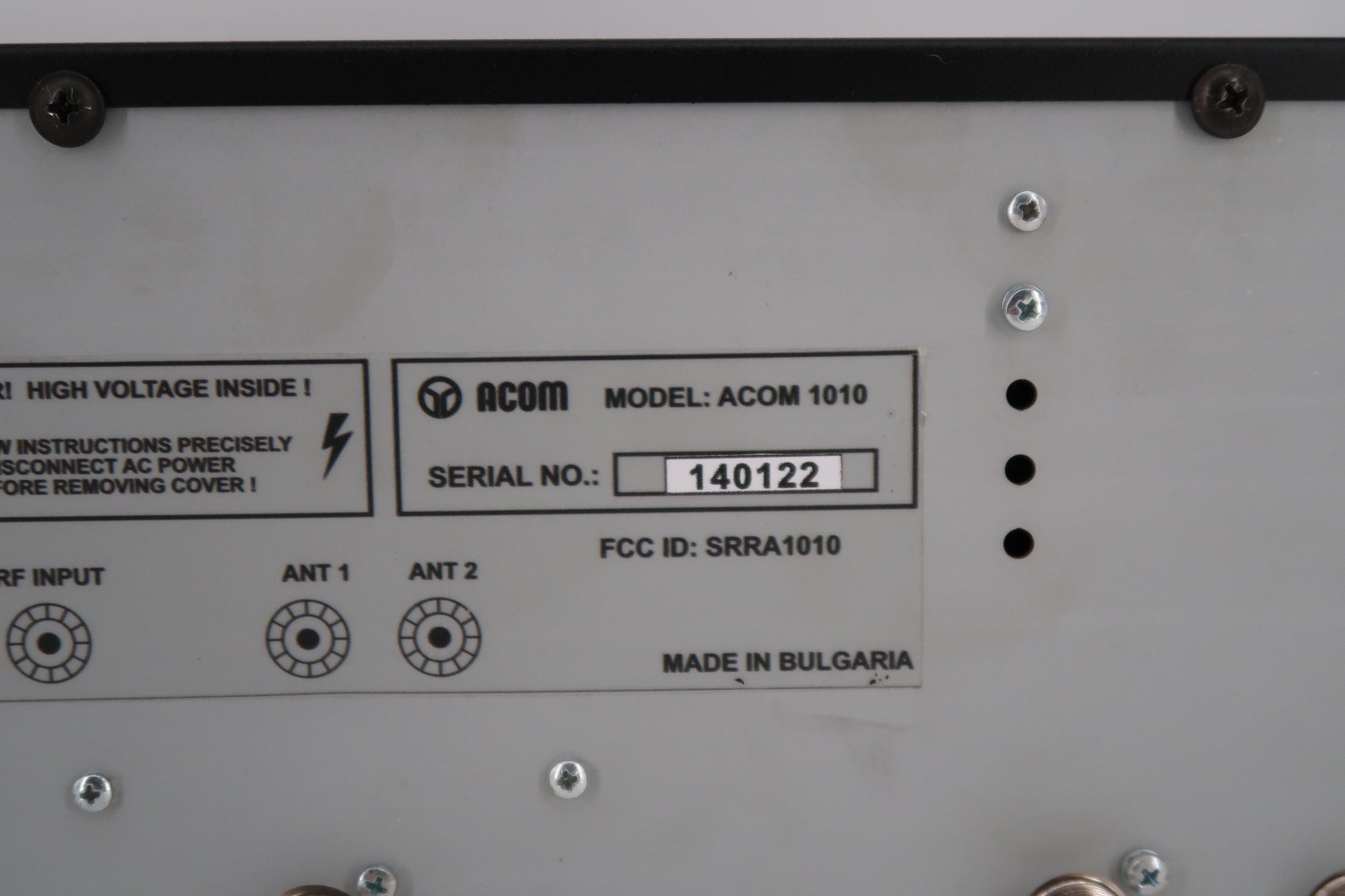

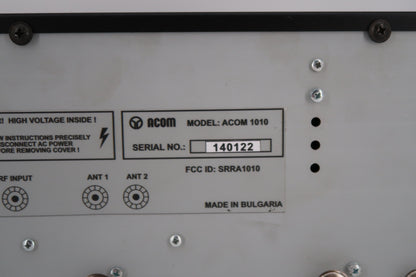

S/N: 140122
