U20333 Used RadioShack 2M Power Amplifier 12V 30W Model: HTA20

U20333 Used RadioShack 2M Power Amplifier 12V 30W Model: HTA20

Overall Condition: Used, good physical condition overall! Shows light surface dust and minor scuffing on the black heatsink body from standard use and storage. Front switches, status LEDs, label graphics, and rear SO-239 coax connectors are clean and in good shape. Bottom specifications label is fully legible . Comes with attached fused 12V DC power wiring lead attached.

The RadioShack HTA20  is a compact 2-meter (144–148 MHz) VHF linear power amplifier equipped with a built-in receive pre-amplifier featuring a helical resonator. Designed to boost low-power 2m handheld transceivers (HTs) up to 30 Watts RF output power, it operates on a standard 12V–13.8V DC negative-ground power supply.

Accepting drive levels from 0.5 to 5 Watts, the HTA20 automatically senses RF carrier input to trigger transmit amplification, making it a great mobile or desktop companion to expand the range of 2-meter handhelds.

Condition Breakdown

• General: Pre-owned, good physical condition with light dust and minor surface scuffs

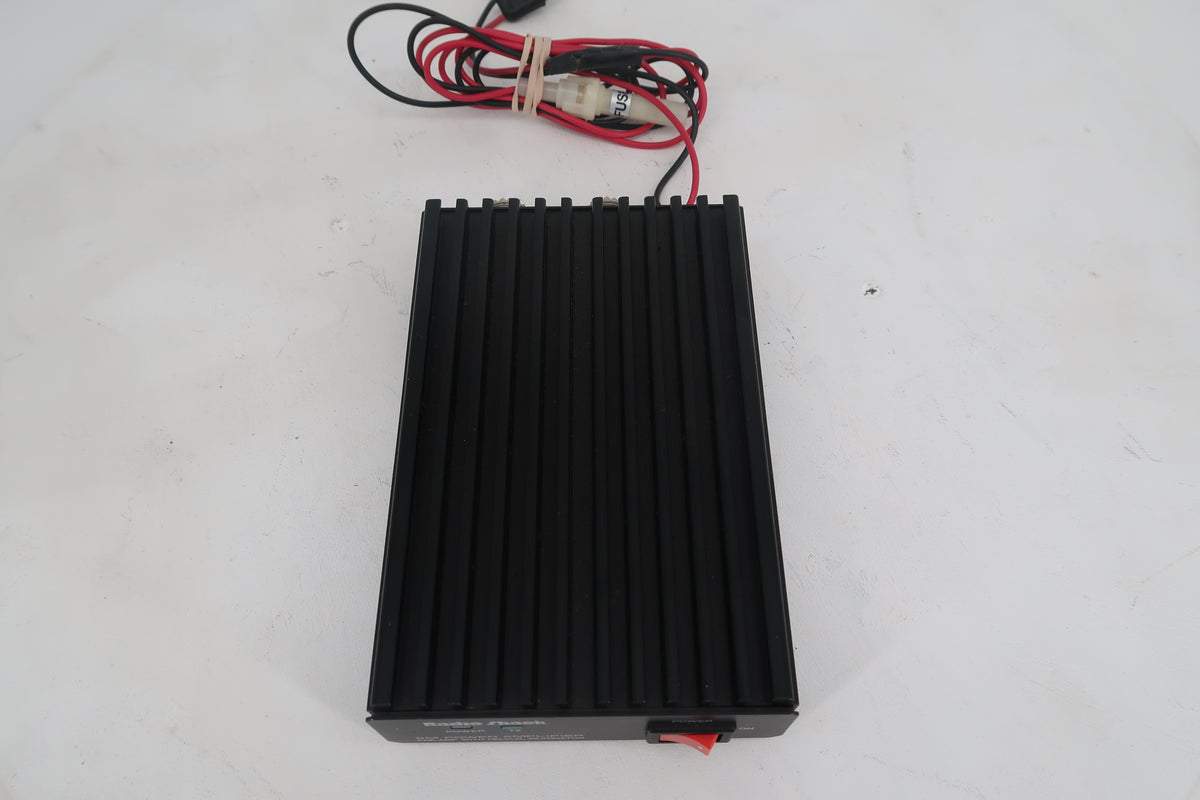

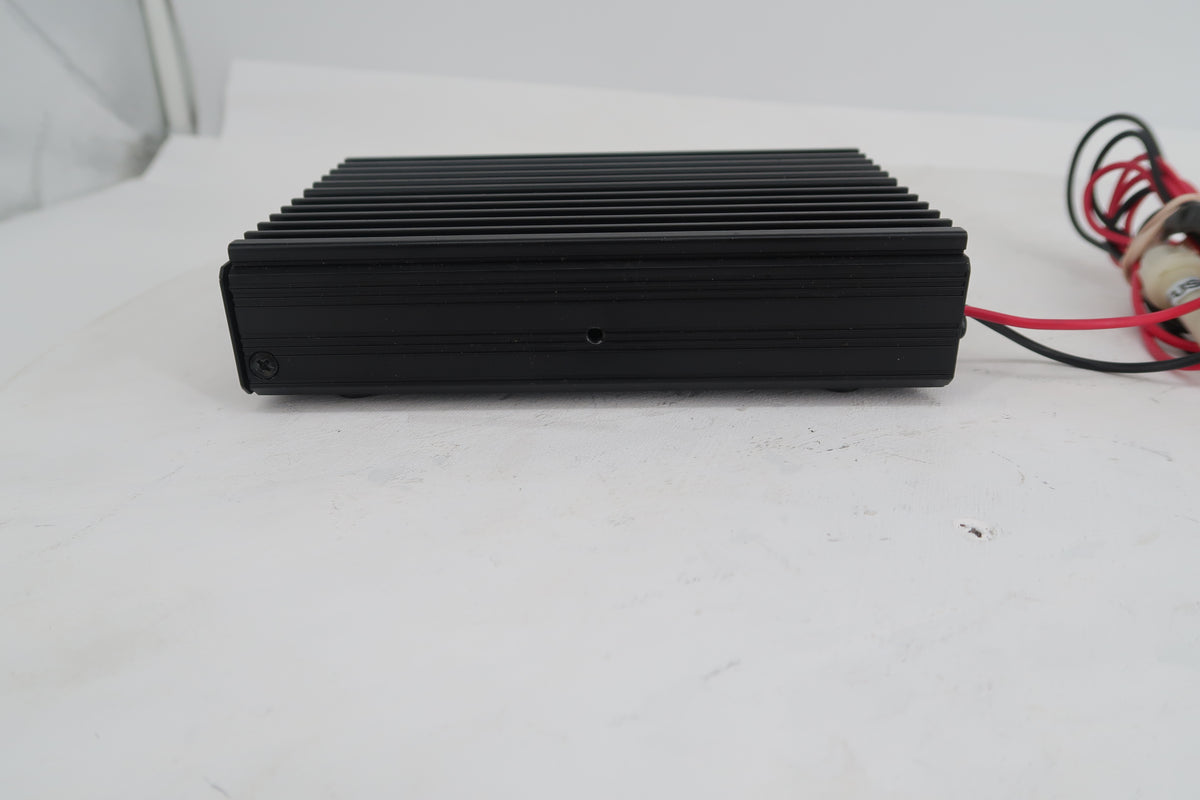

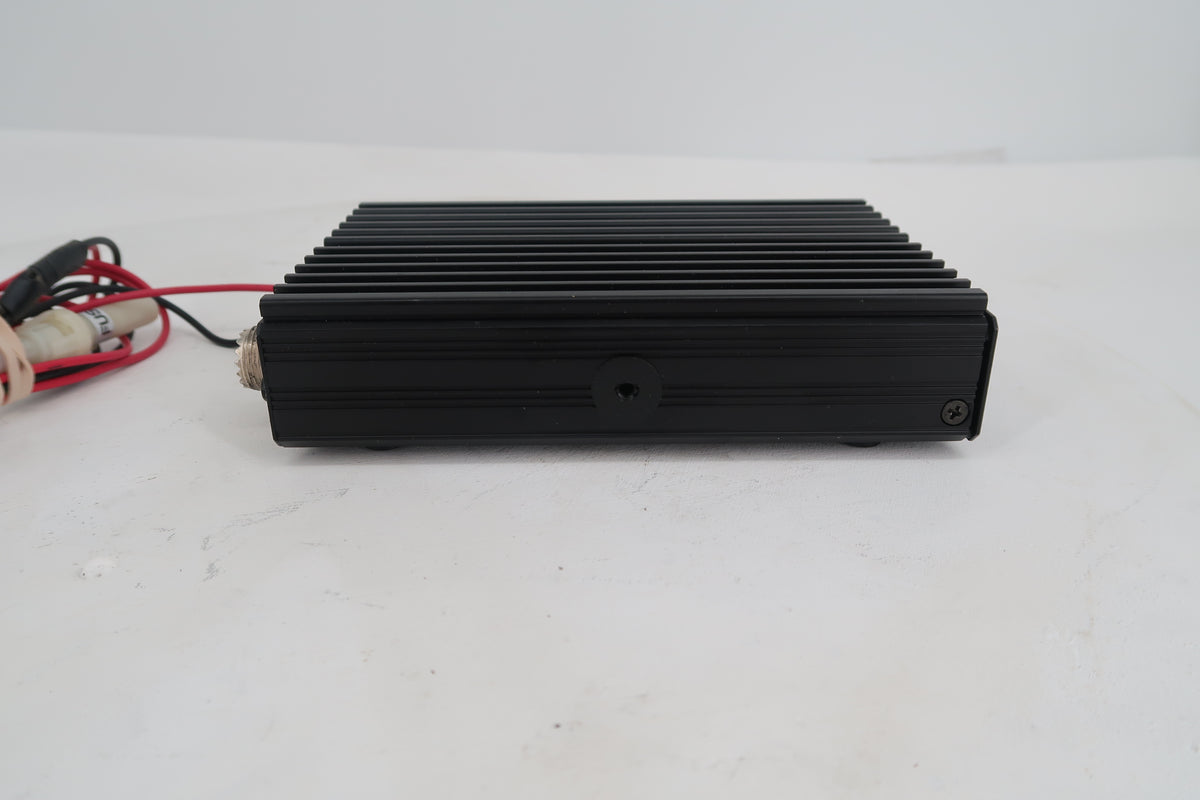

• Enclosure & Heatsink: Aluminum fins and outer black housing show minor handling marks

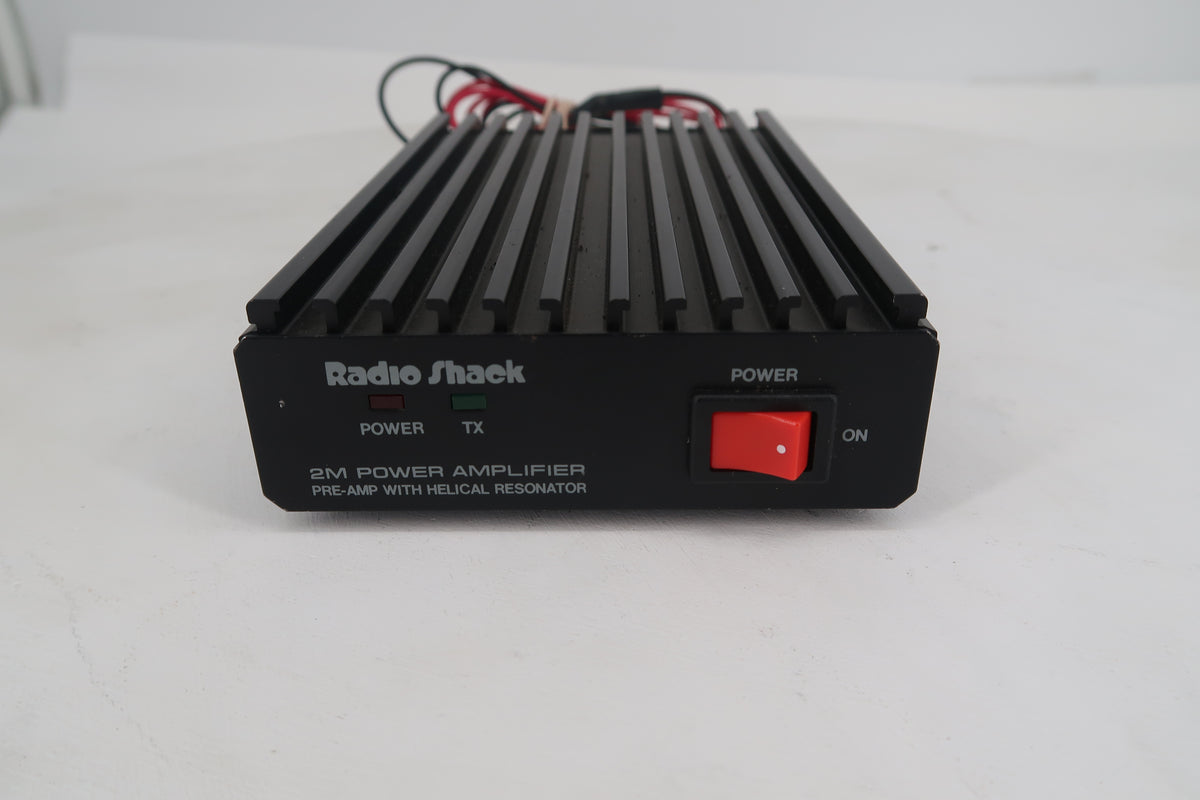

• Front Panel: POWER rocker switch and POWER / TX LED indicators are intact with clean lettering

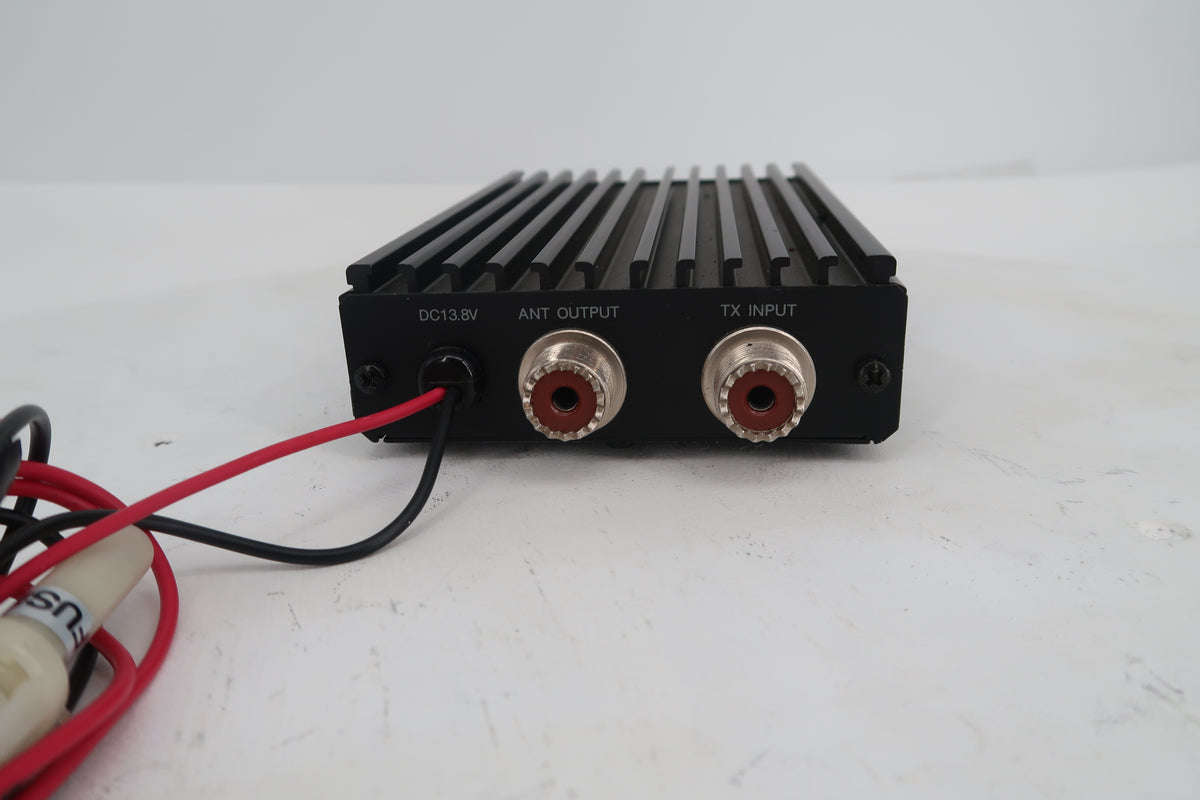

• Rear Panel & Connectors: ANT OUTPUT and TX INPUT SO-239 jacks are clean and structurally solid

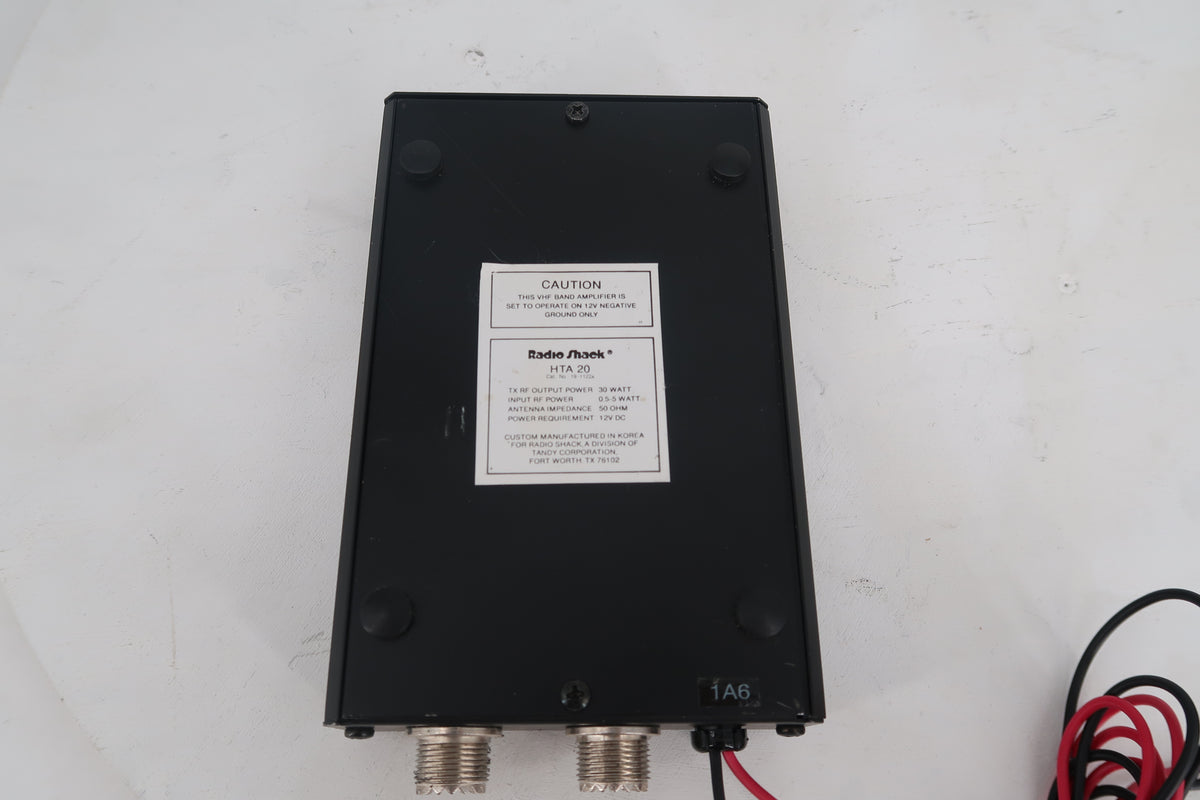

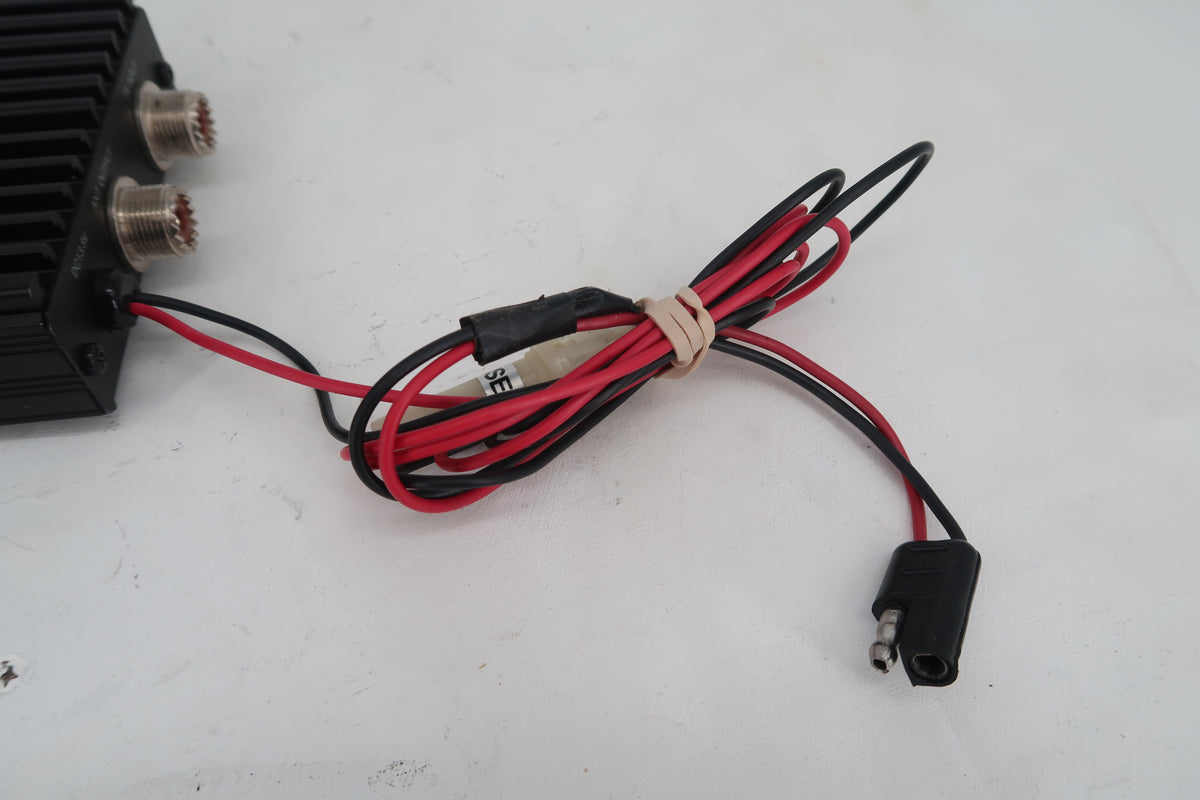

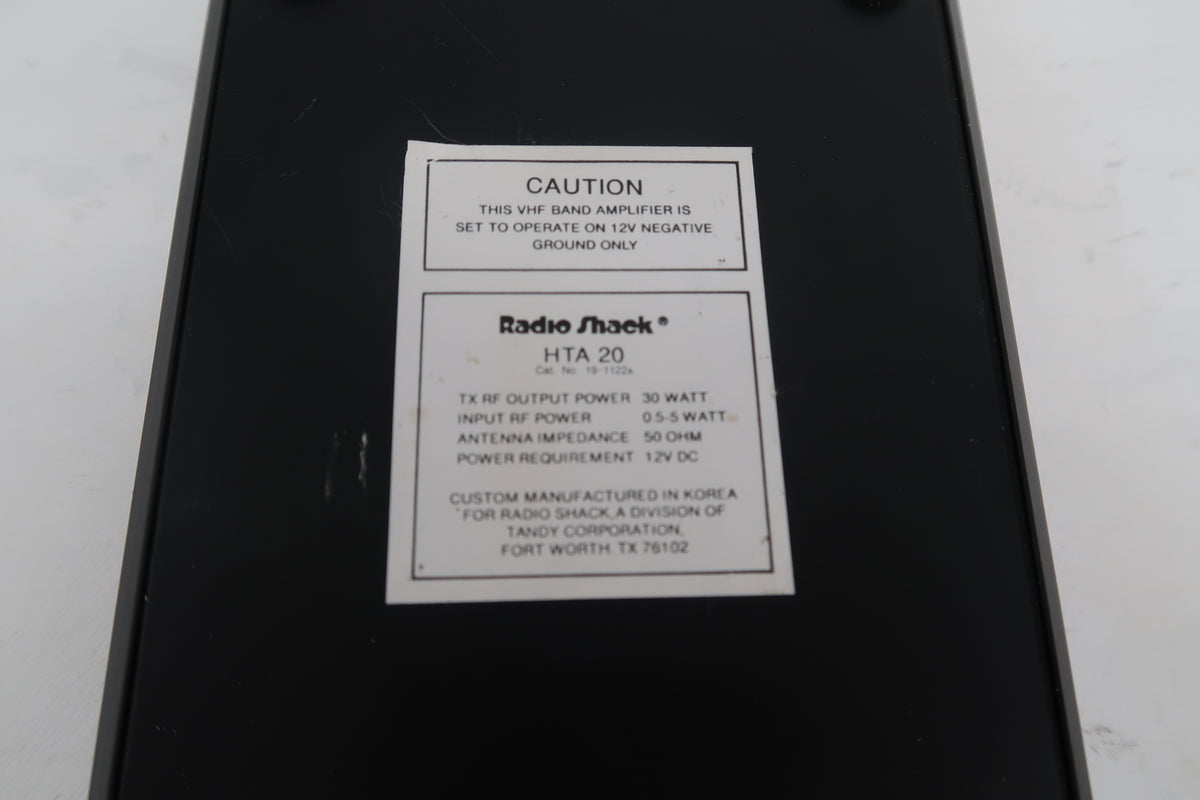

• Wiring & Bottom Tag: Attached DC power cord with inline fuse holder is intact

Key Features

• 30W RF Output Power: Amplifies 0.5W to 5W HT transmitter input up to 30 Watts output on 2 Meters

• Built-In RX Pre-Amp: Integrated receive pre-amplifier with helical resonator filter boosts weak incoming signals

• Automatic RF Sensing T/R Switch: Automatically switches to transmit mode upon detecting incoming RF carrier drive

• 12V DC Operation: Runs on standard 12V to 13.8V DC mobile/bench power supplies (negative ground)

• Durable Heatsink Design: Heavy aluminum finned chassis dissipates RF transistor heat efficiently

What's Included

• RadioShack 2M Power Amplifier Unit (Model HTA20 / Cat. No. 19-1120)

• Fused DC Power Wiring Harness (Attached)

Warranty

Comes with our 90-Day Warranty!

S/N: n/a
