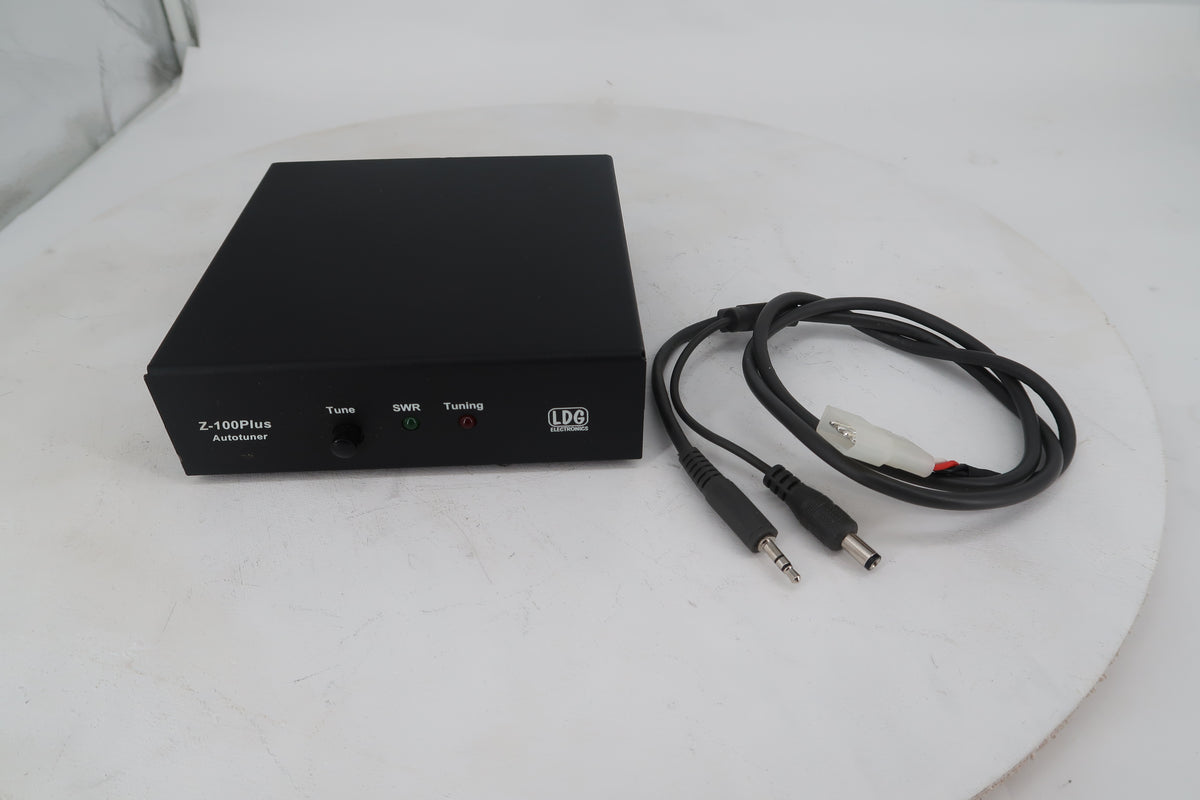

U20368 Used LDG Electronics Z-100 Plus w/IC-PAC Icom Interface Cable

U20368 Used LDG Electronics Z-100 Plus w/IC-PAC Icom Interface Cable

Overall Condition: Used, good physical condition overall! Cosmetic & Environmental Notes: Displays general enclosure scuffs and nicks from previous station use. Originates from a smoking environment and presents a tobacco storage odor. Functional State: The front panel Tune button, SWR/Tuning status LEDs, and rear panel coax/power connectors are all solid and fully functional. Comes complete with an LDG IC-PAC Icom radio interface cable assembly.

The LDG Z-100 Plus is an essential, automatic antenna tuner designed for desktop or portable HF operating. Handling 0.1 to 125 Watts PEP RF input (30W on PSK/digital modes), it covers 1.8 to 54 MHz continuously.

Equipped with LDG's advanced microprocessor-controlled switched-L tuning network, the Z-100 Plus features 2,000 3D memory channels that reduce tuning time to a fraction of a second when returning to previously used frequencies. The included IC-PAC interface cable allows direct plug-and-play connection to supported Icom HF transceivers (such as the IC-706, IC-7000, IC-7100, IC-7200, IC-7300, IC-746, and IC-756 series), sending power and keying control directly from the radio.

Condition Breakdown

• General: Pre-owned, good overall condition with typical handling wear

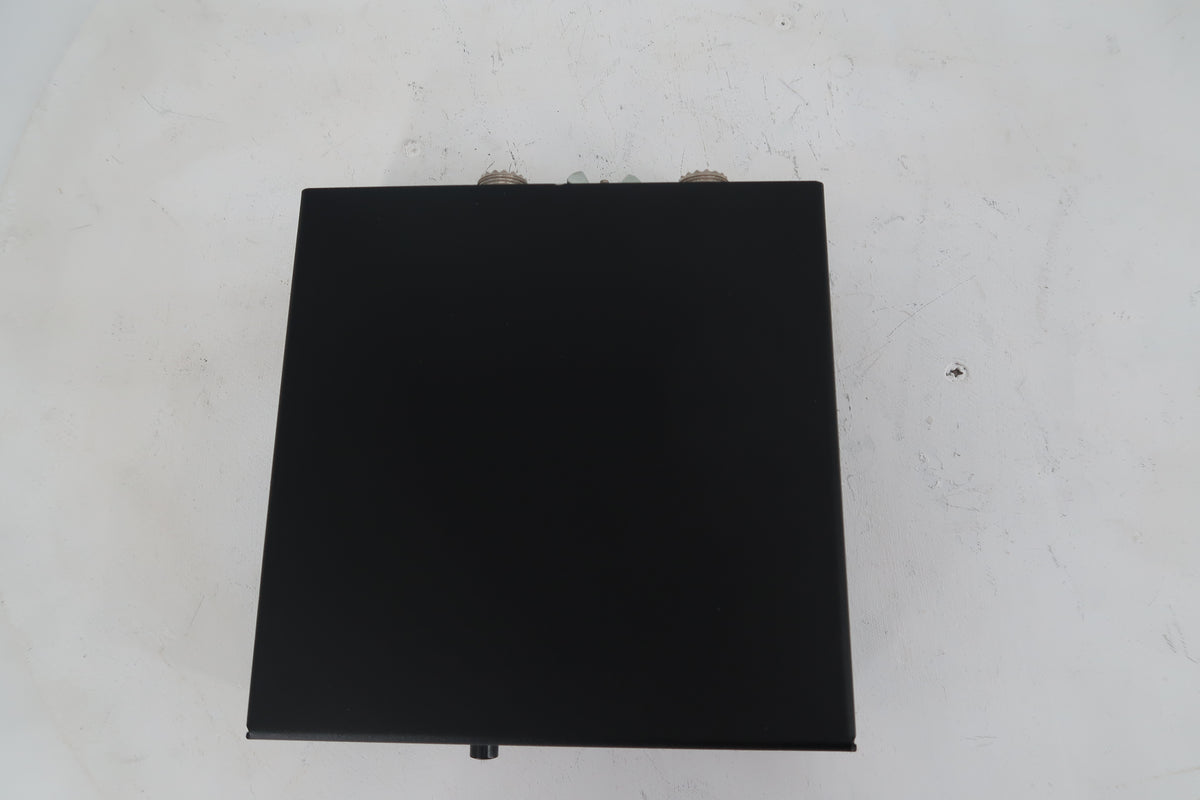

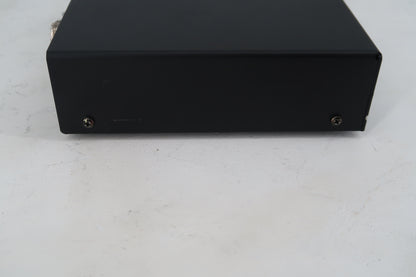

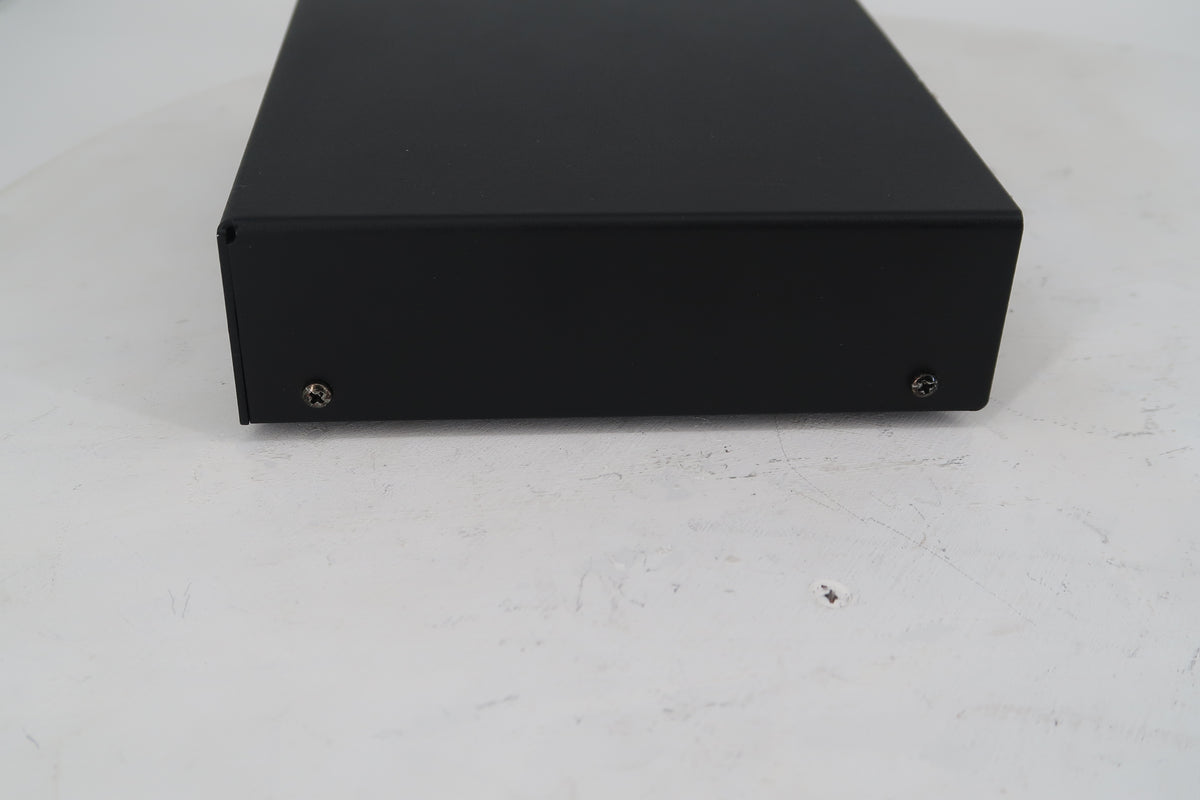

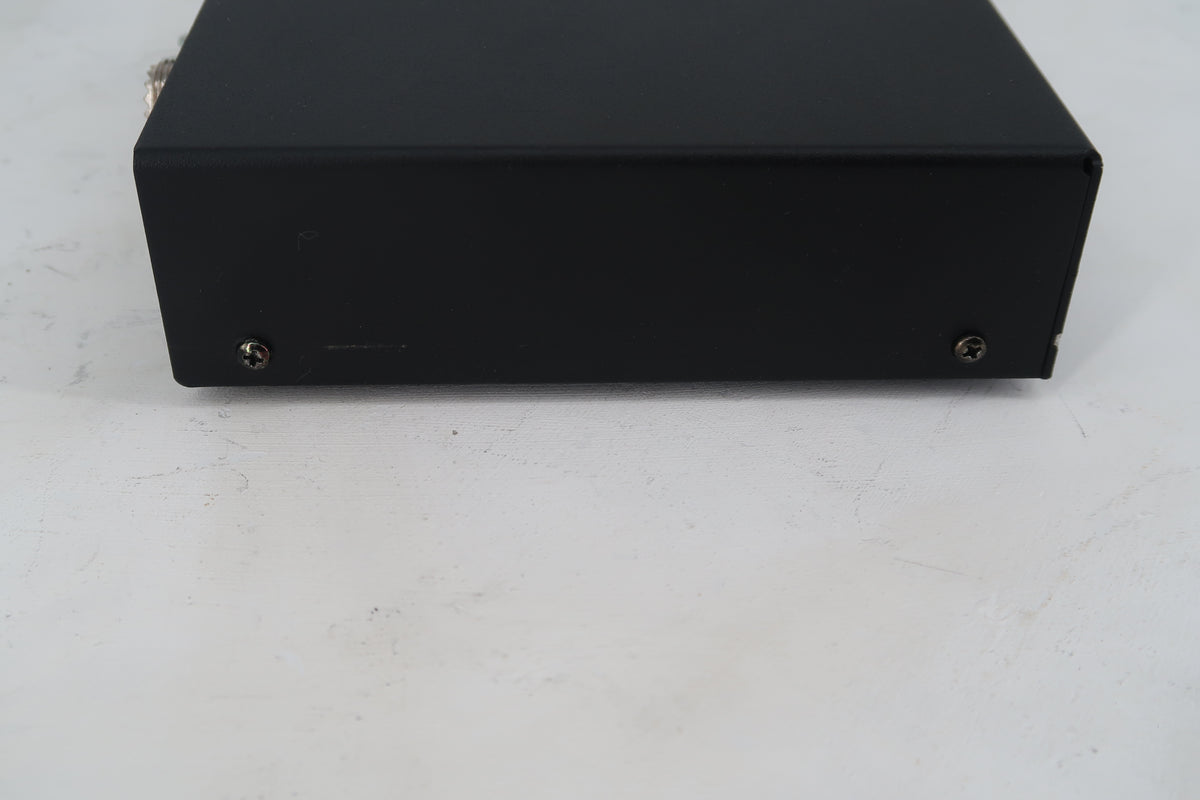

• Enclosure State: Black metal cabinet cover shows light surface nicks and scuffs from bench use

• Environmental Note: Presents a tobacco odor from previous owner's smoking shack

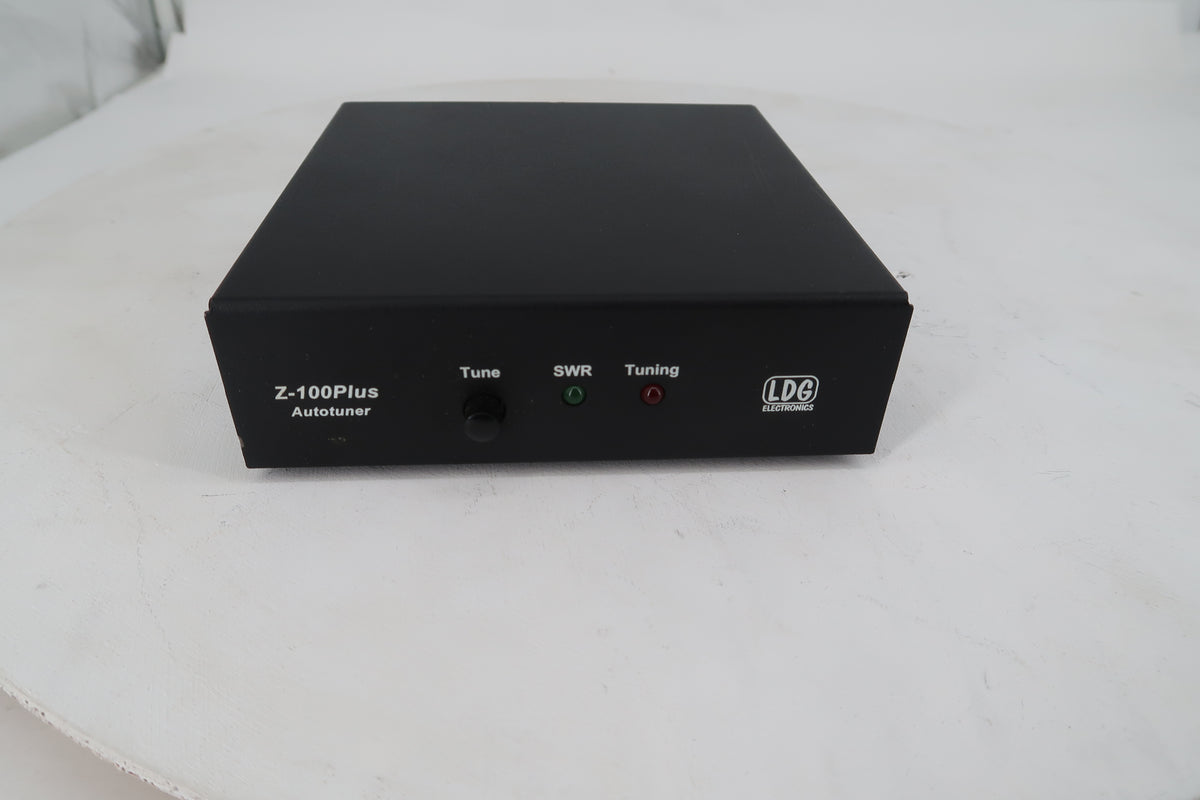

• Front Panel: TUNE push button and dual green/red status LEDs (SWR / Tuning) operate properly

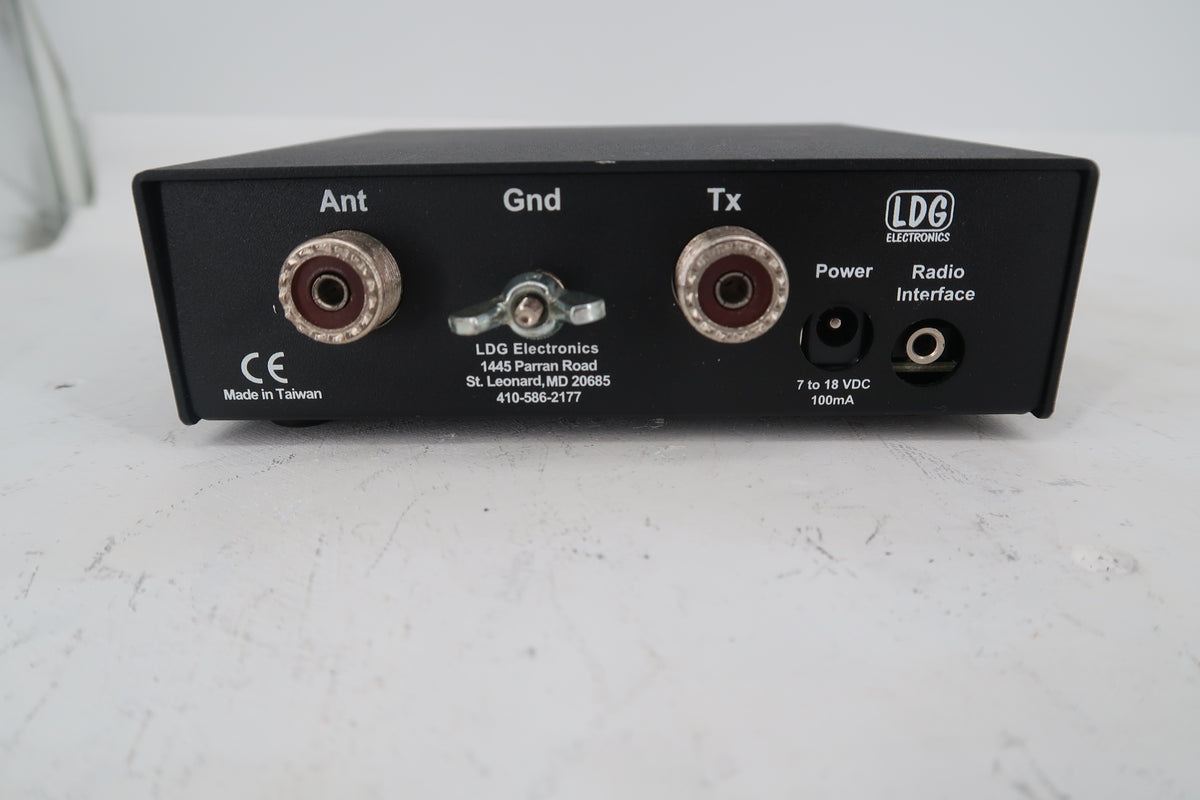

• Rear Panel: SO-239 Ant and Tx jacks, wing-nut ground post (Gnd), 2.1mm DC power jack (7–18 VDC), and 3.5mm Radio Interface jack are clean and solid

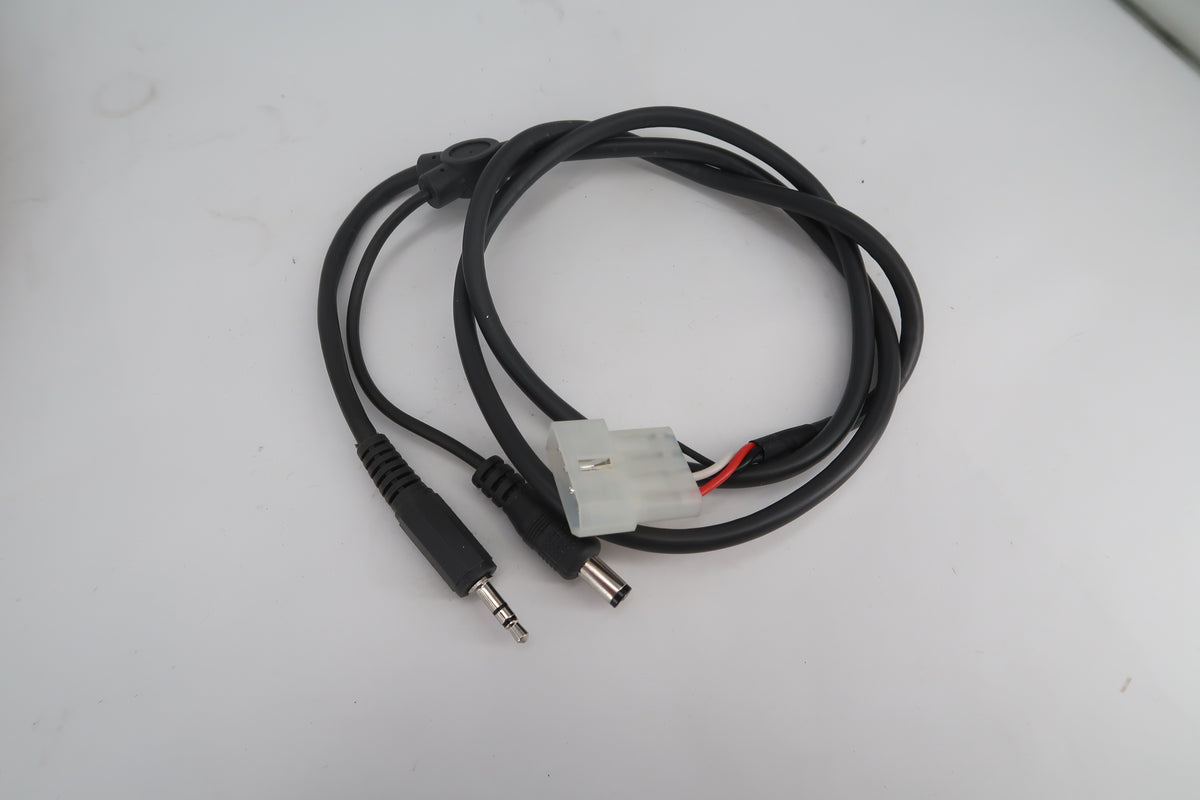

• Cabling: Includes LDG IC-PAC Icom radio interface and DC power cable harness assembly

Key Features

• 125W Power Rating: Handles 0.1 to 125 Watts SSB/CW, 30W on continuous duty digital modes

• 1.8 to 54 MHz Coverage: Automatically matches dipoles, verticals, beams, and coax-fed antennas from 160 through 6 Meters

• 2,000 3D Memories: Delivers near-instantaneous tuning recall across thousands of stored frequencies

• Icom IC-PAC Plug-and-Play Integration: Powers the tuner directly from the transceiver's tuner port and allows single-button tuning from the radio panel

• Wide Impedance Range: Matches 6 to 800 Ohm loads (16 to 150 Ohms on 6M)

What's Included

• LDG Electronics Z-100 Plus Automatic Antenna Tuner Console

• LDG IC-PAC Icom Interface & DC Power Cable Harness Assembly

Warranty

Comes with our 90-Day Warranty!

S/N: n/a

QR-0244
