U20410 Used SDRplay RSP1 Wideband USB Radio Receiver

U20410 Used SDRplay RSP1 Wideband USB Radio Receiver

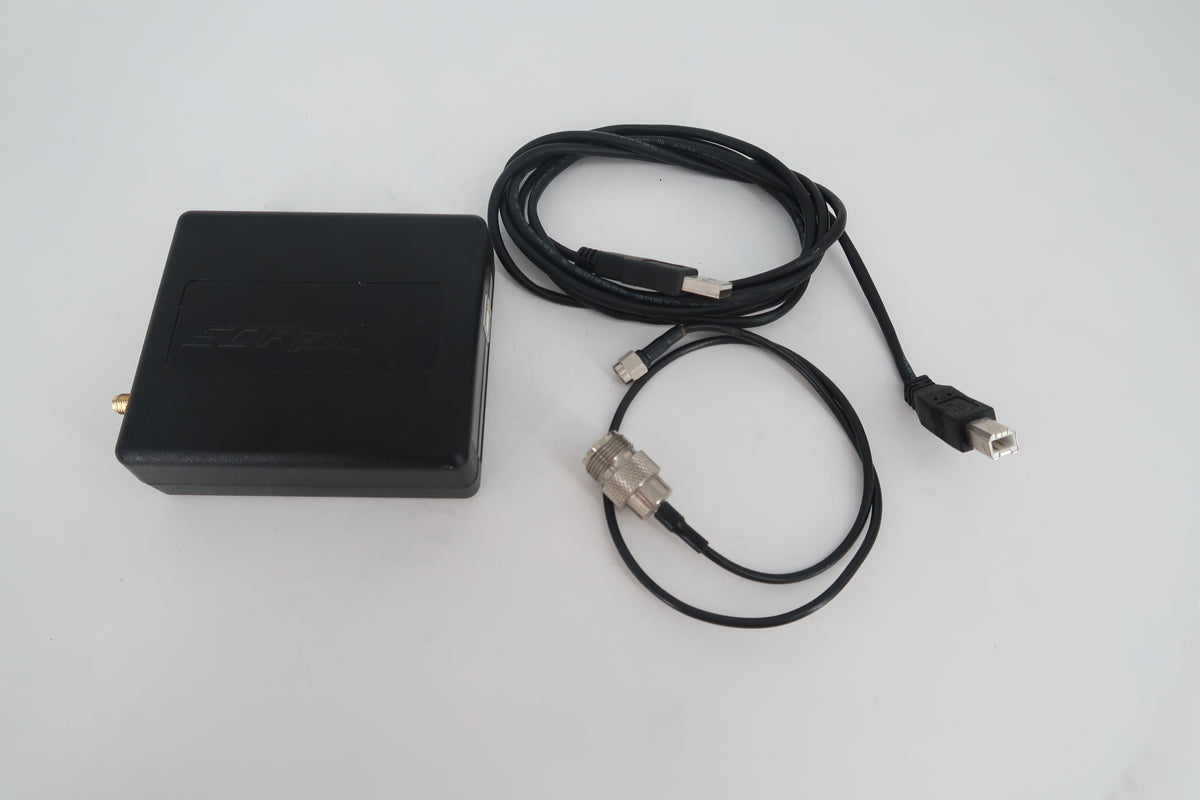

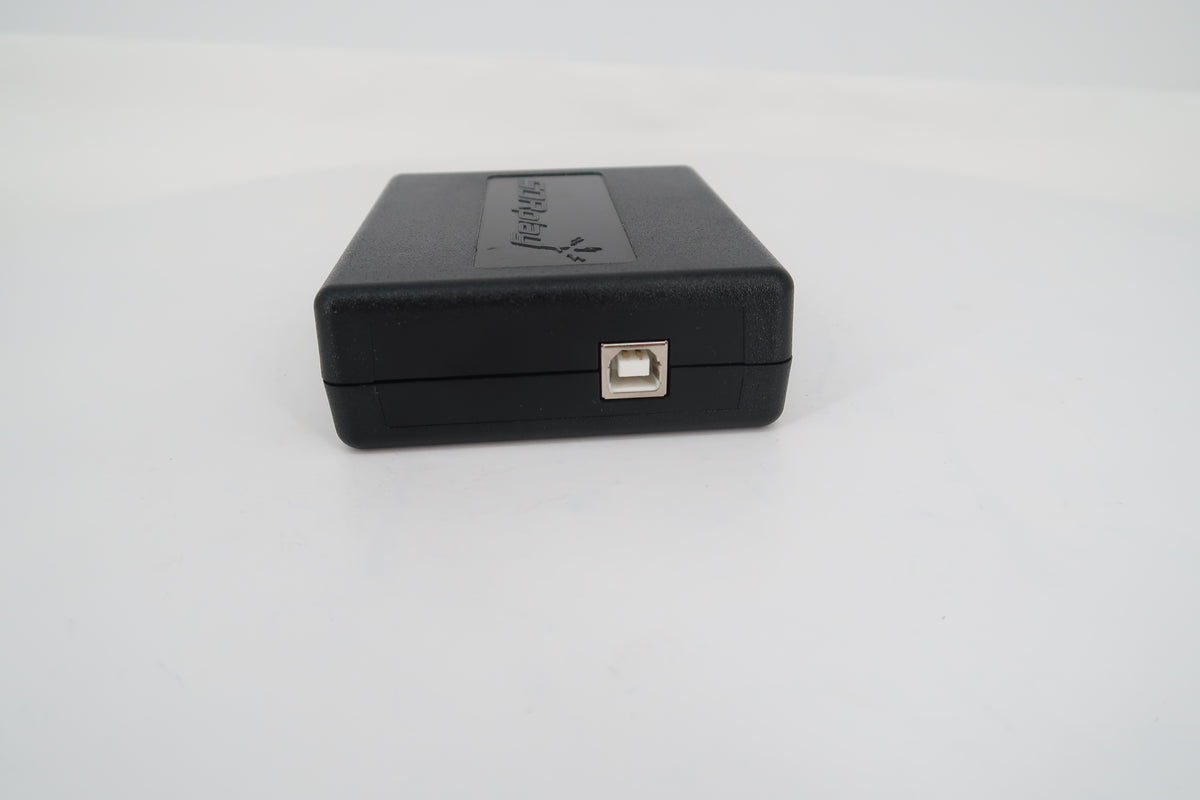

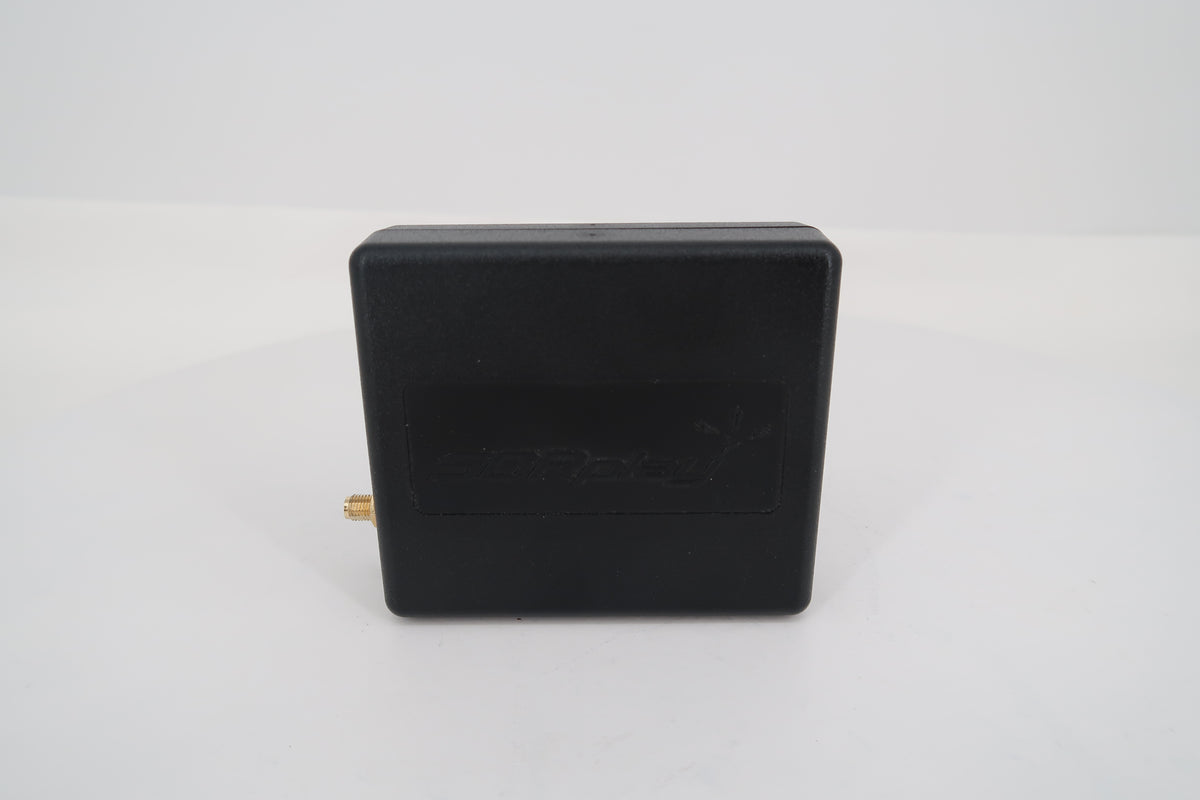

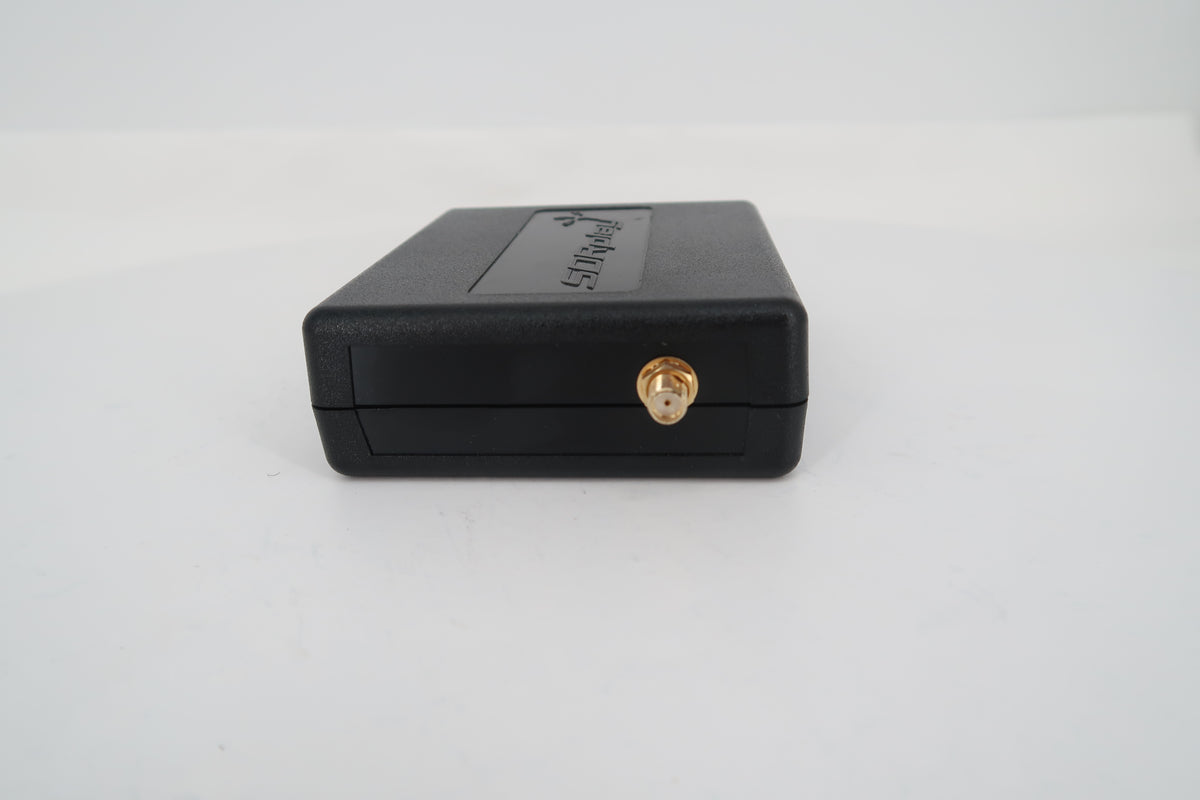

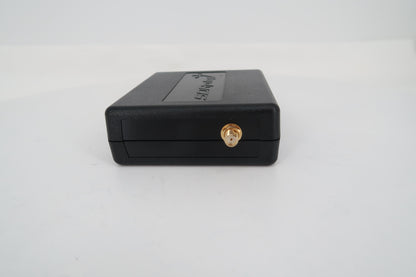

Overall Condition: Used, good physical condition overall showing normal case wear! Enclosure State: The black ABS plastic composite housing exhibits light handling scuffs and minor surface marks from normal desktop use, with nothing major to note. Connectors & Cabling: The gold-plated SMA female antenna port and USB Type-B computer interface jack are solid and clean. Comes with a USB Type-A to Type-B interface cable and an SMA-to-SO-239 RF coaxial pigtail adapter cable.

The SDRplay RSP1 (Radio Spectrum Processor 1) is a powerful, compact 12-bit wideband Software Defined Radio receiver. Covering a continuous frequency range from 10 kHz to 2 GHz (2000 MHz) with up to 10 MHz of visible real-time RF bandwidth, it transforms any PC, laptop, or Raspberry Pi into a high-performance radio receiver or spectrum analyzer.

Featuring 12-bit ADC silicon technology (providing significantly higher dynamic range and selectivity than standard 8-bit RTL-SDR dongles), built-in front-end RF filtering, and broad software compatibility (SDRuno, SDR#, HDSDR, CubicSDR, and GNU Radio), the RSP1 is ideal for HF monitoring, VHF/UHF airband listening, satellite signal tracking, and panadapter use.

Condition Breakdown

• General: Pre-owned, good physical condition overall with normal surface wear

• Enclosure State: Black molded composite case displays minor handling scuffs with no cracks or heavy damage

• Connectors: Gold-plated SMA female RF input jack and USB Type-B port are solid and clean

• Accessories: Includes USB computer interface cable and an SMA-male to SO-239 female coaxial adapter cable pigtail

Key Features

• Continuous Wideband Coverage: Receives all frequencies continuously from 10 kHz up to 2 GHz (2000 MHz)

• 12-Bit ADC Silicon Technology: Delivers superior dynamic range, lower noise floor, and cleaner signal reception compared to basic SDRs

• Up to 10 MHz RF Bandwidth: Captures up to 10 MHz of spectrum simultaneously for broad band-scope monitoring

• Built-in Front-End RF Filters: Automatic front-end bandpass filtering minimizes out-of-band interference and intermodulation

• USB-Powered Convenience: Draws power directly from the computer USB port with no external power supply required


What's Included

• SDRplay RSP1 Wideband USB SDR Receiver Unit

• USB Type-A to Type-B Computer Interface Cable

• SMA Male to SO-239 Female Coaxial Adapter Cable Pigtail

Warranty

Comes with our 90-Day Warranty!

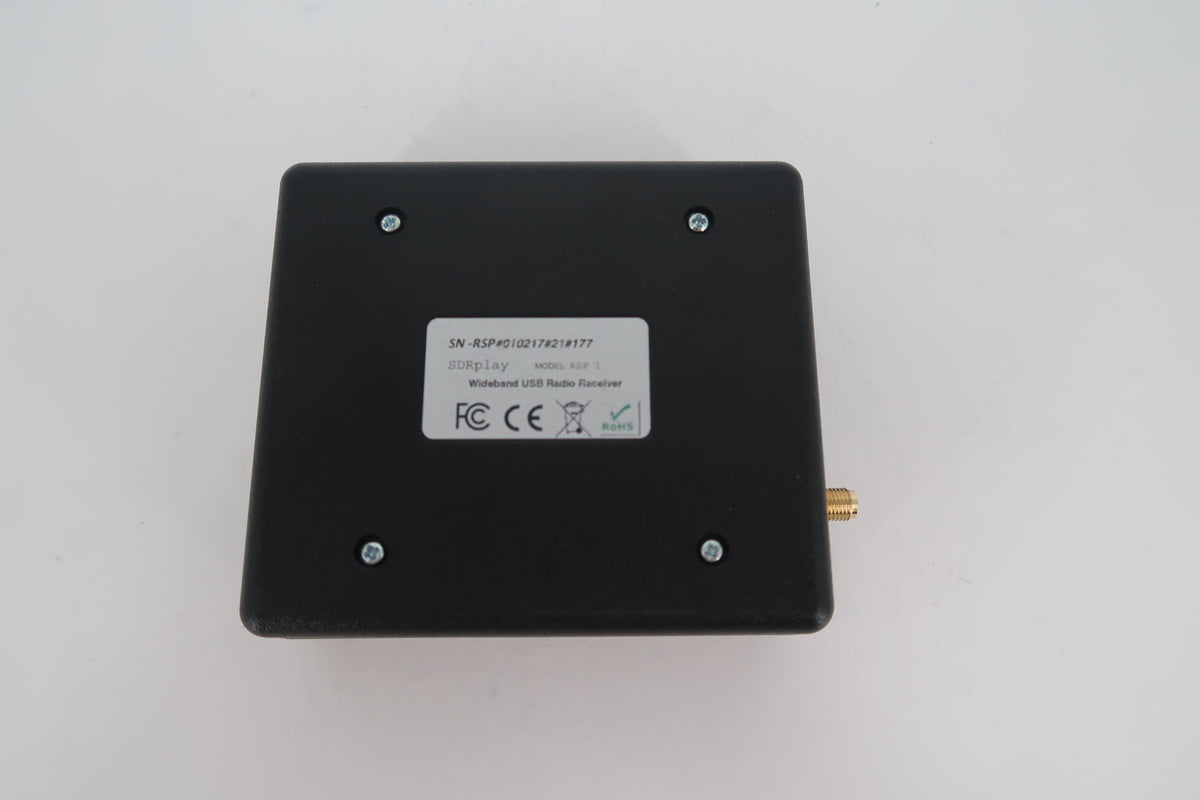

S/N: 010217#21#177

QR-0330
