U20420 AS-IS Elecraft KX3-PCKT Cable Set (Incomplete Set)

U20420 AS-IS Elecraft KX3-PCKT Cable Set (Incomplete Set)

Overall Condition: Used, very good physical condition overall for the included components! Condition Details: The included cables, adapters, molded plugs, gold-plated contacts, and cable jackets are clean and free from damage, kinks, or insulation wear. Incomplete Set Note: Please note that this is an incomplete set missing the primary red and green banded 3.5mm audio cables from the factory Elecraft KX3-PCKT kit. It includes the two core specialized Elecraft adapter cables, an aftermarket 3.5mm male-to-female extension cable, and the original Elecraft KX3-PCKT instruction sheet.

The Elecraft KX3-PCKT is a specialized audio, I/Q, and keying interface cable set engineered for the Elecraft KX3 QRP HF/6M transceiver. Designed to interface the KX3 with personal computers, external soundcards, panadapters, foot switches, and linear power amplifiers, it enables digital mode operation (FT8, PSK31, RTTY), SDR panadapter spectrum displays, and external amplifier keying.

This partial set features the essential proprietary Elecraft cables: the E980231 (2.5mm to 3.5mm stereo I/Q receiver output cable) and the E980232 (2.5mm right-angle stereo to RCA/3.5mm ACC2 keying/PTT adapter module cable). An aftermarket 3.5mm male-to-female audio extension lead is included to provide extra reach for station routing.

Condition Breakdown

• General: Pre-owned, partial set in very good physical condition

• Cable Integrity: Flexible cable sleeving, strain relief boots, and connectors show no fraying or wire exposure

• Plugs & Contacts: Gold-plated 2.5mm and 3.5mm audio jacks and RCA contacts are clean and corrosion-free

• Set Completeness: Missing the factory 3.5mm red-band transmit and green-band receive audio cables

• Documentation: Includes original printed Elecraft KX3-PCKT instruction sheet (dated August 14, 2012)

Key Features

• Custom Elecraft Engineering: Factory Elecraft interconnect cables specifically wired for the Elecraft KX3 transceiver side ports

• Receiver I/Q Panadapter Cable (E980231): Routes I/Q spectrum output from the KX3 RX I/Q jack directly to a PC soundcard line-in port for SDR software panadapters

• ACC2 Amplifier Keying Module (E980232): Adapts the KX3 ACC2 port to RCA Phono for external RF amplifier KEY OUT line and 3.5mm PTT/Inhibit control

• Plug-and-Play Integration: Features right-angle connectors designed to fit neatly into the side jacks of the KX3 chassis

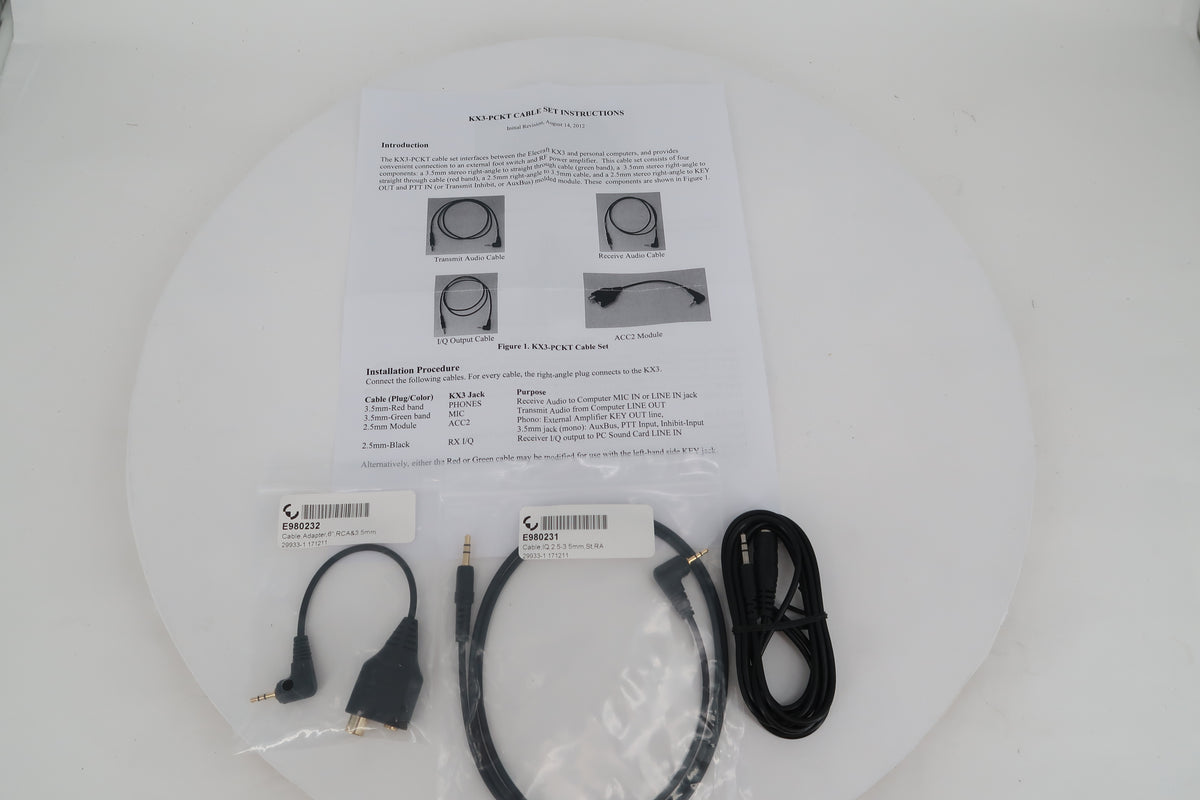

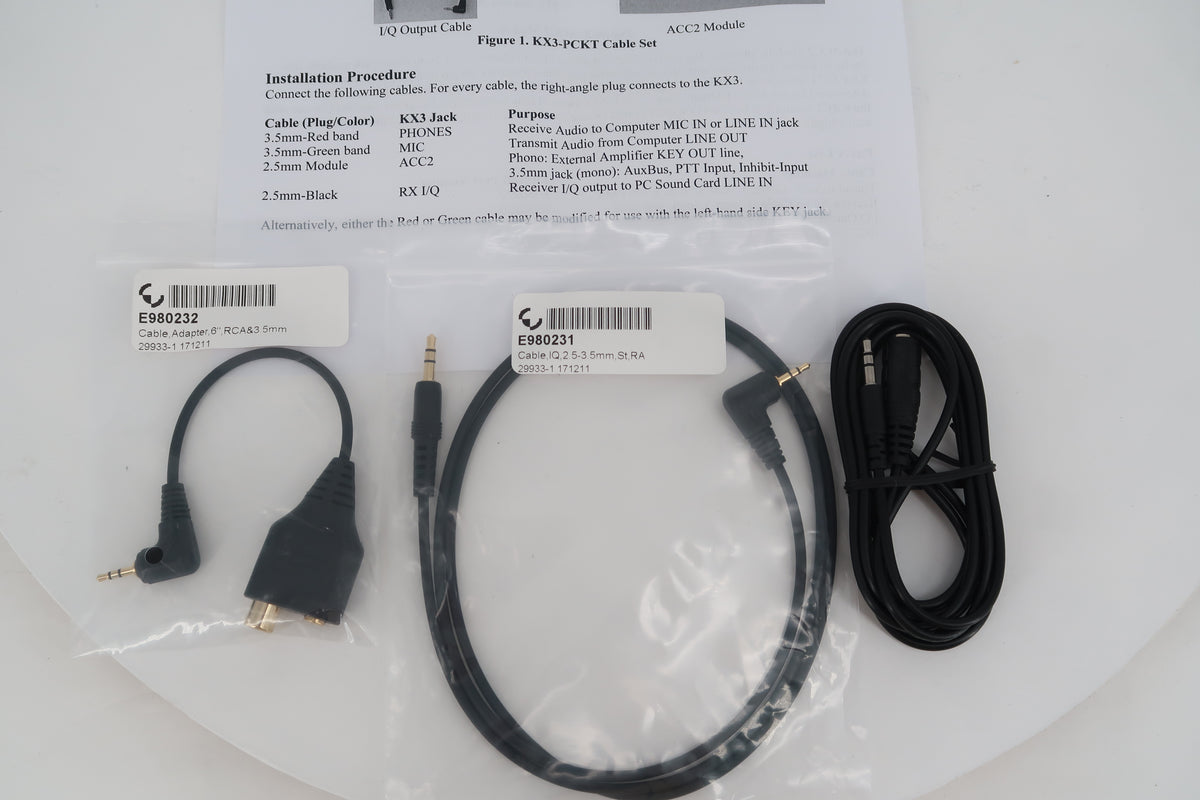

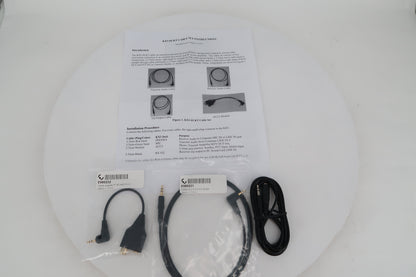

What's Included

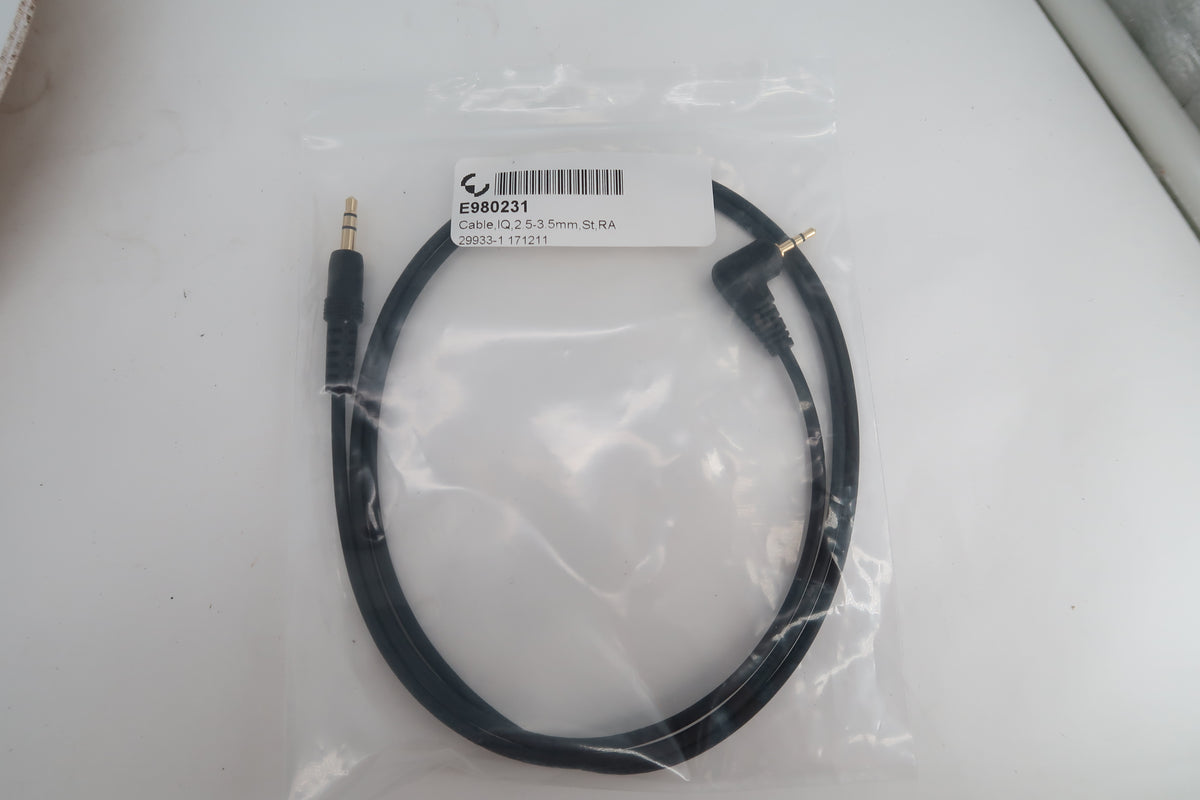

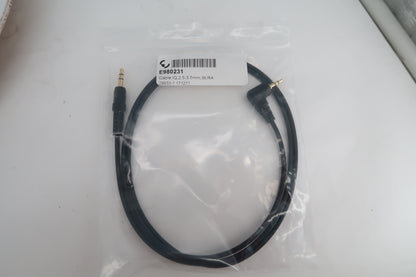

• Elecraft E980231 I/Q Output Cable (2.5mm Right-Angle to 3.5mm Straight Plug)

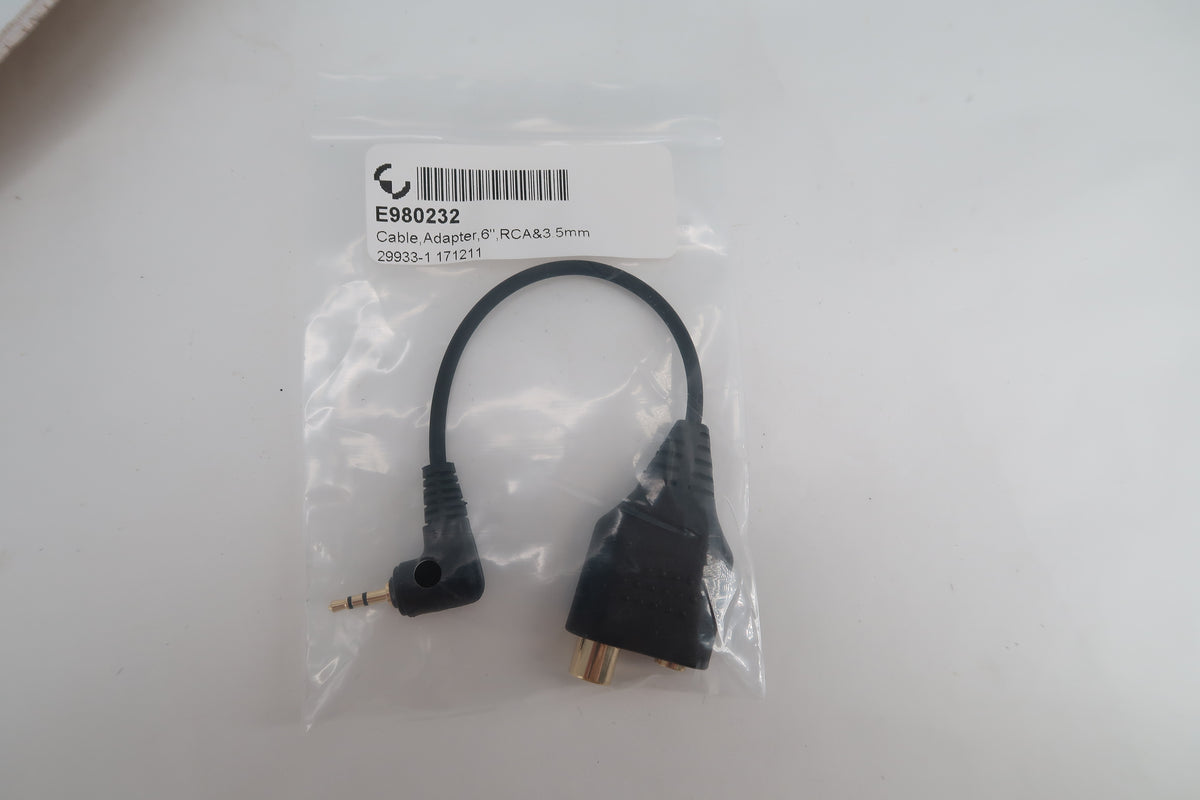

• Elecraft E980232 ACC2 Adapter Cable Module (2.5mm Right-Angle to RCA Phono & 3.5mm Jack)

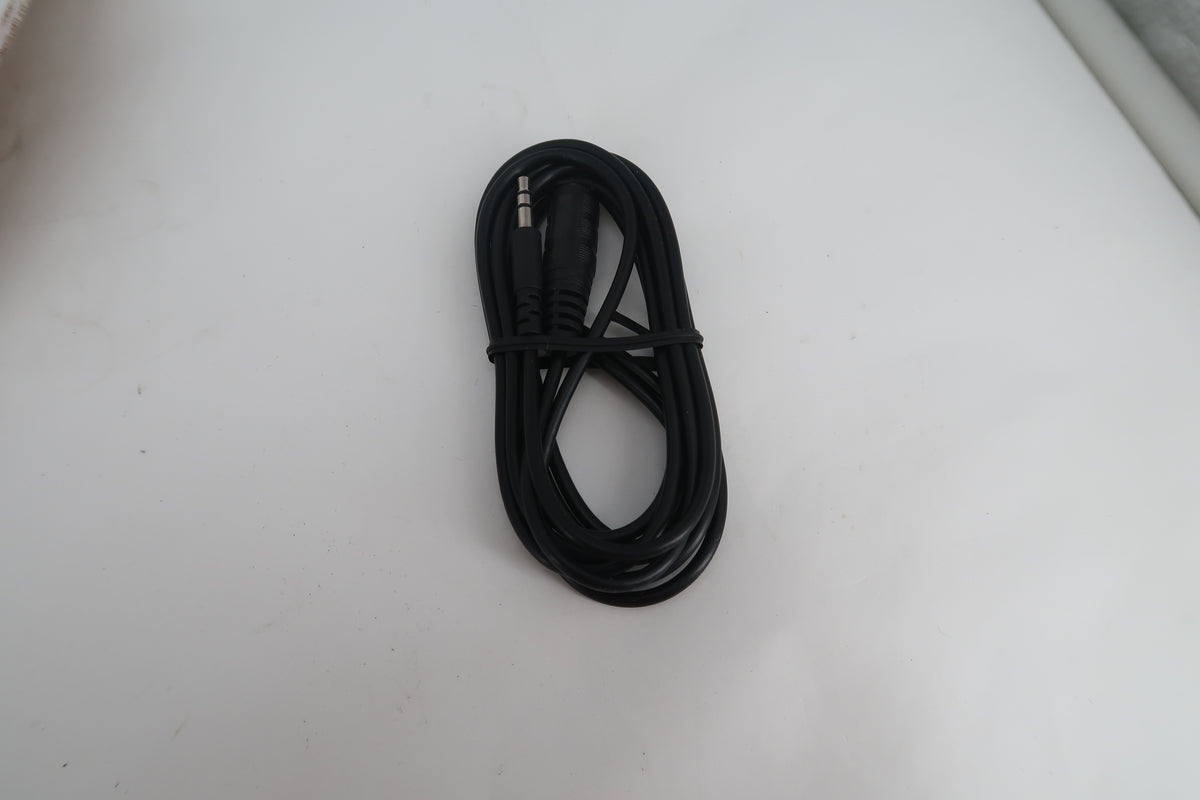

• Generic 3.5mm Male-to-Female Audio Extension Cable

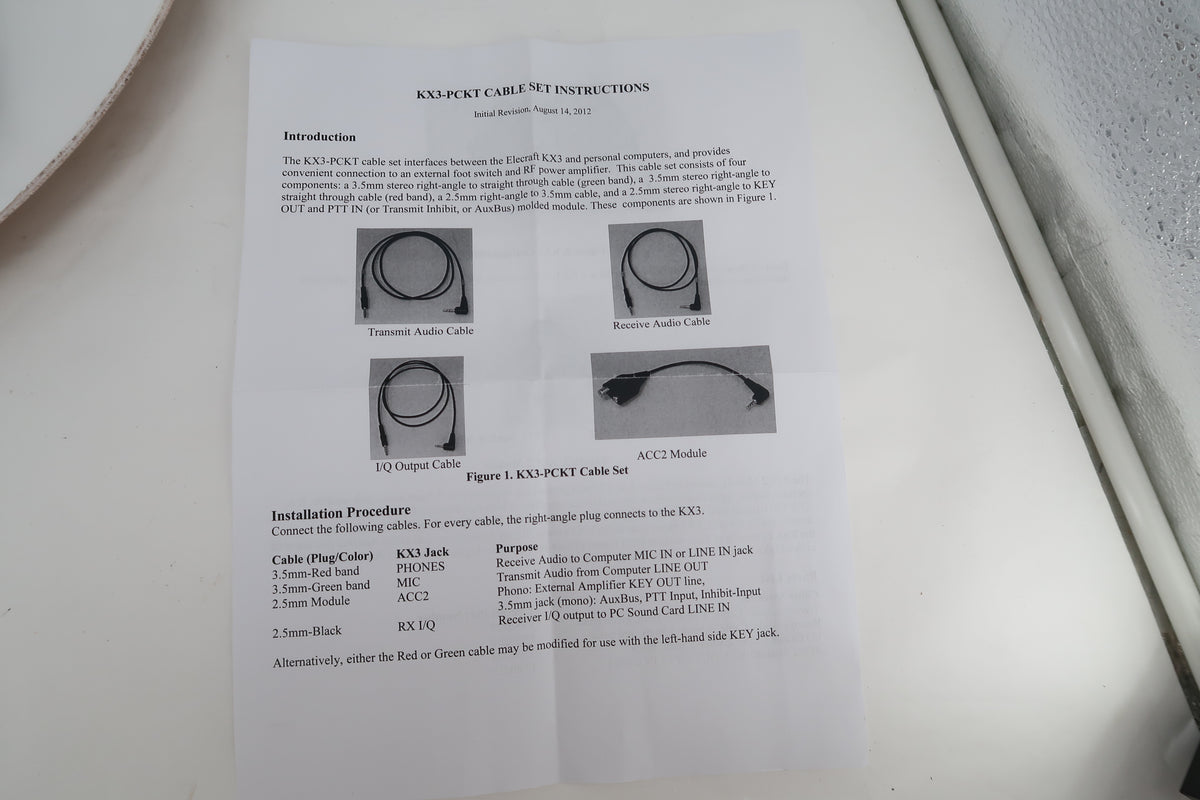

• Original Printed Elecraft KX3-PCKT Cable Set Instruction Sheet

AS-IS No Warranty

S/N: n/a

QR-0273
