U20428 Used LDG Electronics Z-11 Pro Automatic Antenna Tuner HF+6M 125W

U20428 Used LDG Electronics Z-11 Pro Automatic Antenna Tuner HF+6M 125W

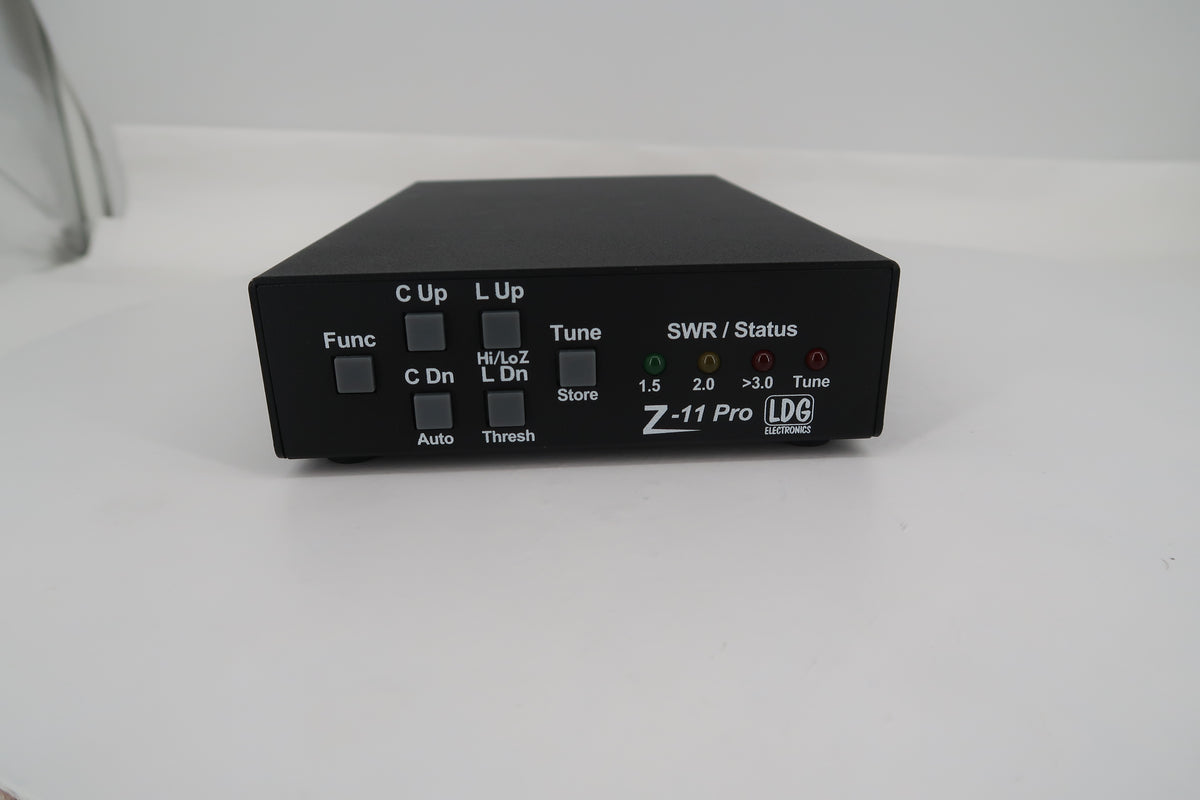

Overall Condition: Used, great physical and operational condition overall! Cosmetic Details: The black metal top panel exhibits a minor cosmetic blemish/scuff mark, but the rest of the chassis and front faceplate present very cleanly. Front Panel & Controls: Push-buttons (Func, C Up/Dn, L Up/Dn, Tune/Store) and SWR/Status LED indicators are intact and operate properly. Rear Panel & Connections: Top-tier rear SO-239 antenna (Ant) and transmitter (TX) ports, ground wing nut terminal, radio interface jack, and 12 VDC power port are solid and oxidation-free. Comes complete with a DC power pigtail cable.

The LDG Z-11 Pro is a high-speed, 125-Watt automatic antenna tuner designed for desktop, portable, and field-day operating across the 1.8 to 54 MHz HF/6M amateur bands. Incorporating LDG's advanced switched-L tuning network and microprocessor control, it matches dipoles, verticals, end-fed wires, beam antennas, and mobile whip systems across a 6 to 800 $\Omega$ impedance range (16 to 150 $\Omega$ on 6 Meters).

Featuring 8,000 3D-RAM memories that instantly recall previously tuned frequencies in a fraction of a second, automatic and manual tuning modes, and ultra-low power consumption, the Z-11 Pro is an efficient ATU companion for QRP and 100W transceivers.

Condition Breakdown

• General: Pre-owned, great physical and operational condition

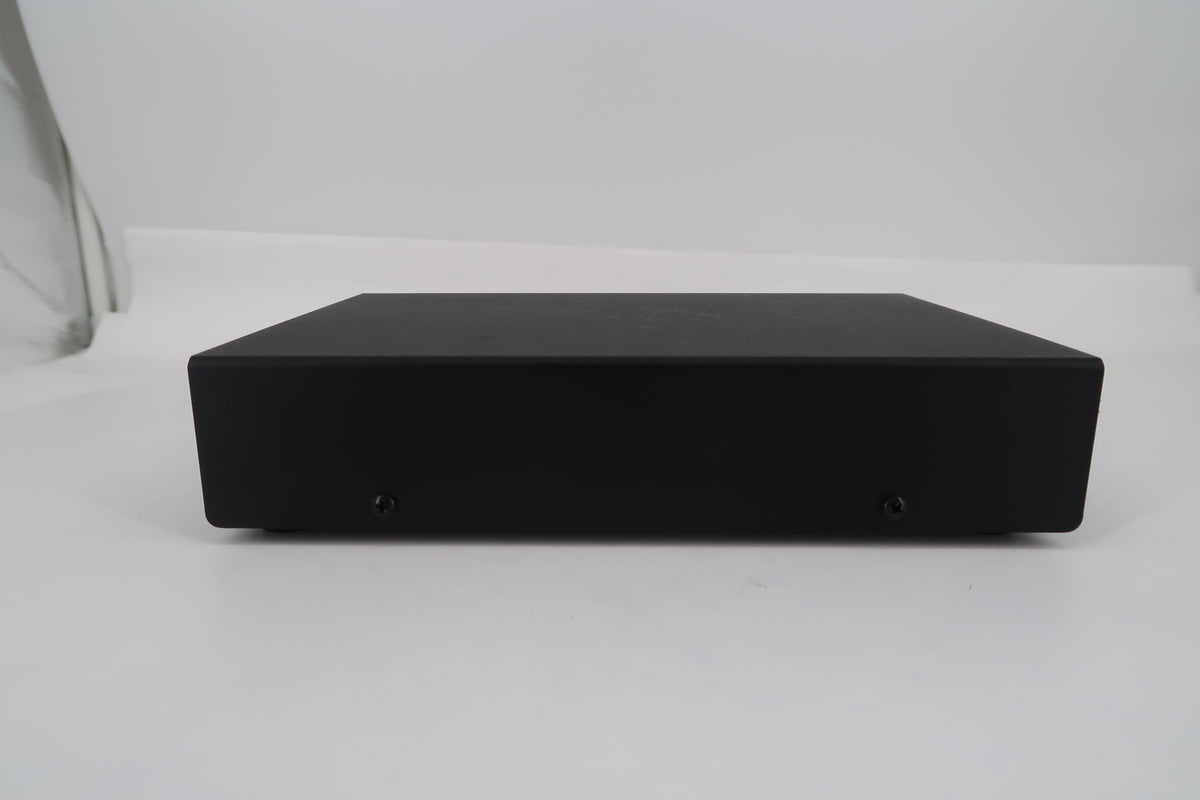

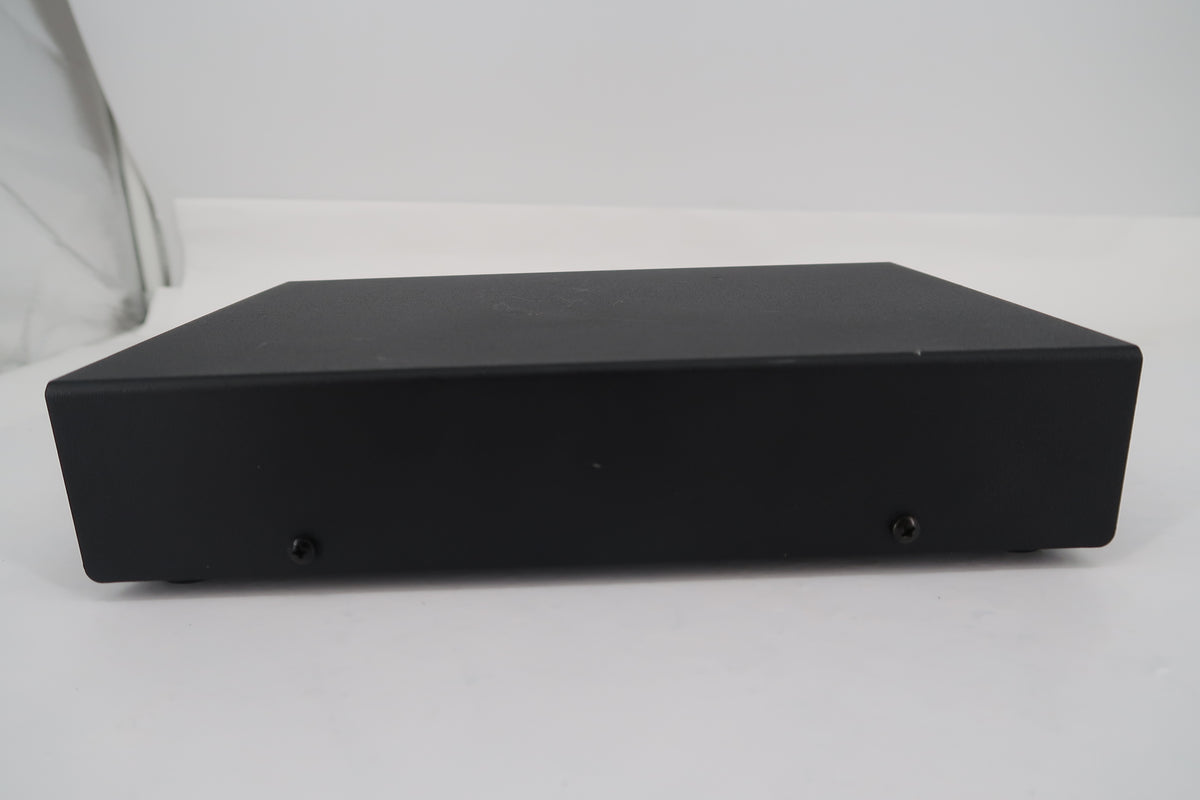

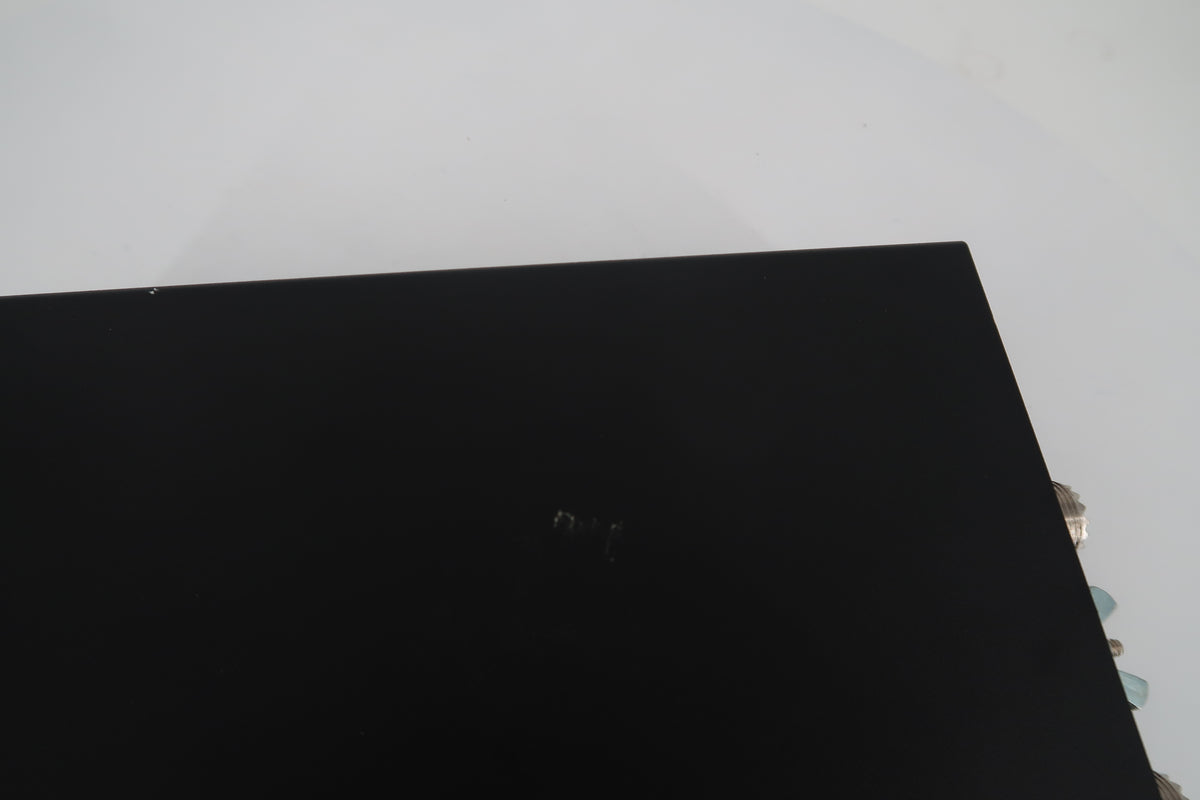

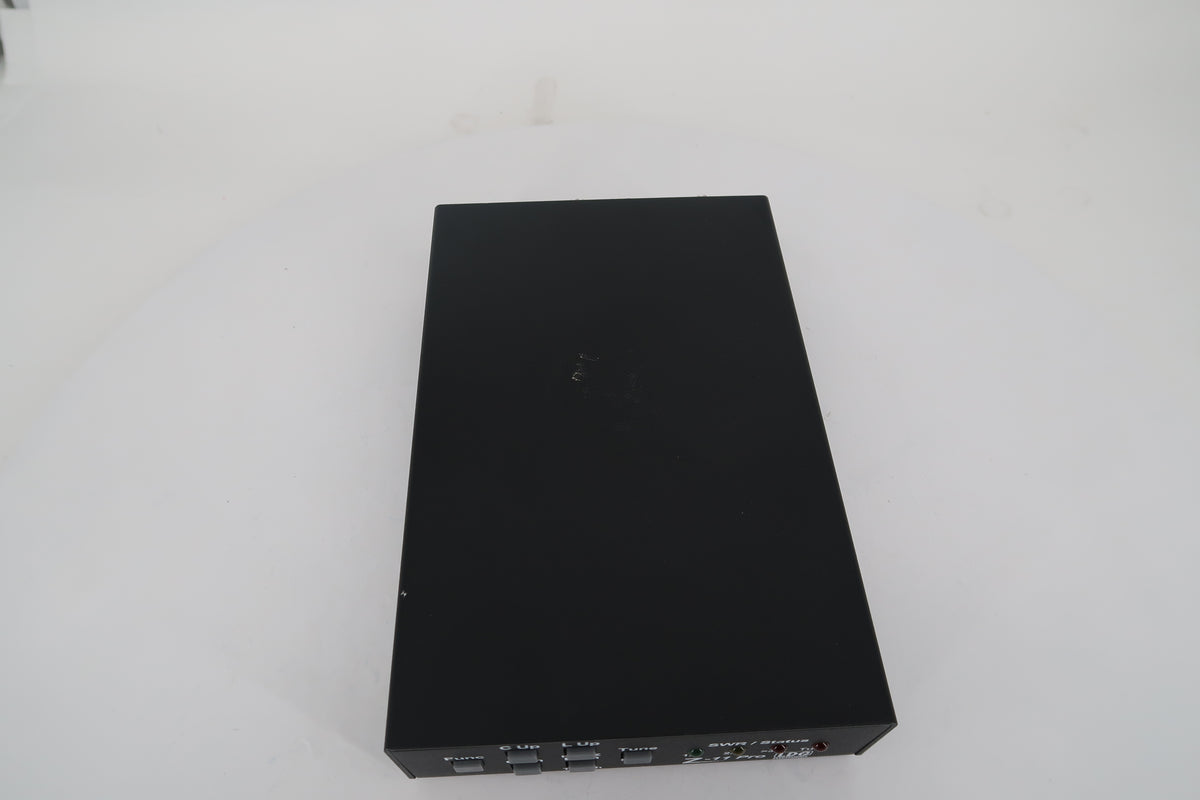

• Enclosure State: Top metal cabinet displays a minor surface scuff mark; cabinet sides and front faceplate lettering are clean and sharp

• Controls & LED Indicators: Tactile control buttons and multi-color SWR status LEDs respond as intended

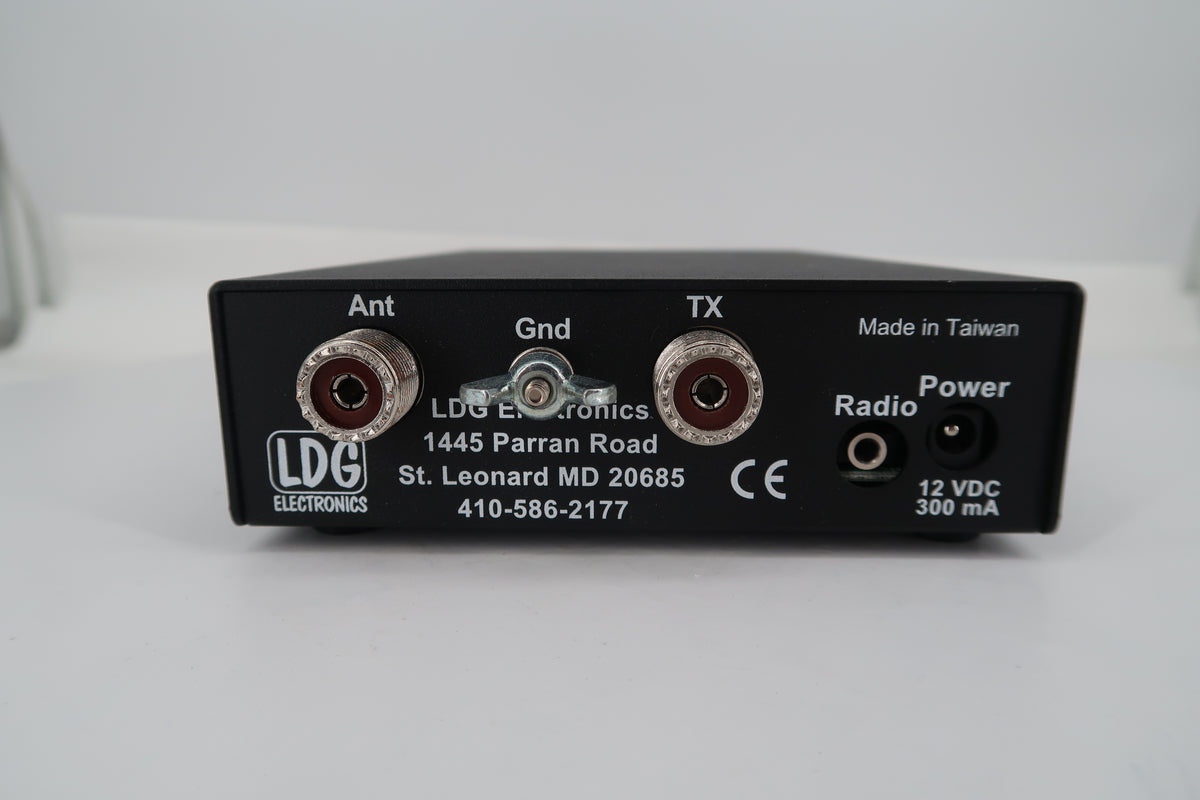

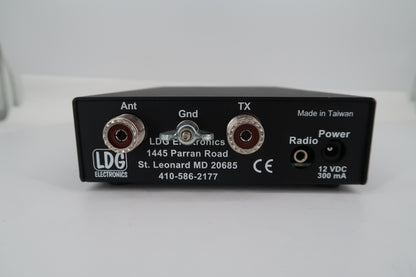

• Rear Panel Connectors: SO-239 Ant and TX coaxial ports feature clean threads and gold center pins; ground wing nut, 3.5mm radio control jack, and 12 VDC coaxial power socket are firm and intact

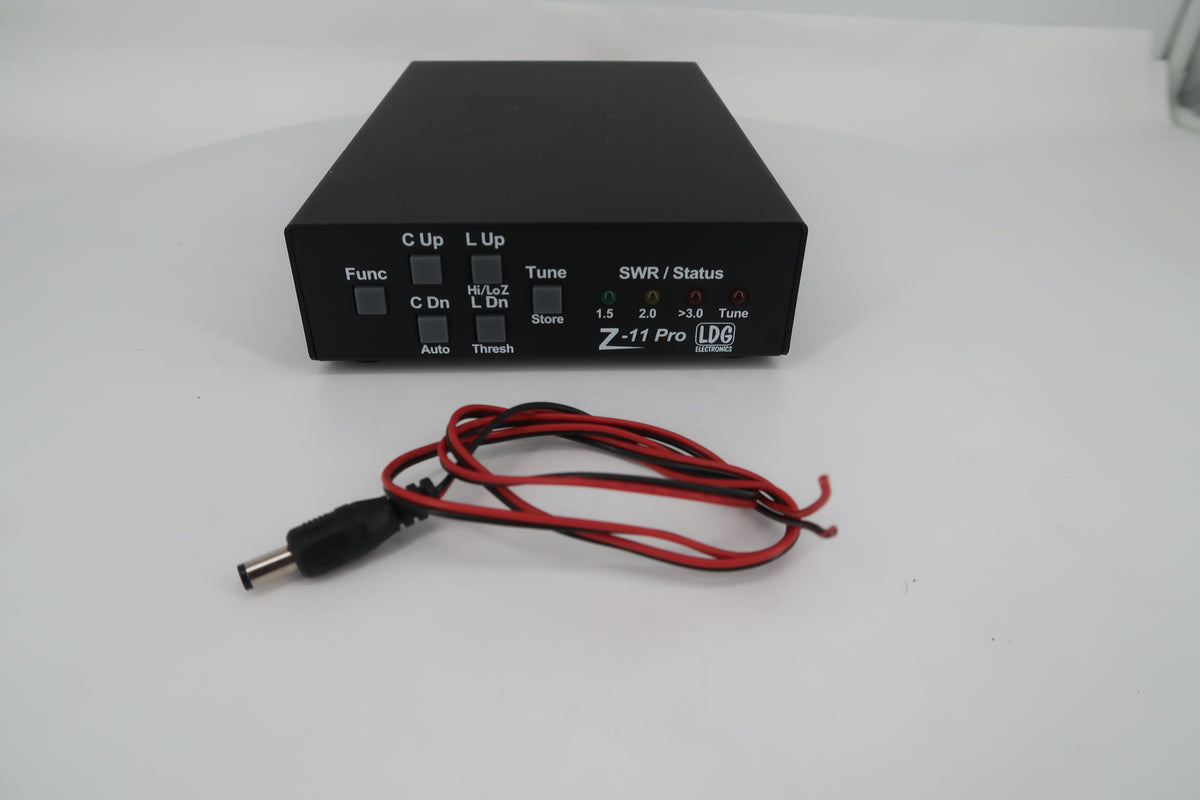

• Accessories: Includes 12 VDC power cord pigtail

Key Features

• 1.8 to 54 MHz Coverage: Continuous tuning range covering 160 through 6 Meters

• 0.1W to 125W Power Handling: Rated up to 125 Watts SSB/CW (30W on 6M)

• 8,000 3D-RAM Frequency Memories: Remembers previous tuning settings for split-second frequency changes

• Wide Impedance Matching Range: Matches 6 to 800 Ohms (SWR up to 10:1)

• Latching Relays for Low Power Draw: Retains tuned state indefinitely with virtually zero power draw

• Versatile Transceiver Interface: Built-in support for Icom, Yaesu, Kenwood, and generic RF-sensed auto-tuning setups

What's Included

• LDG Electronics Z-11 Pro Automatic Antenna Tuner Unit

• 12 VDC Power Lead Cable Pigtail

Warranty

Comes with our 90-Day Warranty!

S/N: n/a
