U20491 Used Yaesu FTdx10 HF/50MHz 100W Transceiver

U20491 Used Yaesu FTdx10 HF/50MHz 100W Transceiver

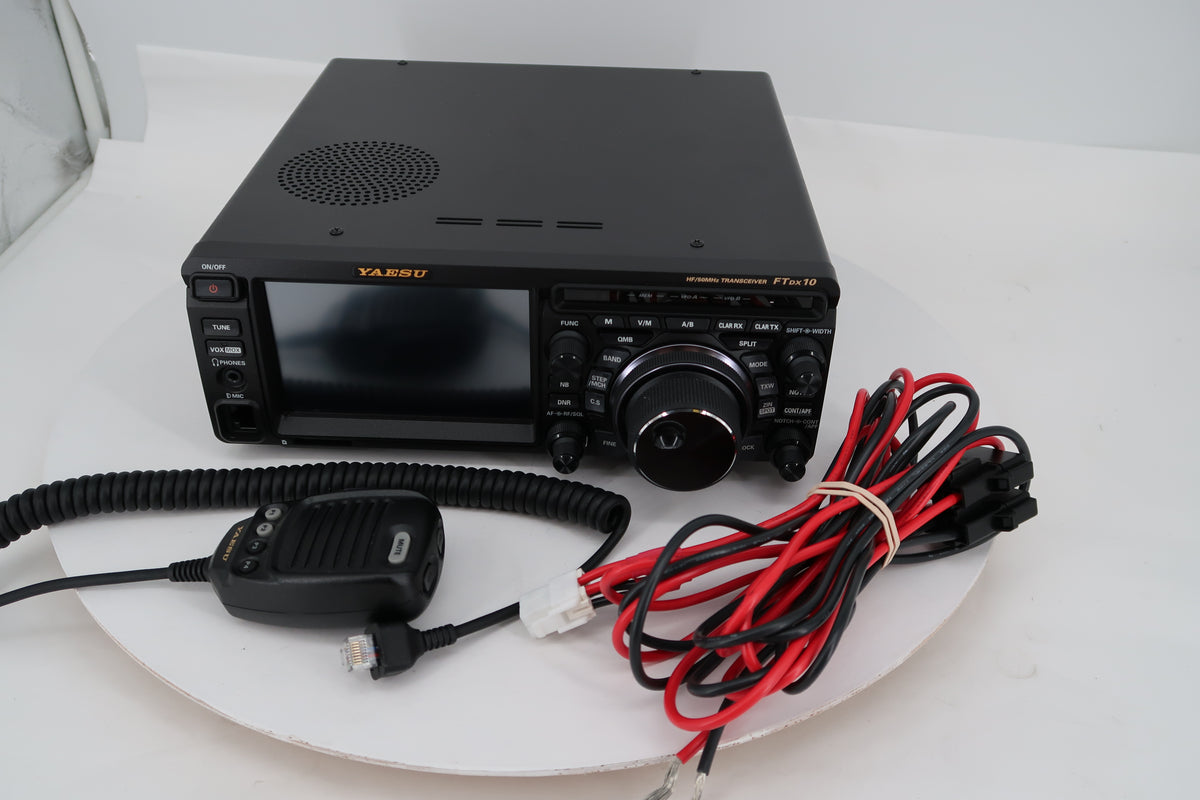

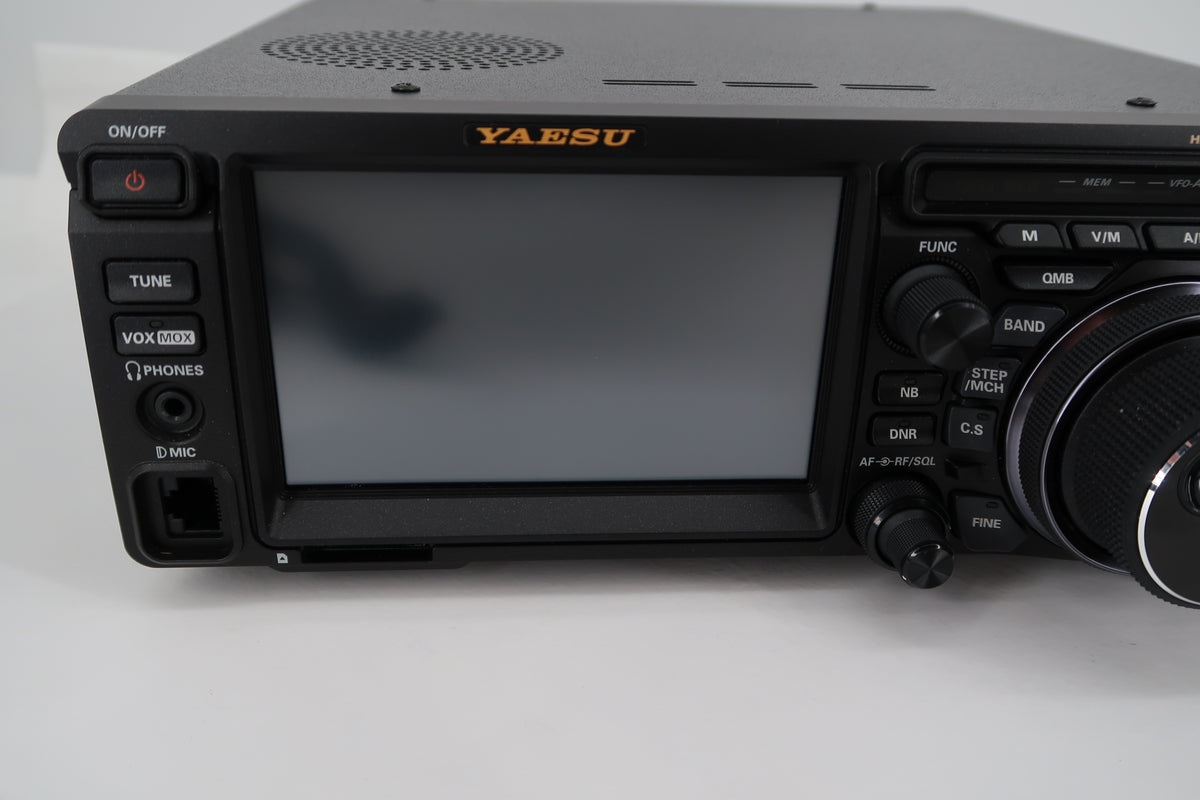

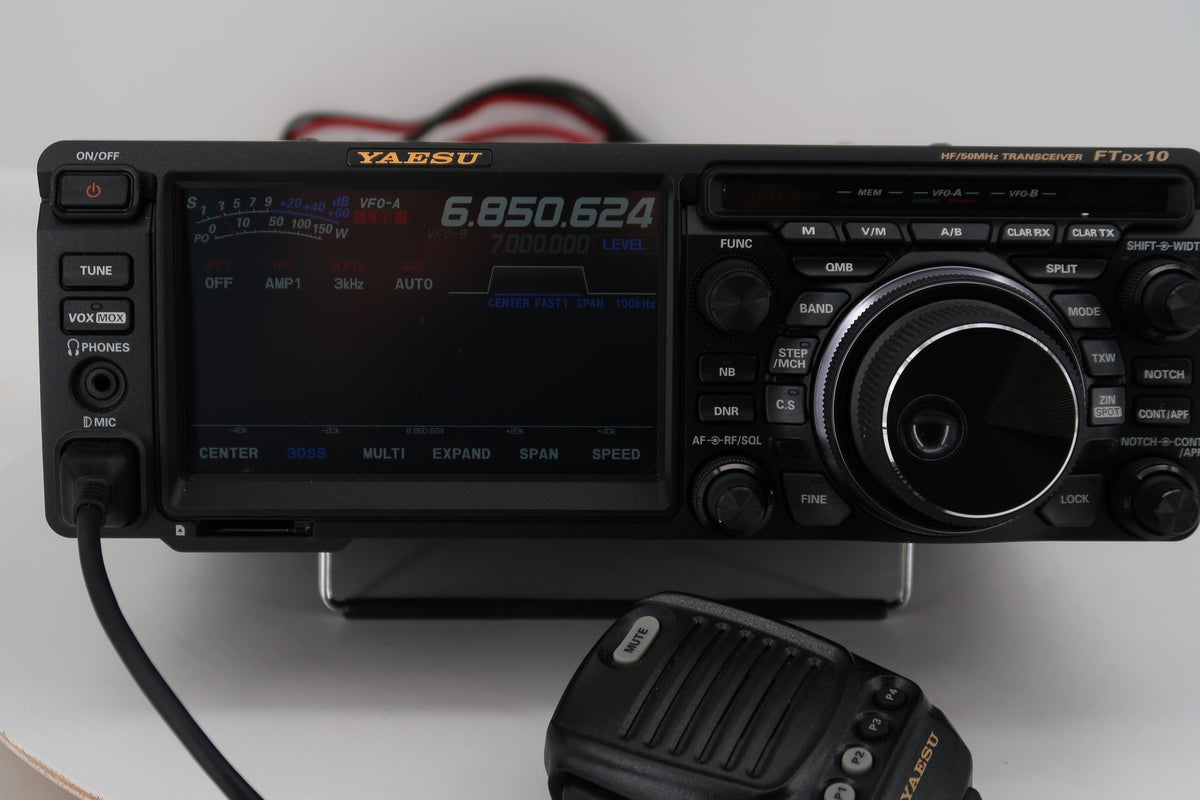

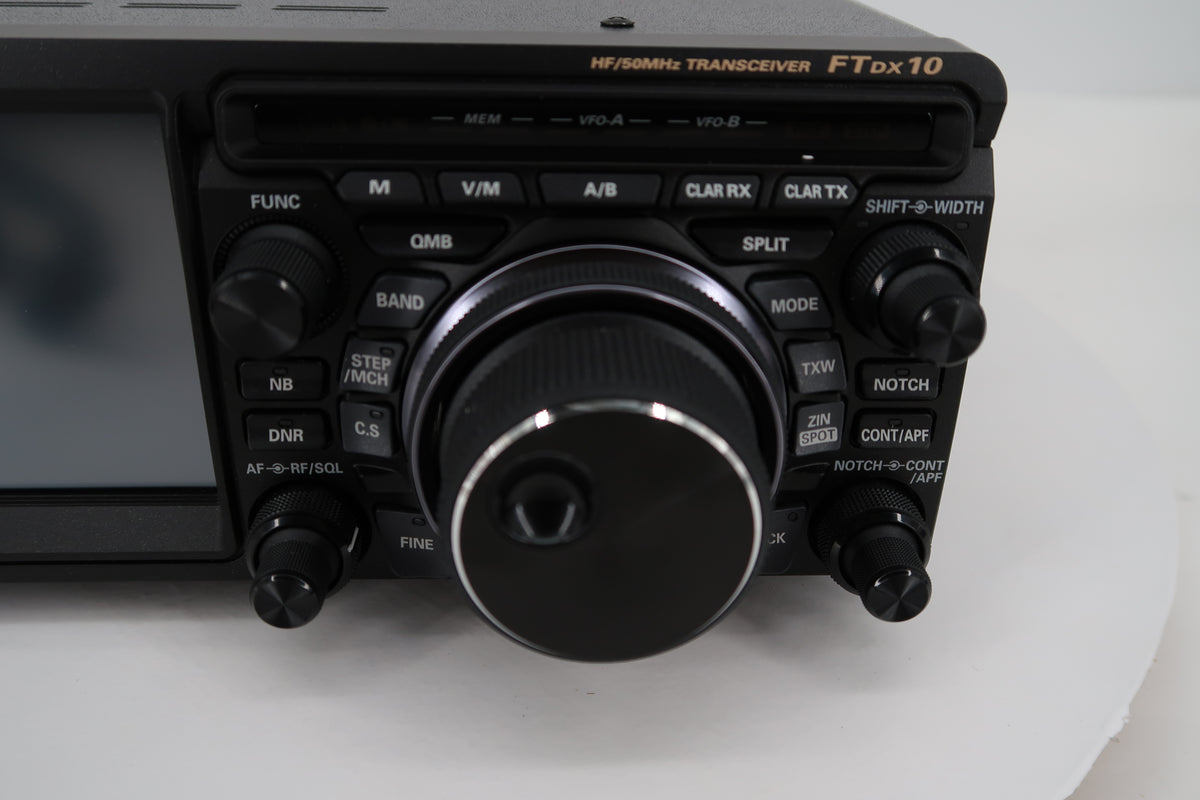

This pre-owned Yaesu FTdx10 transceiver is in outstanding cosmetic condition, exhibiting clean cabinet surfaces, crisp panel lettering, and a bright, sharp 5-inch color touchscreen with no blemishes or scratches. The optical VFO dial, multi-purpose outer tuning ring, and front-panel push buttons show minimal indications of handling. The unit comes securely packed in its original Yaesu factory box with its hand microphone and fused DC power cable.

The Yaesu FTdx10 is a compact, high-performance 100-watt HF and 50 MHz transceiver designed for top-tier base station performance, DXpeditions, or field operations. Inheriting the advanced Hybrid SDR architecture of Yaesu’s flagship FTdx101 series, it combines a narrow-band down-conversion SDR with a direct sampling SDR to deliver exceptional close-in dynamic range (2 kHz RMDR of 116 dB+) alongside a fast, real-time 3DSS (3-Dimensional Spectrum Stream) waterfall display. Standard-equipped with ultra-sharp crystal roofing filters (500 Hz, 3 kHz, and 12 kHz), a 250 MHz HRDDS local oscillator for an ultra-low noise floor, built-in high-speed automatic antenna tuner, and full DVI external monitor output, it offers elite-level signal processing in a remarkably portable form factor.

Condition

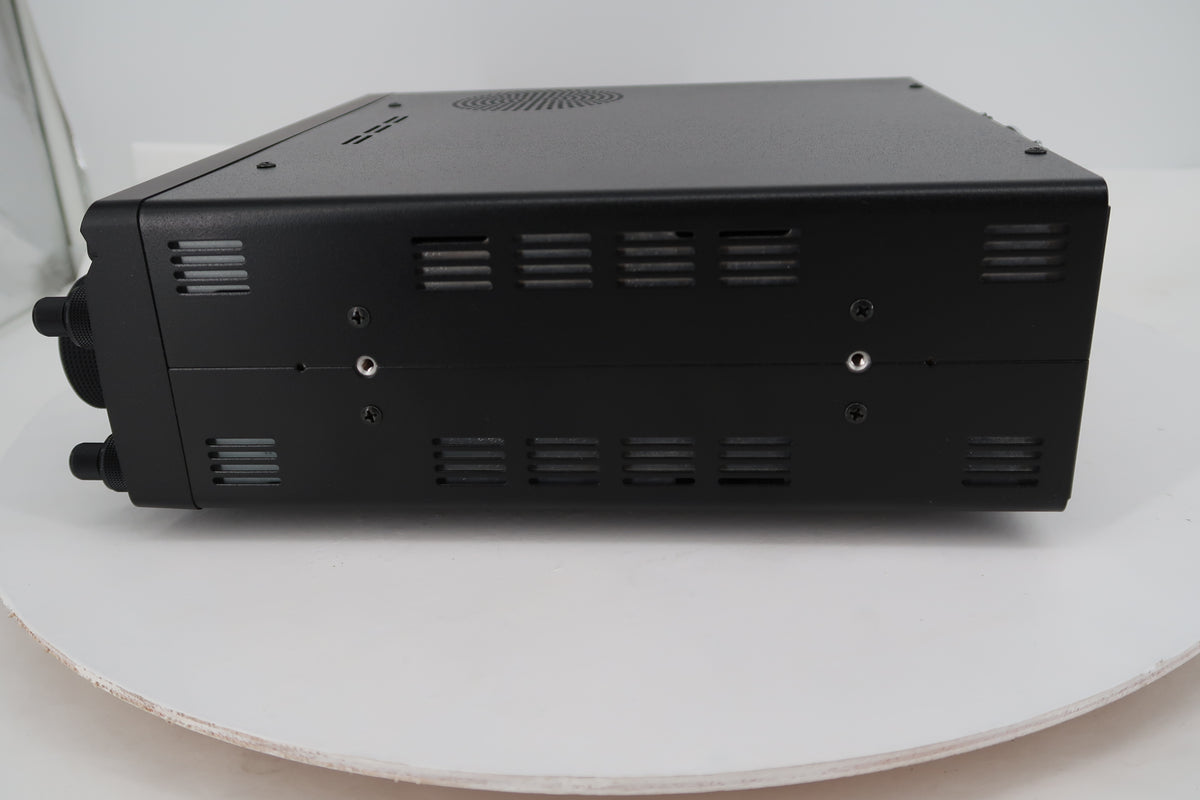

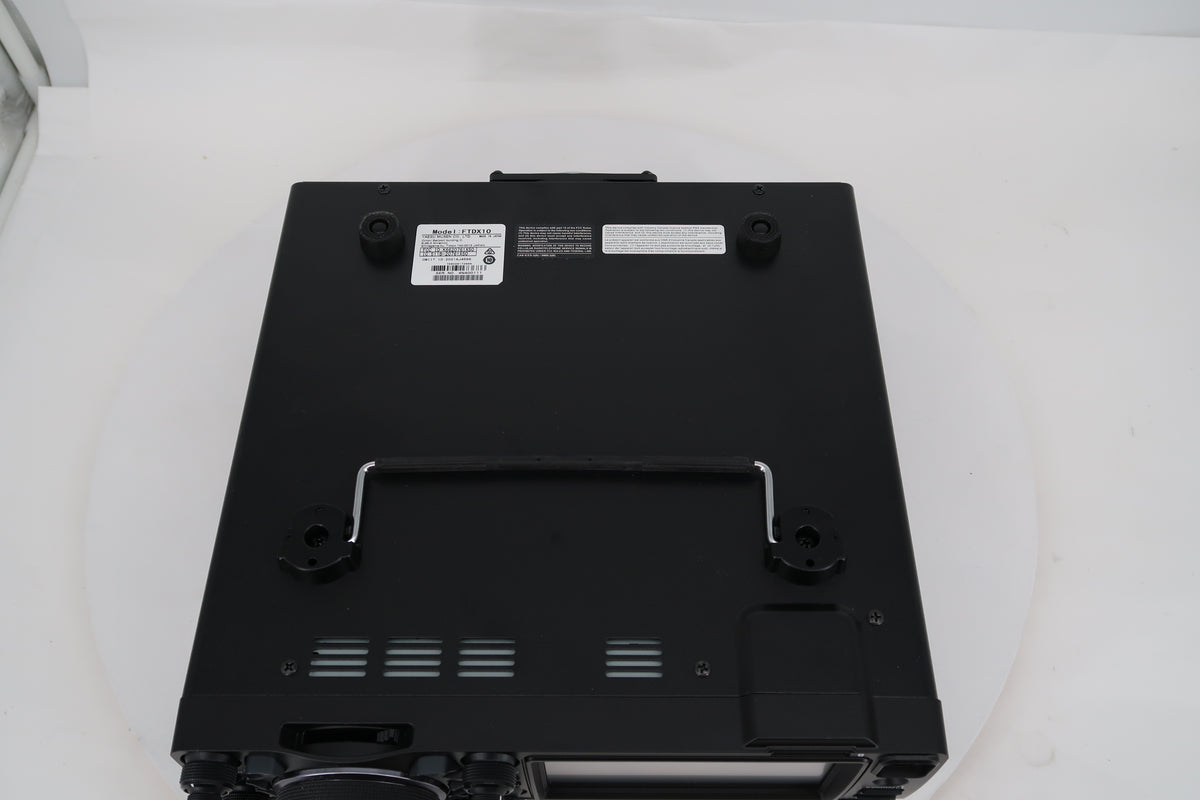

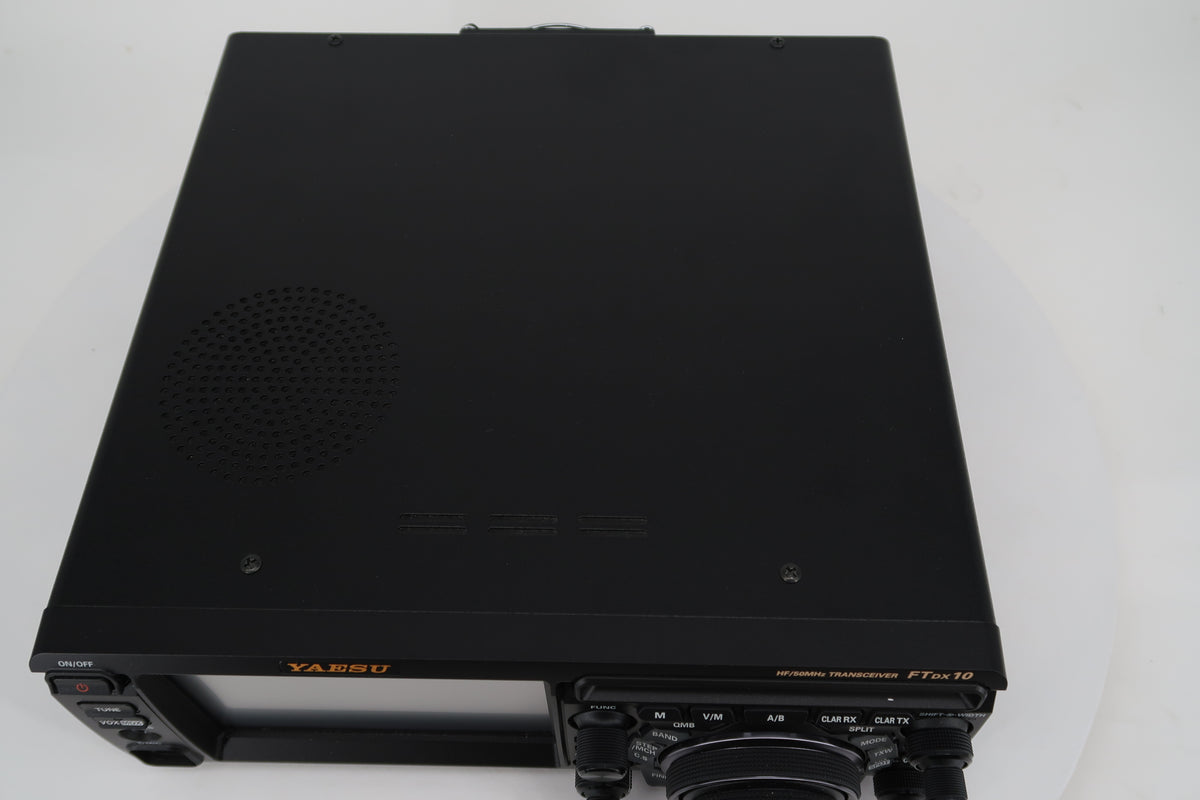

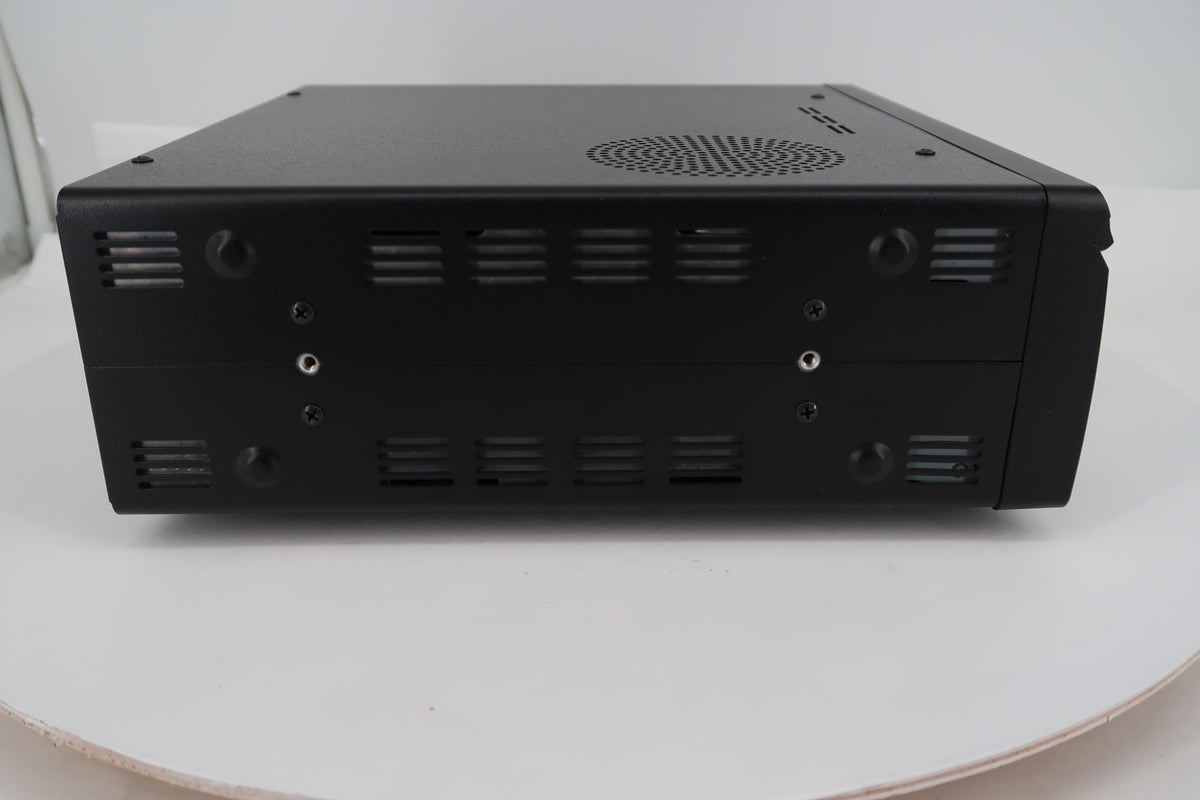

• Cosmetic Condition: Outstanding pre-owned condition. The front faceplate, color touchscreen, top/side enclosure, and rear chassis connectors are clean and well-kept.

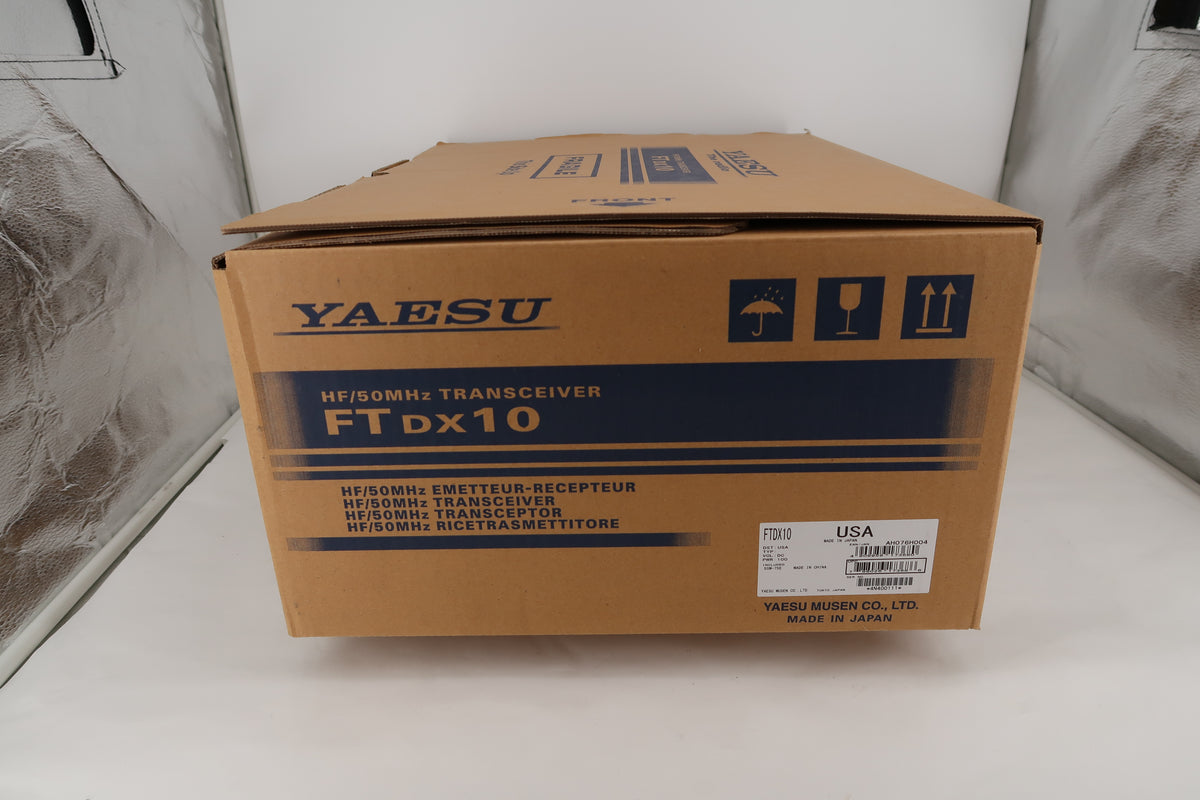

• Packaging: Includes the original Yaesu factory box with protective internal packing inserts.

Key Features

• Hybrid SDR Receiver Architecture: Integrates a narrow-band SDR with 9 MHz down-conversion and a direct sampling SDR for unmatched receiver selectivity and real-time spectrum scoping.

• Built-in Sharp Roofing Filters: Standard equipped with 500 Hz, 3 kHz, and 12 kHz crystal roofing filters for steep-skirt QRM rejection.

• 5-Inch Full-Color Touchscreen & 3DSS: Interactive 3-Dimensional Spectrum Stream visualizer displays signal strength and band activity across time and frequency.

• MPVD (Multi-Purpose VFO Outer Dial): Precision multi-function ring around the main tuning knob allows rapid clarifier adjustment, memory channel stepping, and custom setting selection.

• High-Speed Automatic Antenna Tuner: Built-in 100-channel memory ATU matches loads across 1.8 to 54 MHz rapidly.

• Digital Noise Reduction & Audio Processing: 32-bit IF DSP delivers IF Shift/Width, Contour filtering, Digital Noise Reduction (DNR), and Notch filtration.

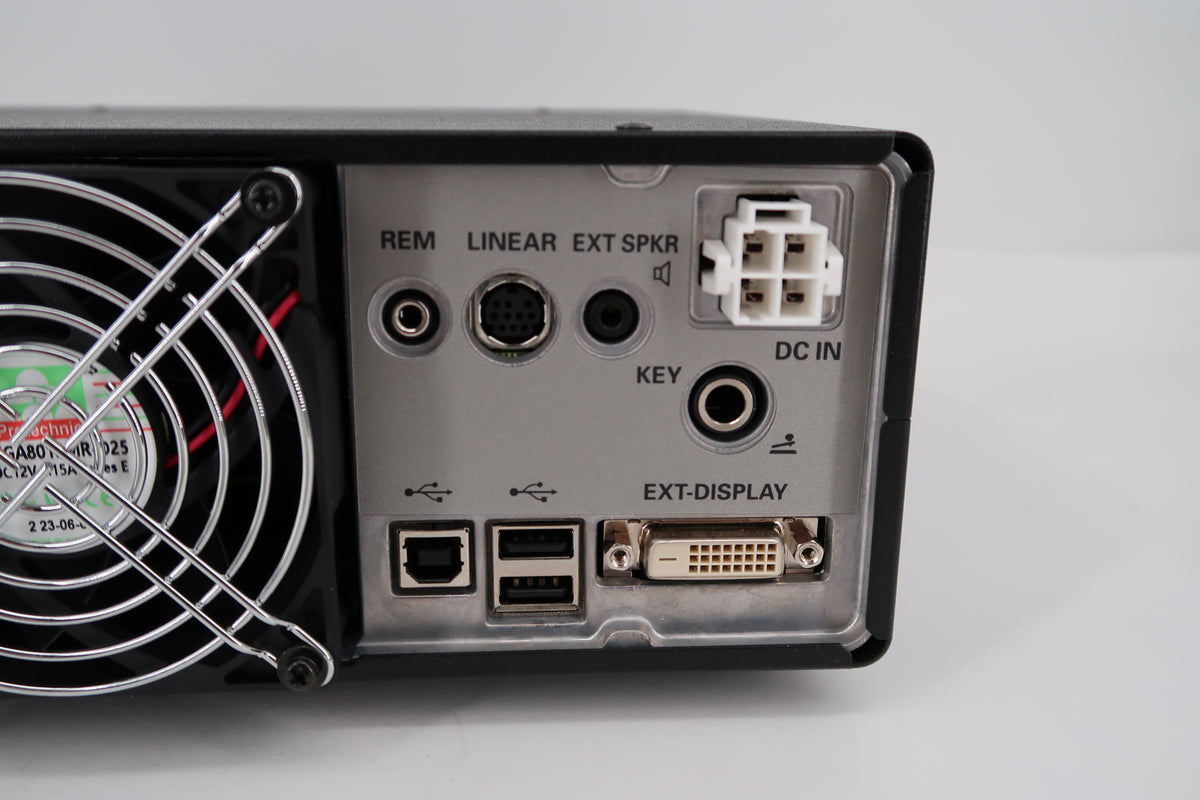

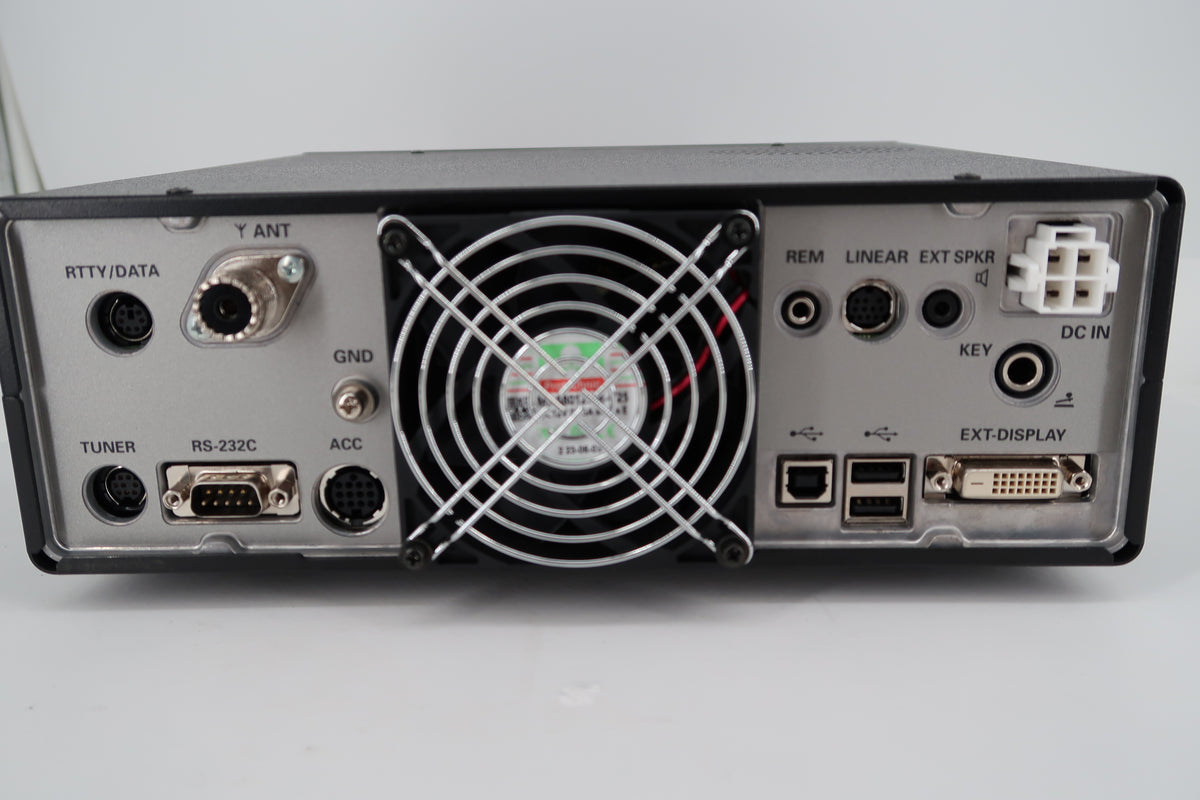

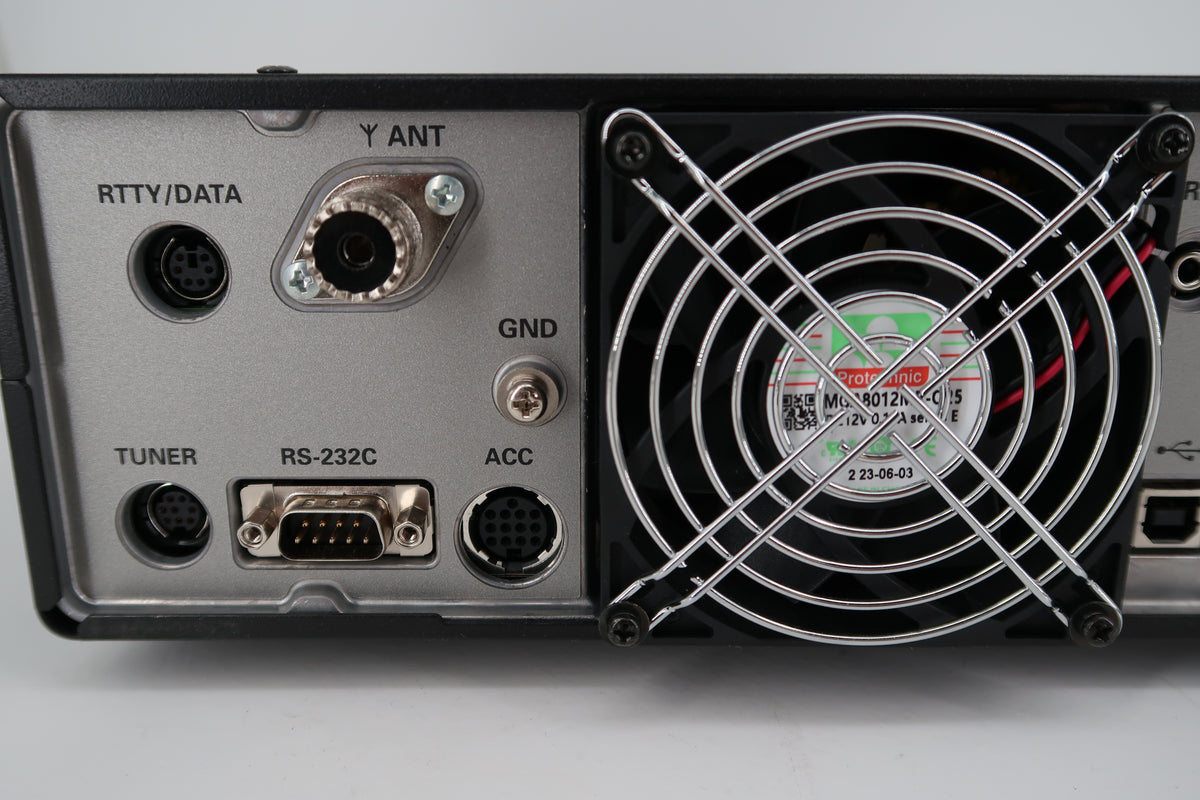

• Comprehensive Rear Connectivity: Includes USB-B (CAT/Audio), dual USB-A ports, DVI-D external display port, RS-232C, external speaker jack, and linear amplifier control keying.

What's Included

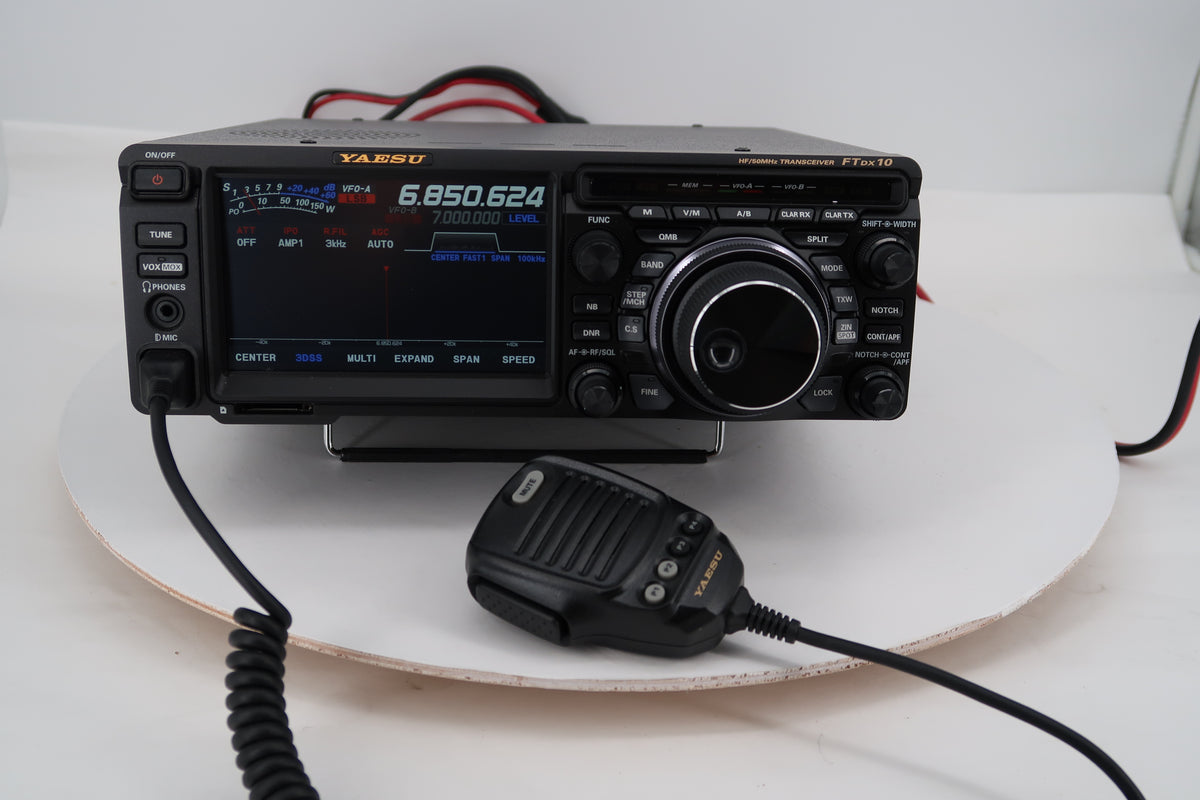

• Yaesu FTdx10 HF/50MHz Transceiver

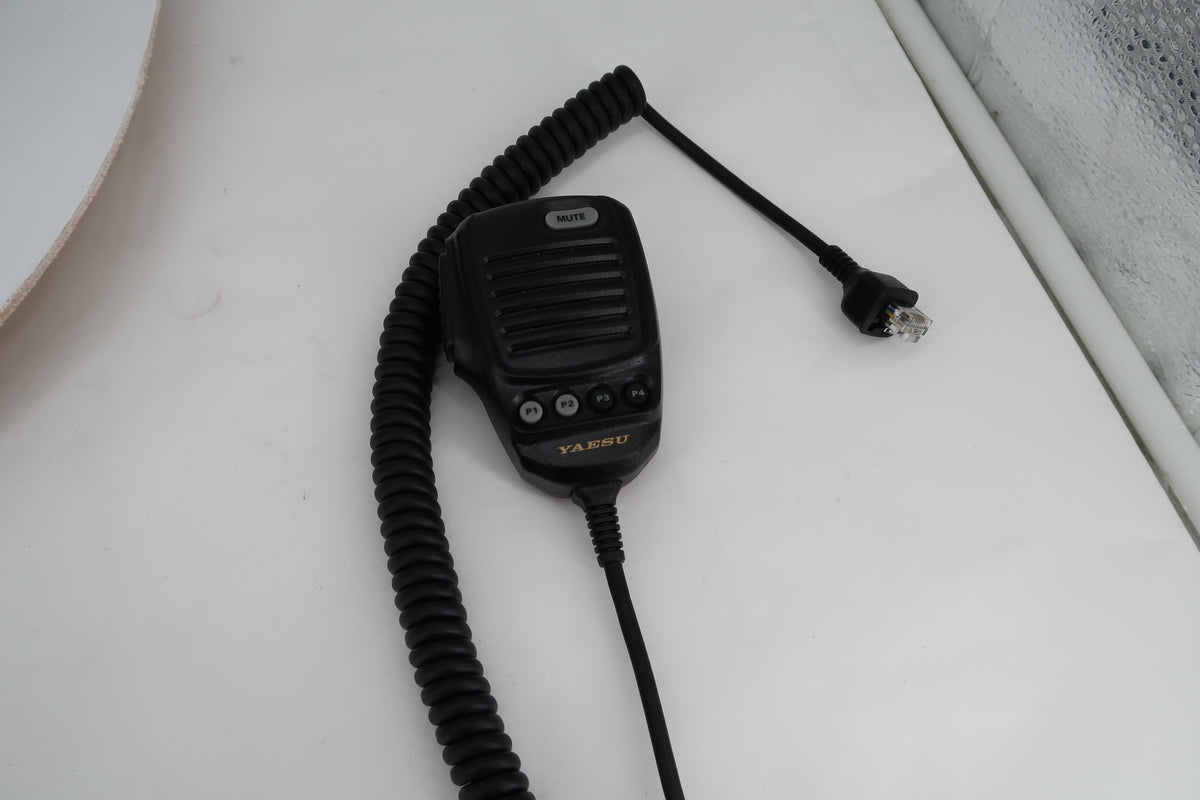

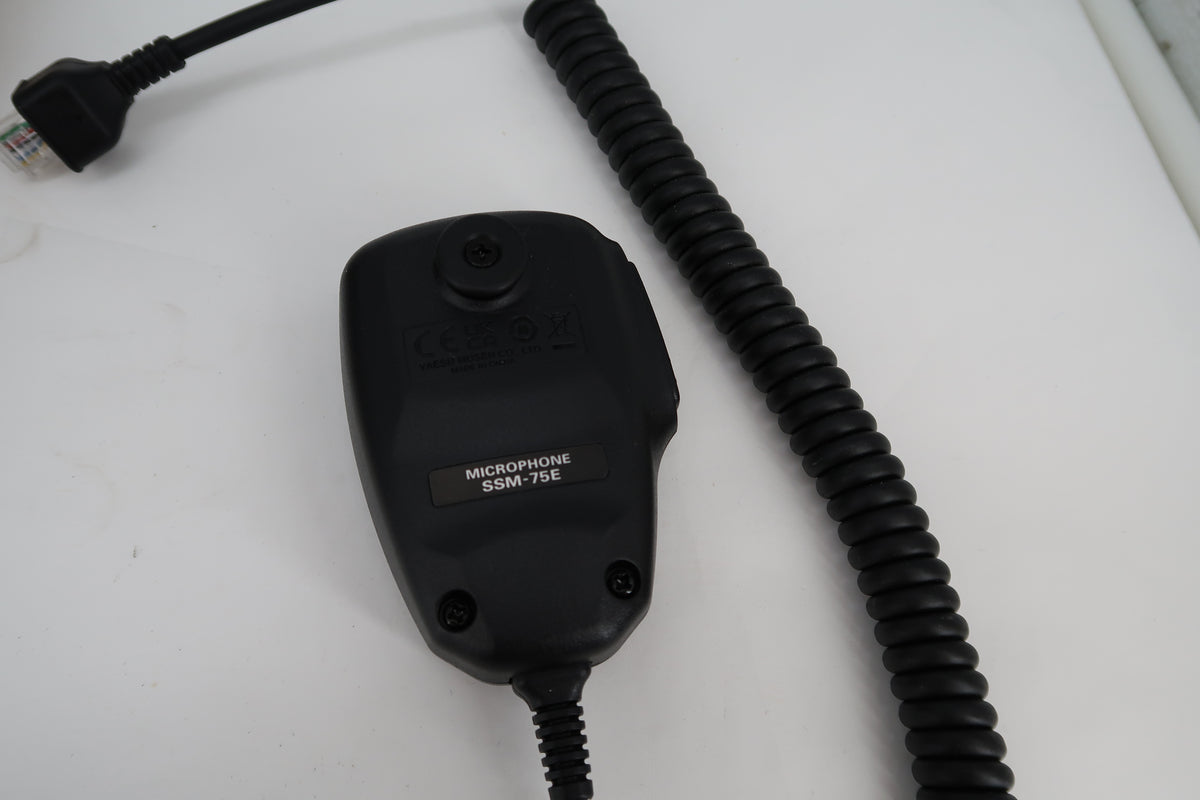

• Yaesu SSM-75E Hand Microphone

• Heavy-Duty DC Power Cable with Inline Fuses

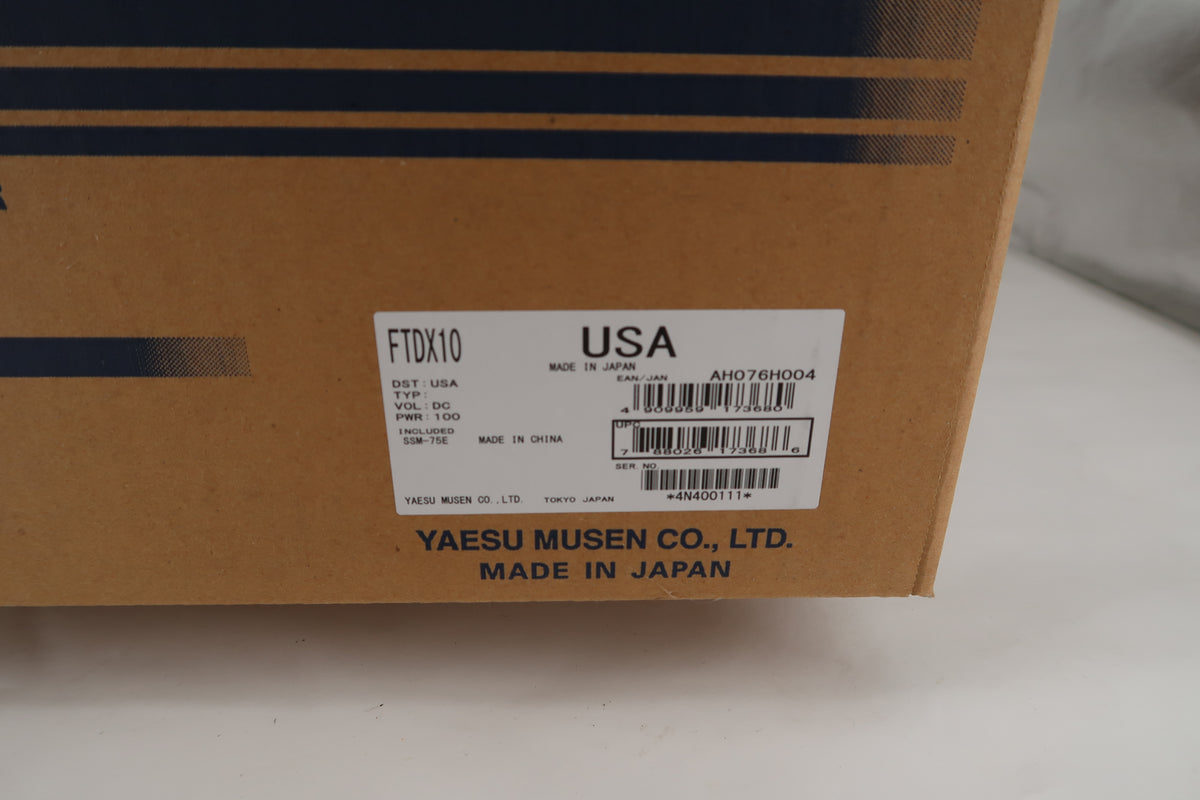

• Original Yaesu Factory Box

Comes With Our 90-Day Warranty!

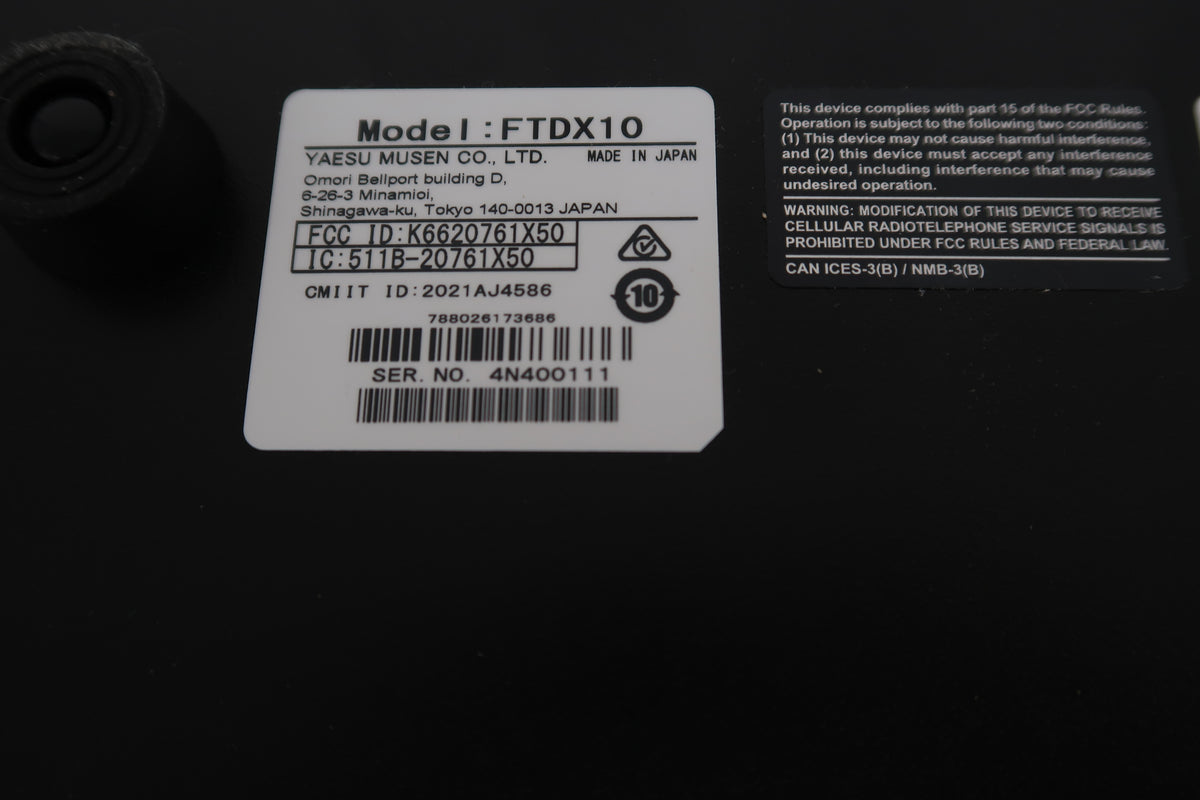

Serial Number: 4N400111
