U20501 Used ICOM ID-5100A Dual Band VHF/UHF FM/D-STAR 50W Transceiver

U20501 Used ICOM ID-5100A Dual Band VHF/UHF FM/D-STAR 50W Transceiver

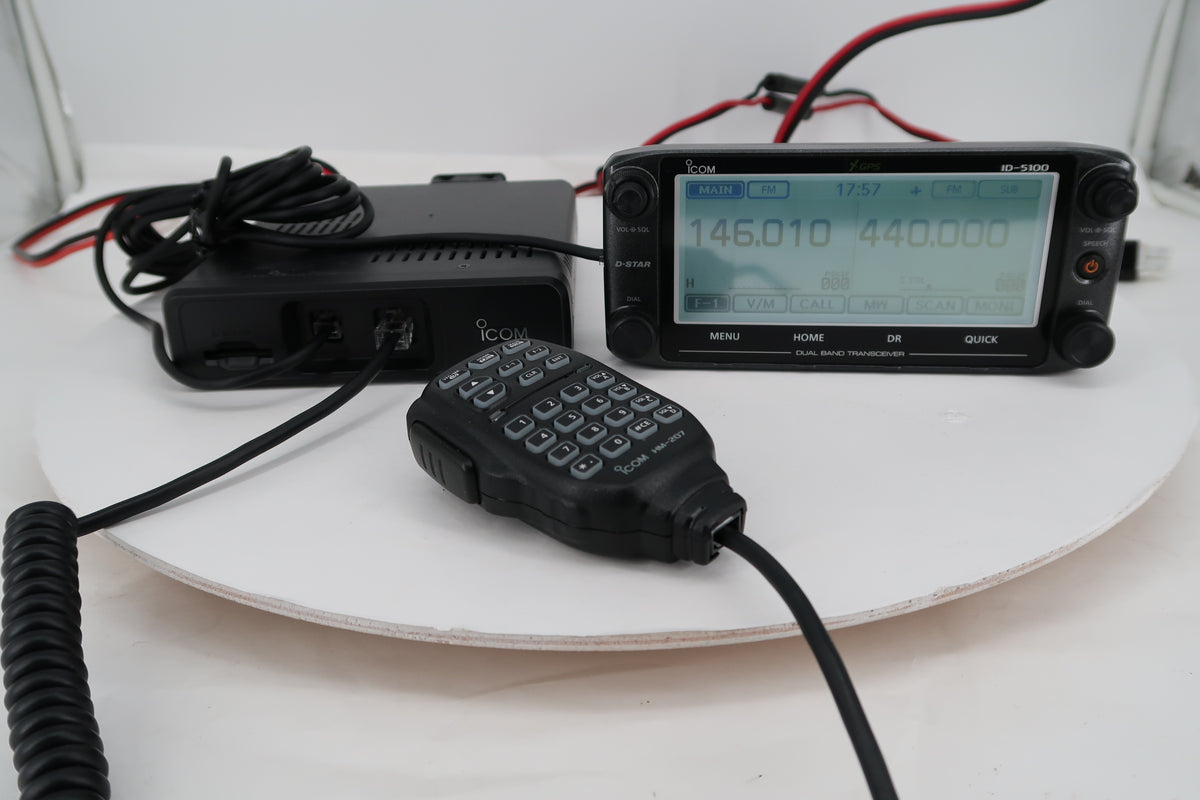

This pre-owned Icom ID-5100A is in very good overall condition, exhibiting minor cosmetic signs of prior shack use including small nicks on the side panel and a localized patch of tape residue on the top panel of the main RF unit. The large touchscreen controller looks great, offering sharp, clear display contrast, and all buttons, rotary dials, and touch elements operate smoothly. It comes packed in its original factory box with its controller separation cable, DTMF hand mic, fused power cord, and factory documentation.

The Icom ID-5100A is an advanced dual-band mobile transceiver delivering a heavy-duty 50 Watts of RF power on both the 144 MHz (2M) and 430/440 MHz (70cm) amateur bands. Supporting both analog FM and digital D-STAR operation, it features simultaneous dual receive (V+V, U+U, V+U) with independent controls and D-STAR DV dualwatch capability. Built around an expansive 5.5-inch monochrome touch-screen LCD controller, it provides intuitive menu navigation, virtual keypad entry, and fast DR (D-STAR Repeater) mode selection. With an integrated high-sensitivity GPS receiver, built-in SD card slot for voice and data recording, and versatile cross-band repeat functionality, the ID-5100A delivers exceptional capability for mobile, desktop base, or portable operations.

Condition

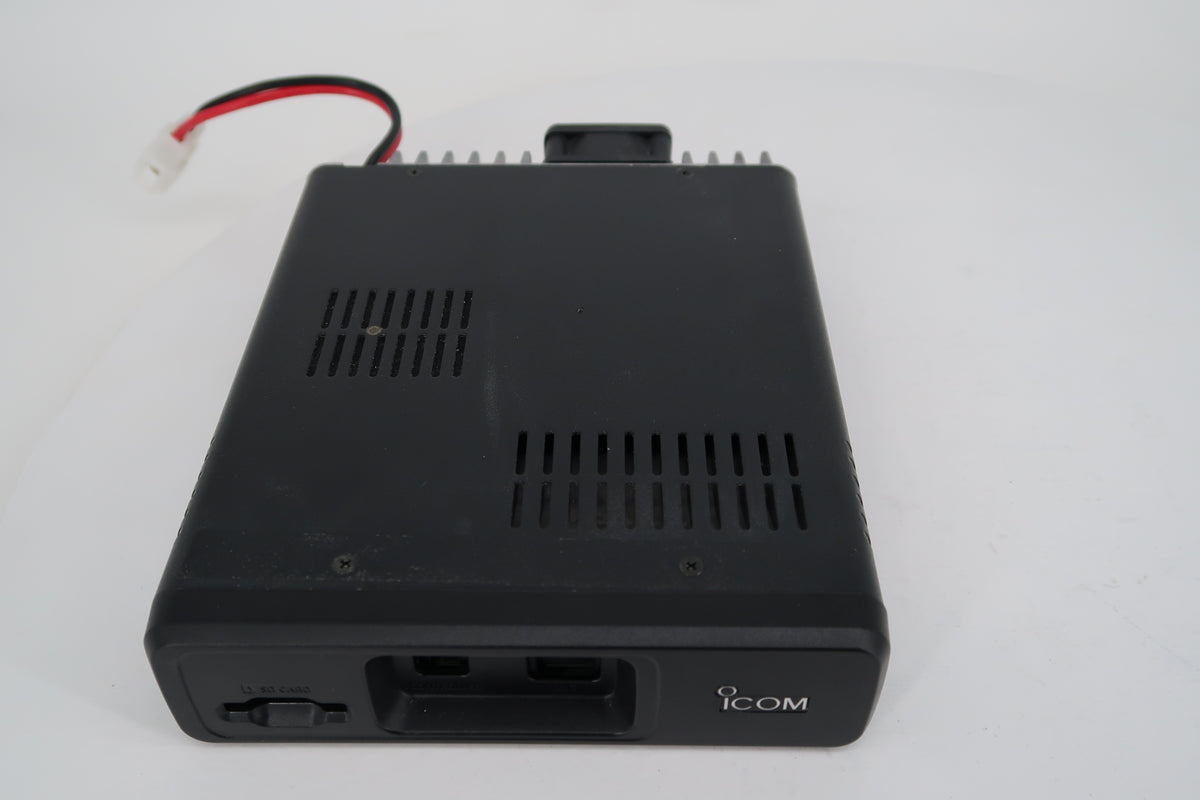

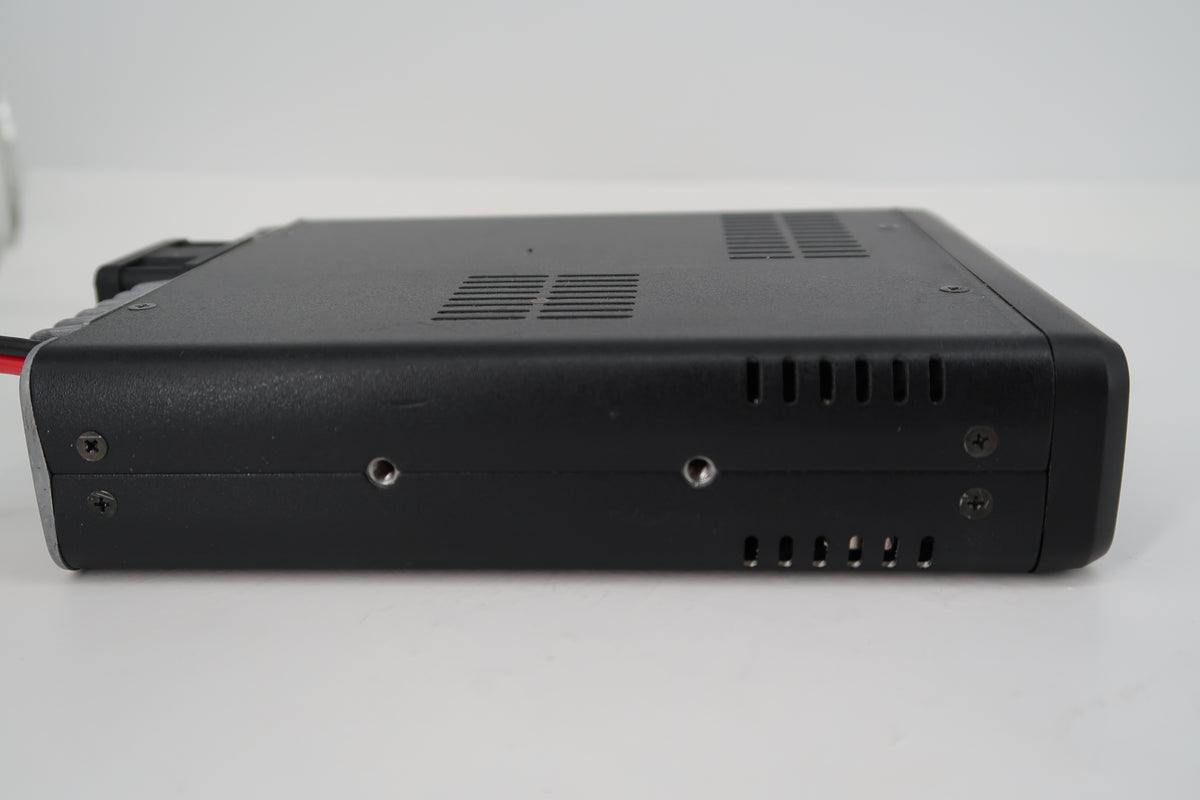

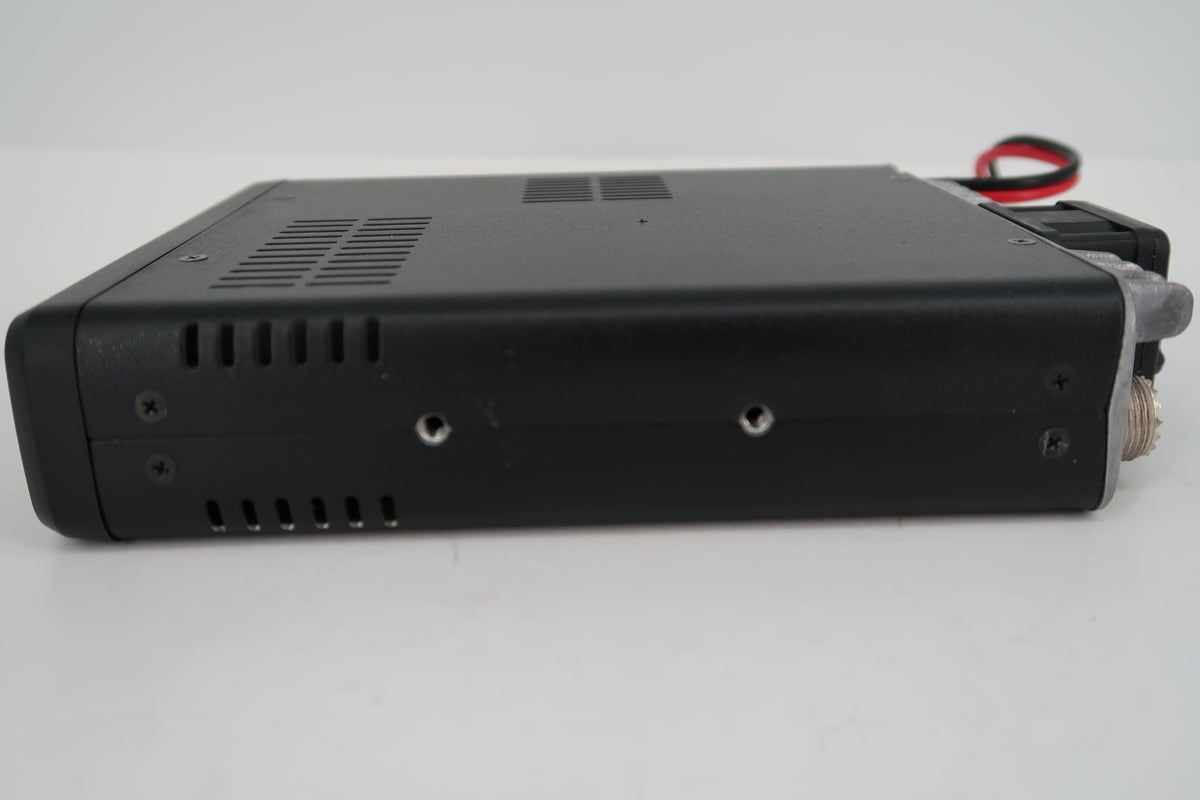

• Cosmetic Condition: Very good pre-owned condition showing light shack handling. The main transceiver chassis has a few minor nicks on the side casing and a small spot of adhesive tape residue on the top cover.

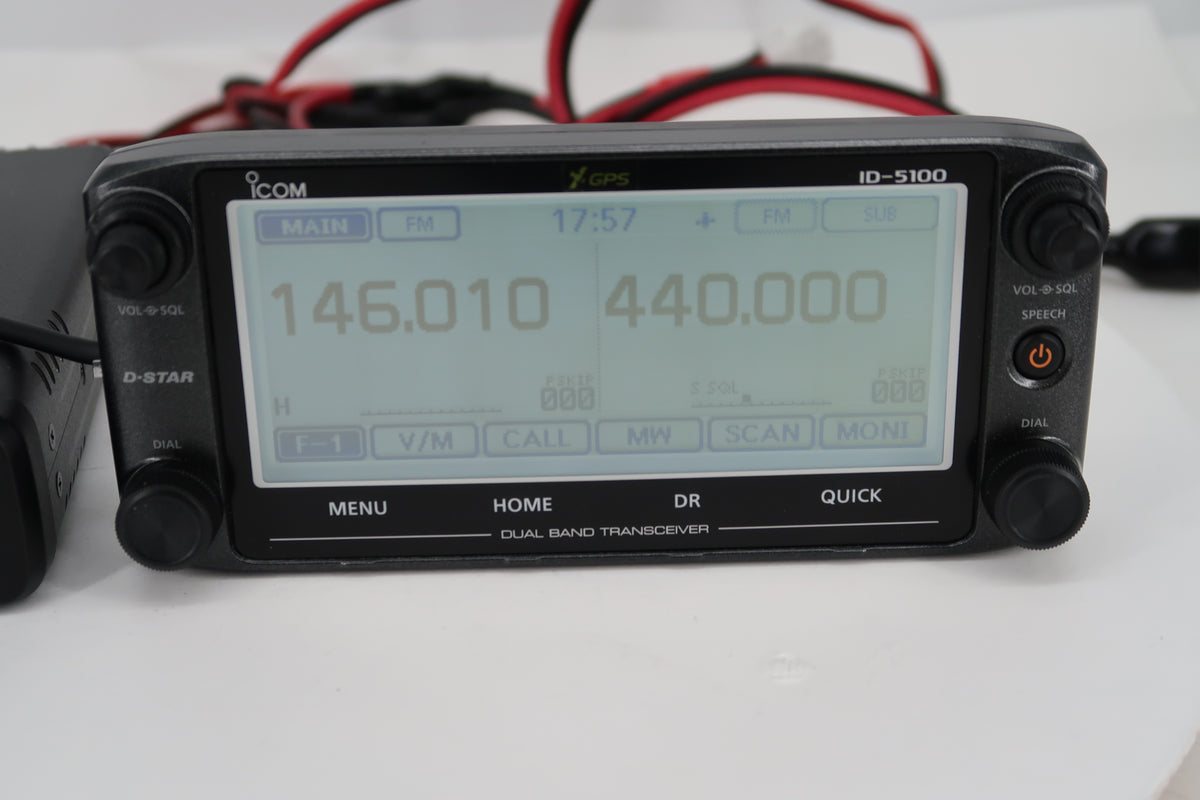

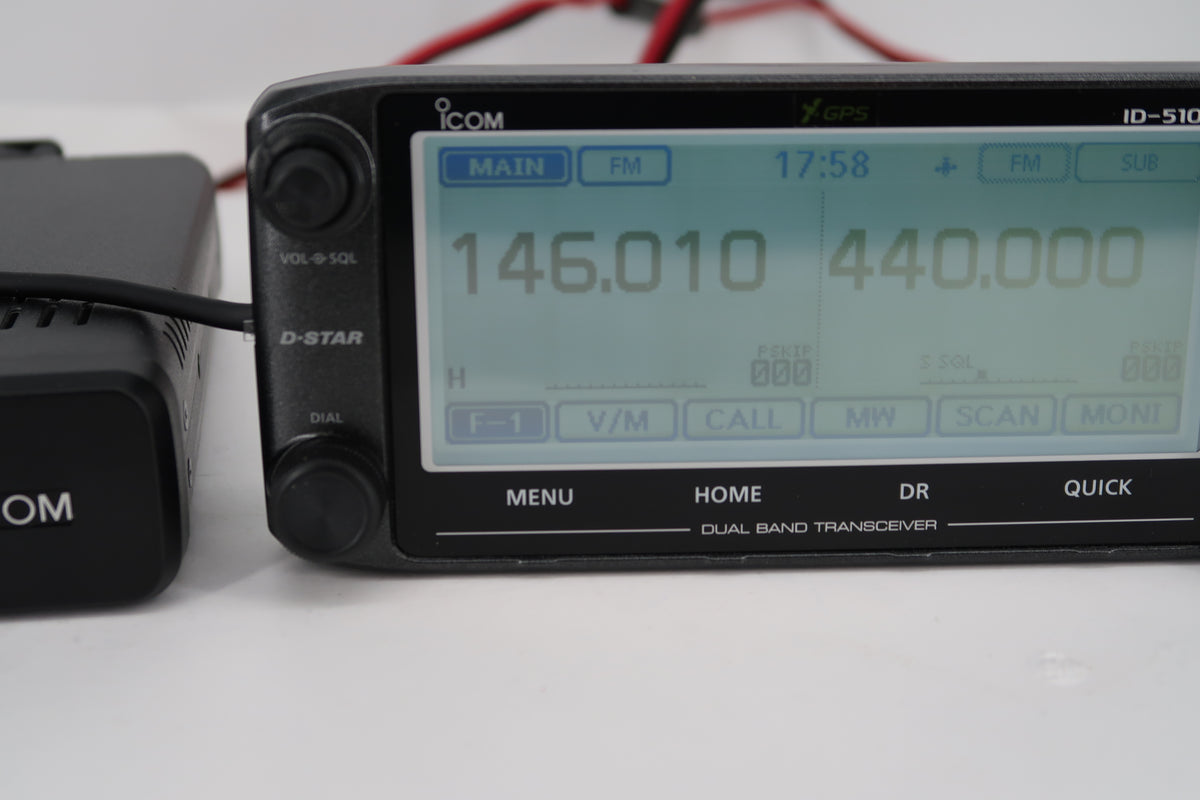

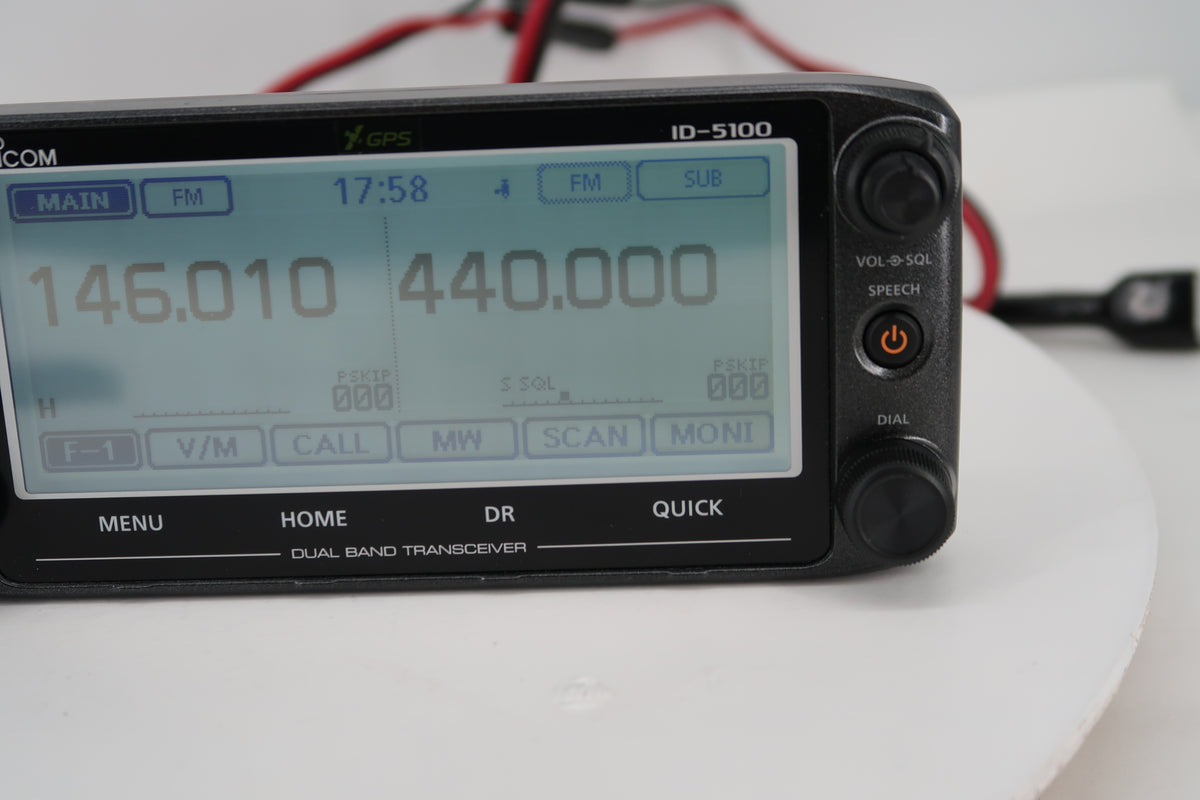

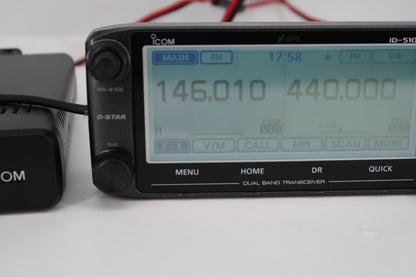

• Touch Controller & Screen: The remote head and display lens look great, free of significant scratches or clouding, with all touch controls and pushbuttons functioning properly.

• Packaging: Includes the original Icom factory box and original documentation packet.

Key Features

• Dual-Band 50W Output: Full 50 Watts of RF transmit power on both 2 Meters and 70 Centimeters with High, Mid, and Low power settings.

• 5.5-Inch Touch-Screen Display: Large, responsive touchscreen interface provides fast access to frequencies, repeater lists, menu settings, and text entry.

• Simultaneous Dual Receive & D-STAR Dualwatch: Monitor two frequencies at once across V/V, U/U, or V/U, including simultaneous digital reception of two D-STAR signals.

• Integrated GPS Receiver: Built-in GPS antenna in the controller displays current position coordinates, course, speed, and enables D-STAR automatic position reporting (D-PRS).

• D-STAR DR Mode: Intuitive repeater list navigation allows you to select local D-STAR repeaters based on internal GPS proximity.

• SD Card Slot: Accommodates an SD/SDHC card for storing audio recordings, repeater lists, voice memories, and transceiver configuration backups.

• Wideband Receiver: Continuous receive coverage across 118–174 MHz and 375–550 MHz (cellular blocked), including AM VHF aircraft band.

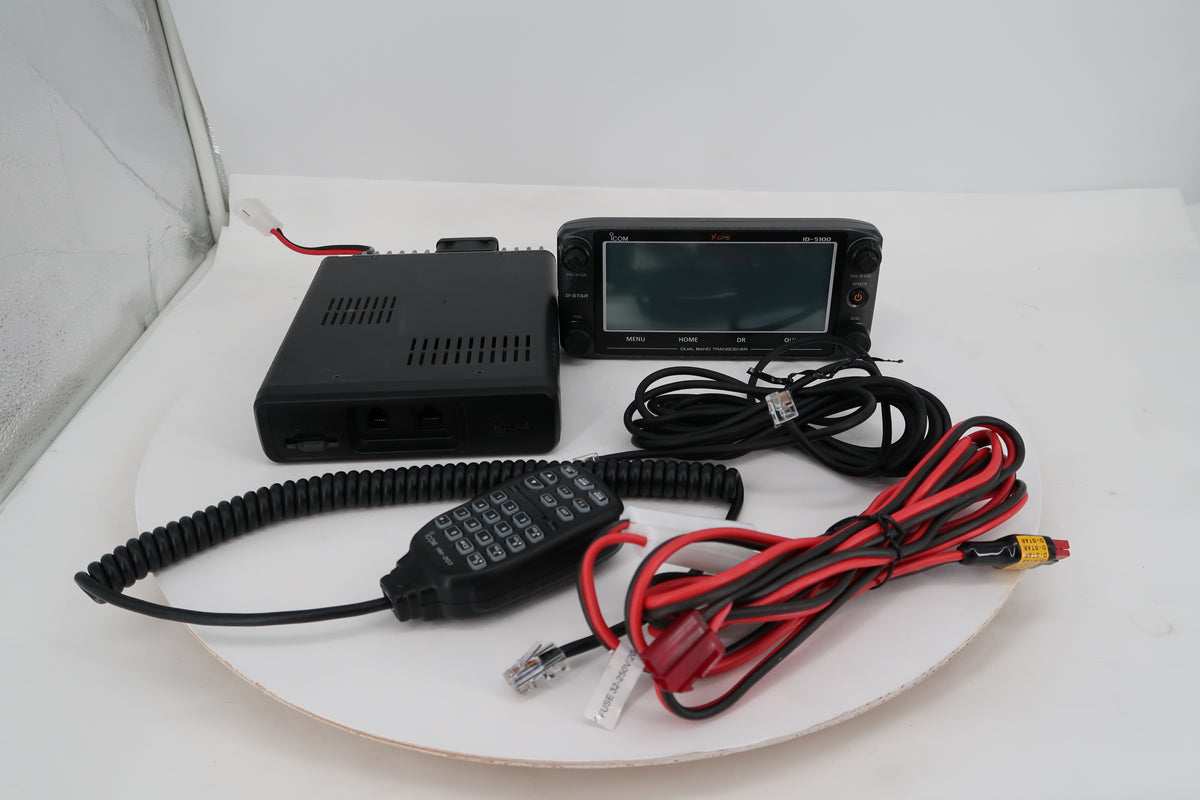

What's Included

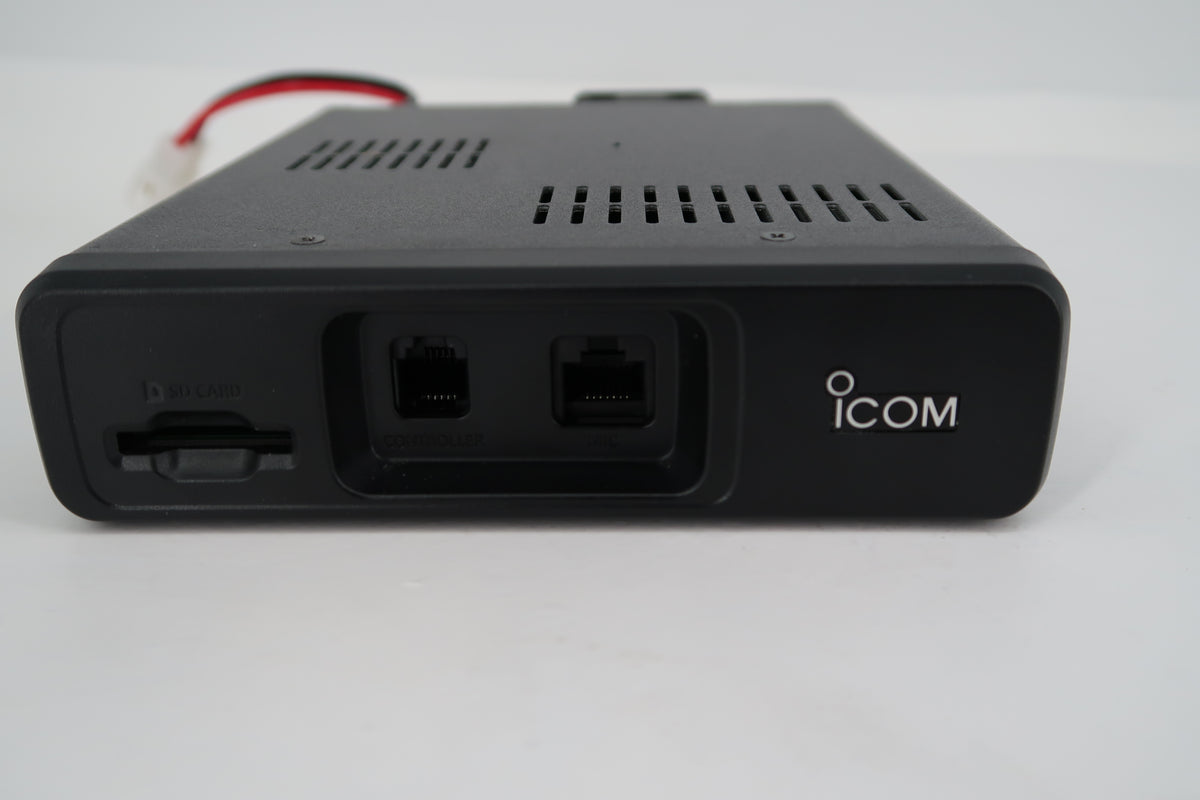

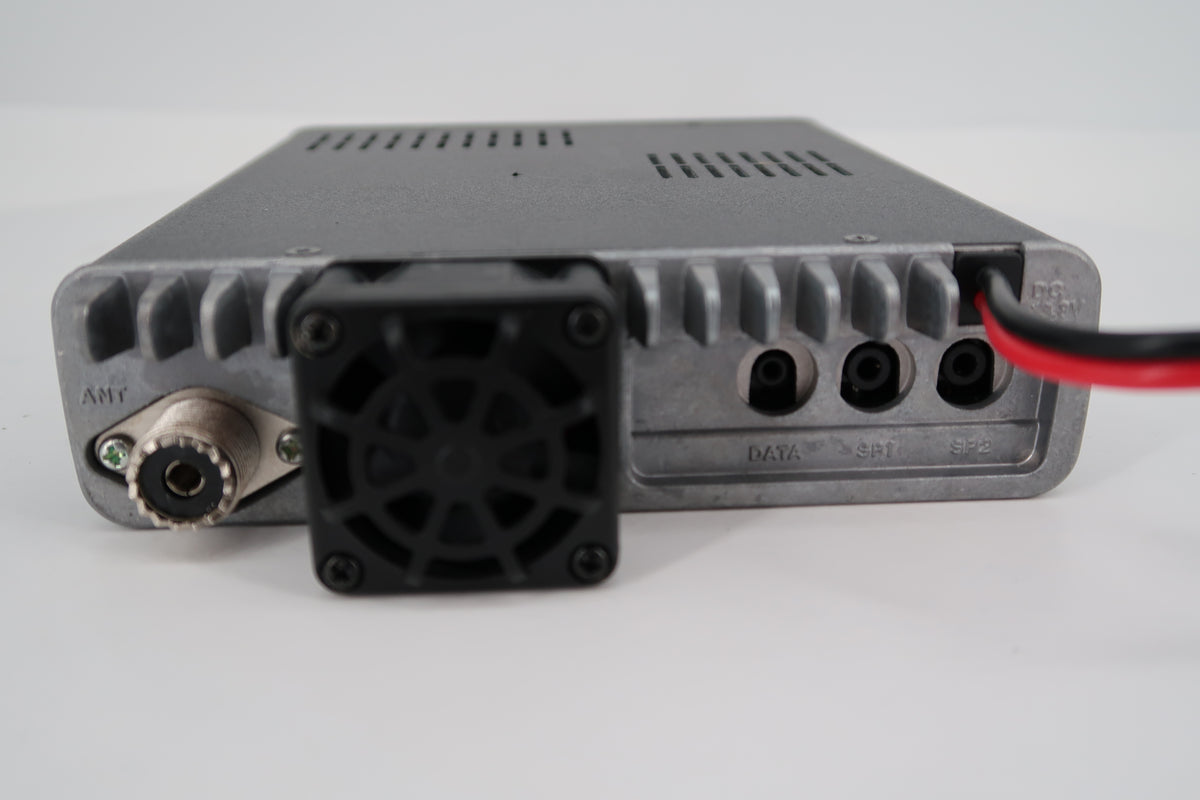

• Icom ID-5100A Main RF Transceiver Deck

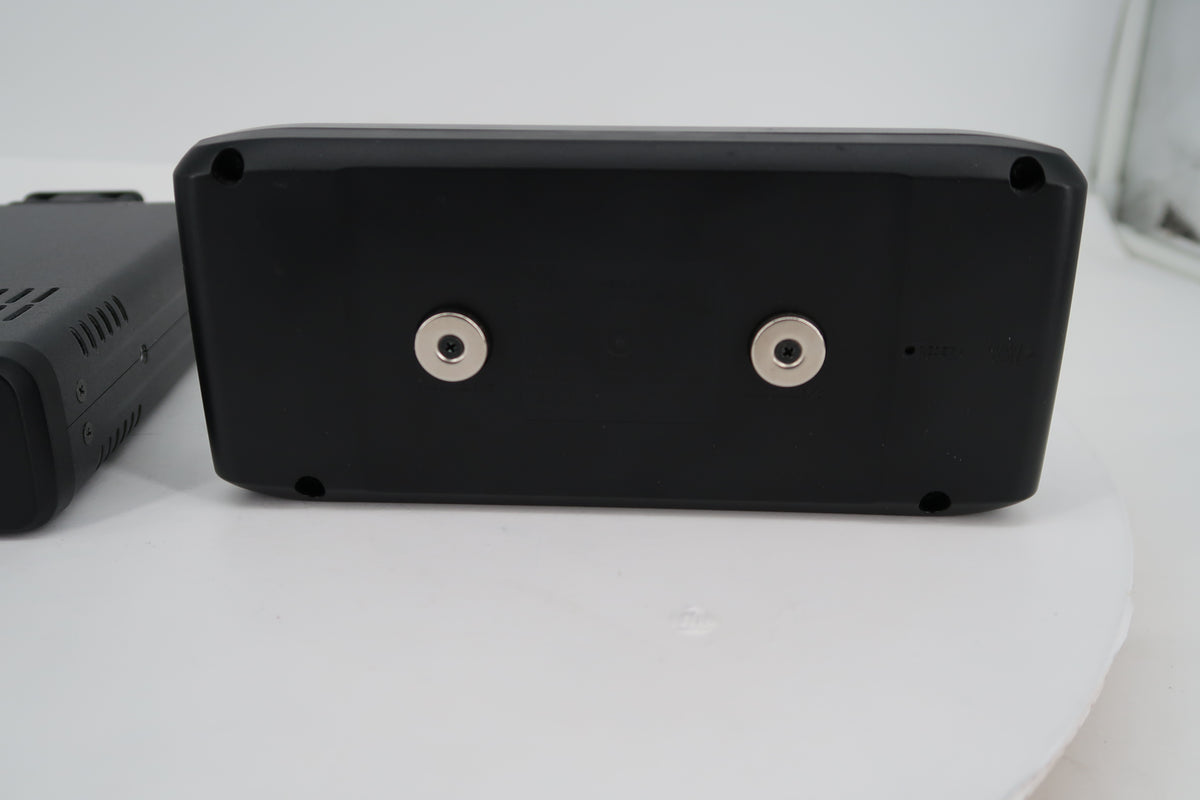

• Icom ID-5100A Multi-Function Touchscreen Controller Head

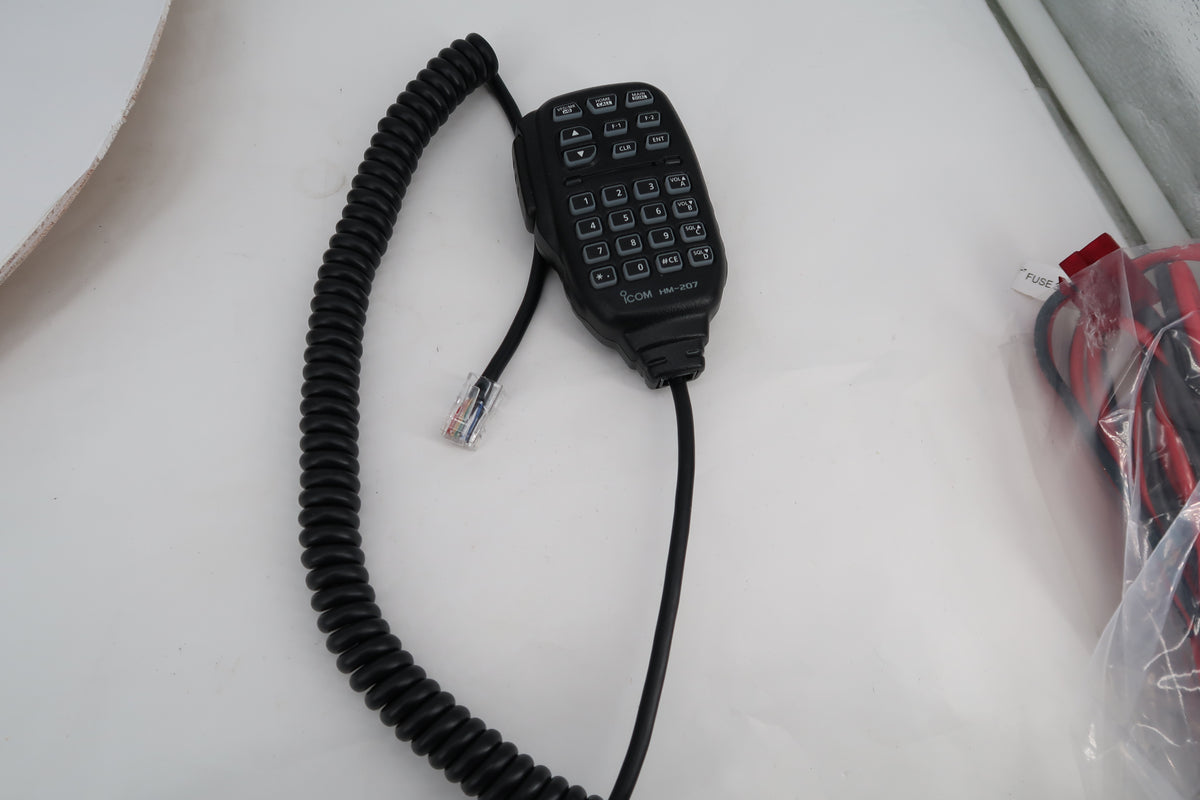

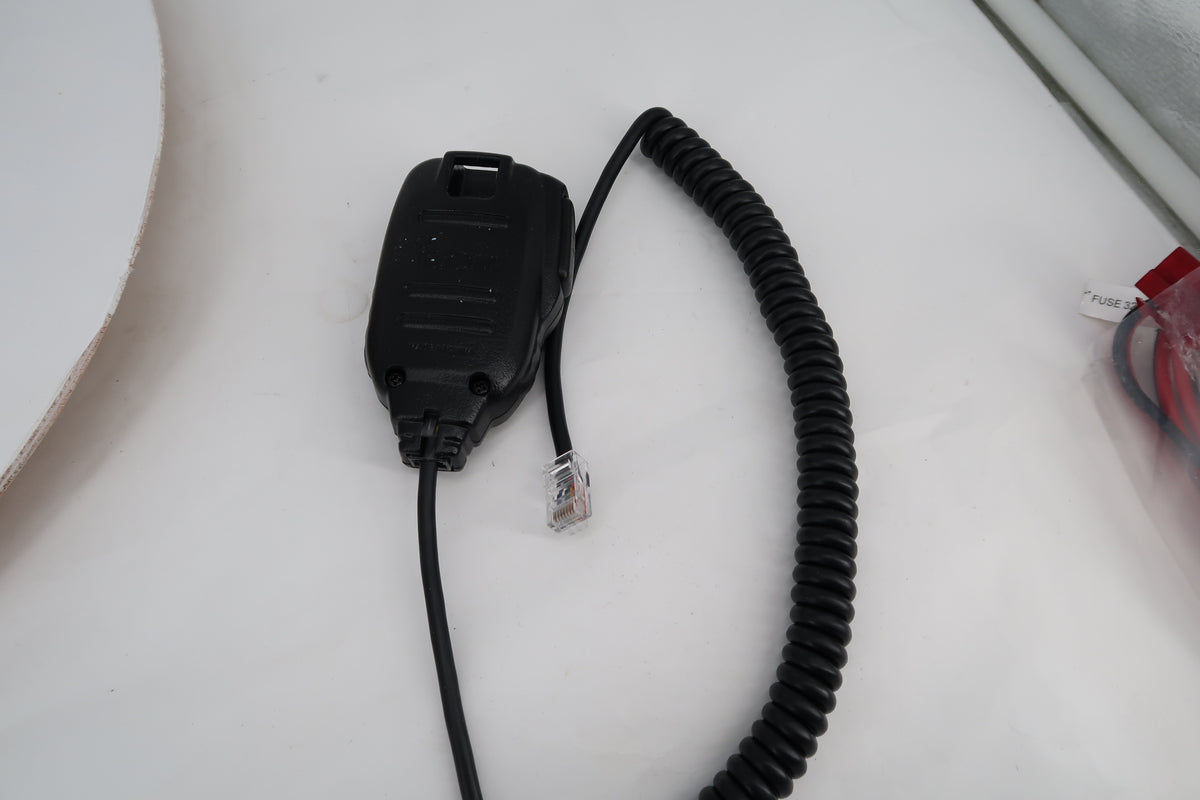

• Icom HM-207 DTMF Hand Microphone

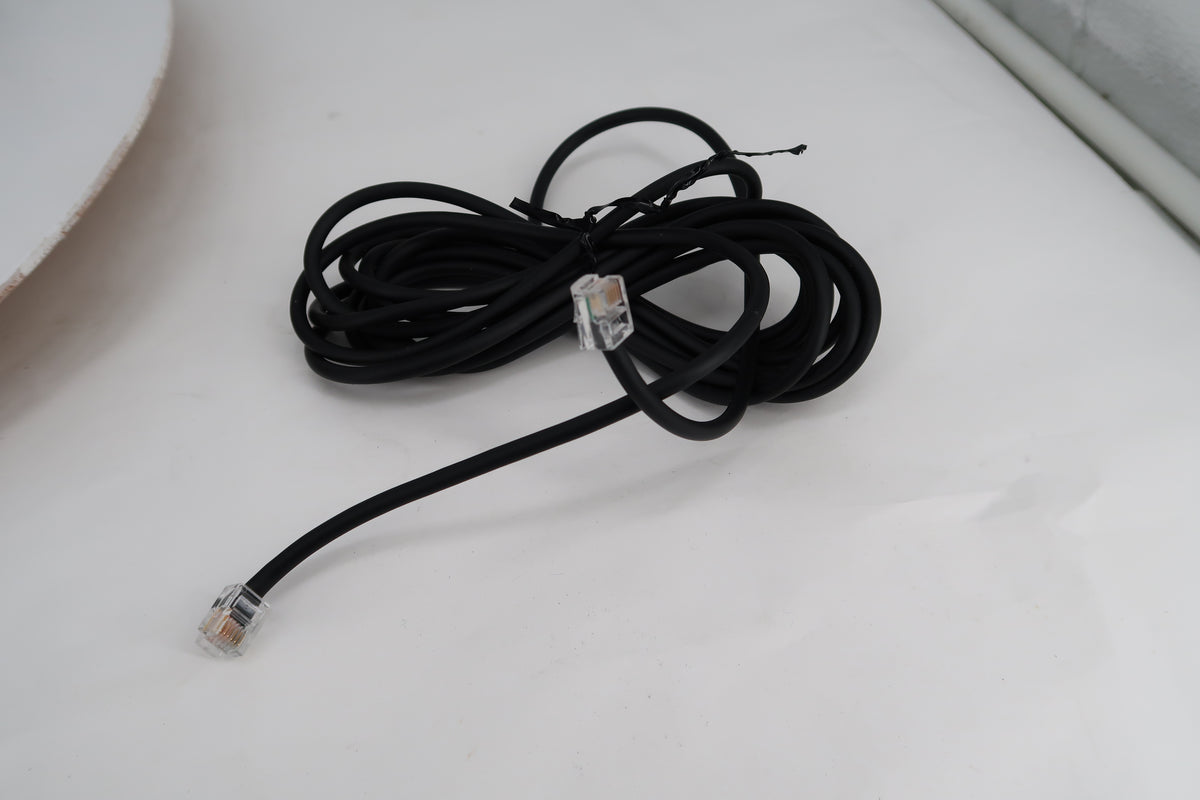

• Controller Separation Cable (modular RJ-style)

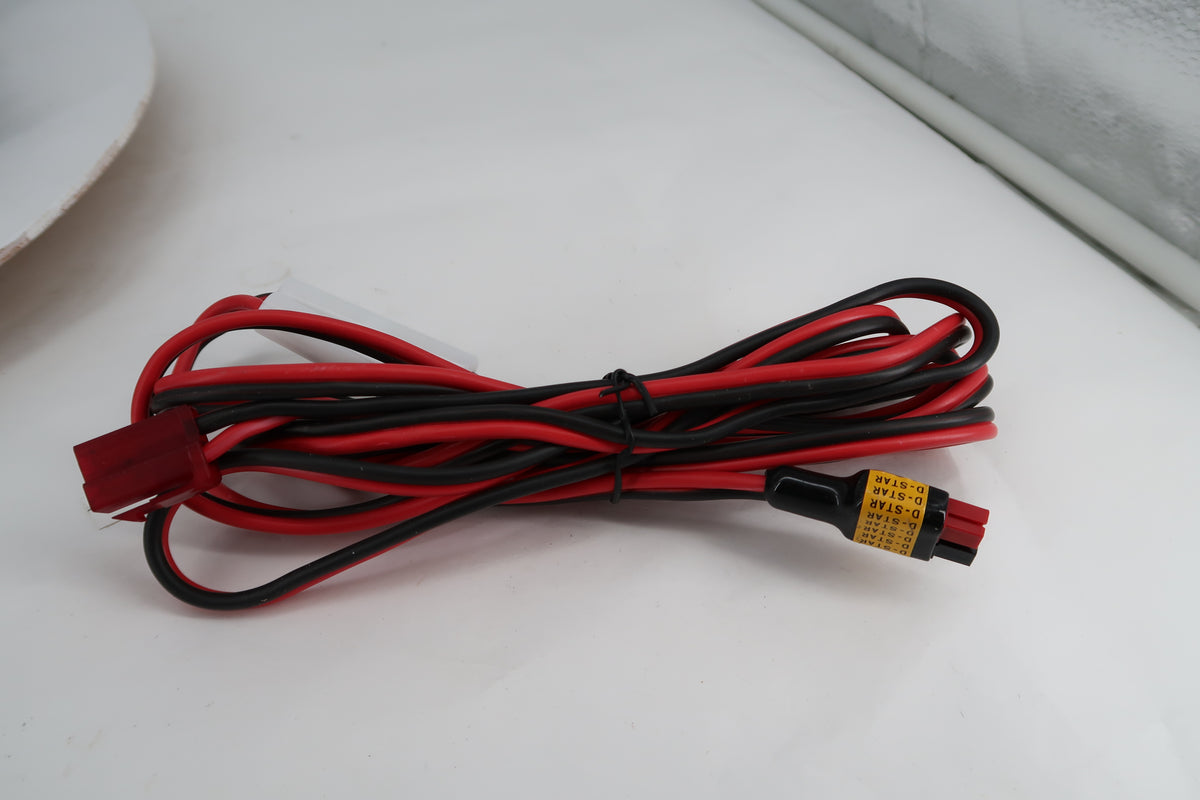

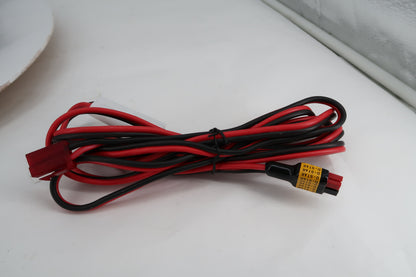

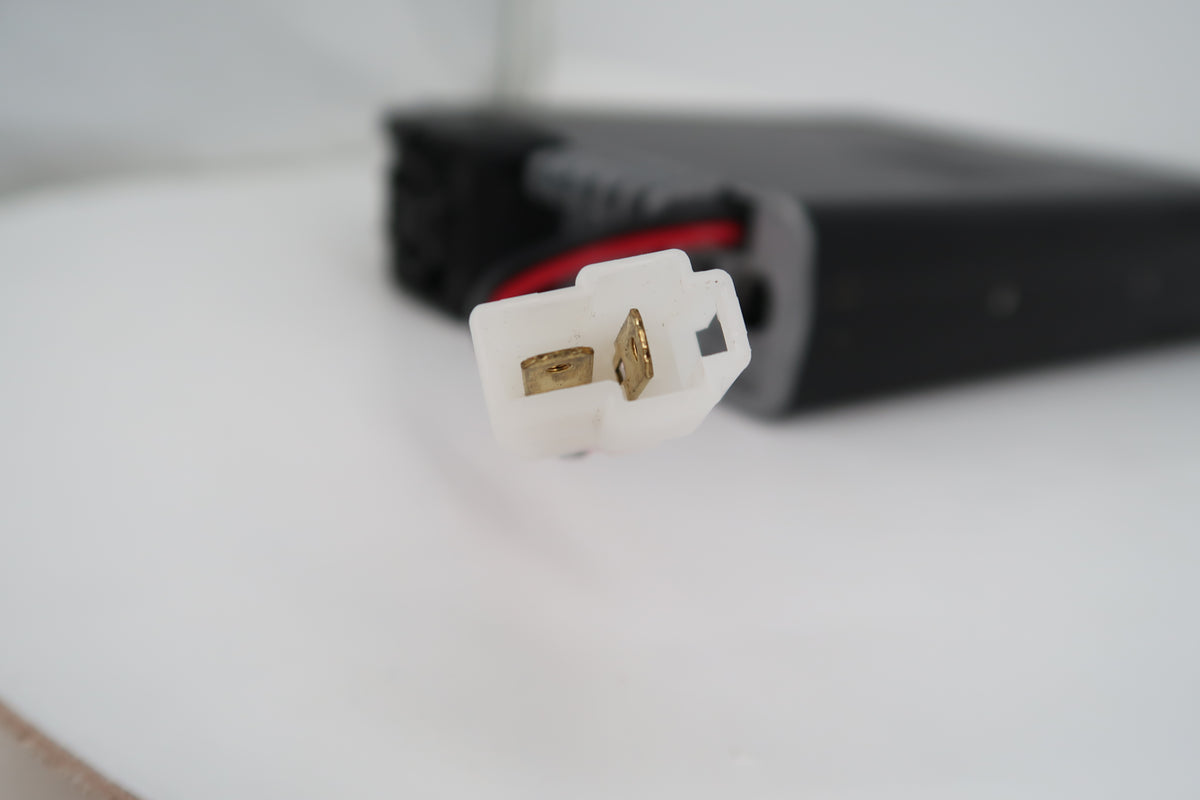

• Fused DC Power Cable with Powerpole Connectors

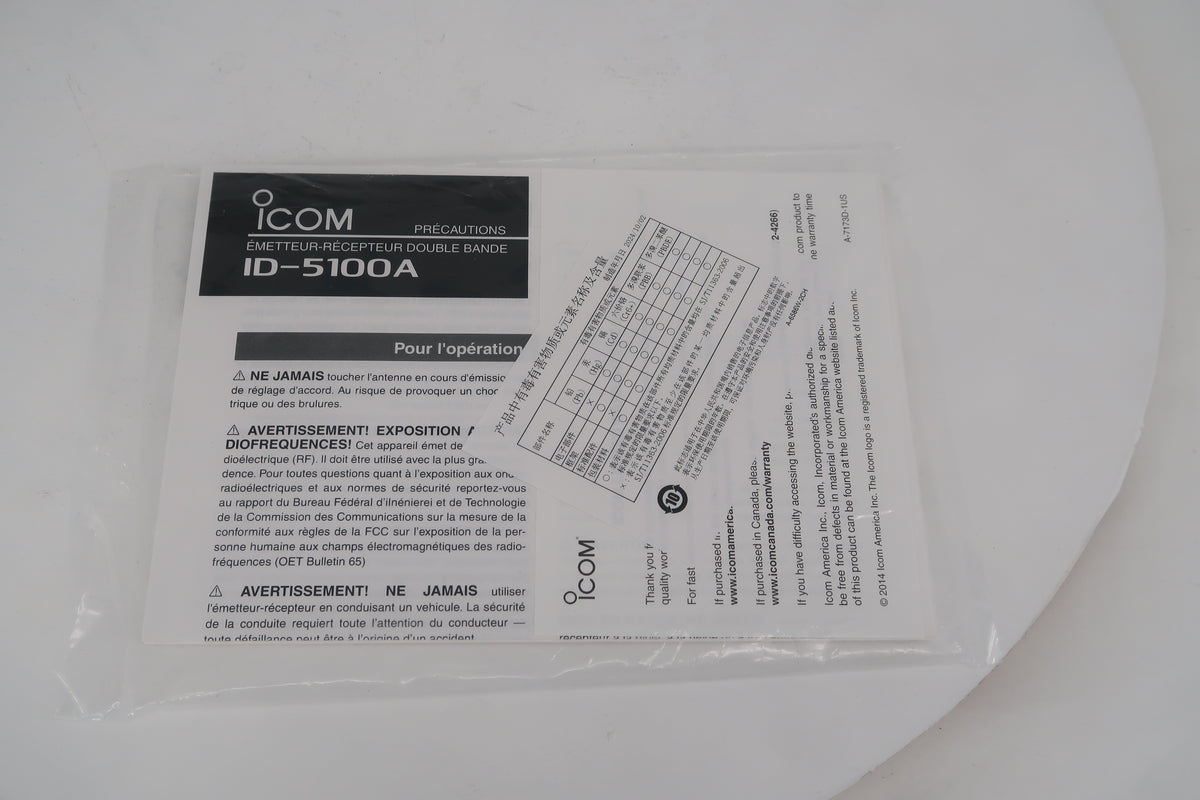

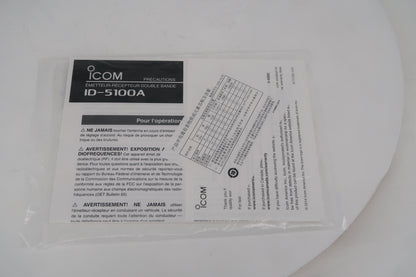

• Factory Documentation Packet (Precautions & Manual inserts)

• Original Icom Factory Box

Comes With Our 90-Day Warranty!

Serial Number: 15005171

QR-0338
