YAESU FTDX-10 100 Watt HF Transciever

Sorry, We can not price match or be competitive on Yaesu Products. We can't even get close

$300.00 Online Mail In Rebate Available on this product.

Yaesu Mail In Rebate on this item when purchased between 7/1/2026 and 9/30/2026. Rebate Forms for US and Canadian residents can be found here for this product.

We are pleased to introduce the FTDX10, a new long-awaited compact HF/50MHz 100W SDR Transceiver!

Hybrid SDR Configuration

Like the FTDX101 series, the new FTDX10 utilizes the Yaesu Hybrid SDR configuration - Narrow Band SDR and Direct Sampling SDR. The Narrow band SDR receiver emphasizes excellent receiver performance, while the Direct Sampling SDR provides a Digital Processing Real-Time Spectrum Scope.

Narrow Band SDR with 3 types of Roofing Filters and Phenomenal Multi-signal receiving Characteristics

Like the FTDX101 series, the Down Conversion type receiver configuration with the first IF at 9MHz has been adopted.  It makes it possible to incorporate excellent narrow bandwidth crystal roofing filters that have the desired sharp “cliff edge” shape factor.  Thanks to the Narrow Band SDR with the latest circuit configuration including 500Hz, 3kHz and 12kHz roofing filters and low-noise oscillator, the RMDR (Reciprocal Mixing Dynamic Range) reaches 116dB or more, the close-in BDR (Blocking Dynamic Range) reaches 141dB or more and 3rd IMDR (third-order Intermodulation Dynamic Range) reaches 109dB or more in the 14MHz band at 2kHz separation.

250MHz HRDDS (High Resolution Direct Digital Synthesizer) affords Quiet and Clear Reception

The local circuit of the new FTDX10 uses 250MHz HRDDS method same as the FTDX101 series.  Thanks to its characteristics that improve the C/N (carrier to noise) ratio and the careful selection of components in the design, the phase noise characteristic of the local signal achieves an excellent value of -145dB or less in 14MHz at 2kHz separation.

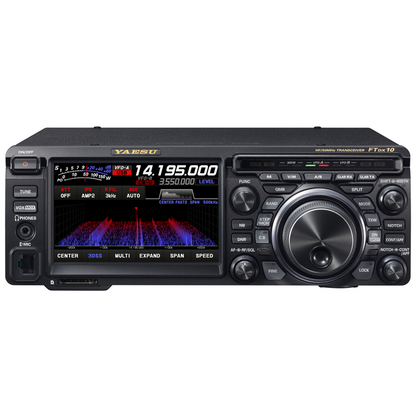

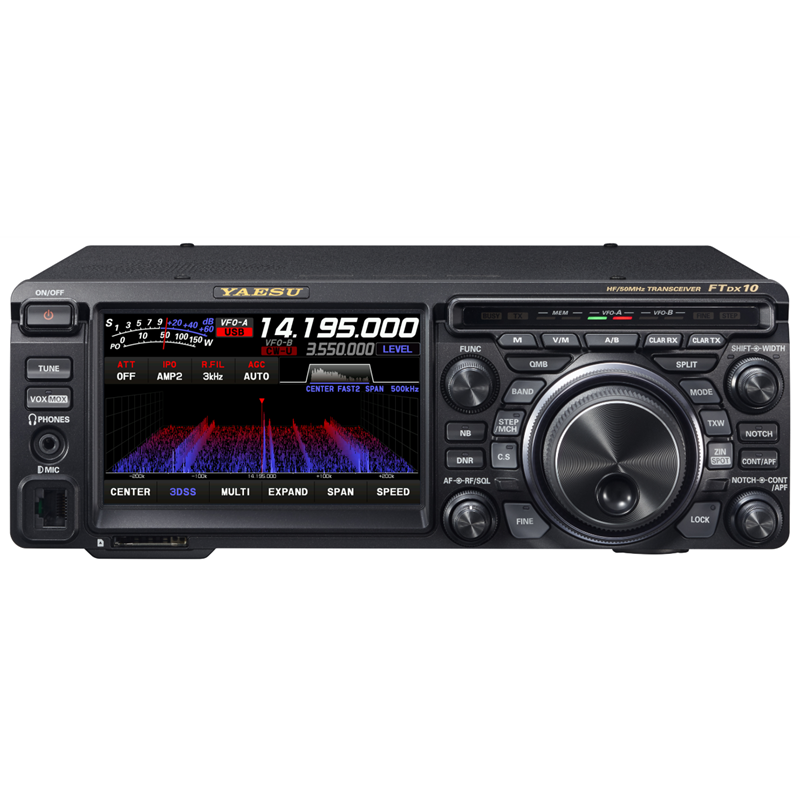

3DSS (3-Dimensional Spectrum Stream) on the 5-inch Full-Color TFT Display with Touch-Panel Functionality

The 5-inch Full-Color panel shows the 3DSS display.  By touching the frequency display, the numeric keypad is displayed, and the active band and frequency adjustment can be set by direct input.  Frequency setting and adjustment can also be performed by turning the MAIN dial or touching the scope display.  Similar to the FTDX101 series, the MULTI display, RX operation status display, Center, FIX and Cursor modes are available.

Front Panel Designed for Superior Operating Efficiency

MPVD (Multi-Purpose VFO Outer Dial), is a large multi-purpose ring around the outside of the VFO dial that enables control of Clarifier, C/S (custom selection function) and recall of memory channels.

Remote Operation with optional LAN unit (SCU-LAN10)

Remote operation of the transceiver is possible with the optional SCU-LAN10 and SCU-LAN10 Network Remote Control Software. In addition to controlling the transceiver basic operations, the versatile scope displays enable sophisticated operations such as monitoring the band conditions on a large display at a location away from the ham shack by connection to a home LAN network.

The features of the new FTDX10 include:

• 15 separate band pass filters
• Effective QRM rejection with the IF DSP (IF SHIFT/WIDTH, IF NOTCH DNF, DNR, COUNTOUR) High-quality and super stable final amplifier utilizing the new push-pull MOSFET RD70HUP2   Aluminum Heat Sink with 80mm low-noise axial flow cooling fan
• High Speed Automatic Antenna Tuner with a large capacity 100-channel memory
• RF & AF Transmit Monitor
• Microphone Amplifier with Three-stage parametric Equalizer (SSB/ AM mode)
• QMB (Quick Memory Bank)
• Band Stack Function
• Optional speaker – SP-30 designed for the new FTDX10
• Optional roofing filter (300Hz) – XF-130CN available
• The Yaesu FTDX10 is backed by a industry leading 3 year warranty. Country of Origin: Japan
